JZS133R-AEPQF (1991)
Toyota Crown
ILLUST NO. 2 OF 3(9110- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-30710 |
LS130..RHD;GS131,JZS133..D,G,J |
1 | ||
| 67001-30720 |
GS131,JZS133..(GCC,GEN)..Q |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09038 |
GS131,JZS133,LS130,YS132 |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-30790 |
LS130..RHD;GS131,JZS133..D,G,J |
1 | ||
| 67002-30800 |
GS131,JZS133..(GCC,GEN)..Q |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-30410 |
LS130..RHD;GS131,JZS133..D,G,J |
1 | ||
| 67111-30400 |
GS131,JZS133..Q |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-30460 |
GS131,JZS133..Q |
1 | ||
| 67112-30470 |
LS130..RHD;GS131,JZS133..D,G,J |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-30111 |
GS131,JZS133,LS130,YS132..GCC,GEN |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-30111 |
GS131,JZS133,LS130,YS132..GCC,GEN |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-30110 |
GS131,JZS133,LS130,YS132..GEN |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-30110 |
GS131,JZS133,LS130,YS132..GEN |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-30280 |
GS131,JZS133 |
1 | ||
| 67831-30270 |
JZS133..D TAXI SPEC FOR SAUDI |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-30140 |
JZS133..D TAXI SPEC FOR SAUDI |
1 | ||
| 67832-30150 |
GS131,JZS133 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-30230 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-30230 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
GS131,JZS133,LS130,YS132 |
19 | ||
| 67868-22020 |
GS131,JZS133,LS130,YS132 |
19 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
GS131,JZS133,LS130,YS132 |
19 | ||
| 67868-22020 |
GS131,JZS133,LS130,YS132 |
19 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-30030 |
GS131,JZS133,LS130,YS132 |
4 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-30480 |
JZS133..4FC..(GCC,GEN);GS131,JZS133..LHD..5F..(G,J) *TEM,T=4.0,BRONZE |
1 | ||
| 68111-30480 |
GS131..LHD;JZS133..(ROY,SAL)..(GCC,GEN) *TEM,T=4.0,BRONZE |
1 | ||
| 68111-30750 |
GS131,JZS133 *TEM,T=4.0,GREEN |
1 | ||
| 68111-30450 |
GS131..RHD;JZS133,LS130,YS132..GCC,GEN *TT,T=4.0 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-30410 |
JZS133..4FC..(GCC,GEN);GS131,JZS133..LHD..5F..(G,J) *TEM,T=4.0,BRONZE |
1 | ||
| 68112-30380 |
GS131..RHD;JZS133,LS130,YS132..GCC,GEN *TT,T=4.0 |
1 | ||
| 68112-30410 |
GS131..LHD;JZS133..(ROY,SAL)..(GCC,GEN) *TEM,T=4.0,BRONZE |
1 | ||
| 68112-30680 |
GS131,JZS133 *TEM,T=4.0,GREEN |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-30202 |
GS131,JZS133,LS130,YS132..GCC,GEN |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-30092 |
GS131,JZS133,LS130,YS132..GCC,GEN |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-30040 |
GS131,JZS133,LS130,YS132..GCC,GEN |
2 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-50010 |
GS131,JZS133,LS130,YS132 |
2 | ||
| Common parts | ||||
| 90179-06159 | ||||
| 90333-35002 | ||||
| 91651-40612 | ||||
| 93510-55014 | ||||
ILLUST NO. 3 OF 3(9110-9308)
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 3 OF 3(9308-9512)
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 3 OF 3(9512- )
| Part # | Description | Qty | Price |
|---|

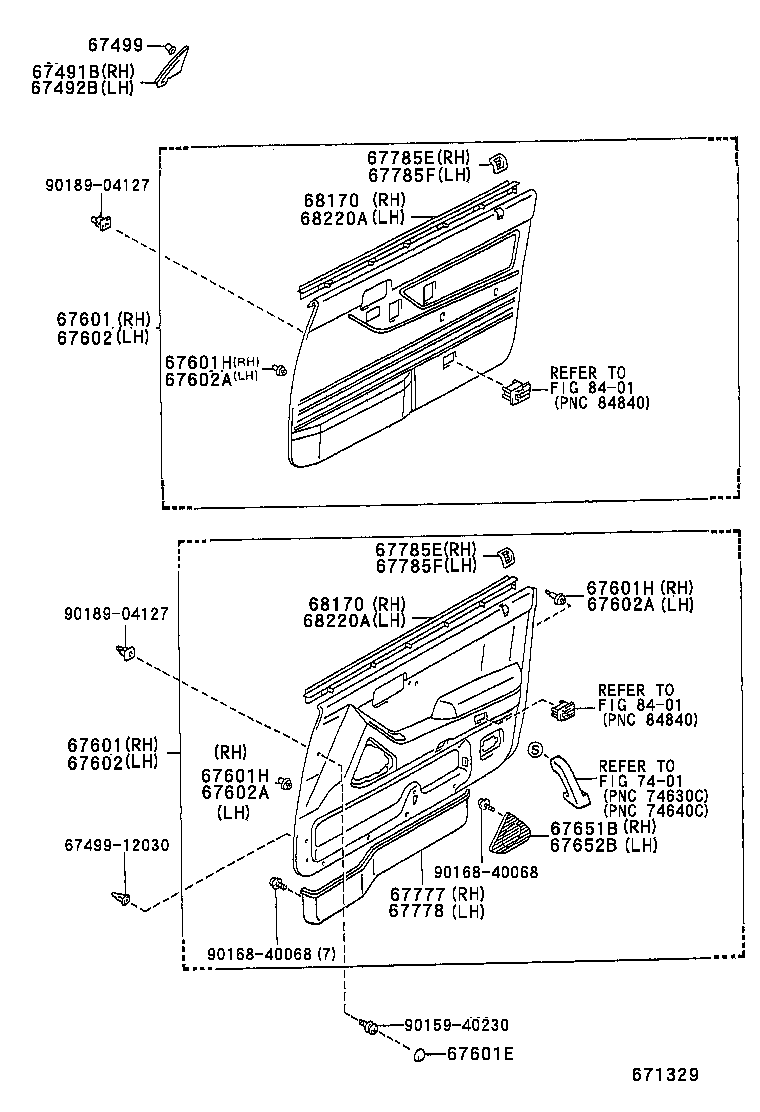

ILLUST NO. 1 OF 3(9110- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491B - GARNISH, FRONT DOOR WINDOW UPPER BRACKET, RH | ||||
| 67491-30080 |
GS131,JZS133,LS130,YS132..GCC,GEN |
1 | ||
| 67492B - GARNISH, FRONT DOOR WINDOW UPPER BRACKET, LH | ||||
| 67492-30080 |
GS131,JZS133,LS130,YS132..GCC,GEN |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67499-30020 |
GS131,JZS133,LS130,YS132 |
4 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-3F150J0 |
JZS133..D TAXI SPEC FOR SAUDI-*104,DK.BLUE,TRIM8# |
1 | ||
| 67650-3A690J1 |
JZS133..D DK.BLUE,TRIM8# |
1 | ||
| 67650-3A760J0 |
JZS133..J DK.BLUE,TRIM8# |
1 | ||
| 67650-3A830J0 |
GS131,JZS133..RHD..GEN..Q DK.BLUE,TRIM8# |
1 | ||
| 67650-3A840E0 |
GS131,JZS133..RHD..G QUARTZ,TRIM4# |
1 | ||
| 67650-3A760E0 |
JZS133..J QUARTZ,TRIM4# |
1 | ||
| 67650-3A840J0 |
GS131,JZS133..RHD..G DK.BLUE,TRIM8# |
1 | ||
| 67610-3F150J1 |
JZS133..D TAXI SPEC FOR SAUDI-*104,DK.BLUE,TRIM8# |
1 | ||
| 67650-3A840J2 |
GS131,JZS133..RHD..G DK.BLUE,TRIM8# |
1 | ||
| 67650-3A830E3 |
GS131,JZS133..RHD..Q QUARTZ,TRIM4# |
1 | ||
| 67650-3A830J3 |
GS131,JZS133..RHD..Q DK.BLUE,TRIM8# |
1 | ||
| 67650-3A830E0 |
GS131,JZS133..RHD..GEN..Q QUARTZ,TRIM4# |
1 | ||
| 67650-3A690J2 |
JZS133..D DK.BLUE,TRIM8# |
1 | ||
| 67650-3A840E2 |
GS131,JZS133..RHD..G QUARTZ,TRIM4# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-3F150J0 |
JZS133..D TAXI SPEC FOR SAUDI-*104,DK.BLUE,TRIM8# |
1 | ||
| 67650-3A690J1 |
JZS133..D DK.BLUE,TRIM8# |
1 | ||
| 67650-3A760J0 |
JZS133..J DK.BLUE,TRIM8# |
1 | ||
| 67650-3A830J0 |
GS131,JZS133..RHD..GEN..Q DK.BLUE,TRIM8# |
1 | ||
| 67650-3A840E0 |
GS131,JZS133..RHD..G QUARTZ,TRIM4# |
1 | ||
| 67650-3A760E0 |
JZS133..J QUARTZ,TRIM4# |
1 | ||
| 67650-3A840J0 |
GS131,JZS133..RHD..G DK.BLUE,TRIM8# |
1 | ||
| 67610-3F150J1 |
JZS133..D TAXI SPEC FOR SAUDI-*104,DK.BLUE,TRIM8# |
1 | ||
| 67650-3A840J2 |
GS131,JZS133..RHD..G DK.BLUE,TRIM8# |
1 | ||
| 67650-3A830E3 |
GS131,JZS133..RHD..Q QUARTZ,TRIM4# |
1 | ||
| 67650-3A830J3 |
GS131,JZS133..RHD..Q DK.BLUE,TRIM8# |
1 | ||
| 67650-3A830E0 |
GS131,JZS133..RHD..GEN..Q QUARTZ,TRIM4# |
1 | ||
| 67650-3A690J2 |
JZS133..D DK.BLUE,TRIM8# |
1 | ||
| 67650-3A840E2 |
GS131,JZS133..RHD..G QUARTZ,TRIM4# |
1 | ||
| 67601E - CAP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90339-10001E1 |
GS131,JZS133..ROY,SAL QUARTZ,TRIM4# |
2 | ||
| 90339-10001W3 |
GS131..RHD;JZS133..4FC;JZS133..5F..(DLX,ROY);GS131,JZS133..LHD..5F..G DARK BLUE,TRIM8# |
2 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-30090 |
GS131,JZS133 YELLOW |
1 | ||
| 67771-12050 |
GS131,JZS133 RED |
10 | ||
| 67771-30100 |
JZS133..D TAXI SPEC FOR SAUDI-*104 |
11 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-30090 |
GS131,JZS133 YELLOW |
1 | ||
| 67771-12050 |
GS131,JZS133 RED |
10 | ||
| 67771-30100 |
JZS133..D TAXI SPEC FOR SAUDI-*104 |
11 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-30090 |
GS131,JZS133 YELLOW |
1 | ||
| 67771-12050 |
GS131,JZS133 RED |
10 | ||
| 67771-30100 |
JZS133..D TAXI SPEC FOR SAUDI-*104 |
11 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-3F510E0 |
JZS133..J QUARTZ,TRIM4# |
1 | ||
| 67620-3F500J1 |
JZS133..D DK.BLUE,TRIM8# |
1 | ||
| 67620-3F510J0 |
JZS133..J DK.BLUE,TRIM8# |
1 | ||
| 67620-3F580J0 |
GS131,JZS133..RHD..GEN..Q DK.BLUE,TRIM8# |
1 | ||
| 67620-3F580E0 |
GS131,JZS133..RHD..GEN..Q QUARTZ,TRIM4# |
1 | ||
| 67620-3F590E0 |
GS131,JZS133..RHD..G QUARTZ,TRIM4# |
1 | ||
| 67620-3F590J0 |
GS131,JZS133..RHD..G DK.BLUE,TRIM8# |
1 | ||
| 67620-3F500J2 |
JZS133..D DK.BLUE,TRIM8# |
1 | ||
| 67620-3F680J0 |
JZS133..D TAXI SPEC FOR SAUDI-*104,DK.BLUE,TRIM8# |
1 | ||
| 67620-3F580J4 |
GS131,JZS133..RHD..Q DK.BLUE,TRIM8# |
1 | ||
| 67620-3F580E4 |
GS131,JZS133..RHD..Q QUARTZ,TRIM4# |
1 | ||
| 67620-3F590J3 |
GS131,JZS133..RHD..G DK.BLUE,TRIM8# |
1 | ||
| 67620-3F590E3 |
GS131,JZS133..RHD..G QUARTZ,TRIM4# |
1 | ||
| 67620-3F680J1 |
JZS133..D TAXI SPEC FOR SAUDI-*104,DK.BLUE,TRIM8# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-3F510E0 |
JZS133..J QUARTZ,TRIM4# |
1 | ||
| 67620-3F500J1 |
JZS133..D DK.BLUE,TRIM8# |
1 | ||
| 67620-3F510J0 |
JZS133..J DK.BLUE,TRIM8# |
1 | ||
| 67620-3F580J0 |
GS131,JZS133..RHD..GEN..Q DK.BLUE,TRIM8# |
1 | ||
| 67620-3F580E0 |
GS131,JZS133..RHD..GEN..Q QUARTZ,TRIM4# |
1 | ||
| 67620-3F590E0 |
GS131,JZS133..RHD..G QUARTZ,TRIM4# |
1 | ||
| 67620-3F590J0 |
GS131,JZS133..RHD..G DK.BLUE,TRIM8# |
1 | ||
| 67620-3F500J2 |
JZS133..D DK.BLUE,TRIM8# |
1 | ||
| 67620-3F680J0 |
JZS133..D TAXI SPEC FOR SAUDI-*104,DK.BLUE,TRIM8# |
1 | ||
| 67620-3F580J4 |
GS131,JZS133..RHD..Q DK.BLUE,TRIM8# |
1 | ||
| 67620-3F580E4 |
GS131,JZS133..RHD..Q QUARTZ,TRIM4# |
1 | ||
| 67620-3F590J3 |
GS131,JZS133..RHD..G DK.BLUE,TRIM8# |
1 | ||
| 67620-3F590E3 |
GS131,JZS133..RHD..G QUARTZ,TRIM4# |
1 | ||
| 67620-3F680J1 |
JZS133..D TAXI SPEC FOR SAUDI-*104,DK.BLUE,TRIM8# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12050 |
GS131,JZS133 RED |
10 | ||
| 67771-30100 |
JZS133..D TAXI SPEC FOR SAUDI-*104 |
11 | ||
| 67771-30090 |
GS131,JZS133 YELLOW |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12050 |
GS131,JZS133 RED |
10 | ||
| 67771-30100 |
JZS133..D TAXI SPEC FOR SAUDI-*104 |
11 | ||
| 67771-30090 |
GS131,JZS133 YELLOW |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12050 |
GS131,JZS133 RED |
10 | ||
| 67771-30100 |
JZS133..D TAXI SPEC FOR SAUDI-*104 |
11 | ||
| 67771-30090 |
GS131,JZS133 YELLOW |
1 | ||
| 67651B - GRILLE, SPEAKER DOOR, RH | ||||
| 67651-30100J0 |
GS131..RHD;JZS133..4FC;JZS133..5F..(DLX,ROY);GS131,JZS133..LHD..5F..G DK.BLUE,TRIM8# |
1 | ||
| 67651-30100E0 |
GS131,JZS133..ROY,SAL QUARTZ,TRIM4# |
1 | ||
| 67652B - GRILLE, SPEAKER DOOR, LH | ||||
| 67652-30080E0 |
GS131,JZS133..ROY,SAL QUARTZ,TRIM4# |
1 | ||
| 67652-30080J0 |
GS131..RHD;JZS133..4FC;JZS133..5F..(DLX,ROY);GS131,JZS133..LHD..5F..G DK.BLUE,TRIM8# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67770-30050J0 |
GS131,JZS133..Q DK.BLUE,TRIM8# |
1 | ||
| 67770-30050E0 |
GS131,JZS133..Q QUARTZ,TRIM4# |
1 | ||
| 67770-30070E0 |
GS131,JZS133..G,J QUARTZ,TRIM4# |
1 | ||
| 67770-30070J0 |
GS131,JZS133..G,J DK.BLUE,TRIM8# |
1 | ||
| 67777-30030J0 |
JZS133..D DK.BLUE,TRIM8# |
1 | ||
| 67770-31010E0 |
GS131,JZS133..Q QUARTZ,TRIM4# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67780-30050E0 |
GS131,JZS133..Q QUARTZ,TRIM4# |
1 | ||
| 67780-30050J0 |
GS131,JZS133..Q DK.BLUE,TRIM8# |
1 | ||
| 67780-30070E0 |
GS131,JZS133..G,J QUARTZ,TRIM4# |
1 | ||
| 67780-31010E0 |
GS131,JZS133..Q QUARTZ,TRIM4# |
1 | ||
| 67778-30020J0 |
JZS133..D DK.BLUE,TRIM8# |
1 | ||
| 67780-30070J0 |
GS131,JZS133..G,J DK.BLUE,TRIM8# |
1 | ||
| 67785E - HOLDER, FRONT DOOR LOCK CONTROL KNOB, RH | ||||
| 67785-30100J0 |
GS131..RHD;JZS133..5F..(DLX,ROY);GS131,JZS133..LHD..5F..G;JZS133,LS130,YS132..4F,4FC,4H DK.BLUE,TRIM8# |
1 | ||
| 67785-30100E0 |
GS131,JZS133..ROY,SAL QUARTZ,TRIM4# |
1 | ||
| 67785E - HOLDER, FRONT DOOR LOCK CONTROL KNOB, RH | ||||
| 67785-30100J0 |
GS131..RHD;JZS133..5F..(DLX,ROY);GS131,JZS133..LHD..5F..G;JZS133,LS130,YS132..4F,4FC,4H DK.BLUE,TRIM8# |
1 | ||
| 67785-30100E0 |
GS131,JZS133..ROY,SAL QUARTZ,TRIM4# |
1 | ||
| 67785F - HOLDER, FRONT DOOR LOCK CONTROL KNOB, LH | ||||
| 67785-30100J0 |
GS131..RHD;JZS133..5F..(DLX,ROY);GS131,JZS133..LHD..5F..G;JZS133,LS130,YS132..4F,4FC,4H DK.BLUE,TRIM8# |
1 | ||
| 67785-30100E0 |
GS131,JZS133..ROY,SAL QUARTZ,TRIM4# |
1 | ||
| 67785F - HOLDER, FRONT DOOR LOCK CONTROL KNOB, LH | ||||
| 67785-30100J0 |
GS131..RHD;JZS133..5F..(DLX,ROY);GS131,JZS133..LHD..5F..G;JZS133,LS130,YS132..4F,4FC,4H DK.BLUE,TRIM8# |
1 | ||
| 67785-30100E0 |
GS131,JZS133..ROY,SAL QUARTZ,TRIM4# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-30210 |
GS131,JZS133,LS130,YS132..GCC,GEN |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-30210 |
GS131,JZS133,LS130,YS132..GCC,GEN |
1 | ||
| 68220A - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH | ||||
| 68220-30160 |
GS131,JZS133,LS130,YS132..GCC,GEN |
1 | ||
| 68220A - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH | ||||
| 68220-30160 |
GS131,JZS133,LS130,YS132..GCC,GEN |
1 | ||
| Common parts | ||||
| 67499-12030 | ||||
| 90159-40230 | ||||
| 90168-40068 | ||||
| 90189-04127 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
