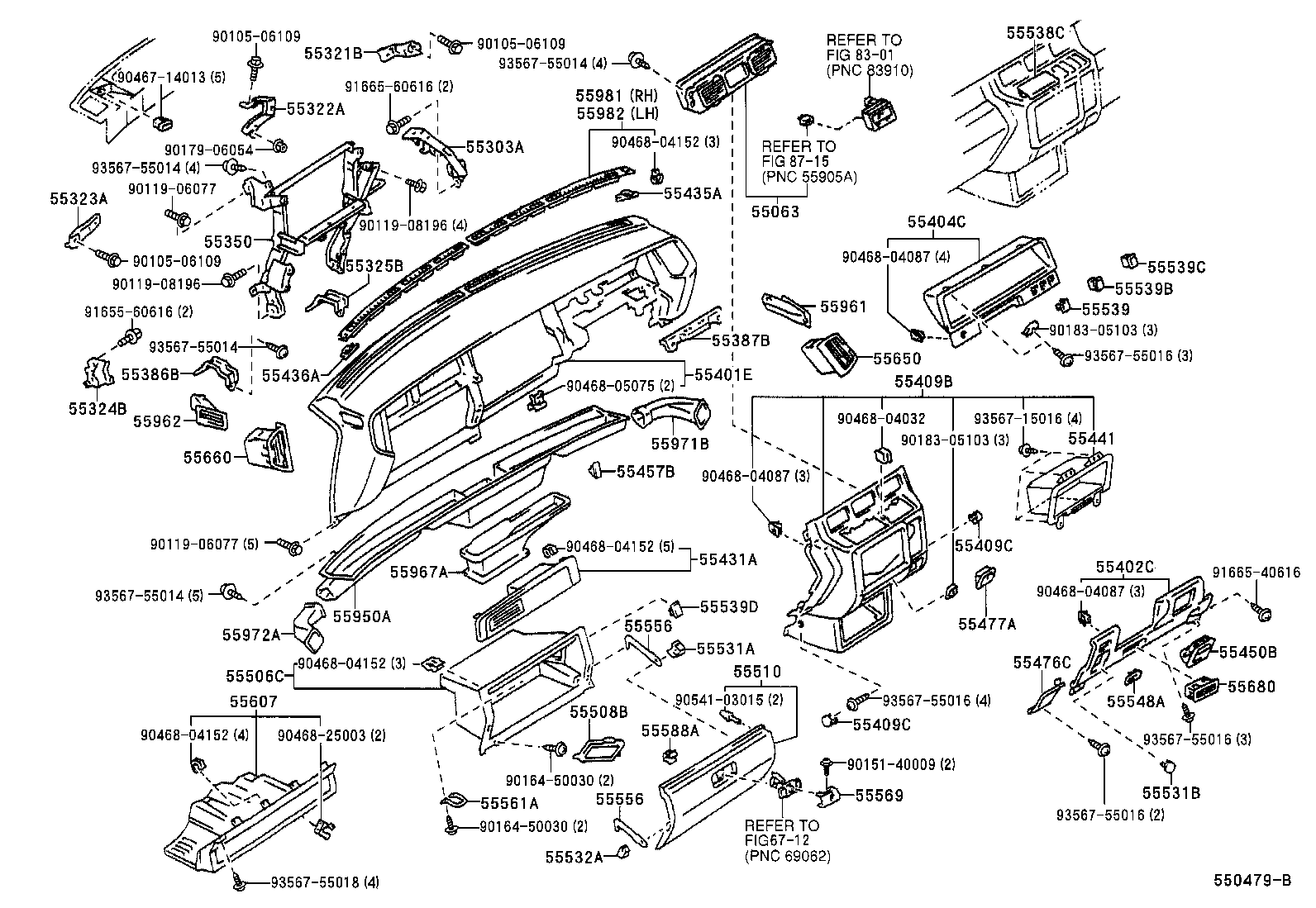

JZS133R-AEPQF (1991)
Toyota Crown
(9110- )RHD..G
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55063 - REGISTER SUB-ASSY, INSTRUMENT, NO.3 | ||||
| 55063-30050 |
GS131,JZS133..RHD..Q |
1 | ||
| 55063-30060 |
GS131,JZS133..RHD..G |
1 | ||
| 55303A - STAY SUB-ASSY, INSTRUMENT PANEL | ||||
| 55303-30080 |
GS131,JZS133,LS130..RHD |
1 | ||
| 55321B - BRACKET, INSTRUMENT PANEL, NO.1 | ||||
| 55321-30050 |
GS131,JZS133,LS130..RHD |
1 | ||
| 55322A - BRACKET, INSTRUMENT PANEL, NO.2 | ||||
| 55322-30010 |
GS131,JZS133,LS130..RHD |
1 | ||
| 55323A - BRACKET, INSTRUMENT PANEL, NO.3 | ||||
| 55323-30010 |
GS131,JZS133,LS130..RHD |
1 | ||
| 55324B - BRACKET, INSTRUMENT PANEL, NO.4 | ||||
| 55324-30010 |
GS131,JZS133,LS130..RHD |
1 | ||
| 55325B - BRACKET, INSTRUMENT PANEL, NO.5 | ||||
| 55325-30050 |
JZS133 |
1 | ||
| 55350 - BRACE ASSY, INSTRUMENT PANEL | ||||
| 55350-30040 |
GS131,JZS133..RHD..G |
1 | ||
| 55350-30020 |
GS131,JZS133..RHD..Q |
1 | ||
| 55386B - BRACKET, COMPUTER MOUNTING, NO.1 | ||||
| 55386-30090 |
JZS133..RHD |
1 | ||
| 55387B - BRACKET, COMPUTER MOUNTING, NO.2 | ||||
| 55387-30060 |
JZS133 |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-30360J0 |
JZS133..RHD..4FC;JZS133..RHD..5F..Q DK.BLUE,TRIM8# |
1 | ||
| 55401-30360E0 |
JZS133..RHD QUARTZ,TRIM4# |
1 | ||
| 55402C - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH | ||||
| 55402-30080J0 |
GS131..RHD;JZS133..RHD..4FC;JZS133..RHD..5F..Q DK.BLUE,TRIM8# |
1 | ||
| 55402-30080E0 |
GS131,JZS133..RHD QUARTZ,TRIM4# |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-30660 |
GS131,JZS133..RHD |
1 | ||
| 55409B - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER CENTER | ||||
| 55409-30090J0 |
GS131,JZS133..RHD..G DK.BLUE,TRIM8# |
1 | ||
| 55409-30080E0 |
GS131,JZS133..RHD..Q QUARTZ,TRIM4# |
1 | ||
| 55409-30080J0 |
GS131,JZS133..RHD..Q DK.BLUE,TRIM8# |
1 | ||
| 55409-30090E0 |
GS131,JZS133..RHD..G QUARTZ,TRIM4# |
1 | ||
| 55409C - PLUG, HOLE | ||||
| 90950-01581E0 |
GS131,JZS133..ROY,SAL QUARTZ,TRIM4# |
1 | ||
| 90950-01581J0 |
GS131..RHD;JZS133..4FC;JZS133..5F..(DLX,ROY);GS131,JZS133,LS130,YS132..LHD..MTM..(B,G) DK.BLUE,TRIM8# |
1 | ||
| 55409C - PLUG, HOLE | ||||
| 90950-01581E0 |
GS131,JZS133..ROY,SAL QUARTZ,TRIM4# |
1 | ||
| 90950-01581J0 |
GS131..RHD;JZS133..4FC;JZS133..5F..(DLX,ROY);GS131,JZS133,LS130,YS132..LHD..MTM..(B,G) DK.BLUE,TRIM8# |
1 | ||
| 55431A - PANEL, INSTRUMENT PANEL FINISH | ||||
| 55044-30210 |
GS131,JZS133..RHD |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-30130 |
GS131..LHD..Q;GS131,JZS133,LS130,YS132..B,D,G |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-30070 |
JZS133..D,G,J;GS131,LS130,YS132 |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55440-30030E0 |
GS131,JZS133..RHD..GEN..Q QUARTZ,TRIM4# |
1 | ||
| 55440-30030J0 |
GS131,JZS133..RHD..GEN..Q DK.BLUE,TRIM8# |
1 | ||
| 55440-30030E0 |
GS131,JZS133..RHD..4FC..GEN..Q QUARTZ,TRIM4# |
1 | ||
| 55440-30030J0 |
GS131,JZS133..RHD..4FC..GEN..Q DK.BLUE,TRIM8# |
1 | ||
| 55440-30050J0 |
JZS133..RHD..4FC..GEN..Q SINGAPOLE SPEC OR HONG KONG SPEC OR THAILAND SPEC,DK.BLUE,TRIM8# |
1 | ||
| 55440-30050E0 |
JZS133..RHD..4FC..GEN..Q SINGAPOLE SPEC OR HONG KONG SPEC OR THAILAND SPEC,QUARTZ,TRIM4# |
1 | ||
| 55441-30180J0 |
GS131,JZS133..RHD..G DK. BLUE,TRIM8# |
1 | ||
| 55441-30180E0 |
GS131,JZS133..RHD..G QUARTZ,TRIM4# |
1 | ||
| 55450B - BOX ASSY, COIN | ||||
| 55450-30030J0 |
GS131..RHD;JZS133..RHD..4FC;JZS133..RHD..5F..Q DK.BLUE,TRIM8# |
1 | ||
| 55450-30030E0 |
GS131,JZS133..RHD QUARTZ,TRIM4# |
1 | ||
| 55457B - SPACER, INSTRUMENT PANEL SAFETY PAD | ||||
| 55457-30070 |
JZS133..RHD;GS131,LS130,YS132 |
1 | ||
| 55476C - GARNISH, INSTRUMENT PANEL FINISH PLATE | ||||
| 55476-30140E0 |
JZS133..RHD..G QUARTZ,TRIM4# |
1 | ||
| 55476-30140J0 |
JZS133..RHD..G DK.BLUE,TRIM8# |
1 | ||
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-30050 |
LS130..LHD;GS131,JZS133,YS132 |
1 | ||
| 55506C - COMPARTMENT SUB-ASSY, GLOVE | ||||
| 55506-30090 |
GS131,JZS133,LS130..RHD |
1 | ||
| 55508B - MIRROR SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55508-30040 |
JZS133..RHD..GEN..Q |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-30230E0 |
GS131,JZS133..RHD QUARTZ,TRIM4# |
1 | ||
| 55550-30230J0 |
GS131,LS130..RHD;JZS133..RHD..4FC;JZS133..RHD..5F..Q DK.BLUE,TRIM8# |
1 | ||
| 55531A - PANEL, GLOVE COMPARTMENT, NO.1 | ||||
| 55531-30160 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 55531B - COVER, CHOKE KNOB HOLE | ||||
| 55531-30130E0 |
JZS133 QUARTZ,TRIM4# |
1 | ||
| 55531-30130J0 |
JZS133..Q DK.BLUE,TRIM8# |
1 | ||
| 55532A - PANEL, GLOVE COMPARTMENT, NO.2 | ||||
| 55532-30050 |
GS131,JZS133,LS130..RHD |
1 | ||
| 55538C - COVER, COOLER SWITCH HOLE | ||||
| 55538-30100 |
GS131,JZS133,YS132..B,D,G |
1 | ||
| 55538-30100 |
LS130..LHD;GS131,JZS133,YS132..B,D,G,J |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-30090 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 55539-30090 |
YS132;GS131,JZS133,LS130..4FC,4H,5F |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-30090 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-30090 |
JZS133..GCC,GEN;GS131,LS130,YS132..MTM |
1 | ||
| 55539-30090 |
JZS133..G |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55546-30030 |
GS131,JZS133,LS130..RHD |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-30080E0 |
GS131,JZS133..RHD QUARTZ,TRIM4# |
1 | ||
| 55548-30080J0 |
GS131..RHD;JZS133..RHD..4FC;JZS133..RHD..5F..Q DK.BLUE,TRIM8# |
1 | ||
| 55556 - ARM, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55556-30050 |
GS131,JZS133,LS130,YS132 |
2 | ||
| 55556 - ARM, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55556-30050 |
GS131,JZS133,LS130,YS132 |
2 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-30030 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-30010J0 |
GS131..RHD;JZS133..5F..(DLX,ROY);GS131,JZS133..LHD..5F..G;JZS133,LS130,YS132..4F,4FC,4H DK.BLUE,TRIM8# |
1 | ||
| 55569-30010E0 |
GS131,JZS133..ROY,SAL DK.ROSE,TRIM4# |
1 | ||
| 55588A - HOLDER, GLOVE COMPARTMENT DOOR MIRROR, RH | ||||
| 55588-30030 |
GS131,JZS133,LS130,YS132 |
2 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-30120J0 |
GS131,LS130..RHD;JZS133..RHD..4FC;JZS133..RHD..5F..Q DK.BLUE,TRIM8# |
1 | ||
| 55607-30120E0 |
GS131,JZS133..RHD QUARTZ,TRIM4# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-30171J0 |
GS131..RHD;GS131,JZS133..LHD..5F;JZS133,LS130,YS132..4F,4FC,4H DK.BLUE,TRIM8# |
1 | ||
| 55650-30171E0 |
GS131,JZS133..G,Q DK.ROSE,TRIM4# |
1 | ||
| 55650-30170J0 |
GS131,JZS133,LS130,YS132 DK.BLUE,TRIM8# |
1 | ||
| 55650-30170E0 |
GS131,JZS133..ROY,SAL QUARTZ,TRIM4# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-30260E0 |
GS131,JZS133..ROY,SAL QUARTZ,TRIM4# |
1 | ||
| 55660-30261E0 |
GS131,JZS133..G,Q DK.ROSE,TRIM4# |
1 | ||
| 55660-30260J0 |
GS131,JZS133,LS130,YS132 DK.BLUE,TRIM8# |
1 | ||
| 55660-30261J0 |
GS131..RHD;GS131,JZS133..LHD..5F;JZS133,LS130,YS132..4F,4FC,4H DK.BLUE,TRIM8# |
1 | ||
| 55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55680-14030C0 |
GS131..RHD;JZS133..5F..ROY;JZS133..4FC..(GCC,GEN);GS131,JZS133..LHD..5F..G BLACK,TRIM4#,8# |
1 | ||
| 55680-14030C0 |
GS131;JZS133..G BLACK,TRIM4# |
1 | ||
| 55680-14030C0 |
JZS133,LS130,YS132..B,D BLACK,TRIM8# |
1 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55951-30100 |
GS131,JZS133,LS130..RHD |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-30060E0 |
GS131,JZS133..ROY,SAL QUARTZ,TRIM4# |
1 | ||
| 55961-30060J0 |
GS131..RHD;JZS133..5F..(DLX,ROY);GS131,JZS133..LHD..5F..G;JZS133,LS130,YS132..4F,4FC,4H DK.BLUE,TRIM8# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-30040E0 |
GS131,JZS133..ROY,SAL QUARTZ,TRIM4# |
1 | ||
| 55962-30040J0 |
GS131..RHD;JZS133..5F..(DLX,ROY);GS131,JZS133..LHD..5F..G;JZS133,LS130,YS132..4F,4FC,4H DK.BLUE,TRIM8# |
1 | ||
| 55967A - NOZZLE, DEFROSTER, LOWER | ||||
| 55967-30010 |
GS131,JZS133,LS130..RHD |
1 | ||
| 55971B - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-30050 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 55972A - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-30050 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-30020J0 |
GS131..RHD;JZS133..5F..(DLX,ROY);GS131,JZS133..LHD..5F..G;JZS133,LS130,YS132..4F,4FC,4H DK.BLUE,TRIM8# |
1 | ||
| 55981-30020E0 |
GS131,JZS133..ROY,SAL QUARTZ,TRIM4# |
1 | ||
| 55982 - GARNISH, DEFROSTER NOZZLE, NO.2 | ||||
| 55982-30020J0 |
GS131..RHD;JZS133..5F..(DLX,ROY);GS131,JZS133..LHD..5F..G;JZS133,LS130,YS132..4F,4FC,4H DK.BLUE,TRIM8# |
1 | ||
| 55982-30020E0 |
GS131,JZS133..ROY,SAL QUARTZ,TRIM4# |
1 | ||
| Common parts | ||||
| 90105-06109 | ||||
| 90119-06077 | ||||
| 90119-08196 | ||||
| 90151-40009 | ||||
| 90164-50030 | ||||
| 90179-06054 | ||||
| 90183-05103 | ||||
| 90467-14013 | ||||
| 90468-04032 | ||||
| 90468-04087 | ||||
| 90468-04152 | ||||
| 90468-05075 | ||||
| 90468-25003 | ||||
| 90541-03015 | ||||
| 91655-60616 | ||||
| 91665-40616 | ||||
| 91665-60616 | ||||
| 93567-15016 | ||||
| 93567-55014 | ||||
| 93567-55016 | ||||
| 93567-55018 | ||||
| Linked diagrams | ||||
| 6712 | ||||
| 8301 | ||||
| 8715 | ||||
(9110- )RHD..Q
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55063 - REGISTER SUB-ASSY, INSTRUMENT, NO.3 | ||||
| 55063-30050 |
GS131,JZS133..RHD..Q |
1 | ||
| 55063-30060 |
GS131,JZS133..RHD..G |
1 | ||
| 55303A - STAY SUB-ASSY, INSTRUMENT PANEL | ||||
| 55303-30080 |
GS131,JZS133,LS130..RHD |
1 | ||
| 55321B - BRACKET, INSTRUMENT PANEL, NO.1 | ||||
| 55321-30050 |
GS131,JZS133,LS130..RHD |
1 | ||
| 55322A - BRACKET, INSTRUMENT PANEL, NO.2 | ||||
| 55322-30010 |
GS131,JZS133,LS130..RHD |
1 | ||
| 55323A - BRACKET, INSTRUMENT PANEL, NO.3 | ||||
| 55323-30010 |
GS131,JZS133,LS130..RHD |
1 | ||
| 55324B - BRACKET, INSTRUMENT PANEL, NO.4 | ||||
| 55324-30010 |
GS131,JZS133,LS130..RHD |
1 | ||
| 55325B - BRACKET, INSTRUMENT PANEL, NO.5 | ||||
| 55325-30050 |
JZS133 |
1 | ||
| 55350 - BRACE ASSY, INSTRUMENT PANEL | ||||
| 55350-30040 |
GS131,JZS133..RHD..G |
1 | ||
| 55350-30020 |
GS131,JZS133..RHD..Q |
1 | ||
| 55386B - BRACKET, COMPUTER MOUNTING, NO.1 | ||||
| 55386-30090 |
JZS133..RHD |
1 | ||
| 55387B - BRACKET, COMPUTER MOUNTING, NO.2 | ||||
| 55387-30060 |
JZS133 |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-30360J0 |
JZS133..RHD..4FC;JZS133..RHD..5F..Q DK.BLUE,TRIM8# |
1 | ||
| 55401-30360E0 |
JZS133..RHD QUARTZ,TRIM4# |
1 | ||
| 55402C - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH | ||||
| 55402-30080J0 |
GS131..RHD;JZS133..RHD..4FC;JZS133..RHD..5F..Q DK.BLUE,TRIM8# |
1 | ||
| 55402-30080E0 |
GS131,JZS133..RHD QUARTZ,TRIM4# |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-30660 |
GS131,JZS133..RHD |
1 | ||
| 55409B - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER CENTER | ||||
| 55409-30090J0 |
GS131,JZS133..RHD..G DK.BLUE,TRIM8# |
1 | ||
| 55409-30080E0 |
GS131,JZS133..RHD..Q QUARTZ,TRIM4# |
1 | ||
| 55409-30080J0 |
GS131,JZS133..RHD..Q DK.BLUE,TRIM8# |
1 | ||
| 55409-30090E0 |
GS131,JZS133..RHD..G QUARTZ,TRIM4# |
1 | ||
| 55409C - PLUG, HOLE | ||||
| 90950-01581E0 |
GS131,JZS133..ROY,SAL QUARTZ,TRIM4# |
1 | ||
| 90950-01581J0 |
GS131..RHD;JZS133..4FC;JZS133..5F..(DLX,ROY);GS131,JZS133,LS130,YS132..LHD..MTM..(B,G) DK.BLUE,TRIM8# |
1 | ||
| 55409C - PLUG, HOLE | ||||
| 90950-01581E0 |
GS131,JZS133..ROY,SAL QUARTZ,TRIM4# |
1 | ||
| 90950-01581J0 |
GS131..RHD;JZS133..4FC;JZS133..5F..(DLX,ROY);GS131,JZS133,LS130,YS132..LHD..MTM..(B,G) DK.BLUE,TRIM8# |
1 | ||
| 55431A - PANEL, INSTRUMENT PANEL FINISH | ||||
| 55044-30210 |
GS131,JZS133..RHD |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-30070 |
JZS133..D,G,J;GS131,LS130,YS132 |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55440-30030E0 |
GS131,JZS133..RHD..GEN..Q QUARTZ,TRIM4# |
1 | ||
| 55440-30030J0 |
GS131,JZS133..RHD..GEN..Q DK.BLUE,TRIM8# |
1 | ||
| 55440-30030E0 |
GS131,JZS133..RHD..4FC..GEN..Q QUARTZ,TRIM4# |
1 | ||
| 55440-30030J0 |
GS131,JZS133..RHD..4FC..GEN..Q DK.BLUE,TRIM8# |
1 | ||
| 55440-30050J0 |
JZS133..RHD..4FC..GEN..Q SINGAPOLE SPEC OR HONG KONG SPEC OR THAILAND SPEC,DK.BLUE,TRIM8# |
1 | ||
| 55440-30050E0 |
JZS133..RHD..4FC..GEN..Q SINGAPOLE SPEC OR HONG KONG SPEC OR THAILAND SPEC,QUARTZ,TRIM4# |
1 | ||
| 55441-30180J0 |
GS131,JZS133..RHD..G DK. BLUE,TRIM8# |
1 | ||
| 55441-30180E0 |
GS131,JZS133..RHD..G QUARTZ,TRIM4# |
1 | ||
| 55450B - BOX ASSY, COIN | ||||
| 55450-30030J0 |
GS131..RHD;JZS133..RHD..4FC;JZS133..RHD..5F..Q DK.BLUE,TRIM8# |
1 | ||
| 55450-30030E0 |
GS131,JZS133..RHD QUARTZ,TRIM4# |
1 | ||
| 55457B - SPACER, INSTRUMENT PANEL SAFETY PAD | ||||
| 55457-30070 |
JZS133..RHD;GS131,LS130,YS132 |
1 | ||
| 55476C - GARNISH, INSTRUMENT PANEL FINISH PLATE | ||||
| 55476-30140E0 |
JZS133..RHD..G QUARTZ,TRIM4# |
1 | ||
| 55476-30140J0 |
JZS133..RHD..G DK.BLUE,TRIM8# |
1 | ||
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-30050 |
LS130..LHD;GS131,JZS133,YS132 |
1 | ||
| 55506C - COMPARTMENT SUB-ASSY, GLOVE | ||||
| 55506-30090 |
GS131,JZS133,LS130..RHD |
1 | ||
| 55508B - MIRROR SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55508-30040 |
JZS133..RHD..GEN..Q |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-30230E0 |
GS131,JZS133..RHD QUARTZ,TRIM4# |
1 | ||
| 55550-30230J0 |
GS131,LS130..RHD;JZS133..RHD..4FC;JZS133..RHD..5F..Q DK.BLUE,TRIM8# |
1 | ||
| 55531A - PANEL, GLOVE COMPARTMENT, NO.1 | ||||
| 55531-30160 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 55531B - COVER, CHOKE KNOB HOLE | ||||
| 55531-30130E0 |
JZS133 QUARTZ,TRIM4# |
1 | ||
| 55531-30130J0 |
JZS133..Q DK.BLUE,TRIM8# |
1 | ||
| 55532A - PANEL, GLOVE COMPARTMENT, NO.2 | ||||
| 55532-30050 |
GS131,JZS133,LS130..RHD |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-30090 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 55539-30090 |
YS132;GS131,JZS133,LS130..4FC,4H,5F |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-30090 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-30090 |
JZS133..GCC,GEN;GS131,LS130,YS132..MTM |
1 | ||
| 55539-30090 |
JZS133..G |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55546-30030 |
GS131,JZS133,LS130..RHD |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-30080E0 |
GS131,JZS133..RHD QUARTZ,TRIM4# |
1 | ||
| 55548-30080J0 |
GS131..RHD;JZS133..RHD..4FC;JZS133..RHD..5F..Q DK.BLUE,TRIM8# |
1 | ||
| 55556 - ARM, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55556-30050 |
GS131,JZS133,LS130,YS132 |
2 | ||
| 55556 - ARM, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55556-30050 |
GS131,JZS133,LS130,YS132 |
2 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-30030 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-30010J0 |
GS131..RHD;JZS133..5F..(DLX,ROY);GS131,JZS133..LHD..5F..G;JZS133,LS130,YS132..4F,4FC,4H DK.BLUE,TRIM8# |
1 | ||
| 55569-30010E0 |
GS131,JZS133..ROY,SAL DK.ROSE,TRIM4# |
1 | ||
| 55588A - HOLDER, GLOVE COMPARTMENT DOOR MIRROR, RH | ||||
| 55588-30030 |
GS131,JZS133,LS130,YS132 |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-30120 |
GS131,JZS133..RHD..Q |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-30120J0 |
GS131,LS130..RHD;JZS133..RHD..4FC;JZS133..RHD..5F..Q DK.BLUE,TRIM8# |
1 | ||
| 55607-30120E0 |
GS131,JZS133..RHD QUARTZ,TRIM4# |
1 | ||
| 55647 - CLAMP, INSTRUMENT PANEL UNDER COVER | ||||
| 55647-22010 |
GS131,JZS133..ROY |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-30171J0 |
GS131..RHD;GS131,JZS133..LHD..5F;JZS133,LS130,YS132..4F,4FC,4H DK.BLUE,TRIM8# |
1 | ||
| 55650-30171E0 |
GS131,JZS133..G,Q DK.ROSE,TRIM4# |
1 | ||
| 55650-30170J0 |
GS131,JZS133,LS130,YS132 DK.BLUE,TRIM8# |
1 | ||
| 55650-30170E0 |
GS131,JZS133..ROY,SAL QUARTZ,TRIM4# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-30260E0 |
GS131,JZS133..ROY,SAL QUARTZ,TRIM4# |
1 | ||
| 55660-30261E0 |
GS131,JZS133..G,Q DK.ROSE,TRIM4# |
1 | ||
| 55660-30260J0 |
GS131,JZS133,LS130,YS132 DK.BLUE,TRIM8# |
1 | ||
| 55660-30261J0 |
GS131..RHD;GS131,JZS133..LHD..5F;JZS133,LS130,YS132..4F,4FC,4H DK.BLUE,TRIM8# |
1 | ||
| 55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55680-14030C0 |
GS131..RHD;JZS133..5F..ROY;JZS133..4FC..(GCC,GEN);GS131,JZS133..LHD..5F..G BLACK,TRIM4#,8# |
1 | ||
| 55680-14030C0 |
GS131;JZS133..G BLACK,TRIM4# |
1 | ||
| 55680-14030C0 |
JZS133,LS130,YS132..B,D BLACK,TRIM8# |
1 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55951-30100 |
GS131,JZS133,LS130..RHD |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-30060E0 |
GS131,JZS133..ROY,SAL QUARTZ,TRIM4# |
1 | ||
| 55961-30060J0 |
GS131..RHD;JZS133..5F..(DLX,ROY);GS131,JZS133..LHD..5F..G;JZS133,LS130,YS132..4F,4FC,4H DK.BLUE,TRIM8# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-30040E0 |
GS131,JZS133..ROY,SAL QUARTZ,TRIM4# |
1 | ||
| 55962-30040J0 |
GS131..RHD;JZS133..5F..(DLX,ROY);GS131,JZS133..LHD..5F..G;JZS133,LS130,YS132..4F,4FC,4H DK.BLUE,TRIM8# |
1 | ||
| 55967A - NOZZLE, DEFROSTER, LOWER | ||||
| 55967-30010 |
GS131,JZS133,LS130..RHD |
1 | ||
| 55971B - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-30050 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 55972A - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-30050 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-30020J0 |
GS131..RHD;JZS133..5F..(DLX,ROY);GS131,JZS133..LHD..5F..G;JZS133,LS130,YS132..4F,4FC,4H DK.BLUE,TRIM8# |
1 | ||
| 55981-30020E0 |
GS131,JZS133..ROY,SAL QUARTZ,TRIM4# |
1 | ||
| 55982 - GARNISH, DEFROSTER NOZZLE, NO.2 | ||||
| 55982-30020J0 |
GS131..RHD;JZS133..5F..(DLX,ROY);GS131,JZS133..LHD..5F..G;JZS133,LS130,YS132..4F,4FC,4H DK.BLUE,TRIM8# |
1 | ||
| 55982-30020E0 |
GS131,JZS133..ROY,SAL QUARTZ,TRIM4# |
1 | ||
| Common parts | ||||
| 90105-06109 | ||||
| 90119-06077 | ||||
| 90119-08196 | ||||
| 90151-40009 | ||||
| 90164-50030 | ||||
| 90179-06054 | ||||
| 90183-05103 | ||||
| 90467-14013 | ||||
| 90468-04032 | ||||
| 90468-04087 | ||||
| 90468-04152 | ||||
| 90468-05047 | ||||
| 90468-05075 | ||||
| 90468-25003 | ||||
| 90541-03015 | ||||
| 91655-60616 | ||||
| 91665-40616 | ||||
| 93567-55014 | ||||
| 93567-55016 | ||||
| 93567-55018 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
