JZS133R-AEPQF (1991)
Toyota Crown
Production
Oct 1991
-
Apr 2001
Engine
2JZGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9110- )

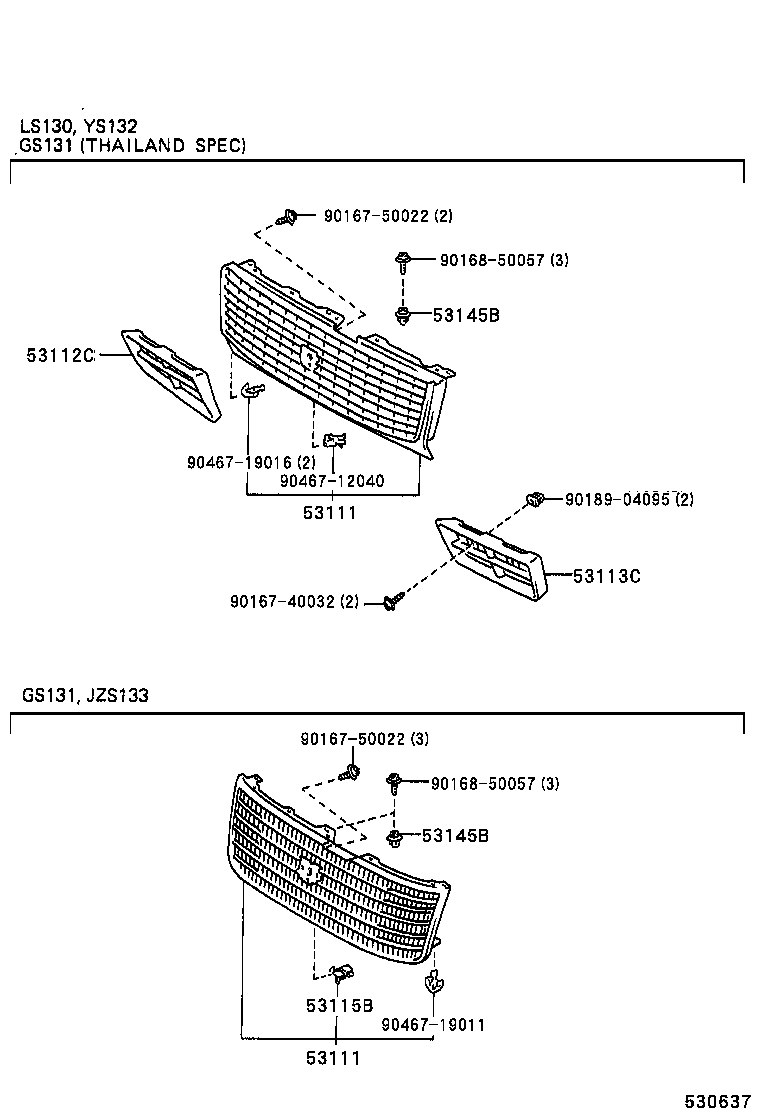

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53111 - GRILLE, RADIATOR | ||||
| 53111-30640 |
JZS133..D |
1 | ||
| 53111-30630 |
GS131,JZS133..G,Q |
1 | ||
| 53111-30600 |
JZS133..D |
1 | ||
| 53111-30590 |
GS131,JZS133..ROY,SAL |
1 | ||
| 53111-30710 |
GS131,JZS133 |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53111-30640 |
JZS133..D |
1 | ||
| 53111-30630 |
GS131,JZS133..G,Q |
1 | ||
| 53111-30600 |
JZS133..D |
1 | ||
| 53111-30590 |
GS131,JZS133..ROY,SAL |
1 | ||
| 53111-30710 |
GS131,JZS133 |
1 | ||
| 53115B - BRACKET, RADIATOR GRILLE | ||||
| 53115-16010 |
GS131,JZS133 |
1 | ||
| 53145B - CLIP, RADIATOR GRILLE GARNISH | ||||
| 53145-16010 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 53145B - CLIP, RADIATOR GRILLE GARNISH | ||||
| 53145-16010 |
GS131,JZS133,LS130,YS132 |
1 | ||
| Common parts | ||||
| 90167-40032 | ||||
| 90167-50022 | ||||
| 90168-50057 | ||||
| 90189-04095 | ||||
| 90467-12040 | ||||
| 90467-19011 | ||||
| 90467-19016 | ||||
