Toyota Crown JZS133 ALTERNATOR - JDM Part Detective

JZS133R-AEPQF (1991)

Toyota Crown

Production Oct 1991 - Apr 2001

Engine 2JZGE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9308- )2JZGE

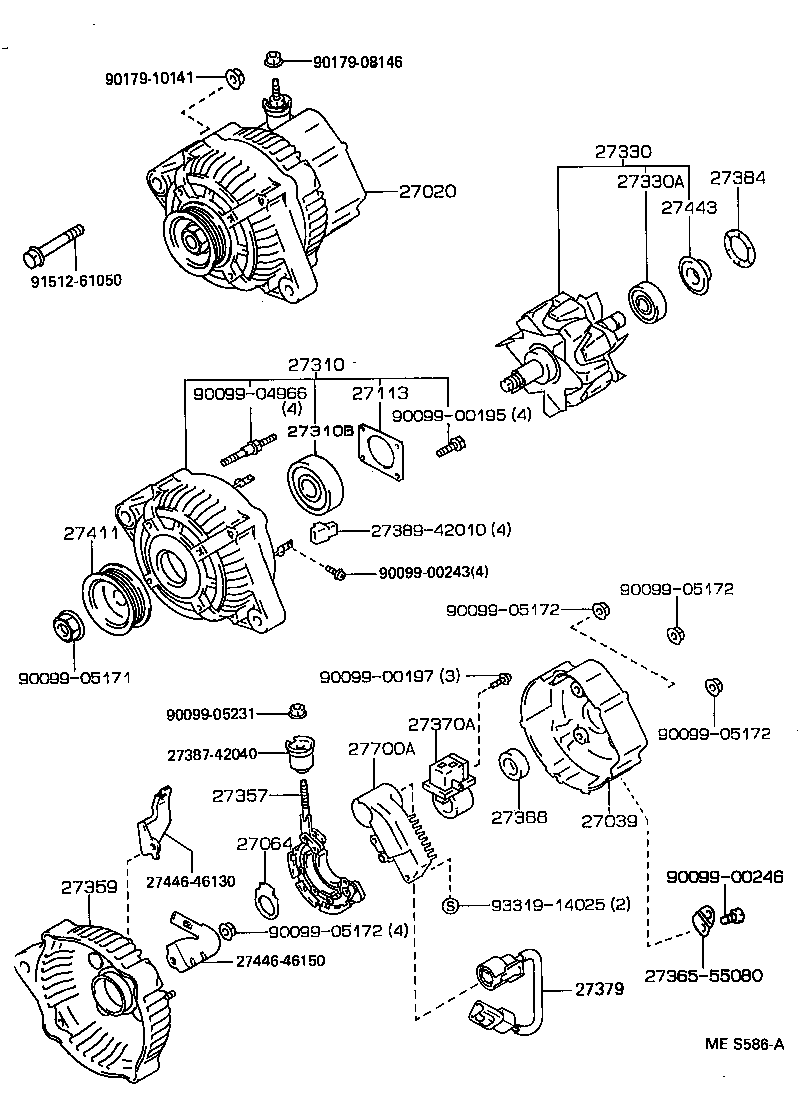

Click highlighted areas on diagram

12V 80A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-46090	2JZGE..JZS133 12V 80A	10/1991 - 08/1993	1
27060-46140	2JZGE..JZS133 12V 80A	08/1993 - 12/1995	1
27060-46060	2JZGE..JZS133 12V 80A	12/1995 - 04/2001	1
27039 - COVER, ALTERNATOR REAR END
27039-46190	2JZGE..JZS133	08/1993 - 04/2001	1
27039-16310	2JZGE..JZS133	10/1991 - 08/1993	1
27064 - SEAL, ALTERNATOR PLATE
27064-42010	2JZGE..JZS133	10/1991 - 04/2001	1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-42010	2JZGE..JZS133	10/1991 - 04/2001	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-46080	2JZGE..JZS133	10/1991 - 12/1995	1
27310-46290	2JZGE..JZS133	12/1995 - 04/2001	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10192	2JZGE..JZS133	10/1991 - 04/2001	1
27330 - ROTOR ASSY, ALTERNATOR
27330-46290	2JZGE..JZS133	12/1995 - 04/2001	1
27330-46080	2JZGE..JZS133	10/1991 - 12/1995	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10194	2JZGE..JZS133	10/1991 - 04/2001	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-46290	2JZGE..JZS133	12/1995 - 04/2001	1
27357-46130	2JZGE..JZS133	10/1991 - 12/1995	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-46080	2JZGE..JZS133	10/1991 - 04/1995	1
27359-46290	2JZGE..JZS133	04/1995 - 04/2001	1
27365 - PLATE, TERMINAL
27365-55080	2JZGE..JZS133	08/1993 - 04/2001	1
27370A - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060	2JZGE..JZS133	10/1991 - 04/2001	1
27384 - WASHER
27384-50030	2JZGE..JZS133	10/1991 - 04/2001	1
27388 - COVER, ALTERNATOR BRUSH
27388-42010	2JZGE..JZS133	10/1991 - 04/2001	1
27411 - PULLEY, ALTERNATOR
27411-46080	2JZGE..JZS133	10/1991 - 04/2001	1
27443 - COVER, ALTERNATOR BEARING
27443-63020	1GFE,2JZGE,2L,4Y..GS131,JZS133,LS130,YS132	10/1991 - 04/2001	1
27446 - CLIP, ALTERNATOR CORD
27446-46130	2JZGE..JZS133	08/1993 - 04/2001	1
27700A - REGULATOR ASSY, GENERATOR
27700-46030	2JZGE..JZS133	10/1991 - 08/1993	1
27700-46060	2JZGE..JZS133	08/1993 - 04/2001	1
Common parts
27387-42040
27389-42010
90099-00195
90099-00197
90099-00243
90099-00246
90099-04966
90099-05171
90099-05172
90099-05231
90179-08146
90179-10141
91512-61050
93319-14025
Linked diagrams
1105

(9110-9308)2JZGE

Click highlighted areas on diagram

12V 80A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-46090	2JZGE..JZS133 12V 80A	10/1991 - 08/1993	1
27060-46140	2JZGE..JZS133 12V 80A	08/1993 - 12/1995	1
27060-46060	2JZGE..JZS133 12V 80A	12/1995 - 04/2001	1
27039 - COVER, ALTERNATOR REAR END
27039-46190	2JZGE..JZS133	08/1993 - 04/2001	1
27039-16310	2JZGE..JZS133	10/1991 - 08/1993	1
27064 - SEAL, ALTERNATOR PLATE
27064-42010	2JZGE..JZS133	10/1991 - 04/2001	1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-42010	2JZGE..JZS133	10/1991 - 04/2001	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-46080	2JZGE..JZS133	10/1991 - 12/1995	1
27310-46290	2JZGE..JZS133	12/1995 - 04/2001	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10192	2JZGE..JZS133	10/1991 - 04/2001	1
27330 - ROTOR ASSY, ALTERNATOR
27330-46290	2JZGE..JZS133	12/1995 - 04/2001	1
27330-46080	2JZGE..JZS133	10/1991 - 12/1995	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10194	2JZGE..JZS133	10/1991 - 04/2001	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-46290	2JZGE..JZS133	12/1995 - 04/2001	1
27357-46130	2JZGE..JZS133	10/1991 - 12/1995	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-46080	2JZGE..JZS133	10/1991 - 04/1995	1
27359-46290	2JZGE..JZS133	04/1995 - 04/2001	1
27370A - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060	2JZGE..JZS133	10/1991 - 04/2001	1
27379 - WIRE, ALTERNATOR LEAD
27037-46150	2JZGE..JZS133	10/1991 - 08/1993	1
27384 - WASHER
27384-50030	2JZGE..JZS133	10/1991 - 04/2001	1
27388 - COVER, ALTERNATOR BRUSH
27388-42010	2JZGE..JZS133	10/1991 - 04/2001	1
27411 - PULLEY, ALTERNATOR
27411-46080	2JZGE..JZS133	10/1991 - 04/2001	1
27443 - COVER, ALTERNATOR BEARING
27443-63020	1GFE,2JZGE,2L,4Y..GS131,JZS133,LS130,YS132	10/1991 - 04/2001	1
27700A - REGULATOR ASSY, GENERATOR
27700-46030	2JZGE..JZS133	10/1991 - 08/1993	1
27700-46060	2JZGE..JZS133	08/1993 - 04/2001	1
Common parts
27365-55080
27387-42040
27389-42010
27446-46130
27446-46150
90099-00195
90099-00197
90099-00243
90099-00246
90099-04966
90099-05171
90099-05172
90099-05231
90179-08146
90179-10141
91512-61050
93319-14025

JZS133R-AEPQF (1991)

(9308- )2JZGE

(9110-9308)2JZGE
