Toyota Crown JZS133 WATER PUMP - JDM Part Detective

JZS133R-AEPQF (1991)

Toyota Crown

Production Oct 1991 - Apr 2001

Engine 2JZGE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9906- )

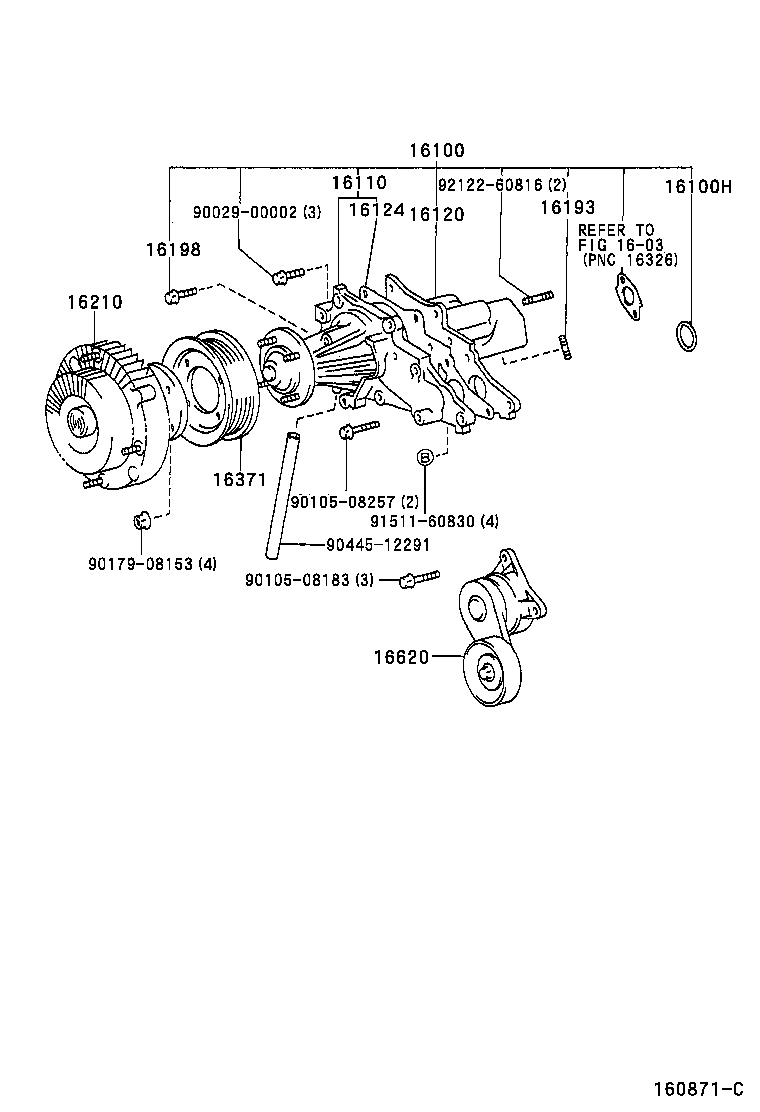

Click highlighted areas on diagram

Part #	Description	Period	Qty
16100 - PUMP ASSY, ENGINE WATER
16100-49835	2JZGE..JZS133	10/1991 - 06/1995	1
16100-49866	2JZGE..JZS133	09/1999 - 06/2000	1
16100-49867	2JZGE..JZS133	06/2000 - 04/2001	1
16100-49836	2JZGE..JZS133	06/1995 - 06/1999	1
16100-49865	2JZGE..JZS133	06/1999 - 09/1999	1
16100H - RING, O(FOR WATER PUMP)
96761-24040	2JZGE..JZS133	10/1991 - 04/2001	1
16110 - PUMP ASSY, WATER, W/O COUPLING
16110-49145	2JZGE..JZS133	06/1999 - 09/1999	1
16110-49146	2JZGE..JZS133	09/1999 - 06/2000	1
16110-49147	2JZGE..JZS133	06/2000 - 04/2001	1
16110-49115	2JZGE..JZS133	10/1991 - 06/1995	1
16110-49116	2JZGE..JZS133	06/1995 - 06/1999	1
16120 - COVER ASSY, WATER PUMP
16120-46080	2JZGE..JZS133	09/1999 - 06/2000	1
16102-46072	2JZGE..JZS133	06/2000 - 04/2001	1
16124 - GASKET, WATER PUMP COVER
16124-46041	2JZGE..JZS133	08/1996 - 06/1999	1
16124-46040	2JZGE..JZS133	10/1991 - 08/1996	1
16124-46070	2JZGE..JZS133	06/1999 - 04/2001	1
16193 - BOLT, STUD(FOR WATER PUMP COVER)
16193-46040	2JZGE..JZS133	10/1991 - 06/1999	5
16193-46030	2JZGE..JZS133	06/1999 - 04/2001	2
16198 - BOLT, STUD(FOR WATER PUMP PULLEY SEAT)
16198-46031	2JZGE..JZS133	06/1999 - 04/2001	1
16210 - COUPLING ASSY, FLUID
16210-46051	2JZGE..JZS133	06/1999 - 09/1999	1
16210-46041	2JZGE..JZS133	08/1997 - 06/1999	1
16210-46052	2JZGE..JZS133	09/1999 - 04/2001	1
16210-46040	2JZGE..JZS133	10/1991 - 08/1997	1
16371 - PULLEY, FAN
16371-46020	2JZGE..JZS133	10/1991 - 09/1996	1
16371-46030	2JZGE..JZS133	06/1999 - 04/2001	1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-0W021	2JZGE..JZS133..4FC..(EECC,GEN);2JZGE..JZS133..4FC..GCC..(G,J)	07/1993 - 05/1995	1
16620-0W025	2JZGE..JZS133	06/2000 - 04/2001	1
16620-0W020	2JZGE..JZS133..4FC	11/1992 - 07/1993	1
16620-46031	2JZGE..JZS133	10/1991 - 11/1991	1
16620-46031	2JZGE..JZS133..4FC	11/1991 - 09/1992	1
16620-0W022	2JZGE..JZS133..4FC..GEN;2JZGE..JZS133..4FC..GCC..G	05/1995 - 08/1995	1
16620-46032	2JZGE..JZS133..4FC	09/1992 - 11/1992	1
16620-0W023	2JZGE..JZS133..RHD..5F;2JZGE..JZS133..4FC..GEN;2JZGE..JZS133..4FC..GCC..G	08/1995 - 10/1996	1
16620-0W024	2JZGE..JZS133	10/1996 - 06/2000	1
Common parts
90029-00002
90105-08183
90105-08257
90179-08153
90445-12291
91511-60830
92122-60816
Linked diagrams
1603

(9110-9906)2JZGE

Click highlighted areas on diagram

Part #	Description	Period	Qty
16100 - PUMP ASSY, ENGINE WATER
16100-49835	2JZGE..JZS133	10/1991 - 06/1995	1
16100-49866	2JZGE..JZS133	09/1999 - 06/2000	1
16100-49867	2JZGE..JZS133	06/2000 - 04/2001	1
16100-49836	2JZGE..JZS133	06/1995 - 06/1999	1
16100-49865	2JZGE..JZS133	06/1999 - 09/1999	1
16100H - RING, O(FOR WATER PUMP)
96761-24040	2JZGE..JZS133	10/1991 - 04/2001	1
16110 - PUMP ASSY, WATER, W/O COUPLING
16110-49145	2JZGE..JZS133	06/1999 - 09/1999	1
16110-49146	2JZGE..JZS133	09/1999 - 06/2000	1
16110-49147	2JZGE..JZS133	06/2000 - 04/2001	1
16110-49115	2JZGE..JZS133	10/1991 - 06/1995	1
16110-49116	2JZGE..JZS133	06/1995 - 06/1999	1
16124 - GASKET, WATER PUMP COVER
16124-46041	2JZGE..JZS133	08/1996 - 06/1999	1
16124-46040	2JZGE..JZS133	10/1991 - 08/1996	1
16124-46070	2JZGE..JZS133	06/1999 - 04/2001	1
16193 - BOLT, STUD(FOR WATER PUMP COVER)
16193-46040	2JZGE..JZS133	10/1991 - 06/1999	5
16193-46030	2JZGE..JZS133	06/1999 - 04/2001	2
16210 - COUPLING ASSY, FLUID
16210-46051	2JZGE..JZS133	06/1999 - 09/1999	1
16210-46041	2JZGE..JZS133	08/1997 - 06/1999	1
16210-46052	2JZGE..JZS133	09/1999 - 04/2001	1
16210-46040	2JZGE..JZS133	10/1991 - 08/1997	1
16371 - PULLEY, FAN
16371-46020	2JZGE..JZS133	10/1991 - 09/1996	1
16371-46030	2JZGE..JZS133	06/1999 - 04/2001	1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-0W021	2JZGE..JZS133..4FC..(EECC,GEN);2JZGE..JZS133..4FC..GCC..(G,J)	07/1993 - 05/1995	1
16620-0W025	2JZGE..JZS133	06/2000 - 04/2001	1
16620-0W020	2JZGE..JZS133..4FC	11/1992 - 07/1993	1
16620-46031	2JZGE..JZS133	10/1991 - 11/1991	1
16620-46031	2JZGE..JZS133..4FC	11/1991 - 09/1992	1
16620-0W022	2JZGE..JZS133..4FC..GEN;2JZGE..JZS133..4FC..GCC..G	05/1995 - 08/1995	1
16620-46032	2JZGE..JZS133..4FC	09/1992 - 11/1992	1
16620-0W023	2JZGE..JZS133..RHD..5F;2JZGE..JZS133..4FC..GEN;2JZGE..JZS133..4FC..GCC..G	08/1995 - 10/1996	1
16620-0W024	2JZGE..JZS133	10/1996 - 06/2000	1
Common parts
90105-08183
90105-08257
90179-08201
90445-12291
91511-60830
92122-60816
Linked diagrams
1603
