Toyota Crown JZS133 OIL FILTER - JDM Part Detective

JZS133R-AEPQF (1991)

Toyota Crown

Production Oct 1991 - Apr 2001

Engine 2JZGE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9308- )2JZGE

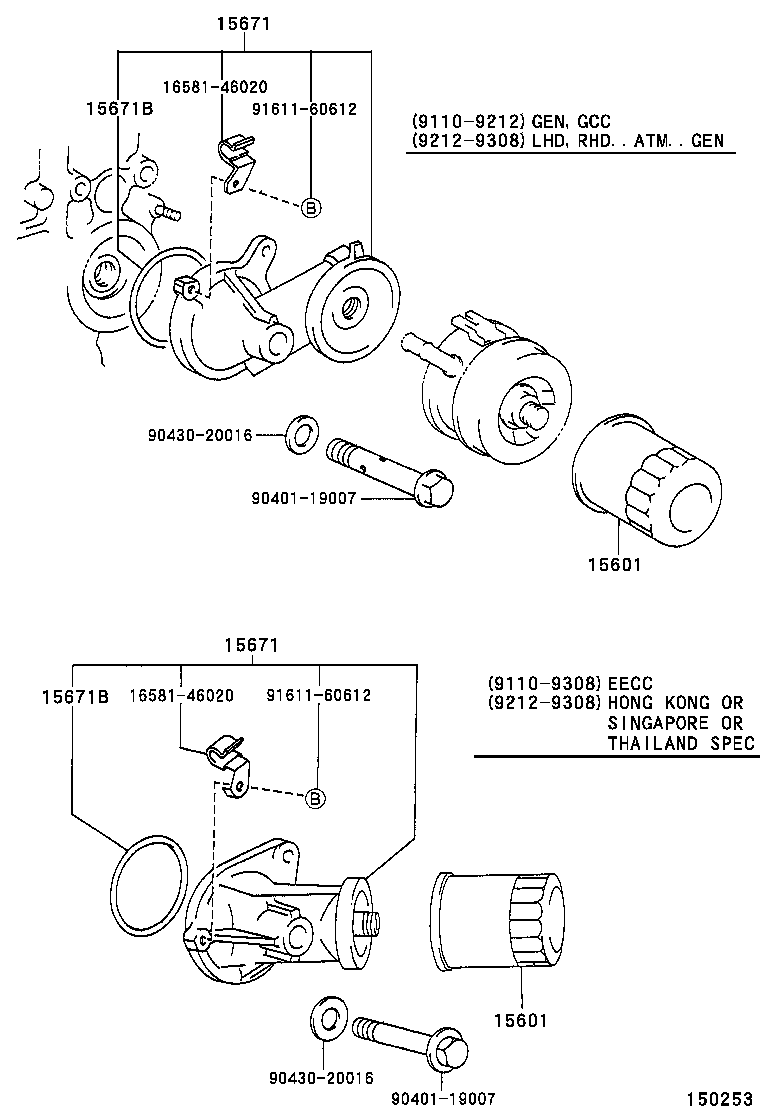

Click highlighted areas on diagram

Part #	Description	Period	Qty
15601 - FILTER SUB-ASSY, OIL
90915-03002	2JZGE..JZS133	10/1991 - 04/1992	1
90915-20003	2JZGE..JZS133	08/1999 - 04/2001	1
90915-20001	2JZGE..JZS133	04/1992 - 08/1999	1
15671 - BRACKET, OIL FILTER
15670-46030	2JZGE..JZS133..GCC,GEN	10/1991 - 12/1992	1
15670-46010	2JZGE..JZS133..RHD..4FC..GEN..Q SINGAPORE OR HONG KONG OR THAILAND SPEC	12/1992 - 08/1993	1
15670-46062	2JZGE..JZS133	01/1995 - 05/1995	1
15670-46110	2JZGE..JZS133	05/1995 - 12/1995	1
15670-46070	2JZGE..JZS133..RHD..Q SINGAPORE OR HONG KONG OR THAILAND SPEC	05/1995 - 12/1995	1
15670-46110	2JZGE..JZS133	08/1993 - 01/1995	1
15670-46070	2JZGE..JZS133..RHD..Q SINGAPORE OR HONG KONG OR THAILAND SPEC	08/1993 - 01/1995	1
15670-46030	2JZGE..JZS133..LHD..5F;2JZGE..JZS133..4FC..(GCC,GEN)	12/1992 - 08/1993	1
15670-46030	2JZGE..JZS133	12/1995 - 04/2001	1
15670-46052	2JZGE..JZS133..RHD..Q SINGAPORE OR HONG KONG OR THAILAND SPEC	01/1995 - 05/1995	1
15671B - GASKET, OIL FILTER BRACKET
15188-46010	2JZGE..JZS133..LHD..5F;2JZGE..JZS133..4FC..(GCC,GEN)	12/1992 - 05/1993	1
90301-68005	2JZGE..JZS133	04/1999 - 04/2001	1
90301-68004	2JZGE..JZS133	05/1993 - 04/1999	1
90301-68004	2JZGE..JZS133..RHD..Q SINGAPORE OR HONGKONG OR THAILAND SPEC	10/1993 - 05/1995	2
15188-46010	2JZGE..JZS133..GCC,GEN	10/1991 - 12/1992	1
90301-68004	2JZGE..JZS133..RHD..4FC..GEN..Q SINGAPORE OR HONGKONG OR THAILAND SPEC	12/1992 - 05/1993	1
Common parts
16581-46020
90119-06726
90401-19007
90430-06006
90430-20016
90929-01347
91611-60612
91611-60616

(9110-9308)2JZGE

Click highlighted areas on diagram

Part #	Description	Period	Qty
15601 - FILTER SUB-ASSY, OIL
90915-03002	2JZGE..JZS133	10/1991 - 04/1992	1
90915-20003	2JZGE..JZS133	08/1999 - 04/2001	1
90915-20001	2JZGE..JZS133	04/1992 - 08/1999	1
15601 - FILTER SUB-ASSY, OIL
90915-03002	2JZGE..JZS133	10/1991 - 04/1992	1
90915-20003	2JZGE..JZS133	08/1999 - 04/2001	1
90915-20001	2JZGE..JZS133	04/1992 - 08/1999	1
15671 - BRACKET, OIL FILTER
15670-46030	2JZGE..JZS133..GCC,GEN	10/1991 - 12/1992	1
15670-46010	2JZGE..JZS133..RHD..4FC..GEN..Q SINGAPORE OR HONG KONG OR THAILAND SPEC	12/1992 - 08/1993	1
15670-46062	2JZGE..JZS133	01/1995 - 05/1995	1
15670-46110	2JZGE..JZS133	05/1995 - 12/1995	1
15670-46070	2JZGE..JZS133..RHD..Q SINGAPORE OR HONG KONG OR THAILAND SPEC	05/1995 - 12/1995	1
15670-46110	2JZGE..JZS133	08/1993 - 01/1995	1
15670-46070	2JZGE..JZS133..RHD..Q SINGAPORE OR HONG KONG OR THAILAND SPEC	08/1993 - 01/1995	1
15670-46030	2JZGE..JZS133..LHD..5F;2JZGE..JZS133..4FC..(GCC,GEN)	12/1992 - 08/1993	1
15670-46030	2JZGE..JZS133	12/1995 - 04/2001	1
15670-46052	2JZGE..JZS133..RHD..Q SINGAPORE OR HONG KONG OR THAILAND SPEC	01/1995 - 05/1995	1
15671 - BRACKET, OIL FILTER
15670-46030	2JZGE..JZS133..GCC,GEN	10/1991 - 12/1992	1
15670-46010	2JZGE..JZS133..RHD..4FC..GEN..Q SINGAPORE OR HONG KONG OR THAILAND SPEC	12/1992 - 08/1993	1
15670-46062	2JZGE..JZS133	01/1995 - 05/1995	1
15670-46110	2JZGE..JZS133	05/1995 - 12/1995	1
15670-46070	2JZGE..JZS133..RHD..Q SINGAPORE OR HONG KONG OR THAILAND SPEC	05/1995 - 12/1995	1
15670-46110	2JZGE..JZS133	08/1993 - 01/1995	1
15670-46070	2JZGE..JZS133..RHD..Q SINGAPORE OR HONG KONG OR THAILAND SPEC	08/1993 - 01/1995	1
15670-46030	2JZGE..JZS133..LHD..5F;2JZGE..JZS133..4FC..(GCC,GEN)	12/1992 - 08/1993	1
15670-46030	2JZGE..JZS133	12/1995 - 04/2001	1
15670-46052	2JZGE..JZS133..RHD..Q SINGAPORE OR HONG KONG OR THAILAND SPEC	01/1995 - 05/1995	1
15671B - GASKET, OIL FILTER BRACKET
15188-46010	2JZGE..JZS133..LHD..5F;2JZGE..JZS133..4FC..(GCC,GEN)	12/1992 - 05/1993	1
90301-68005	2JZGE..JZS133	04/1999 - 04/2001	1
90301-68004	2JZGE..JZS133	05/1993 - 04/1999	1
90301-68004	2JZGE..JZS133..RHD..Q SINGAPORE OR HONGKONG OR THAILAND SPEC	10/1993 - 05/1995	2
15188-46010	2JZGE..JZS133..GCC,GEN	10/1991 - 12/1992	1
90301-68004	2JZGE..JZS133..RHD..4FC..GEN..Q SINGAPORE OR HONGKONG OR THAILAND SPEC	12/1992 - 05/1993	1
15671B - GASKET, OIL FILTER BRACKET
15188-46010	2JZGE..JZS133..LHD..5F;2JZGE..JZS133..4FC..(GCC,GEN)	12/1992 - 05/1993	1
90301-68005	2JZGE..JZS133	04/1999 - 04/2001	1
90301-68004	2JZGE..JZS133	05/1993 - 04/1999	1
90301-68004	2JZGE..JZS133..RHD..Q SINGAPORE OR HONGKONG OR THAILAND SPEC	10/1993 - 05/1995	2
15188-46010	2JZGE..JZS133..GCC,GEN	10/1991 - 12/1992	1
90301-68004	2JZGE..JZS133..RHD..4FC..GEN..Q SINGAPORE OR HONGKONG OR THAILAND SPEC	12/1992 - 05/1993	1
Common parts
16581-46020
90401-19007
90430-20016
91611-60612

JZS133R-AEPQF (1991)

(9308- )2JZGE

(9110-9308)2JZGE
