JZS133L-AEPGFV (1991)

Toyota Crown

Production Oct 1991 - Dec 1995
Engine 2JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 4(9110- )

Click highlighted areas on diagram

FRONT AIR DUCTS

diagram 55087 55843A 55844 55845A 55848B 87201 87211 87211A 87211B 87212 87212C 87213 88539Q 88650B 88897P 9015960195 9016860014 9016860014 9016860014 9017906239 9018305094 9018305094 9018306090 9048031007 9095001022 9095001588 9356755014 9356755014 9356755014 9356755016
Part # Description Qty Price
55087 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.4
55087-30080

GS131,JZS133,LS130,YS132..LHD

 1
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-30170

GS131,JZS133,LS130,YS132..LHD

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55085-30090

GS131,JZS133,LS130,YS132..LHD

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-30130

GS131,JZS133,LS130,YS132..LHD

 1
55848B - DUCT, HEATER TO REGISTER, NO.6
55848-30080

GS131,JZS133,LS130,YS132..LHD

 1
87211 - DUCT, AIR, NO.1
87201-30500

GS131,JZS133,LS130,YS132..LHD

 1
87211A - DUCT, AIR, NO.2
87211-30180

JZS133,LS130,YS132..LHD

 1
87212C - DUCT, AIR, RR
87212-30330

LS130;JZS133..GCC;GS131,YS132..LHD

 1
Common parts
90159-60195
90168-60014
90179-06239
90183-05094
90183-06090
90480-31007
90950-01022
90950-01588
93567-55014
93567-55016

ILLUST NO. 3 OF 4(9110- )

Click highlighted areas on diagram

AUTO AIR CONDITIONER SENSOR & SW.

diagram 88600B 886253A010 886253A020 886253A030 88625C 88625C 88625C 8889430570 8889930690 8889930700
Part # Description Qty Price
88600B - PANEL ASSY, CONTROL
88600-30810

GS131..G;JZS133..RHD..G;JZS133..RHD..5F;JZS133..LHD..(ROY,SAL)

 1
88625C - THERMISTOR, COOLER
88625-30780

JZS133..J

NO.1

 1
88625-30730

JZS133..J

NO.2

 1
88625C - THERMISTOR, COOLER
88625-30780

JZS133..J

NO.1

 1
88625-30730

JZS133..J

NO.2

 1
88625C - THERMISTOR, COOLER
88625-30780

JZS133..J

NO.1

 1
88625-30730

JZS133..J

NO.2

 1
Common parts
88625-3A010
88625-3A020
88625-3A030
88894-30570
88899-30690
88899-30700

ILLUST NO. 4 OF 4(9110- )ROY,SAL

Click highlighted areas on diagram

REAR AIR DUCTS

diagram 62985 62985 88576C 88576C
Part # Description Qty Price
62985 - REGISTER, ROOF SIDE AIR OUTLET
62985-30060E0

GS131..RHD;JZS133..G,J;GS131..LHD..G

W(REAR AIR CONDITIONER),QUARTZ,TRIM4#

 1
62985-30060J1

GS131;JZS133..G,J

LI.BLUE,TRIM8#

 2
62985-30060J1

GS131;JZS133..G,J

W(REAR AIR CONDITIONER),LI.BLUE,TRIM8#

 1
62985-30060E0

GS131..RHD;JZS133..G,J;GS131..LHD..G

QUARTZ,TRIM4#

 2
62985 - REGISTER, ROOF SIDE AIR OUTLET
62985-30060E0

GS131..RHD;JZS133..G,J;GS131..LHD..G

W(REAR AIR CONDITIONER),QUARTZ,TRIM4#

 1
62985-30060J1

GS131;JZS133..G,J

LI.BLUE,TRIM8#

 2
62985-30060J1

GS131;JZS133..G,J

W(REAR AIR CONDITIONER),LI.BLUE,TRIM8#

 1
62985-30060E0

GS131..RHD;JZS133..G,J;GS131..LHD..G

QUARTZ,TRIM4#

 2
88576C - DUCT, COOLER AIR, NO.1
88576-3A250

GS131,JZS133..ROY,SAL

RH

 1
88576-3A260

GS131,JZS133..ROY,SAL

LH

 1
88576C - DUCT, COOLER AIR, NO.1
88576-3A250

GS131,JZS133..ROY,SAL

RH

 1
88576-3A260

GS131,JZS133..ROY,SAL

LH

 1

ILLUST NO. 1 OF 4(9110- )LS130..LHD ; (9110- )GS131,JZS133,YS132

Click highlighted areas on diagram

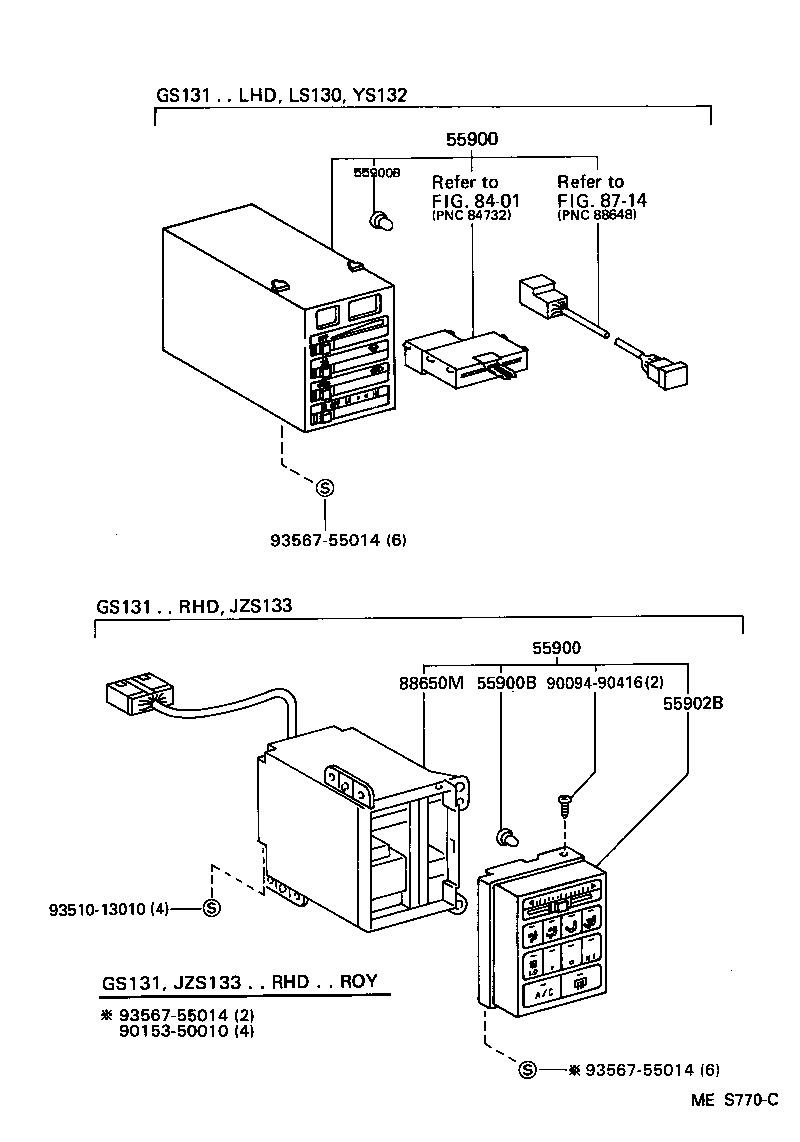

PUSH TYPE HEATER CONTROL PANEL

diagram 55900 55900 55900B 55900B 55902B 8401 8714 88650M 9009490416 9015350010 9351013010 9356755014 9356755014 9356755014
Part # Description Qty Price
55900 - CONTROL ASSY, AIR CONDITIONER
55900-30790

JZS133..LHD..G

 1
55900-30780

JZS133..D

 1
55900 - CONTROL ASSY, AIR CONDITIONER
55900-30790

JZS133..LHD..G

 1
55900-30780

JZS133..D

 1
55900B - BULB, AIR CONDITIONER CONTROL
84999-60400

JZS133..RHD..G;JZS133..LHD..(ROY,SAL)

14V1.1W,W(CAP)

 1
84999-60390

GS131,JZS133..RHD..G;JZS133..LHD..(ROY,SAL)

14V1.4W,W(CAP)

 2
84999-60400

GS131..RHD;JZS133..ROY,SAL

14V1.1W,W(CAP)

 1
84999-60380

JZS133..D;GS131,LS130,YS132..LHD

14V1.4W,CAP&SOCKET

 2
84999-60390

JZS133..RHD..G;JZS133..LHD..(ROY,SAL)

14V1.4W,W(CAP)

 2
84999-60400

GS131,JZS133..RHD..G;JZS133..LHD..(ROY,SAL)

14V1.1W,W(CAP)

 1
55900B - BULB, AIR CONDITIONER CONTROL
84999-60400

JZS133..RHD..G;JZS133..LHD..(ROY,SAL)

14V1.1W,W(CAP)

 1
84999-60390

GS131,JZS133..RHD..G;JZS133..LHD..(ROY,SAL)

14V1.4W,W(CAP)

 2
84999-60400

GS131..RHD;JZS133..ROY,SAL

14V1.1W,W(CAP)

 1
84999-60380

JZS133..D;GS131,LS130,YS132..LHD

14V1.4W,CAP&SOCKET

 2
84999-60390

JZS133..RHD..G;JZS133..LHD..(ROY,SAL)

14V1.4W,W(CAP)

 2
84999-60400

GS131,JZS133..RHD..G;JZS133..LHD..(ROY,SAL)

14V1.1W,W(CAP)

 1
Common parts
90094-90416
90153-50010
93510-13010
93567-55014
Linked diagrams
8401
8714
