JZS133L-AEMQF (1993)

Toyota Crown

Production Aug 1993 - Dec 1995
Engine 2JZGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9110-9512)JZS133..LHD

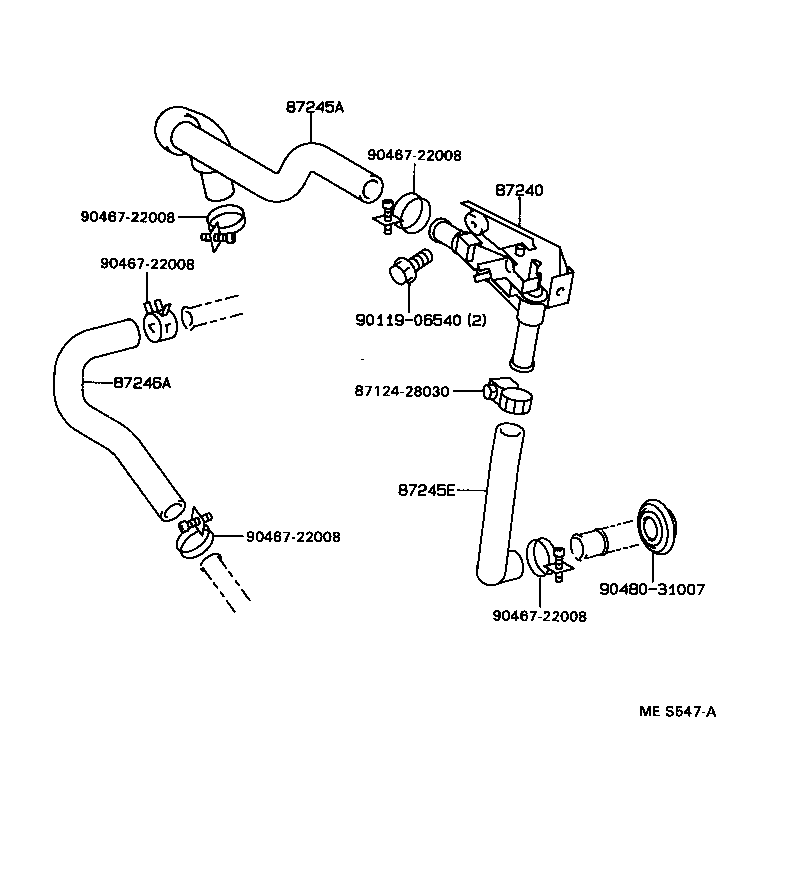

Click highlighted areas on diagram

diagram 8712428030 87240 87245A 87245E 87246A 9011906540 9046722008 9046722008 9046722008 9046722008 9046722008 9048031007
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-30550

JZS133,YS132

 1
87245A - HOSE, HEATER WATER, INLET A
87245-3A750

JZS133..LHD

 1
87245E - HOSE, HEATER WATER, INLET E
87245-3F010

JZS133,YS132..LHD

 1
87245-3A340

JZS133,LS130,YS132..LHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3A540

JZS133..LHD

 1
Common parts
87124-28030
90119-06540
90467-22008
90480-31007
