JZS133L-AEMQF (1993)

Toyota Crown

Production Aug 1993 - Dec 1995
Engine 2JZGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

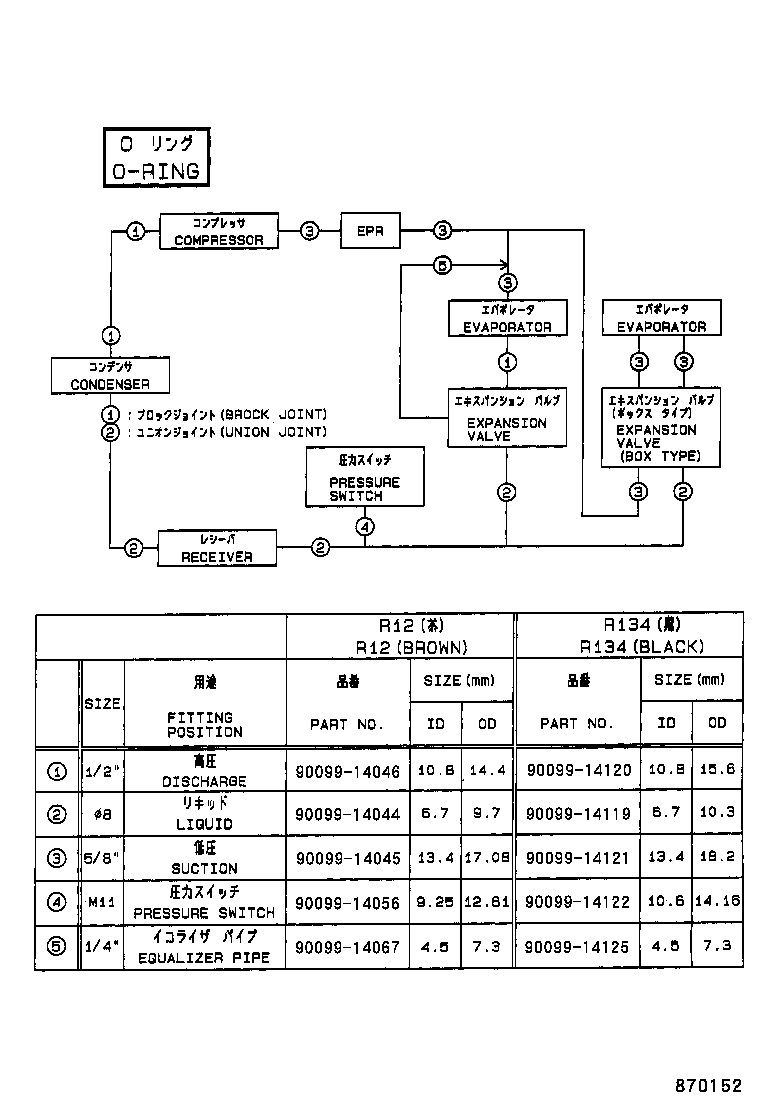

ILLUST NO. 3 OF 3(9110- )

Click highlighted areas on diagram

O-RING

diagram 9009914044 9009914045 9009914046 9009914056 9009914067 9009914119 9009914120 9009914121 9009914122 9009914125
Part # Description Qty Price
Common parts
90099-14044
90099-14045
90099-14046
90099-14056
90099-14067
90099-14119
90099-14120
90099-14121
90099-14122
90099-14125

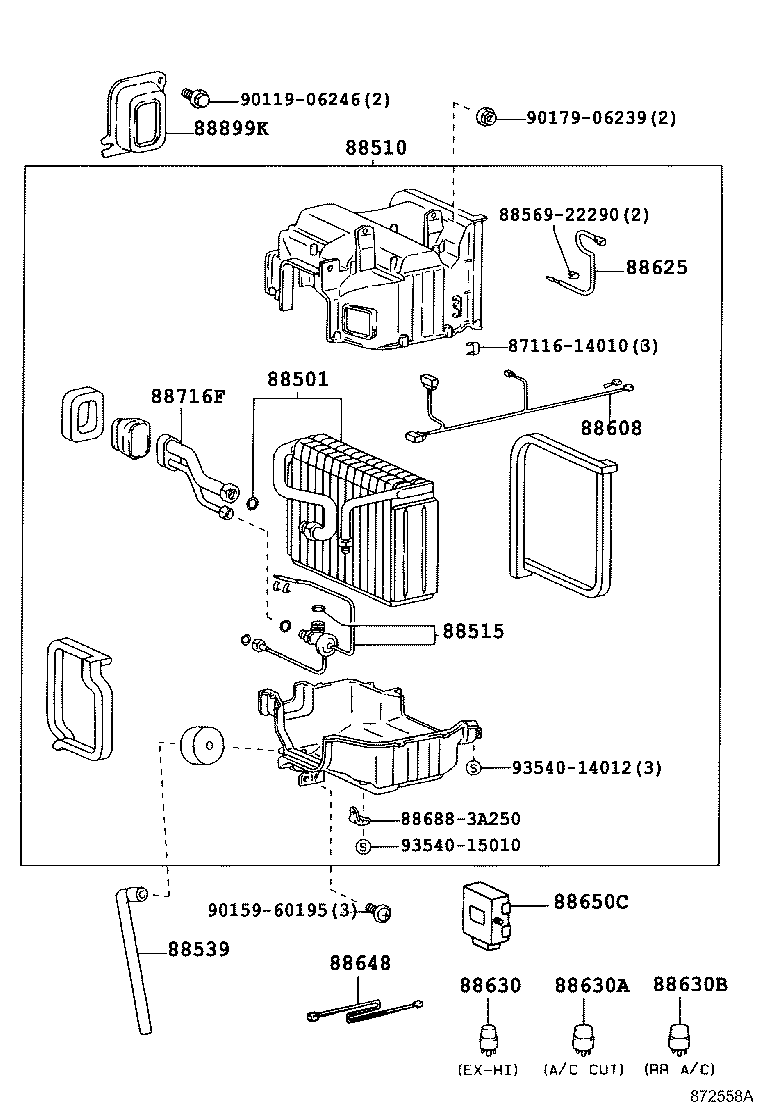

ILLUST NO. 1 OF 3(9110- )GCC,GEN

Click highlighted areas on diagram

FRONT

diagram 8711614010 88501 88510 88515 88539 8856922290 88608 88625 88630 88630A 88630B 88648 88650C 886883A250 88716F 88899K 9011906246 9015960195 9017906239 9354014012 9354015010
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-30640

GS131,JZS133,LS130,YS132..LHD

 1
88501-30780

GS131,JZS133,YS132..LHD

 1
88510 - UNIT ASSY, COOLER
88510-3A580

JZS133..LHD..ROY

 1
88510-3A630

JZS133..LHD..(D,G)

 1
88510-3F040

JZS133..LHD..Q

 1
88510-3F070

JZS133..LHD..(D,G)

 1
88515 - VALVE, COOLER EXPANSION
88515-30343

LS130..4F;GS131,JZS133,YS132..LHD

 1
88515-30590

JZS133..LHD

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-30640

GS131,JZS133,LS130,YS132..LHD

 1
88608 - HARNESS SUB-ASSY, WIRING AIR CONDITIONER
88608-30470

GS131..RHD;GS131..LHD..Q;JZS133..ROY,SAL

W(REAR AIR CONDITIONER)

 1
88625 - THERMISTOR, COOLER, NO.1
88625-30750

GS131,JZS133,LS130,YS132

 1
88630 - RELAY ASSY, COOLER
88630-30410

JZS133..LHD..G

 1
90987-02004

JZS133..G

W(REAR AIR CONDITIONER)

 1
90987-02004

GS131..RHD;JZS133..ROY

 1
88630A - RELAY ASSY, COOLER
88630-87010

JZS133..LHD..GEN..G

REAR AIR CONDITIONER,HEATER

 1
90987-03001

GS131,JZS133,LS130,YS132..LHD..(B,D,G)

A/C CUT RELAY

 1
90987-03001

JZS133,YS132..B,D,G

 1
88630B - RELAY ASSY, COOLER
90987-02009

JZS133..Q;JZS133..LHD..GEN..G

 1
Common parts
87116-14010
88569-22290
88688-3A250
90119-06246
90159-60195
90179-06239
93540-14012
93540-15010

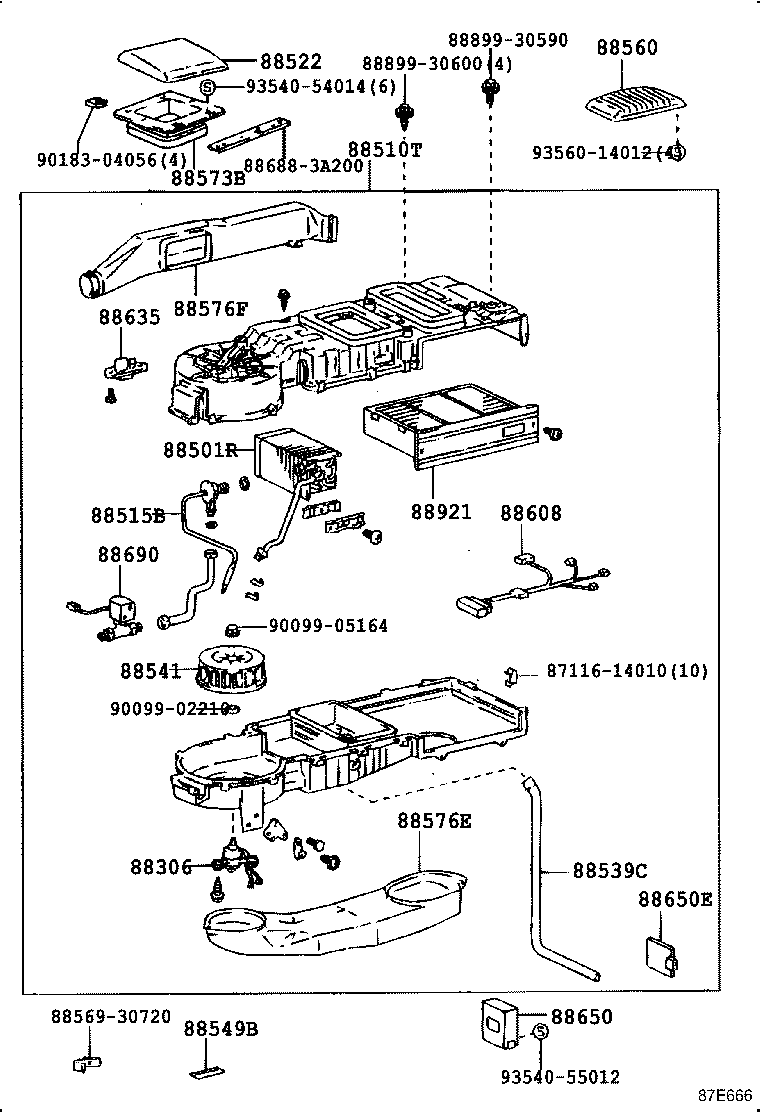

ILLUST NO. 2 OF 3(9110- )

Click highlighted areas on diagram

REAR

diagram 8711614010 88306 88501R 88510T 88515B 88522 88539C 88541 88549B 88560 8856930720 88573B 88576E 88576F 88608 88635 88650 88650E 886883A200 88690 8889930590 8889930600 88921 9009902210 9009905164 9018304056 9354054014 9354055012 9356014012
Part # Description Qty Price
88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1
88550-30330

GS131,JZS133..ROY,SAL

 1
88501R - EVAPORATOR SUB-ASSY (REAR)
88501-30620

GS131,JZS133..ROY,SAL

 1
88510T - UNIT ASSY, COOLING (REAR)
88510-3A610

GS131,JZS133..ROY,SAL

 1
88515B - VALVE, REAR COOLING UNIT EXPANSION
88515-30310

GS131,JZS133..ROY,SAL

 1
88522 - DOOR, COOLING UNIT
88522-30450J0

GS131,JZS133..G,J

DK.BLUE,TRIM8#

 1
88522-30450E0

GS131,JZS133..G,J

QUARTZ,TRIM4#

 1
88541 - FAN, BLOWER
88541-30300

GS131,JZS133..ROY,SAL

 1
88549B - PLATE, CAUTION
88549-30260

GS131,JZS133..(ROY,SAL)..(GCC,GEN)

 1
88560 - GRILLE ASSY, COOLER AIR INLET
88561-30320E0

GS131,JZS133..G,J

QUARTZ,TRIM4#

 1
88561-30320J0

GS131,JZS133..G,J

DK.BLUE,TRIM8#

 1
88573B - BASE, GRILLE
88573-30520

GS131,JZS133..G,J

 1
88576E - DUCT, COOLER AIR, NO.1
88576-30770

GS131,JZS133..ROY,SAL

 1
88576F - DUCT, COOLER AIR, NO.2
88576-30780

GS131,JZS133..ROY,SAL

 1
88608 - HARNESS SUB-ASSY, WIRING AIR CONDITIONER
88608-30470

GS131..RHD;GS131..LHD..Q;JZS133..ROY,SAL

W(REAR AIR CONDITIONER)

 1
88635 - RESISTOR, COOLER UNIT BLOWER
87138-30290

GS131,JZS133..ROY,SAL

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-30590

GS131..RHD;JZS133..EECC;JZS133..LHD..ROY

FRONT

 1
88650-30760

JZS133..LHD;JZS133..RHD..G

REAR

 1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-30540

GS131,JZS133..ROY,SAL

 1
88690 - VALVE ASSY, COOLER MAGNET
88691-30510

GS131,JZS133..ROY,SAL

 1
88921 - FILTER, AIR PURIFIER, NO.1
88926-30140

GS131,JZS133..ROY,SAL

 1
Common parts
87116-14010
88569-30720
88688-3A200
88899-30590
88899-30600
90099-02210
90099-05164
90183-04056
93540-54014
93540-55012
93560-14012
