JZS133L-AEMQF (1993)

Toyota Crown

Production Aug 1993 - Dec 1995
Engine 2JZGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9110- )LHD

Click highlighted areas on diagram

HEATER BLOWER

diagram 8202 827113A180 87103 87106A 87130 87134A 87138 87187A 9017906239 9165560616 9351055012 9351055012
Part # Description Qty Price
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-30290

GS131,JZS133,LS130,YS132..LHD

 1
87106A - SERVO SUB-ASSY, DAMPER
87106-30110

JZS133..LHD..ROY

BI-LEVEL

 1
87106-30121

JZS133..LHD..ROY

AIR MIX

 1
87106-30041

JZS133..LHD..(D,G)

AIR MIX,BI-LEVEL

 1
87106-30041

JZS133..LHD..(D,G)

AIR MIX

 1
87106-30080

GS131,JZS133,LS130,YS132..LHD

FRESH-RECIRC

 1
87106-30031

JZS133..LHD

MODE

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-30420

GS131,JZS133,LS130,YS132..LHD

 1
87134A - FAN, BLOWER, NO.2
87134-30050

GS131,JZS133,LS130,YS132..LHD

 1
87138 - RESISTOR, HEATER BLOWER
87138-30390

GS131,JZS133,LS130,YS132..LHD

 1
87187A - WIRE, BLOWER MOTOR LEAD
87187-30010

LS130..LHD;GS131,JZS133,YS132

 1
Common parts
82711-3A180
90179-06239
91655-60616
93510-55012
Linked diagrams
8202

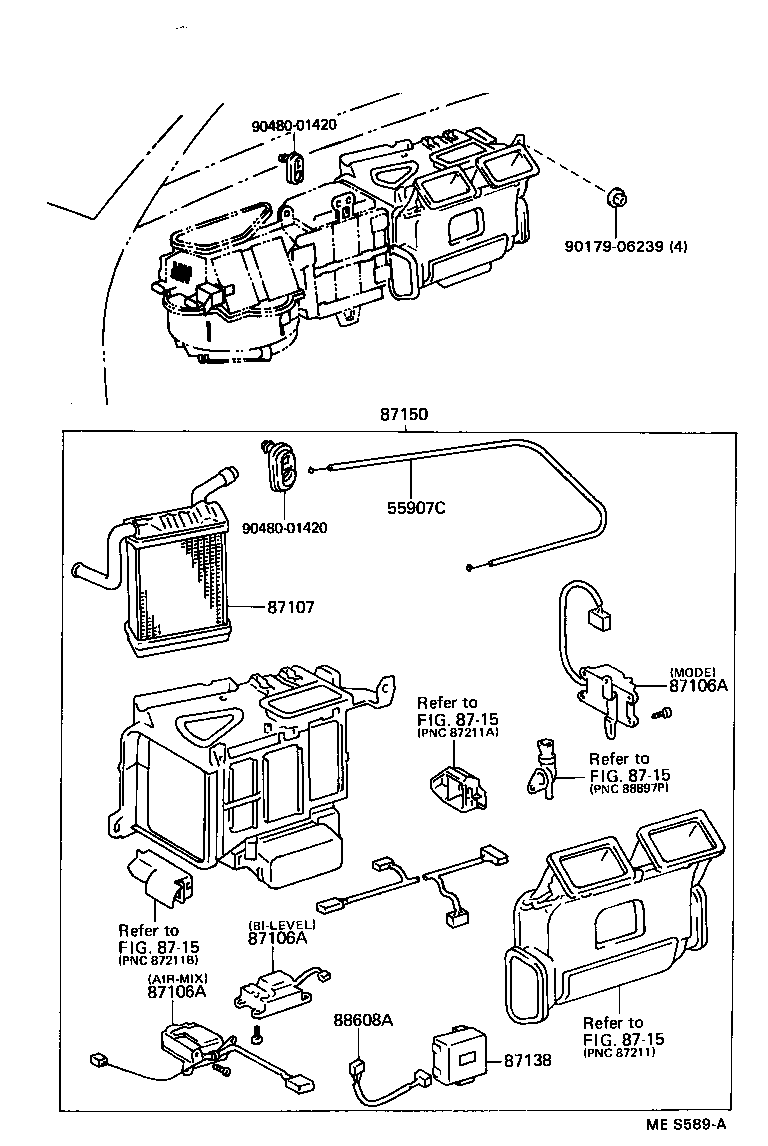

ILLUST NO. 2 OF 3(9110- )

Click highlighted areas on diagram

HEATER RADIATOR

diagram 55907C 87106A 87106A 87106A 87107 87138 8715 8715 8715 8715 87150 88608A 9017906239 9048001420 9048001420
Part # Description Qty Price
55907C - CABLE SUB-ASSY, WATER VALVE CONTROL
87286-30050

JZS133,LS130,YS132..LHD

 1
87106A - SERVO SUB-ASSY, DAMPER
87106-30110

JZS133..LHD..ROY

BI-LEVEL

 1
87106-30121

JZS133..LHD..ROY

AIR MIX

 1
87106-30041

JZS133..LHD..(D,G)

AIR MIX,BI-LEVEL

 1
87106-30041

JZS133..LHD..(D,G)

AIR MIX

 1
87106-30080

GS131,JZS133,LS130,YS132..LHD

FRESH-RECIRC

 1
87106-30031

JZS133..LHD

MODE

 1
87106A - SERVO SUB-ASSY, DAMPER
87106-30110

JZS133..LHD..ROY

BI-LEVEL

 1
87106-30121

JZS133..LHD..ROY

AIR MIX

 1
87106-30041

JZS133..LHD..(D,G)

AIR MIX,BI-LEVEL

 1
87106-30041

JZS133..LHD..(D,G)

AIR MIX

 1
87106-30080

GS131,JZS133,LS130,YS132..LHD

FRESH-RECIRC

 1
87106-30031

JZS133..LHD

MODE

 1
87106A - SERVO SUB-ASSY, DAMPER
87106-30110

JZS133..LHD..ROY

BI-LEVEL

 1
87106-30121

JZS133..LHD..ROY

AIR MIX

 1
87106-30041

JZS133..LHD..(D,G)

AIR MIX,BI-LEVEL

 1
87106-30041

JZS133..LHD..(D,G)

AIR MIX

 1
87106-30080

GS131,JZS133,LS130,YS132..LHD

FRESH-RECIRC

 1
87106-30031

JZS133..LHD

MODE

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-30400

JZS133,LS130,YS132..LHD

 1
87138 - RESISTOR, HEATER BLOWER
87138-30390

GS131,JZS133,LS130,YS132..LHD

 1
87150 - RADIATOR ASSY, HEATER
87150-30591

JZS133..LHD..ROY

 1
87150-30531

JZS133,LS130,YS132..LHD..(B,D,G)

 1
Common parts
90179-06239
90480-01420
Linked diagrams
8715
