JZS133L-AEMQF (1993)
Toyota Crown

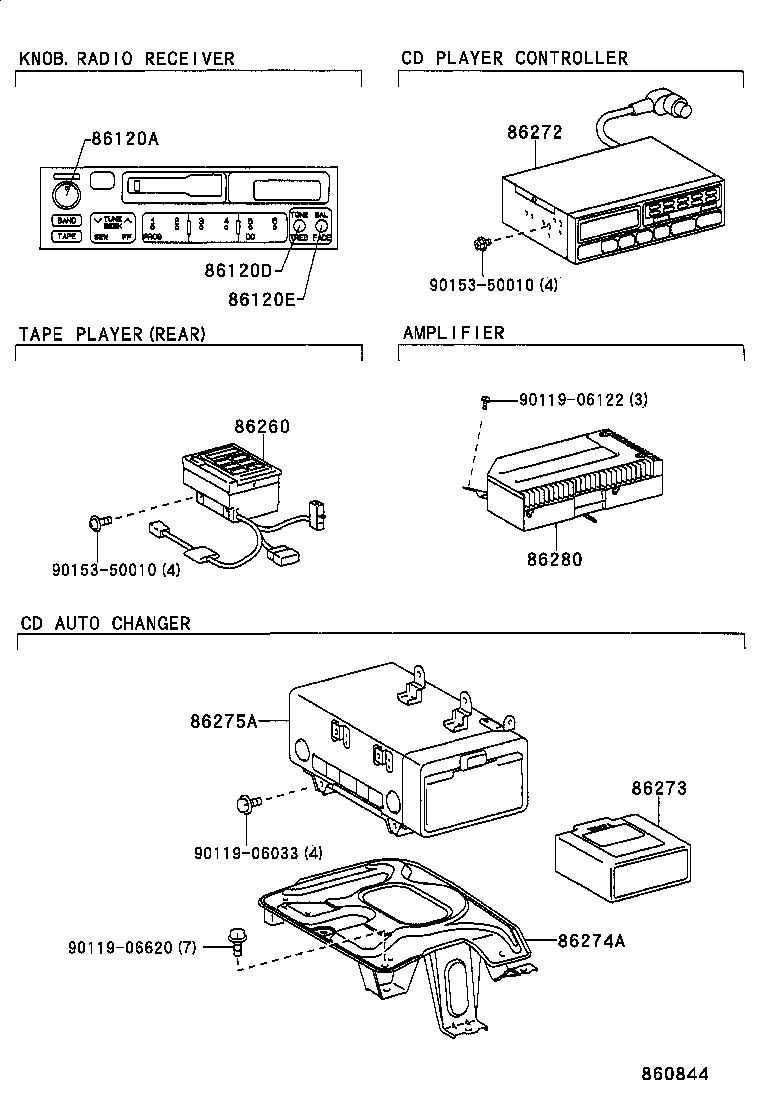

ILLUST NO. 2 OF 5(9110- )
KNOB RADIO,AMPLIFIER,CD TAPE PLAYER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 86128-17310 |
JZS133,YS132..B,D |
1 | ||
| 86120D - KNOB, RADIO RECEIVER TONE | ||||
| 86128-17330 |
JZS133,YS132..B,D |
1 | ||
| 86120E - KNOB, RADIO RECEIVER BALANCE | ||||
| 86128-17330 |
JZS133,YS132..B,D |
1 | ||
| 86260 - TAPE PLAYER ASSY | ||||
| 86260-30290 |
GS131,JZS133..GEN..Q |
1 | ||
| 86260-30300 |
GS131,JZS133..G,J |
1 | ||
| 86260-16140 |
JZS133,LS130,YS132..B,D |
1 | ||
| 86272 - CONTROLLER, DISC PLAYER | ||||
| 86272-30010 |
JZS133..LHD..Q |
1 | ||
| 86273 - MAGAZINE, DISC PLAYER | ||||
| 86273-33010 |
JZS133..LHD..Q |
1 | ||
| 86274A - BRACKET, DISC PLAYER | ||||
| 86274-30020 |
JZS133..LHD..Q |
1 | ||
| 86275A - CHANGER, DISC PLAYER | ||||
| 86270-30090 |
JZS133..LHD..Q |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-30250 |
JZS133..LHD..Q |
1 | ||
| Common parts | ||||
| 90119-06033 | ||||
| 90119-06122 | ||||
| 90119-06620 | ||||
| 90153-50010 | ||||

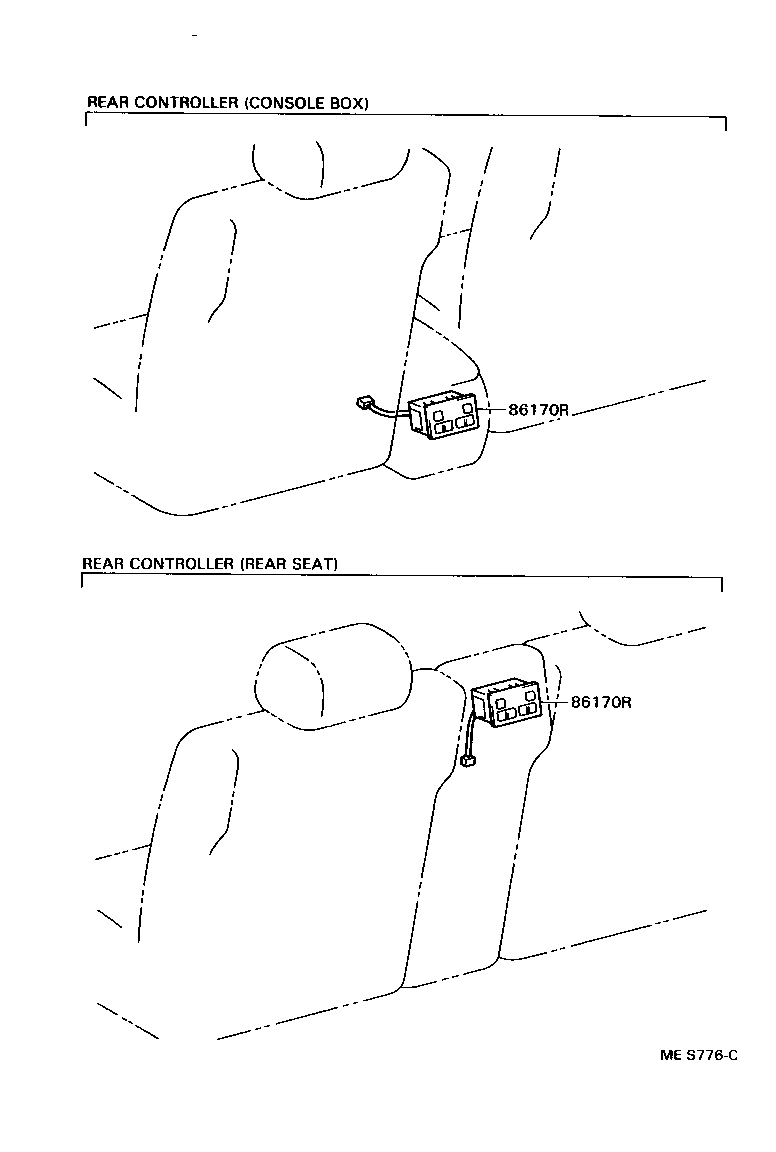

ILLUST NO. 5 OF 5(9110- )
REAR CONTROLLER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86170R - SWITCH & VOLUME ASSY, RR | ||||
| 86170-30260 |
JZS133..(ROY,SAL)..(GCC,GEN) |
1 | ||
| 86170R - SWITCH & VOLUME ASSY, RR | ||||
| 86170-30260 |
JZS133..(ROY,SAL)..(GCC,GEN) |
1 | ||

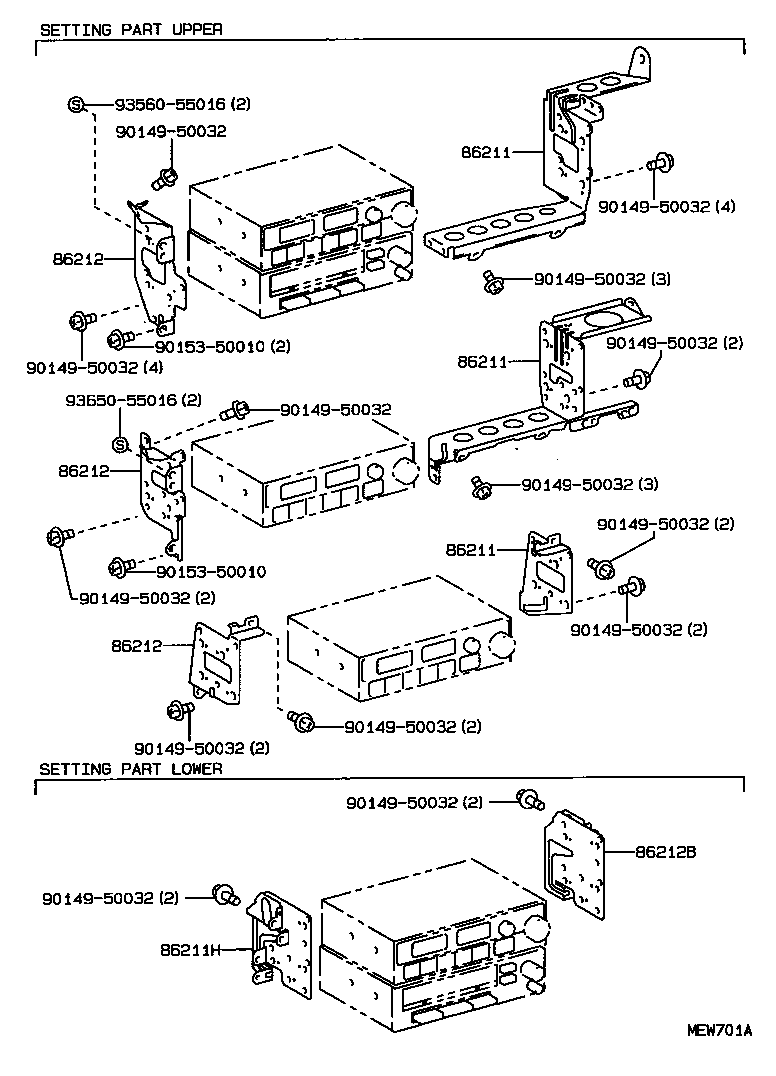

ILLUST NO. 3 OF 5(9110- )
BRACKET & BOLT(SETTING PART)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-30100 |
GS131,JZS133,LS130,YS132..LHD |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-30100 |
GS131,JZS133,LS130,YS132..LHD |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-30100 |
GS131,JZS133,LS130,YS132..LHD |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-30090 |
GS131,JZS133,LS130,YS132..LHD |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-30090 |
GS131,JZS133,LS130,YS132..LHD |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-30090 |
GS131,JZS133,LS130,YS132..LHD |
1 | ||
| Common parts | ||||
| 90149-50032 | ||||
| 90153-50010 | ||||
| 93560-55016 | ||||
| 93650-55016 | ||||

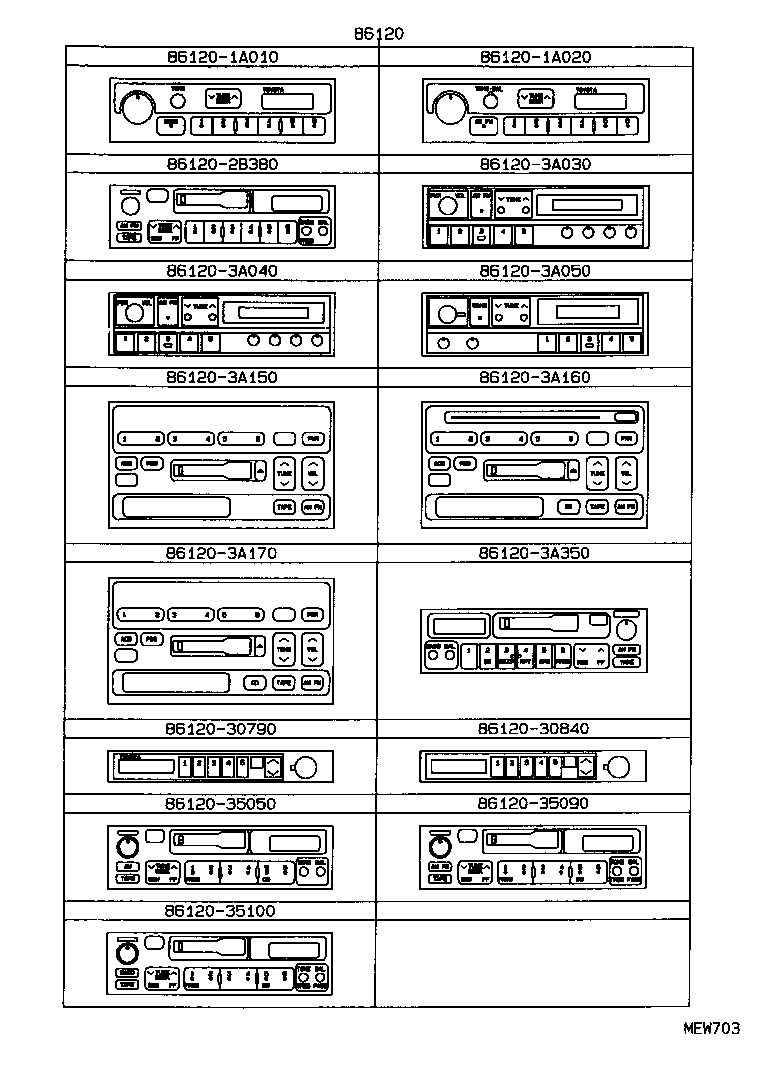

ILLUST NO. 1 OF 5(9110- )
RECEIVER, RADIO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-1A010 |
JZS133,LS130,YS132..LHD..(B,D) MATSUSHITA,AM/FM/SW1/SW2 ETR 1DIN,GENERAL EXPORT |
1 | ||
| 86120-30790 |
JZS133,LS130,YS132..B,D FUJITSU TEN,AM/FM ETR 1/2DIN,GENERAL EXPORT |
1 | ||
| 86120-3A350 |
JZS133..LHD..Q FUJITSU TEN,AM/FM MPX ETR CST 1DIN,GENERAL EXPORT |
1 | ||
| 86120-3A030 |
GS131..LHD;JZS133..ROY,SAL FUJITSU TEN,AM/FM MPX ETR 1DIN,GENERAL EXPORT |
1 | ||
| 86120-3A050 |
GS131..RHD;JZS133..4FC..(GCC,GEN);JZS133..LHD..5F..(ROY,SAL) FUJITSU TEN,AM/SW/FM MPX ETR 1DIN,GENERAL EXPORT |
1 | ||
| 86120-1A040 |
JZS133..D FUJITSU TEN,ID=12101,AM ETR |
1 | ||
| 86120-3A040 |
JZS133..4FC..GEN;JZS133..LHD..5F..GEN FUJITSU TEN,AM/FM MPX ETR 1DIN,LATIN AMERICA |
1 | ||
| 86120-2B380 |
JZS133,LS130,YS132..B,D FUJITSU TEN,ID=17202,AM/FM MPX ETR CST 1DIN,GENERAL EXPORT |
1 | ||
| 86120-35050 |
JZS133..D MATSUSHITA,ID=57100,AM ETR CST |
1 | ||
| 86120-35100 |
JZS133,YS132..B,D MATSUSHITA,ID=57401,AM/FM MPX ETR 5BUTTON 1DIN |
1 | ||
| Common parts | ||||
| 86120-1A010 | ||||
| 86120-1A020 | ||||
| 86120-2B380 | ||||
| 86120-30790 | ||||
| 86120-30840 | ||||
| 86120-35050 | ||||
| 86120-35090 | ||||
| 86120-35100 | ||||
| 86120-3A030 | ||||
| 86120-3A040 | ||||
| 86120-3A050 | ||||
| 86120-3A150 | ||||
| 86120-3A160 | ||||
| 86120-3A170 | ||||
| 86120-3A350 | ||||

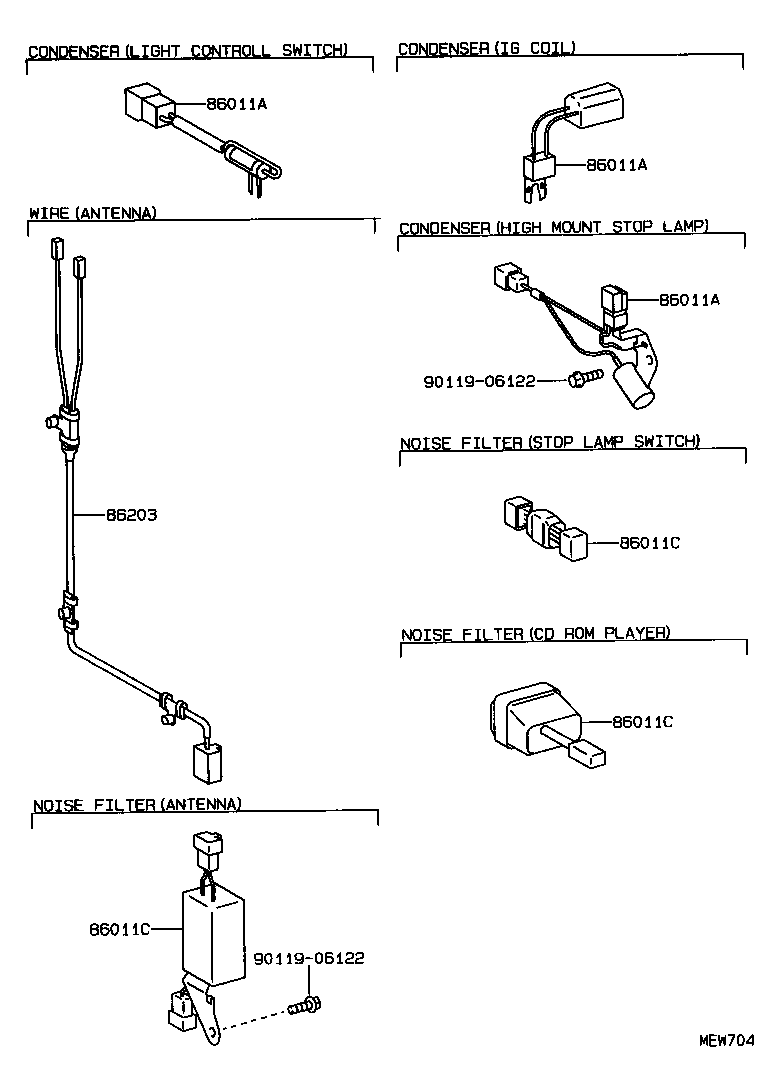

ILLUST NO. 4 OF 5(9110- )
CONDENSER,WIRE RADIO & NOISE FILTER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04090 |
GS131,JZS133,YS132 IG COIL |
1 | ||
| 90980-04095 |
GS131,JZS133,YS132 DEF |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04090 |
GS131,JZS133,YS132 IG COIL |
1 | ||
| 90980-04095 |
GS131,JZS133,YS132 DEF |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04090 |
GS131,JZS133,YS132 IG COIL |
1 | ||
| 90980-04095 |
GS131,JZS133,YS132 DEF |
1 | ||
| 86011C - FILTER, NOISE | ||||
| 90980-05190 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 86011C - FILTER, NOISE | ||||
| 90980-05190 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 86011C - FILTER, NOISE | ||||
| 90980-05190 |
GS131,JZS133,LS130,YS132 |
1 | ||
| Common parts | ||||
| 90119-06122 | ||||
