JZS133L-AEMQF (1993)
Toyota Crown
(9110- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-30030B0 |
GS131,JZS133,LS130,YS132..LHD SUPER SILVER 3 M,176 |
2 | ||
| 85381-30030D0 |
GS131,JZS133..LHD..(ROY,SAL) DP.RED MC,3H8 |
2 | ||
| 85381-30030E0 |
GS131,JZS133..LHD..(ROY,SAL) MEDIUM BEIGE M,4H6 |
2 | ||
| 85381-30030A0 |
GS131,JZS133,LS130,YS132..LHD SUPER WHITE 4,050 |
2 | ||
| 85381-30030C1 |
GS131,JZS133..LHD..(ROY,SAL) BLACK,183 ,202 ,6K2 ,8J5 |
2 | ||
| 85381-30030C1 |
JZS133,LS130,YS132..LHD..(B,D) BLACK,183 ,202 ,8J5 |
2 | ||
| 85381-30020C1 |
JZS133..D BLACK,183 ,202 ,8J5 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-30030B0 |
GS131,JZS133,LS130,YS132..LHD SUPER SILVER 3 M,176 |
2 | ||
| 85381-30030D0 |
GS131,JZS133..LHD..(ROY,SAL) DP.RED MC,3H8 |
2 | ||
| 85381-30030E0 |
GS131,JZS133..LHD..(ROY,SAL) MEDIUM BEIGE M,4H6 |
2 | ||
| 85381-30030A0 |
GS131,JZS133,LS130,YS132..LHD SUPER WHITE 4,050 |
2 | ||
| 85381-30030C1 |
GS131,JZS133..LHD..(ROY,SAL) BLACK,183 ,202 ,6K2 ,8J5 |
2 | ||
| 85381-30030C1 |
JZS133,LS130,YS132..LHD..(B,D) BLACK,183 ,202 ,8J5 |
2 | ||
| 85381-30020C1 |
JZS133..D BLACK,183 ,202 ,8J5 |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-30190 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85331-30280 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
GS131,JZS133,LS130,YS132..GCC,GEN |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85332-12650 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 85339 - CAP SUB-ASSY, RESERVE TANK | ||||
| 85339-30280 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85334-30280 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85348-14390 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 85360 - BRACKET ASSY, WINDSHIELD WASHER | ||||
| 85361-30270 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 85369 - CLAMP | ||||
| 85369-30270 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
GS131,JZS133,LS130,YS132..LHD *H,L=700 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
GS131,JZS133,LS130,YS132 *H,L=540,NO.1,NO.2 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
GS131,JZS133,LS130,YS132 *H,L=540,NO.1,NO.2 |
1 | ||
| Common parts | ||||
| 82711-22150 | ||||
| 85365-50030 | ||||
| 85375-10260 | ||||
| 90119-08760 | ||||
| 90959-01284 | ||||
| 90989-01037 | ||||
| 91651-B0814 | ||||
| 91656-40816 | ||||

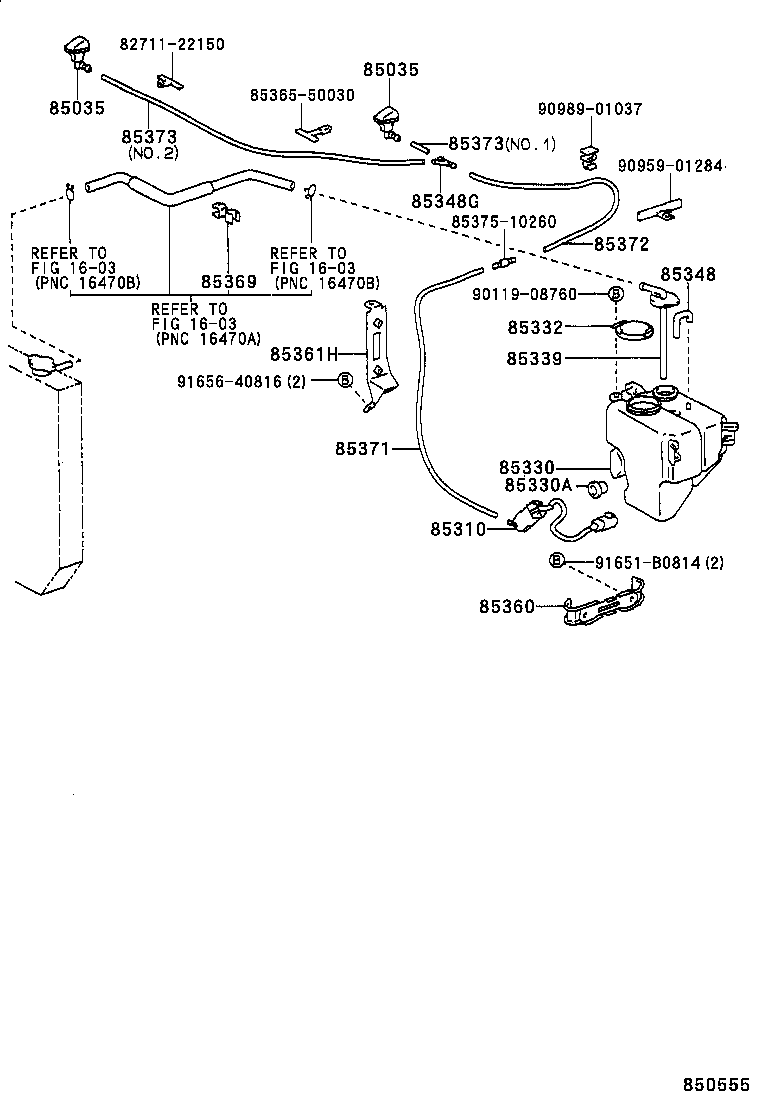

| Linked diagrams | ||||
| 1603 | ||||
