JZS133L-AEMQF (1993)

Toyota Crown

Production Aug 1993 - Dec 1995
Engine 2JZGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )

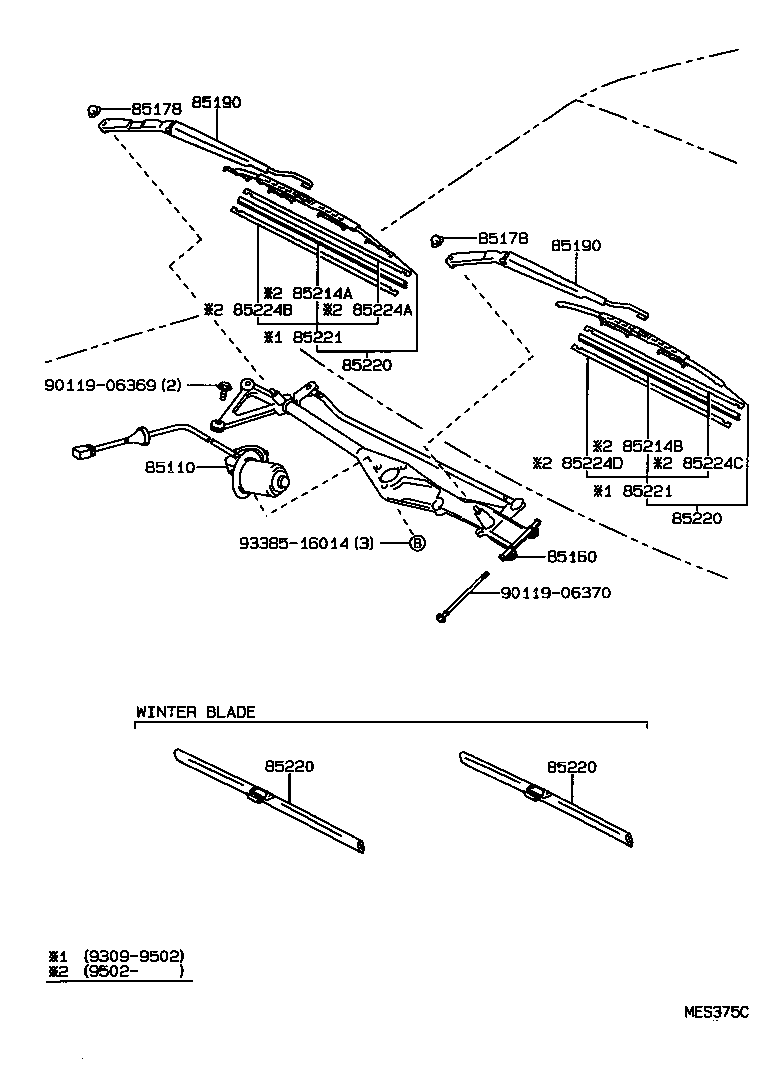

Click highlighted areas on diagram

U-HOOK TYPE

diagram 85110 85160 85178 85178 85190 85190 85214A 85214B 85220 85220 85220 85220 85221 85221 85224A 85224B 85224C 85224D 9011906369 9011906370 9338516014
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-30340

GS131,JZS133,LS130,YS132..LHD

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-30360

JZS133..D

TAXI PACKAGE(SAUDI ARABIA)

 1
85150-30370

GS131,JZS133,YS132..LHD

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-08040

GS131,JZS133,LS130,YS132

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-08040

GS131,JZS133,LS130,YS132

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85221-30270

JZS133..D

TAXI SPEC FOR SAUDI,LH

 1
85211-30390

JZS133..D

TAXI SPEC FOR SAUDI,RH

 1
85221-30280

GS131,JZS133,YS132..LHD

LH

 1
85211-30400

GS131,JZS133,YS132..LHD

RH

 1
85190 - ARM ASSY, WINDSHIELD WIPER
85221-30270

JZS133..D

TAXI SPEC FOR SAUDI,LH

 1
85211-30390

JZS133..D

TAXI SPEC FOR SAUDI,RH

 1
85221-30280

GS131,JZS133,YS132..LHD

LH

 1
85211-30400

GS131,JZS133,YS132..LHD

RH

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85212-30270

GS131,JZS133,YS132..LHD

RH

 1
85212-30290

JZS133..D

TAXI(SAUDI ARABIA SPEC),RH

 1
85222-30460

JZS133..D

TAXI(SAUDI ARABIA SPEC),LH

 1
85222-30440

GS131,JZS133,YS132..LHD

LH

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85212-30270

GS131,JZS133,YS132..LHD

RH

 1
85212-30290

JZS133..D

TAXI(SAUDI ARABIA SPEC),RH

 1
85222-30460

JZS133..D

TAXI(SAUDI ARABIA SPEC),LH

 1
85222-30440

GS131,JZS133,YS132..LHD

LH

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85212-30270

GS131,JZS133,YS132..LHD

RH

 1
85212-30290

JZS133..D

TAXI(SAUDI ARABIA SPEC),RH

 1
85222-30460

JZS133..D

TAXI(SAUDI ARABIA SPEC),LH

 1
85222-30440

GS131,JZS133,YS132..LHD

LH

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85212-30270

GS131,JZS133,YS132..LHD

RH

 1
85212-30290

JZS133..D

TAXI(SAUDI ARABIA SPEC),RH

 1
85222-30460

JZS133..D

TAXI(SAUDI ARABIA SPEC),LH

 1
85222-30440

GS131,JZS133,YS132..LHD

LH

 1
85221 - BLADE, WINDSHIELD WIPER
85213-16080

GS131,JZS133,YS132..LHD

RH

 1
85213-12330

GS131,JZS133,YS132..LHD

RH

 1
85221-30100

JZS133..D

TAXI(SAUDI ARABIA SPEC),RH

 1
85221-32050

JZS133..D

TAXI(SAUDI ARABIA SPEC),LH

 1
85213-30270

GS131,JZS133,YS132..LHD

LH

 1
85223-30380

GS131,JZS133,YS132..LHD

LH

 1
85221 - BLADE, WINDSHIELD WIPER
85213-16080

GS131,JZS133,YS132..LHD

RH

 1
85213-12330

GS131,JZS133,YS132..LHD

RH

 1
85221-30100

JZS133..D

TAXI(SAUDI ARABIA SPEC),RH

 1
85221-32050

JZS133..D

TAXI(SAUDI ARABIA SPEC),LH

 1
85213-30270

GS131,JZS133,YS132..LHD

LH

 1
85223-30380

GS131,JZS133,YS132..LHD

LH

 1
Common parts
90119-06369
90119-06370
93385-16014

(9110- )

Click highlighted areas on diagram

SCREW TYPE

diagram 85110 85160 85178 85178 85190 85190 8519730370 8519730370 85214A 85214B 85220 85220 85220 85220 85221 85221 85224A 85224B 85224C 85224D 9011906369 9011906370 9338516014
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-30340

GS131,JZS133,LS130,YS132..LHD

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-30360

JZS133..D

TAXI PACKAGE(SAUDI ARABIA)

 1
85150-30370

GS131,JZS133,YS132..LHD

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-08040

GS131,JZS133,LS130,YS132

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-08040

GS131,JZS133,LS130,YS132

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85221-30270

JZS133..D

TAXI SPEC FOR SAUDI,LH

 1
85211-30390

JZS133..D

TAXI SPEC FOR SAUDI,RH

 1
85221-30280

GS131,JZS133,YS132..LHD

LH

 1
85211-30400

GS131,JZS133,YS132..LHD

RH

 1
85190 - ARM ASSY, WINDSHIELD WIPER
85221-30270

JZS133..D

TAXI SPEC FOR SAUDI,LH

 1
85211-30390

JZS133..D

TAXI SPEC FOR SAUDI,RH

 1
85221-30280

GS131,JZS133,YS132..LHD

LH

 1
85211-30400

GS131,JZS133,YS132..LHD

RH

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85212-30270

GS131,JZS133,YS132..LHD

RH

 1
85212-30290

JZS133..D

TAXI(SAUDI ARABIA SPEC),RH

 1
85222-30460

JZS133..D

TAXI(SAUDI ARABIA SPEC),LH

 1
85222-30440

GS131,JZS133,YS132..LHD

LH

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85212-30270

GS131,JZS133,YS132..LHD

RH

 1
85212-30290

JZS133..D

TAXI(SAUDI ARABIA SPEC),RH

 1
85222-30460

JZS133..D

TAXI(SAUDI ARABIA SPEC),LH

 1
85222-30440

GS131,JZS133,YS132..LHD

LH

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85212-30270

GS131,JZS133,YS132..LHD

RH

 1
85212-30290

JZS133..D

TAXI(SAUDI ARABIA SPEC),RH

 1
85222-30460

JZS133..D

TAXI(SAUDI ARABIA SPEC),LH

 1
85222-30440

GS131,JZS133,YS132..LHD

LH

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85212-30270

GS131,JZS133,YS132..LHD

RH

 1
85212-30290

JZS133..D

TAXI(SAUDI ARABIA SPEC),RH

 1
85222-30460

JZS133..D

TAXI(SAUDI ARABIA SPEC),LH

 1
85222-30440

GS131,JZS133,YS132..LHD

LH

 1
85221 - BLADE, WINDSHIELD WIPER
85213-16080

GS131,JZS133,YS132..LHD

RH

 1
85213-12330

GS131,JZS133,YS132..LHD

RH

 1
85221-30100

JZS133..D

TAXI(SAUDI ARABIA SPEC),RH

 1
85221-32050

JZS133..D

TAXI(SAUDI ARABIA SPEC),LH

 1
85213-30270

GS131,JZS133,YS132..LHD

LH

 1
85223-30380

GS131,JZS133,YS132..LHD

LH

 1
85221 - BLADE, WINDSHIELD WIPER
85213-16080

GS131,JZS133,YS132..LHD

RH

 1
85213-12330

GS131,JZS133,YS132..LHD

RH

 1
85221-30100

JZS133..D

TAXI(SAUDI ARABIA SPEC),RH

 1
85221-32050

JZS133..D

TAXI(SAUDI ARABIA SPEC),LH

 1
85213-30270

GS131,JZS133,YS132..LHD

LH

 1
85223-30380

GS131,JZS133,YS132..LHD

LH

 1
Common parts
85197-30370
90119-06369
90119-06370
93385-16014
