JZS133L-AEMQF (1993)

Toyota Crown

Production Aug 1993 - Dec 1995
Engine 2JZGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9110-9512)JZS133..LHD

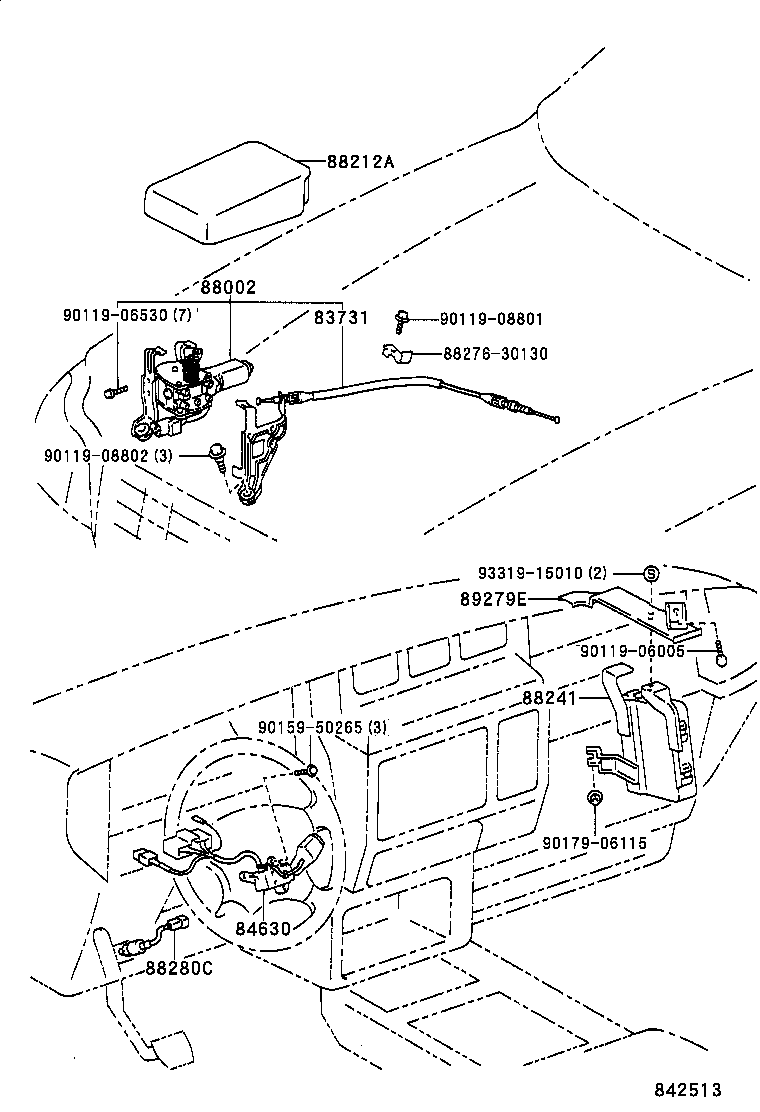

Click highlighted areas on diagram

diagram 83731 84630 88002 88212A 88241 8827630130 88280C 89279E 9011906005 9011906530 9011908801 9011908802 9015950265 9017906115 9331915010
Part # Description Qty Price
83731 - CABLE, CRUISE CONTROL
83731-30130

JZS133..LHD..ROY

 1
84630 - SWITCH ASSY, CRUISE CONTROL MAIN
84630-30140

JZS133..ROY..(GCC,GEN)

 1
88002 - CRUISE CONTROL(AUTO DRIVE) SET
88002-30210

JZS133..LHD..ROY

 1
88212A - COVER, CRUISE CONTROL ACTUATOR
88212-30150

JZS133..LHD..ROY

 1
88241 - COMPUTER, SPEED CONTROL
88241-30140

JZS133..LHD..ROY

 1
88241-30141

JZS133..LHD..Q

 1
88280C - SWITCH ASSY, CLUTCH
88280-30030

JZS133..5F..ROY

 1
89279E - COVER, CRUISE CONTROL(AUTO DRIVE) COMPUTER
89279-30080

JZS133..LHD..ROY

 1
Common parts
88276-30130
90119-06005
90119-06530
90119-08801
90119-08802
90159-50265
90179-06115
93319-15010
