JZS133L-AEMQF (1993)

Toyota Crown

Production Aug 1993 - Dec 1995
Engine 2JZGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )JZS133

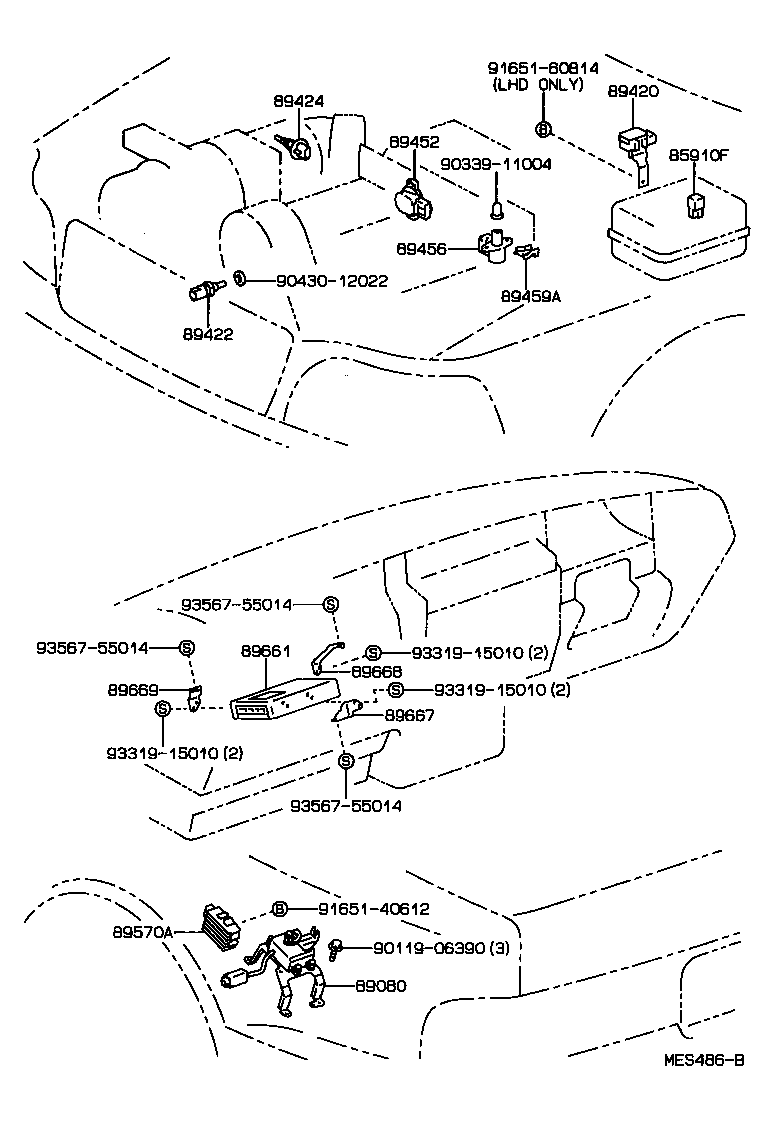

Click highlighted areas on diagram

diagram 85910F 89080 89420 89422 89424 89452 89456 89459A 89570A 89661 89667 89668 89669 9011906390 9033911004 9043012022 9165140612 9165160814 9331915010 9331915010 9331915010 9356755014 9356755014 9356755014
Part # Description Qty Price
85910F - RELAY, COMPUTER (FOR EFI)
90987-02009

GS131;JZS133..5F;JZS133..EECC

 1
89420 - SENSOR ASSY, VACUUM
89420-30090

JZS133..LHD

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-20010

GS131,JZS133

 1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-12010

JZS133

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-33010

JZS133

 1
89456 - RESISTOR, VARIABLE
89456-50010

JZS133..GCC,GEN

 1
89459A - BRACKET, VARIABLE RESISTOR
89459-30010

JZS133..GCC,GEN

 1
89570A - COMPUTER ASSY, FUEL PUMP CONTROL
89570-30140

JZS133

 1
89661 - COMPUTER, ENGINE CONTROL
89661-30610

JZS133..5F

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-30120

JZS133..LHD

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-30140

JZS133..LHD

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-30090

JZS133..LHD

 1
Common parts
90119-06390
90339-11004
90430-12022
91651-40612
91651-60814
93319-15010
93567-55014
