JZS133L-AEMQF (1993)

Toyota Crown

Production Aug 1993 - Dec 1995
Engine 2JZGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )

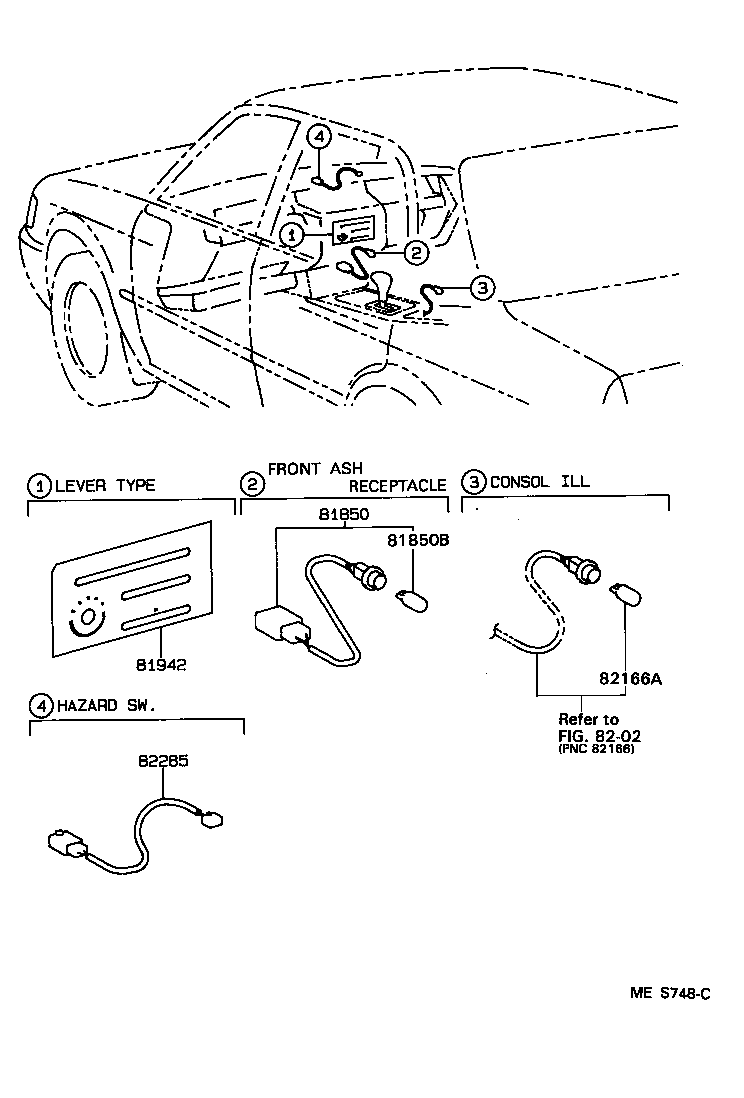

Click highlighted areas on diagram

diagram 81850 81850B 81942 8202 82166A 82285
Part # Description Qty Price
81850 - LAMP ASSY, INDICATOR
81850-33010

GS131,JZS133,LS130,YS132

 1
81850B - BULB, INDICATOR LAMP
90981-11014

GS131,JZS133,LS130,YS132

14V 1.4W

 1
82285 - WIRE, ILLUMINATION
82285-30060

LS130..LHD;GS131,JZS133,YS132

 1
Linked diagrams
8202
