JZS133L-AEMQF (1993)

Toyota Crown

Production Aug 1993 - Dec 1995
Engine 2JZGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )

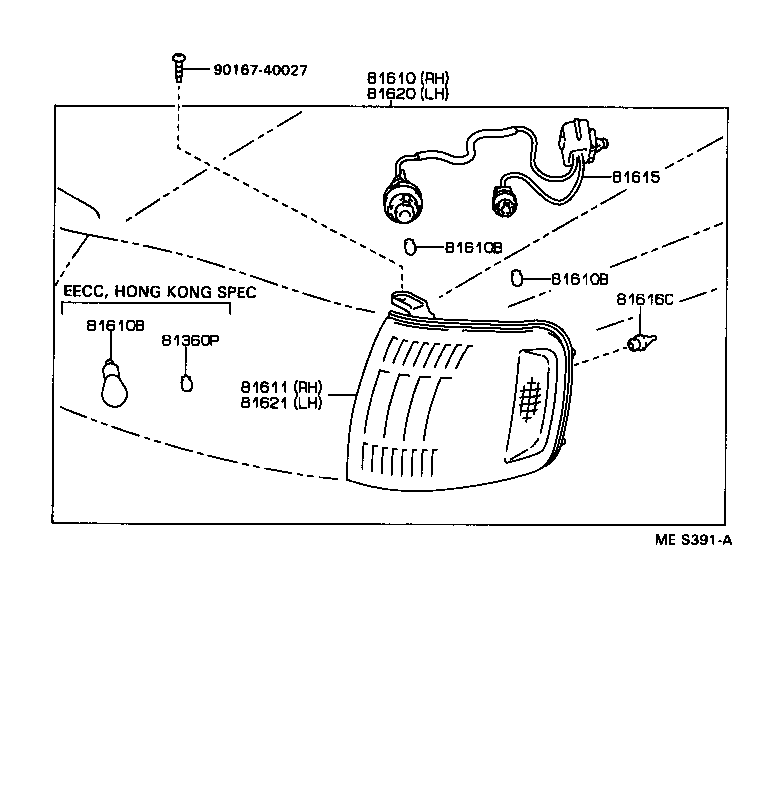

Click highlighted areas on diagram

diagram 81360P 81610 81610B 81610B 81610B 81611 81615 81616C 81620 81621 9016740027
Part # Description Qty Price
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-30330

GS131,JZS133,LS130,YS132..GCC,GEN

 1
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
90981-12010

GS131,JZS133,LS130,YS132..GCC,GEN

12V 5W

 4
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
90981-12010

GS131,JZS133,LS130,YS132..GCC,GEN

12V 5W

 4
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
90981-12010

GS131,JZS133,LS130,YS132..GCC,GEN

12V 5W

 4
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-30330

GS131,JZS133,LS130,YS132..GCC,GEN

 1
81615 - SOCKET AND WIRE, CLEARANCE LAMP
81615-30330

GS131,JZS133,LS130,YS132..GCC,GEN

 2
81616C - BUSHING, CLEARNCE LAMP
81616-30161

GS131,JZS133,LS130,YS132

 2
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-30330

GS131,JZS133,LS130,YS132..GCC,GEN

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-30330

GS131,JZS133,LS130,YS132..GCC,GEN

 1
Common parts
90167-40027
