JZS133L-AEMQF (1993)

Toyota Crown

Production Aug 1993 - Dec 1995
Engine 2JZGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9110-9512)JZS133..LHD ; (9110- )GS131,YS132..LHD

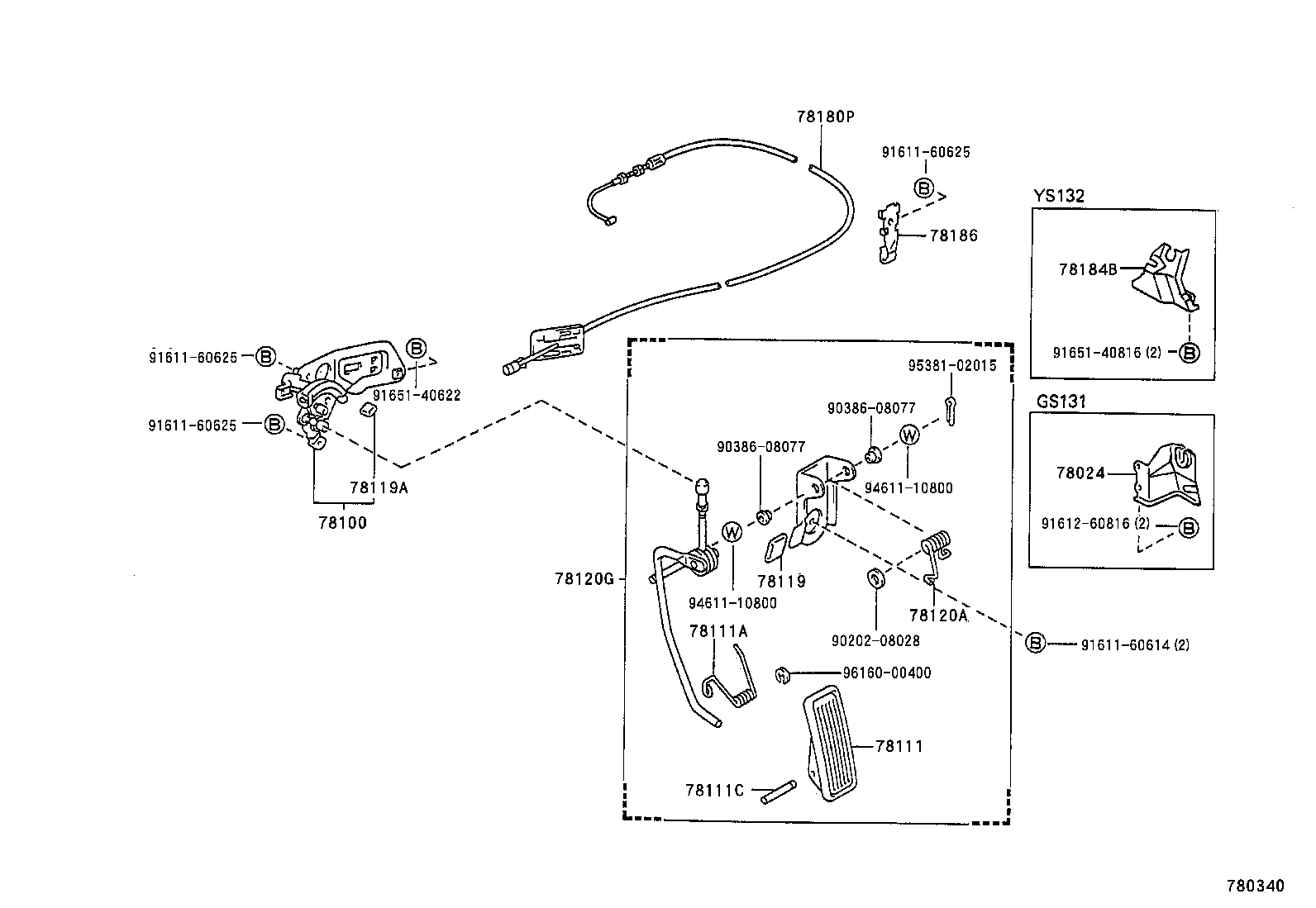

Click highlighted areas on diagram

diagram 78024 78100 78111 78111A 78111C 78119 78119A 78120A 78120G 78180P 78184B 78186 9020208028 9038608077 9038608077 9161160614 9161160625 9161160625 9161160625 9161260816 9165140622 9165140816 9461110800 9461110800 9538102015 9616000400
Part # Description Qty Price
78100 - LINK ASSY, ACCELERATOR
78100-30500

GS131,JZS133,YS132..LHD

 1
78111 - PEDAL, ACCELERATOR
78111-30090

GS131,JZS133,LS130,YS132..LHD

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-18071

GS131,JZS133,LS130,YS132..LHD

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05043

GS131,JZS133,LS130,YS132..LHD

 1
78119 - STOPPER, ACCELERATOR PEDAL ROD
78119-30040

GS131,JZS133,LS130,YS132..LHD

 1
78119A - STOPPER, ACCELERATOR LINK
78119-30050

GS131,JZS133,LS130,YS132..LHD

 1
78120A - SPRING, COMPRESSION (FOR ACCELERATOR LINK ROD)
90508-35008

GS131,JZS133,LS130,YS132..LHD..MTM

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-30680

GS131,JZS133,LS130,YS132..LHD..MTM

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-3A340

JZS133..LHD

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-30080

GS131,JZS133,LS130,YS132..LHD

 1
Common parts
90202-08028
90386-08077
91611-60614
91611-60625
91612-60816
91651-40622
91651-40816
94611-10800
95381-02015
96160-00400
