JZS133L-AEMQF (1993)
Toyota Crown
Production
Aug 1993
-
Dec 1995
Engine
2JZGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9110- )

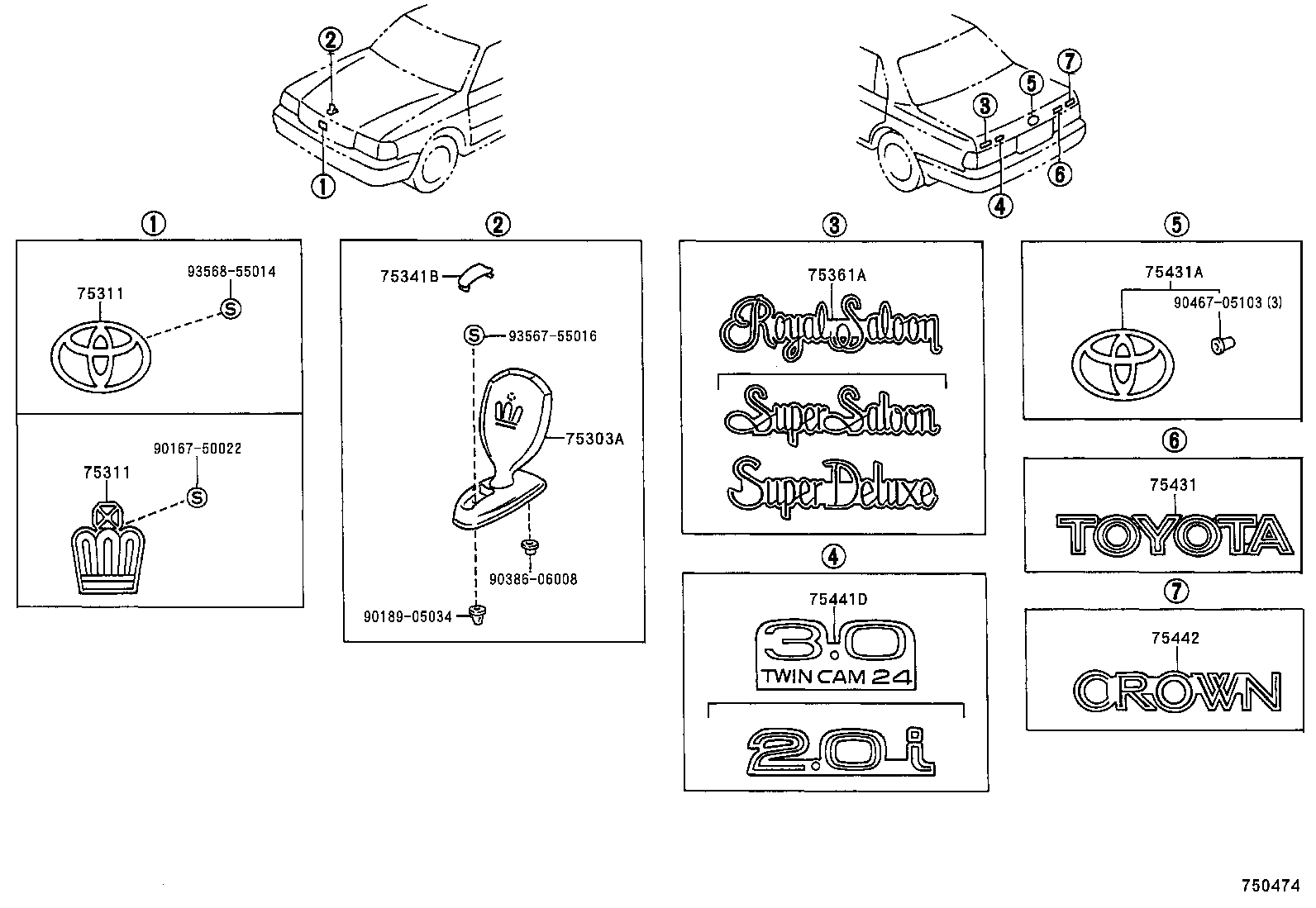

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75303A - EMBLEM SUB-ASSY, HOOD | ||||
| 75303-30060 |
JZS133..GCC;JZS133..LHD..5F..GEN..Q |
1 | ||
| 75303-30060 |
JZS133..5F..GEN..G;JZS133..LHD..4FC..GEN CHINA OR HOT ARER SPEC |
1 | ||
| 75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL) | ||||
| 75311-30260 |
GS131,JZS133,LS130,YS132..GCC,GEN |
1 | ||
| 75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL) | ||||
| 75311-30260 |
GS131,JZS133,LS130,YS132..GCC,GEN |
1 | ||
| 75341B - PLATE, HOOD NAME | ||||
| 75341-22010 |
JZS133..5F..GEN..G;JZS133..LHD..4FC..GEN CHINA OR HOT ARER SPEC |
1 | ||
| 75341-22010 |
JZS133..GCC;JZS133..LHD..5F..GEN..Q |
1 | ||
| 75361A - PLATE, FRONT FENDER NAME, NO.1 | ||||
| 75443-30090 |
GS131,JZS133..G SUPER SALOON |
1 | ||
| 75443-30070 |
JZS133..D |
1 | ||
| 75443-30080 |
GS131,JZS133..ROY ROYAL SALOON |
1 | ||
| 75431 - EMBLEM, LUGGAGE COMPARTMENT DOOR | ||||
| 75431-30200 |
GS131,JZS133,LS130,YS132..GCC,GEN |
1 | ||
| 75431A - EMBLEM, BACK DOOR, NO.1 | ||||
| 75431-30210 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 75441D - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1 | ||||
| 75441-30330 |
JZS133..GCC,GEN 3.0 |
1 | ||
| 75442 - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2 | ||||
| 75442-30120 |
GS131,JZS133,LS130,YS132 CROWN |
1 | ||
| Common parts | ||||
| 90167-50022 | ||||
| 90189-05034 | ||||
| 90386-06008 | ||||
| 90467-05103 | ||||
| 93567-55016 | ||||
| 93568-55014 | ||||
