JZS133L-AEMQF (1993)
Toyota Crown

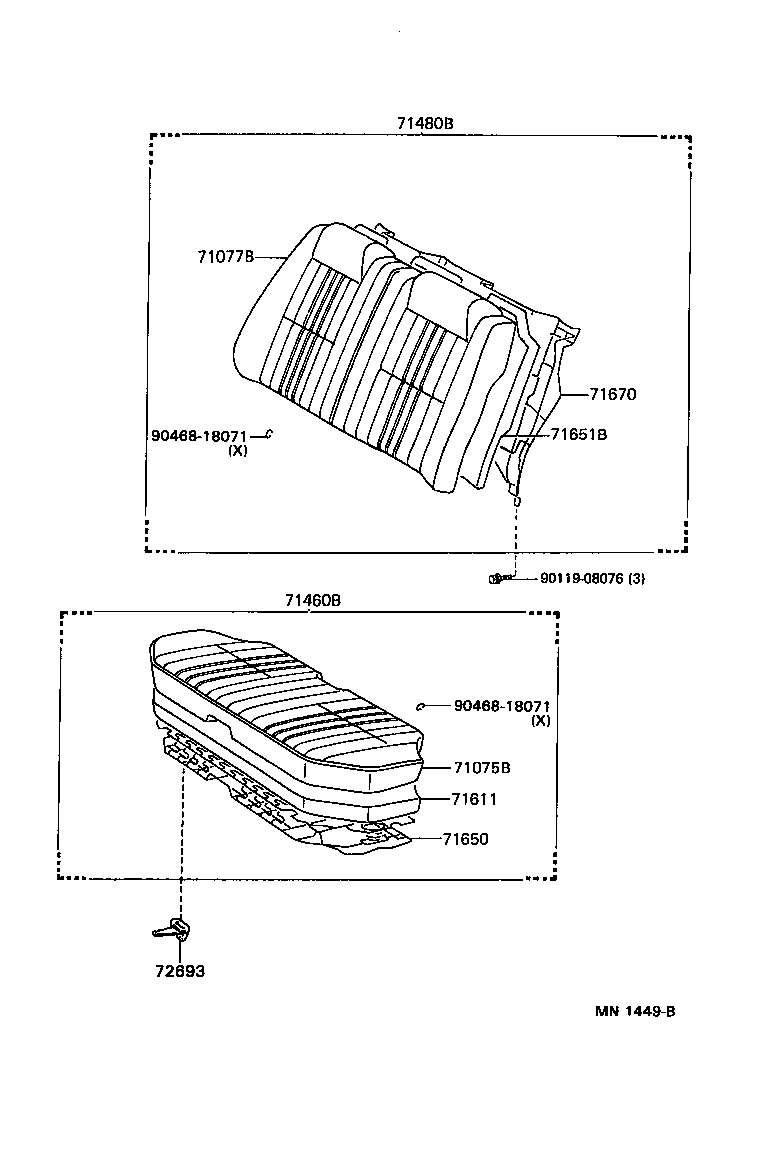

ILLUST NO. 1 OF 3(9110- )B,D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-30820J0 |
JZS133..GEN..Q DK.BLUE,TRIM8# |
1 | ||
| 71065-30820E0 |
JZS133..GEN..Q QUARTZ,TRIM4# |
1 | ||
| 71065-30800J0 |
GS131,JZS133..G DK.BLUE,TRIM8# |
1 | ||
| 71065-30800E0 |
GS131,JZS133..G QUARTZ,TRIM4# |
1 | ||
| 71065-30830J0 |
JZS133..J DK.BLUE,TRIM8# |
1 | ||
| 71065-30801J1 |
GS131,JZS133..G DK. BLUE,TRIM8# |
1 | ||
| 71065-30771J0 |
JZS133..D DK.BLUE,TRIM8# |
1 | ||
| 71065-30821J0 |
JZS133..Q DK.BLUE,TRIM8# |
1 | ||
| 71065-30830E0 |
JZS133..J QUARTZ,TRIM4# |
1 | ||
| 71065-30770J0 |
JZS133..D DK.BLUE,TRIM8# |
1 | ||
| 71065-30821E0 |
JZS133..Q QUARTZ,TRIM4# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-3F030J0 |
JZS133..GEN..Q DK.BLUE,TRIM8# |
1 | ||
| 71077-3F010J0 |
JZS133..D DK.BLUE,TRIM8# |
1 | ||
| 71077-3A810E0 |
JZS133..J QUARTZ,TRIM4# |
1 | ||
| 71077-3A810J0 |
JZS133..J DK.BLUE,TRIM8# |
1 | ||
| 71077-3F011J1 |
JZS133..D DK. BLUE,TRIM8# |
1 | ||
| 71077-3F040E0 |
GS131,JZS133..G QUARTZ,TRIM4# |
1 | ||
| 71077-3F040J0 |
GS131,JZS133..G DK.BLUE,TRIM8# |
1 | ||
| 71077-3F031E0 |
JZS133..Q QUARTZ,TRIM4# |
1 | ||
| 71077-3F030E0 |
JZS133..GEN..Q QUARTZ,TRIM4# |
1 | ||
| 71077-3F041J1 |
GS131,JZS133..G DK. BLUE,TRIM8# |
1 | ||
| 71077-3F031J0 |
JZS133..Q DK.BLUE,TRIM8# |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-3A090J0 |
JZS133..D ***,DK.BLUE,TRIM8# |
1 | ||
| 71460-3A120E0 |
GS131,JZS133..G ***,QUARTZ,TRIM4# |
1 | ||
| 71460-3A150E0 |
JZS133..J ***,QUARTZ,TRIM4# |
1 | ||
| 71460-3A120J0 |
GS131,JZS133..G ***,DK.BLUE,TRIM8# |
1 | ||
| 71460-3A140J2 |
JZS133..GEN..Q ***,DK.BLUE,TRIM8# |
1 | ||
| 71460-3A140E2 |
JZS133..GEN..Q ***,QUARTZ,TRIM4# |
1 | ||
| 71460-3A091J6 |
JZS133..D ***,DK. BLUE,TRIM8# |
1 | ||
| 71460-3A150J0 |
JZS133..J ***,DK.BLUE,TRIM8# |
1 | ||
| 71460-3A141E3 |
JZS133..Q ***,QUARTZ,TRIM4# |
1 | ||
| 71460-3A121J2 |
GS131,JZS133..G ***,DK. BLUE,TRIM8# |
1 | ||
| 71460-3A141J3 |
JZS133..Q ***,DK.BLUE,TRIM8# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-3F040J0 |
JZS133..J ***,DK.BLUE,TRIM8# |
1 | ||
| 71480-3F130J0 |
GS131,JZS133..G ***,DK.BLUE,TRIM8# |
1 | ||
| 71480-3F120J0 |
JZS133..D ***,DK.BLUE,TRIM8# |
1 | ||
| 71480-3F140E2 |
JZS133..GEN..Q ***,QUARTZ,TRIM4# |
1 | ||
| 71480-3F040E0 |
JZS133..J ***,QUARTZ,TRIM4# |
1 | ||
| 71480-3F130E0 |
GS131,JZS133..G ***,QUARTZ,TRIM4# |
1 | ||
| 71480-3F141E3 |
JZS133..Q ***,QUARTZ,TRIM4# |
1 | ||
| 71480-3F140J2 |
JZS133..GEN..Q ***,DK.BLUE,TRIM8# |
1 | ||
| 71480-3F131J2 |
GS131,JZS133..G ***,DK. BLUE,TRIM8# |
1 | ||
| 71480-3F141J3 |
JZS133..Q ***,DK.BLUE,TRIM8# |
1 | ||
| 71480-3F121J3 |
JZS133..D ***,DK. BLUE,TRIM8# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-30740 |
JZS133..GCC,GEN;GS131,LS130,YS132..MTM |
1 | ||
| 71650 - SPRING ASSY, REAR SEAT CUSHION | ||||
| 71650-30460 |
JZS133..GCC,GEN;GS131,LS130,YS132..MTM |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-30820 |
JZS133,LS130,YS132..B,D |
1 | ||
| 71651-30840 |
GS131..G;JZS133..(ROY,SAL)..(GCC,GEN) |
1 | ||
| 71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT) | ||||
| 71670-30590 |
GS131..G;JZS133..(ROY,SAL)..(GCC,GEN) |
1 | ||
| 71670-30600 |
JZS133,LS130,YS132..B,D |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-30020 |
JZS133..GCC,GEN;GS131,LS130,YS132..MTM |
2 | ||
| Common parts | ||||
| 90119-08076 | ||||
| 90468-18071 | ||||
ILLUST NO. 1 OF 3(9110- )ROY,SAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58908C - LOCK SUB-ASSY, REAR SEAT ARMREST | ||||
| 72809-30040J0 |
GS131..RHD;JZS133..4FC;JZS133..5F..ROY;GS131,JZS133..LHD..5F..G DK.BLUE,TRIM8# |
1 | ||
| 72809-30040E0 |
GS131,JZS133..ROY,SAL QUARTZ,TRIM4# |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-30820J0 |
JZS133..GEN..Q DK.BLUE,TRIM8# |
1 | ||
| 71065-30820E0 |
JZS133..GEN..Q QUARTZ,TRIM4# |
1 | ||
| 71065-30800J0 |
GS131,JZS133..G DK.BLUE,TRIM8# |
1 | ||
| 71065-30800E0 |
GS131,JZS133..G QUARTZ,TRIM4# |
1 | ||
| 71065-30830J0 |
JZS133..J DK.BLUE,TRIM8# |
1 | ||
| 71065-30801J1 |
GS131,JZS133..G DK. BLUE,TRIM8# |
1 | ||
| 71065-30771J0 |
JZS133..D DK.BLUE,TRIM8# |
1 | ||
| 71065-30821J0 |
JZS133..Q DK.BLUE,TRIM8# |
1 | ||
| 71065-30830E0 |
JZS133..J QUARTZ,TRIM4# |
1 | ||
| 71065-30770J0 |
JZS133..D DK.BLUE,TRIM8# |
1 | ||
| 71065-30821E0 |
JZS133..Q QUARTZ,TRIM4# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-3F030J0 |
JZS133..GEN..Q DK.BLUE,TRIM8# |
1 | ||
| 71077-3F010J0 |
JZS133..D DK.BLUE,TRIM8# |
1 | ||
| 71077-3A810E0 |
JZS133..J QUARTZ,TRIM4# |
1 | ||
| 71077-3A810J0 |
JZS133..J DK.BLUE,TRIM8# |
1 | ||
| 71077-3F011J1 |
JZS133..D DK. BLUE,TRIM8# |
1 | ||
| 71077-3F040E0 |
GS131,JZS133..G QUARTZ,TRIM4# |
1 | ||
| 71077-3F040J0 |
GS131,JZS133..G DK.BLUE,TRIM8# |
1 | ||
| 71077-3F031E0 |
JZS133..Q QUARTZ,TRIM4# |
1 | ||
| 71077-3F030E0 |
JZS133..GEN..Q QUARTZ,TRIM4# |
1 | ||
| 71077-3F041J1 |
GS131,JZS133..G DK. BLUE,TRIM8# |
1 | ||
| 71077-3F031J0 |
JZS133..Q DK.BLUE,TRIM8# |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-3A090J0 |
JZS133..D ***,DK.BLUE,TRIM8# |
1 | ||
| 71460-3A120E0 |
GS131,JZS133..G ***,QUARTZ,TRIM4# |
1 | ||
| 71460-3A150E0 |
JZS133..J ***,QUARTZ,TRIM4# |
1 | ||
| 71460-3A120J0 |
GS131,JZS133..G ***,DK.BLUE,TRIM8# |
1 | ||
| 71460-3A140J2 |
JZS133..GEN..Q ***,DK.BLUE,TRIM8# |
1 | ||
| 71460-3A140E2 |
JZS133..GEN..Q ***,QUARTZ,TRIM4# |
1 | ||
| 71460-3A091J6 |
JZS133..D ***,DK. BLUE,TRIM8# |
1 | ||
| 71460-3A150J0 |
JZS133..J ***,DK.BLUE,TRIM8# |
1 | ||
| 71460-3A141E3 |
JZS133..Q ***,QUARTZ,TRIM4# |
1 | ||
| 71460-3A121J2 |
GS131,JZS133..G ***,DK. BLUE,TRIM8# |
1 | ||
| 71460-3A141J3 |
JZS133..Q ***,DK.BLUE,TRIM8# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-3F040J0 |
JZS133..J ***,DK.BLUE,TRIM8# |
1 | ||
| 71480-3F130J0 |
GS131,JZS133..G ***,DK.BLUE,TRIM8# |
1 | ||
| 71480-3F120J0 |
JZS133..D ***,DK.BLUE,TRIM8# |
1 | ||
| 71480-3F140E2 |
JZS133..GEN..Q ***,QUARTZ,TRIM4# |
1 | ||
| 71480-3F040E0 |
JZS133..J ***,QUARTZ,TRIM4# |
1 | ||
| 71480-3F130E0 |
GS131,JZS133..G ***,QUARTZ,TRIM4# |
1 | ||
| 71480-3F141E3 |
JZS133..Q ***,QUARTZ,TRIM4# |
1 | ||
| 71480-3F140J2 |
JZS133..GEN..Q ***,DK.BLUE,TRIM8# |
1 | ||
| 71480-3F131J2 |
GS131,JZS133..G ***,DK. BLUE,TRIM8# |
1 | ||
| 71480-3F141J3 |
JZS133..Q ***,DK.BLUE,TRIM8# |
1 | ||
| 71480-3F121J3 |
JZS133..D ***,DK. BLUE,TRIM8# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-30740 |
JZS133..GCC,GEN;GS131,LS130,YS132..MTM |
1 | ||
| 71650 - SPRING ASSY, REAR SEAT CUSHION | ||||
| 71650-30460 |
JZS133..GCC,GEN;GS131,LS130,YS132..MTM |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-30820 |
JZS133,LS130,YS132..B,D |
1 | ||
| 71651-30840 |
GS131..G;JZS133..(ROY,SAL)..(GCC,GEN) |
1 | ||
| 71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT) | ||||
| 71670-30590 |
GS131..G;JZS133..(ROY,SAL)..(GCC,GEN) |
1 | ||
| 71670-30600 |
JZS133,LS130,YS132..B,D |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-12070J0 |
GS131..RHD;JZS133..4FC;JZS133..5F..ROY;GS131,JZS133..LHD..5F..G W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-12040E0 |
GS131,JZS133..ROY,SAL W/O(LOCK),QUARTZ,TRIM4# |
2 | ||
| 71931-12040J0 |
GS131..RHD;JZS133..4FC;JZS133..5F..ROY;GS131,JZS133..LHD..5F..G W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-12070E0 |
GS131,JZS133..ROY,SAL W(LOCK),QUARTZ,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-12070J0 |
GS131..RHD;JZS133..4FC;JZS133..5F..ROY;GS131,JZS133..LHD..5F..G W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-12040E0 |
GS131,JZS133..ROY,SAL W/O(LOCK),QUARTZ,TRIM4# |
2 | ||
| 71931-12040J0 |
GS131..RHD;JZS133..4FC;JZS133..5F..ROY;GS131,JZS133..LHD..5F..G W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-12070E0 |
GS131,JZS133..ROY,SAL W(LOCK),QUARTZ,TRIM4# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-30470E0 |
JZS133..J QUARTZ,TRIM4# |
2 | ||
| 71940-30480E0 |
GS131,JZS133..Q QUARTZ,TRIM4# |
2 | ||
| 71940-30480J0 |
GS131,JZS133..Q DK.BLUE,TRIM8# |
2 | ||
| 71940-30510J0 |
GS131,JZS133..G DARK BLUE,TRIM8# |
2 | ||
| 71940-30470J0 |
JZS133..J DK.BLUE,TRIM8# |
2 | ||
| 71940-30510E0 |
GS131,JZS133..G QUARTZ,TRIM4# |
2 | ||
| 71940-30481E1 |
JZS133..Q QUARTZ,TRIM4# |
1 | ||
| 71940-30481J1 |
JZS133..Q DK.BLUE,TRIM8# |
1 | ||
| 71940-30570E0 |
JZS133..LHD..Q W(POWER SEAT & LEATHER SEAT),QUARTZ,TRIM4# |
2 | ||
| 71940-30511J1 |
GS131,JZS133..G DK. BLUE,TRIM8# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-30020 |
JZS133..GCC,GEN;GS131,LS130,YS132..MTM |
2 | ||
| 72802A - HINGE SUB-ASSY, ARMREST CONSOLE | ||||
| 72802-30020 |
GS131,JZS133..ROY,SAL |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-30860E0 |
GS131,JZS133..G QUARTZ,TRIM4# |
1 | ||
| 72830-30870E0 |
GS131,JZS133..(GCC,GEN)..Q QUARTZ,TRIM4# |
1 | ||
| 72830-3A150E0 |
JZS133..LHD..Q W(POWER SEAT & LEATHER SEAT),QUARTZ,TRIM4# |
1 | ||
| 72830-30860J0 |
GS131,JZS133..G DK.BLUE,TRIM8# |
1 | ||
| 72830-30880J0 |
JZS133..J DK.BLUE,TRIM8# |
1 | ||
| 72830-30880E0 |
JZS133..J QUARTZ,TRIM4# |
1 | ||
| 72830-30870J0 |
GS131..RHD..Q;JZS133..(GCC,GEN)..Q DK.BLUE,TRIM8# |
1 | ||
| 72830B - BUSH(FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-06002 |
LS130..RHD;GS131,JZS133..ROY,SAL |
2 | ||
| 72830B - BUSH(FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-06002 |
LS130..RHD;GS131,JZS133..ROY,SAL |
2 | ||
| 72830C - CLIP, REAR SEAT CENTER ARMREST | ||||
| 90468-12070 |
LS130..RHD;GS131,JZS133..ROY,SAL |
1 | ||
| Common parts | ||||
| 90119-06100 | ||||
| 90119-08076 | ||||
| 90468-18071 | ||||
| 93269-54010 | ||||
| 93567-54514 | ||||
| 93567-54516 | ||||
ILLUST NO. 1 OF 3(9110- )ROY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58908C - LOCK SUB-ASSY, REAR SEAT ARMREST | ||||
| 72809-30040J0 |
GS131..RHD;JZS133..4FC;JZS133..5F..ROY;GS131,JZS133..LHD..5F..G DK.BLUE,TRIM8# |
1 | ||
| 72809-30040E0 |
GS131,JZS133..ROY,SAL QUARTZ,TRIM4# |
1 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71065-30700J0 |
GS131,JZS133..GEN..Q DK.BLUE,TRIM8# |
1 | ||
| 71075-3A010E0 |
JZS133..LHD..Q W(LEATHER SEAT & POWER SEAT),QUARTZ,TRIM4# |
1 | ||
| 71065-30700E0 |
GS131,JZS133..GEN..Q QUARTZ,TRIM4# |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-30311J0 |
GS131,JZS133..Q DK.BLUE,TRIM8# |
1 | ||
| 71076-30311J0 |
JZS133..LHD..Q W(POWER SEAT),DK.BLUE,TRIM8# |
1 | ||
| 71076-30310J0 |
GS131,JZS133..GEN..Q DK.BLUE,TRIM8# |
1 | ||
| 71076-30311E0 |
GS131,JZS133..Q QUARTZ,TRIM4# |
1 | ||
| 71076-30330E0 |
JZS133..LHD..Q W(LEATHER SEAT & POWER SEAT),QUARTZ,TRIM4# |
1 | ||
| 71076-30311E0 |
JZS133..LHD..Q W(POWER SEAT),QUARTZ,TRIM4# |
1 | ||
| 71076-30310E0 |
GS131,JZS133..GEN..Q QUARTZ,TRIM4# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-3A800J0 |
GS131,JZS133..GEN..Q DK.BLUE,TRIM8# |
1 | ||
| 71077-3A801E0 |
GS131,JZS133..Q QUARTZ,TRIM4# |
1 | ||
| 71077-3A800E0 |
GS131,JZS133..GEN..Q QUARTZ,TRIM4# |
1 | ||
| 71077-3A801J0 |
JZS133..LHD..Q W(POWER SEAT),DK.BLUE,TRIM8# |
1 | ||
| 71077-3A801E0 |
JZS133..LHD..Q W(POWER SEAT),QUARTZ,TRIM4# |
1 | ||
| 71077-3F090E0 |
JZS133..LHD..Q W(LEATHER SEAT & POWER SEAT),QUARTZ,TRIM4# |
1 | ||
| 71077-3A801J0 |
GS131,JZS133..Q DK.BLUE,TRIM8# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-30381E0 |
GS131,JZS133..Q QUARTZ,TRIM4# |
1 | ||
| 71078-30381J0 |
JZS133..LHD..Q W(POWER SEAT),DK.BLUE,TRIM8# |
1 | ||
| 71078-30380E0 |
GS131,JZS133..GEN..Q QUARTZ,TRIM4# |
1 | ||
| 71078-30381E0 |
JZS133..LHD..Q W(POWER SEAT),QUARTZ,TRIM4# |
1 | ||
| 71078-30380J0 |
GS131,JZS133..GEN..Q DK.BLUE,TRIM8# |
1 | ||
| 71078-30381J0 |
GS131,JZS133..Q DK.BLUE,TRIM8# |
1 | ||
| 71078-30390E0 |
JZS133..LHD..Q W(LEATHER SEAT & POWER SEAT),QUARTZ,TRIM4# |
1 | ||
| 71349D - COVER, REAR SEAT BACK HINGE, RH | ||||
| 71349-30040J0 |
JZS133..Q;GS131..RHD..Q DK.BLUE,TRIM8# |
2 | ||
| 71349-30040E0 |
GS131,JZS133..Q QUARTZ,TRIM4# |
2 | ||
| 71379B - COVER, REAR SEAT BACK HINGE, LH | ||||
| 71349-30040E0 |
GS131,JZS133..Q QUARTZ,TRIM4# |
2 | ||
| 71349-30040J0 |
JZS133..Q;GS131..RHD..Q DK.BLUE,TRIM8# |
2 | ||
| 71460S - CUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71560-30890E2 |
GS131,JZS133..GEN..Q ***,QUARTZ,TRIM4# |
1 | ||
| 71460-3A280E0 |
JZS133..LHD..Q ***,W(LEATHER SEAT & POWER SEAT),QUARTZ,TRIM4# |
1 | ||
| 71560-30890J2 |
GS131,JZS133..GEN..Q ***,DK.BLUE,TRIM8# |
1 | ||
| 71470S - CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71470-30320E0 |
JZS133..LHD..Q ***,W(LEATHER SEAT & POWER SEAT),QUARTZ,TRIM4# |
1 | ||
| 71470-30290J2 |
GS131,JZS133..GEN..Q ***,DK.BLUE,TRIM8# |
1 | ||
| 71470-30290E2 |
GS131,JZS133..GEN..Q ***,QUARTZ,TRIM4# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-3F010J2 |
GS131,JZS133..GEN..Q ***,DK.BLUE,TRIM8# |
1 | ||
| 71480-3F260E0 |
JZS133..LHD..Q ***,W(LEATHER SEAT & POWER SEAT),QUARTZ,TRIM4# |
1 | ||
| 71480-3F010E2 |
GS131,JZS133..GEN..Q ***,QUARTZ,TRIM4# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-30490E2 |
GS131,JZS133..GEN..Q ***,QUARTZ,TRIM4# |
1 | ||
| 71490-30530E0 |
JZS133..LHD..Q ***,W(LEATHER SEAT & POWER SEAT),QUARTZ,TRIM4# |
1 | ||
| 71490-30490J2 |
GS131,JZS133..GEN..Q ***,DK.BLUE,TRIM8# |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71611-30730 |
JZS133..LHD..Q W(POWER SEAT) |
1 | ||
| 71611-30760 |
JZS133..LHD..Q W(LEATHER SEAT & POWER SEAT) |
1 | ||
| 71611-30730 |
GS131,JZS133..Q |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71612-30370 |
GS131,JZS133..Q |
1 | ||
| 71612-30370 |
JZS133..LHD..Q W(POWER SEAT) |
1 | ||
| 71612-30380 |
JZS133..LHD..Q W(LEATHER SEAT & POWER SEAT) |
1 | ||
| 71629A - COVER, REAR SEAT CUSHION HINGE, RH | ||||
| 71629-30010E0 |
GS131,JZS133..Q QUARTZ,TRIM4#,INNER |
1 | ||
| 71629-30010J0 |
GS131,JZS133..Q DARK BLUE,TRIM8#,INNER |
1 | ||
| 71629-30020 |
GS131,JZS133..Q OUTER |
1 | ||
| 71639 - COVER, REAR SEAT CUSHION HINGE, LH | ||||
| 71639-30010E0 |
GS131,JZS133..Q QUARTZ,TRIM4#,INNER |
1 | ||
| 71629-30020 |
GS131,JZS133..Q OUTER |
1 | ||
| 71639-30010J0 |
GS131,JZS133..Q DK.BLUE,TRIM8#,INNER |
1 | ||
| 71650B - SPRING ASSY, REAR SEAT CUSHION, RH | ||||
| 71650-30450 |
GS131,JZS133..Q |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-30810 |
GS131,JZS133..Q |
1 | ||
| 71651-30860 |
JZS133..LHD..Q W(POWER SEAT & LEATHER SEAT) |
1 | ||
| 71651-30810 |
JZS133..LHD..Q W(POWER SEAT) |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-30370 |
GS131,JZS133..Q |
1 | ||
| 71652-30370 |
JZS133..LHD..Q W(POWER SEAT) |
1 | ||
| 71652-30380 |
JZS133..LHD..Q W(POWER SEAT & LEATHER SEAT) |
1 | ||
| 71660B - SPRING ASSY, REAR SEAT CUSHION, LH | ||||
| 71660-30060 |
GS131,JZS133..Q |
1 | ||
| 71670S - SPRING ASSY, REAR SEAT BACK, RH(FOR SEPARATE SEAT) | ||||
| 71670-30570 |
GS131,JZS133..Q |
1 | ||
| 71672 - PAD, REAR SEAT BACK SILENCER, B | ||||
| 71672-30050 |
GS131,JZS133..Q |
2 | ||
| 71672 - PAD, REAR SEAT BACK SILENCER, B | ||||
| 71672-30050 |
GS131,JZS133..Q |
2 | ||
| 71680S - SPRING ASSY, REAR SEAT BACK, LH(FOR SEPARATE SEAT) | ||||
| 71680-30170 |
GS131,JZS133..Q |
1 | ||
| 71695 - PROTECTOR, REAR SEAT BACK | ||||
| 71695-30010E2 |
JZS133..LHD..Q LEATHER SEAT,QUARTZ,TRIM4# |
1 | ||
| 71697 - PROTECTOR, REAR SEAT BACK EDGE | ||||
| 71697-30010E2 |
JZS133..LHD..Q LEATHER SEAT,QUARTZ,TRIM4# |
1 | ||
| 71730A - SPRING ASSY, REAR SEAT BACK, LOWER RH | ||||
| 71730-30120 |
GS131,JZS133..Q |
1 | ||
| 71740A - SPRING ASSY, REAR SEAT BACK, LOWER LH | ||||
| 71740-30110 |
GS131,JZS133..Q |
1 | ||
| 71803B - BOARD SUB-ASSY, REAR SEAT ARMREST HOLE | ||||
| 71803-30290J0 |
JZS133..Q;GS131..RHD..Q DK.BLUE,TRIM8# |
1 | ||
| 71803-30310E0 |
JZS133..LHD..Q W(POWER SEAT & LEATHER SEAT),QUARTZ,TRIM4# |
1 | ||
| 71803-30290E0 |
GS131,JZS133..Q QUARTZ,TRIM4# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-12070J0 |
GS131..RHD;JZS133..4FC;JZS133..5F..ROY;GS131,JZS133..LHD..5F..G W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-12040E0 |
GS131,JZS133..ROY,SAL W/O(LOCK),QUARTZ,TRIM4# |
2 | ||
| 71931-12040J0 |
GS131..RHD;JZS133..4FC;JZS133..5F..ROY;GS131,JZS133..LHD..5F..G W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-12070E0 |
GS131,JZS133..ROY,SAL W(LOCK),QUARTZ,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-12070J0 |
GS131..RHD;JZS133..4FC;JZS133..5F..ROY;GS131,JZS133..LHD..5F..G W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-12040E0 |
GS131,JZS133..ROY,SAL W/O(LOCK),QUARTZ,TRIM4# |
2 | ||
| 71931-12040J0 |
GS131..RHD;JZS133..4FC;JZS133..5F..ROY;GS131,JZS133..LHD..5F..G W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-12070E0 |
GS131,JZS133..ROY,SAL W(LOCK),QUARTZ,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-12070J0 |
GS131..RHD;JZS133..4FC;JZS133..5F..ROY;GS131,JZS133..LHD..5F..G W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-12040E0 |
GS131,JZS133..ROY,SAL W/O(LOCK),QUARTZ,TRIM4# |
2 | ||
| 71931-12040J0 |
GS131..RHD;JZS133..4FC;JZS133..5F..ROY;GS131,JZS133..LHD..5F..G W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-12070E0 |
GS131,JZS133..ROY,SAL W(LOCK),QUARTZ,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-12070J0 |
GS131..RHD;JZS133..4FC;JZS133..5F..ROY;GS131,JZS133..LHD..5F..G W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-12040E0 |
GS131,JZS133..ROY,SAL W/O(LOCK),QUARTZ,TRIM4# |
2 | ||
| 71931-12040J0 |
GS131..RHD;JZS133..4FC;JZS133..5F..ROY;GS131,JZS133..LHD..5F..G W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-12070E0 |
GS131,JZS133..ROY,SAL W(LOCK),QUARTZ,TRIM4# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-30470E0 |
JZS133..J QUARTZ,TRIM4# |
2 | ||
| 71940-30480E0 |
GS131,JZS133..Q QUARTZ,TRIM4# |
2 | ||
| 71940-30480J0 |
GS131,JZS133..Q DK.BLUE,TRIM8# |
2 | ||
| 71940-30510J0 |
GS131,JZS133..G DARK BLUE,TRIM8# |
2 | ||
| 71940-30470J0 |
JZS133..J DK.BLUE,TRIM8# |
2 | ||
| 71940-30510E0 |
GS131,JZS133..G QUARTZ,TRIM4# |
2 | ||
| 71940-30481E1 |
JZS133..Q QUARTZ,TRIM4# |
1 | ||
| 71940-30481J1 |
JZS133..Q DK.BLUE,TRIM8# |
1 | ||
| 71940-30570E0 |
JZS133..LHD..Q W(POWER SEAT & LEATHER SEAT),QUARTZ,TRIM4# |
2 | ||
| 71940-30511J1 |
GS131,JZS133..G DK. BLUE,TRIM8# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-30470E0 |
JZS133..J QUARTZ,TRIM4# |
2 | ||
| 71940-30480E0 |
GS131,JZS133..Q QUARTZ,TRIM4# |
2 | ||
| 71940-30480J0 |
GS131,JZS133..Q DK.BLUE,TRIM8# |
2 | ||
| 71940-30510J0 |
GS131,JZS133..G DARK BLUE,TRIM8# |
2 | ||
| 71940-30470J0 |
JZS133..J DK.BLUE,TRIM8# |
2 | ||
| 71940-30510E0 |
GS131,JZS133..G QUARTZ,TRIM4# |
2 | ||
| 71940-30481E1 |
JZS133..Q QUARTZ,TRIM4# |
1 | ||
| 71940-30481J1 |
JZS133..Q DK.BLUE,TRIM8# |
1 | ||
| 71940-30570E0 |
JZS133..LHD..Q W(POWER SEAT & LEATHER SEAT),QUARTZ,TRIM4# |
2 | ||
| 71940-30511J1 |
GS131,JZS133..G DK. BLUE,TRIM8# |
2 | ||
| 72802A - HINGE SUB-ASSY, ARMREST CONSOLE | ||||
| 72802-30020 |
GS131,JZS133..ROY,SAL |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-30860E0 |
GS131,JZS133..G QUARTZ,TRIM4# |
1 | ||
| 72830-30870E0 |
GS131,JZS133..(GCC,GEN)..Q QUARTZ,TRIM4# |
1 | ||
| 72830-3A150E0 |
JZS133..LHD..Q W(POWER SEAT & LEATHER SEAT),QUARTZ,TRIM4# |
1 | ||
| 72830-30860J0 |
GS131,JZS133..G DK.BLUE,TRIM8# |
1 | ||
| 72830-30880J0 |
JZS133..J DK.BLUE,TRIM8# |
1 | ||
| 72830-30880E0 |
JZS133..J QUARTZ,TRIM4# |
1 | ||
| 72830-30870J0 |
GS131..RHD..Q;JZS133..(GCC,GEN)..Q DK.BLUE,TRIM8# |
1 | ||
| 72830B - BUSH(FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-06002 |
LS130..RHD;GS131,JZS133..ROY,SAL |
2 | ||
| 72830B - BUSH(FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-06002 |
LS130..RHD;GS131,JZS133..ROY,SAL |
2 | ||
| 72830C - CLIP, REAR SEAT CENTER ARMREST | ||||
| 90468-12070 |
LS130..RHD;GS131,JZS133..ROY,SAL |
1 | ||
| Common parts | ||||
| 90119-06100 | ||||
| 90119-08076 | ||||
| 90386-12027 | ||||
| 90468-18071 | ||||
| 90523-08001 | ||||
| 93269-54010 | ||||
| 93567-54514 | ||||
| 93567-54516 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
| 94613-10800 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8513 | ||||

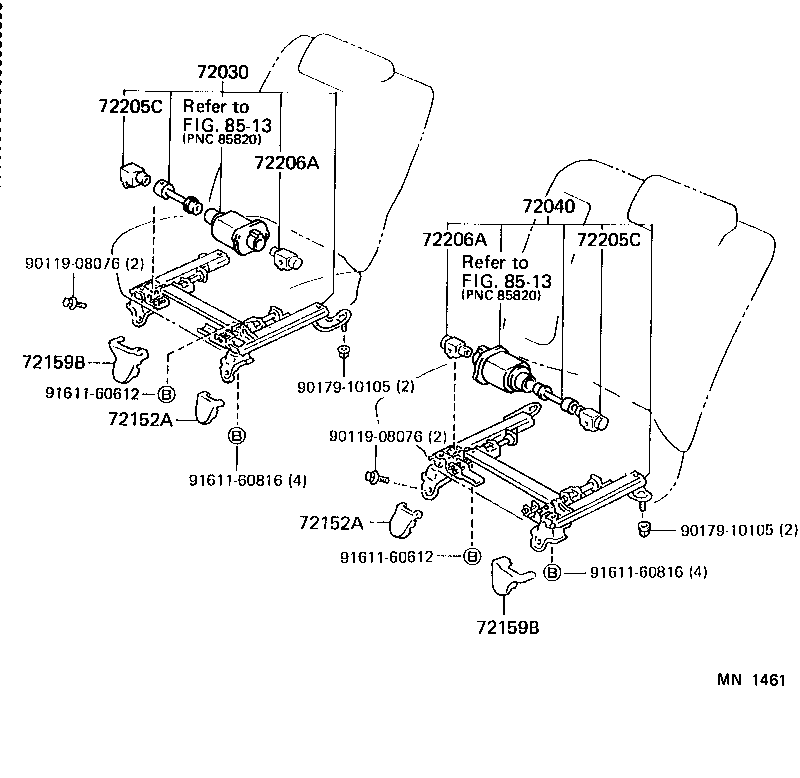

ILLUST NO. 2 OF 3(9110- )ROY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72030 - ADJUSTER ASSY, REAR NO.1 SEAT | ||||
| 72030-30050 |
GS131,JZS133..Q |
1 | ||
| 72040 - ADJUSTER ASSY, REAR NO.2 SEAT | ||||
| 72040-30050 |
GS131,JZS133..Q |
1 | ||
| 72152A - COVER, REAR SEAT TRACK BRACKET, INNER | ||||
| 72152-30011J0 |
JZS133..Q;GS131..RHD..Q DK.BLUE,TRIM8# |
2 | ||
| 72152-30011E0 |
GS131,JZS133..Q QUARTZ,TRIM4# |
2 | ||
| 72152A - COVER, REAR SEAT TRACK BRACKET, INNER | ||||
| 72152-30011J0 |
JZS133..Q;GS131..RHD..Q DK.BLUE,TRIM8# |
2 | ||
| 72152-30011E0 |
GS131,JZS133..Q QUARTZ,TRIM4# |
2 | ||
| 72159B - COVER, REAR SEAT TRACK BRACKET, OUTER | ||||
| 72159-30030J0 |
JZS133..Q;GS131..RHD..Q DK.BLUE,TRIM8#,RH |
1 | ||
| 72159-30030E0 |
GS131,JZS133..Q QUARTZ,TRIM4#,RH |
1 | ||
| 72159-30040J0 |
JZS133..Q;GS131..RHD..Q DK.BLUE,TRIM8#,LH |
1 | ||
| 72159-30040E0 |
GS131,JZS133..Q QUARTZ,TRIM4#,LH |
1 | ||
| 72159B - COVER, REAR SEAT TRACK BRACKET, OUTER | ||||
| 72159-30030J0 |
JZS133..Q;GS131..RHD..Q DK.BLUE,TRIM8#,RH |
1 | ||
| 72159-30030E0 |
GS131,JZS133..Q QUARTZ,TRIM4#,RH |
1 | ||
| 72159-30040J0 |
JZS133..Q;GS131..RHD..Q DK.BLUE,TRIM8#,LH |
1 | ||
| 72159-30040E0 |
GS131,JZS133..Q QUARTZ,TRIM4#,LH |
1 | ||
| 72205C - HOUSING SUB-ASSY, POWER SEAT, NO.1 | ||||
| 72205-30040 |
GS131,JZS133..Q |
2 | ||
| 72205C - HOUSING SUB-ASSY, POWER SEAT, NO.1 | ||||
| 72205-30040 |
GS131,JZS133..Q |
2 | ||
| 72206A - HOUSING SUB-ASSY, POWER SEAT, NO.2 | ||||
| 72206-30030 |
JZS133..Q;GS131..RHD..Q |
2 | ||
| 72206A - HOUSING SUB-ASSY, POWER SEAT, NO.2 | ||||
| 72206-30030 |
JZS133..Q;GS131..RHD..Q |
2 | ||
| Common parts | ||||
| 90119-08076 | ||||
| 90179-10105 | ||||
| 91611-60612 | ||||
| 91611-60816 | ||||
| Linked diagrams | ||||
| 8513 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
