JZS133L-AEMQF (1993)
Toyota Crown
Production
Aug 1993
-
Dec 1995
Engine
2JZGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9110- )

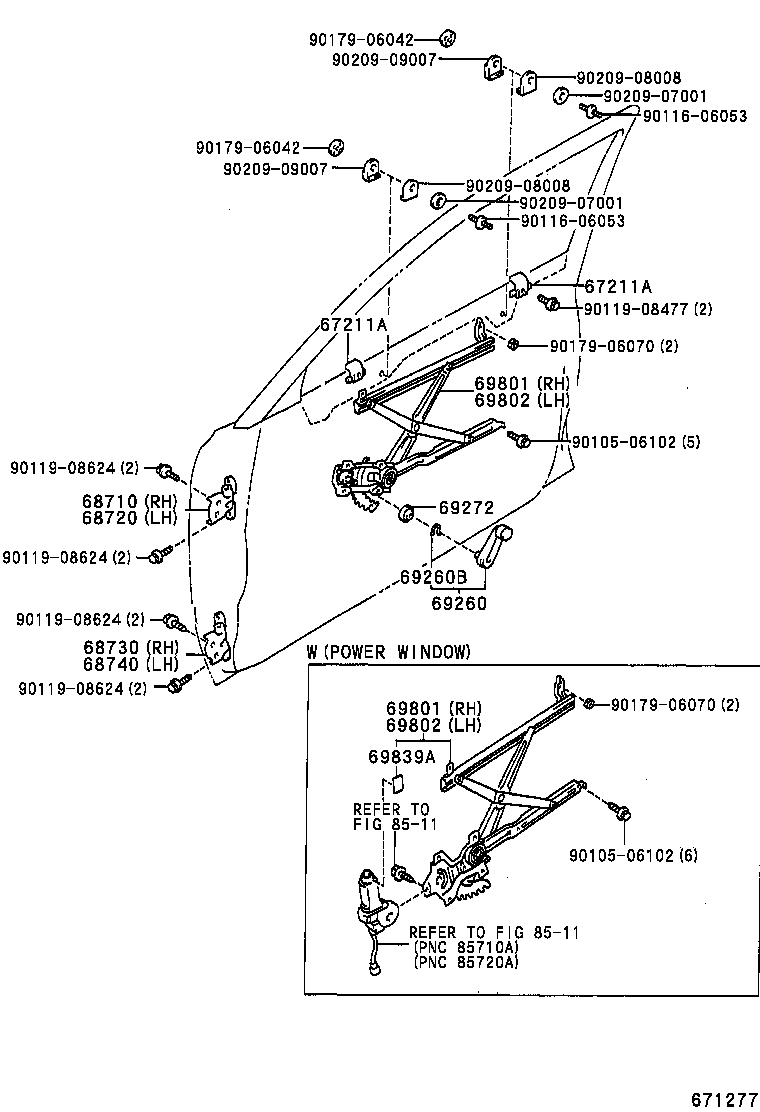

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67211A - STOP, FRONT DOOR WINDOW, UPPER | ||||
| 67211-30090 |
GS131,JZS133,LS130,YS132 |
2 | ||
| 67211A - STOP, FRONT DOOR WINDOW, UPPER | ||||
| 67211-30090 |
GS131,JZS133,LS130,YS132 |
2 | ||
| 68710 - HINGE ASSY, FRONT DOOR, UPPER RH | ||||
| 68710-30120 |
JZS133,LS130,YS132..LHD..(B,D) |
1 | ||
| 68710-30090 |
LS130..RHD;GS131,JZS133..ROY,SAL |
1 | ||
| 68720 - HINGE ASSY, FRONT DOOR, UPPER LH | ||||
| 68720-30030 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 68730 - HINGE ASSY, FRONT DOOR, LOWER RH | ||||
| 68730-30080 |
LS130..RHD;GS131,JZS133..ROY,SAL |
1 | ||
| 68730-30090 |
JZS133,LS130,YS132..LHD..(B,D) |
1 | ||
| 68740 - HINGE ASSY, FRONT DOOR, LOWER LH | ||||
| 68740-30050 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR | ||||
| 69260-22030W3 |
JZS133..D TAXI SPEC FOR SAUDI,DK.BLUE,TRIM8# |
2 | ||
| 69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE | ||||
| 90520-01002 |
JZS133..D TAXI SPEC FOR SAUDI |
2 | ||
| 69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE | ||||
| 69285-2201008 |
JZS133..D TAXI SPEC FOR SAUDI,NATURAL WHITE,TRIM8# |
2 | ||
| 69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH | ||||
| 69810-30251 |
JZS133..D TAXI SPEC FOR SAUDI |
1 | ||
| 69801-30171 |
GS131,JZS133 |
1 | ||
| 69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH | ||||
| 69810-30251 |
JZS133..D TAXI SPEC FOR SAUDI |
1 | ||
| 69801-30171 |
GS131,JZS133 |
1 | ||
| 69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH | ||||
| 69820-30231 |
JZS133..D TAXI SPEC FOR SAUDI |
1 | ||
| 69802-30171 |
GS131,JZS133 |
1 | ||
| 69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH | ||||
| 69820-30231 |
JZS133..D TAXI SPEC FOR SAUDI |
1 | ||
| 69802-30171 |
GS131,JZS133 |
1 | ||
| 69839A - PAD, FRONT DOOR WINDOW REGULATOR | ||||
| 69839-95800 |
GS131,JZS133 |
2 | ||
| Common parts | ||||
| 90105-06102 | ||||
| 90116-06053 | ||||
| 90119-08477 | ||||
| 90119-08624 | ||||
| 90179-06042 | ||||
| 90179-06070 | ||||
| 90209-07001 | ||||
| 90209-08008 | ||||
| 90209-09007 | ||||
| Linked diagrams | ||||
| 8511 | ||||
