JZS133L-AEMQF (1993)

Toyota Crown

Production Aug 1993 - Dec 1995
Engine 2JZGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )

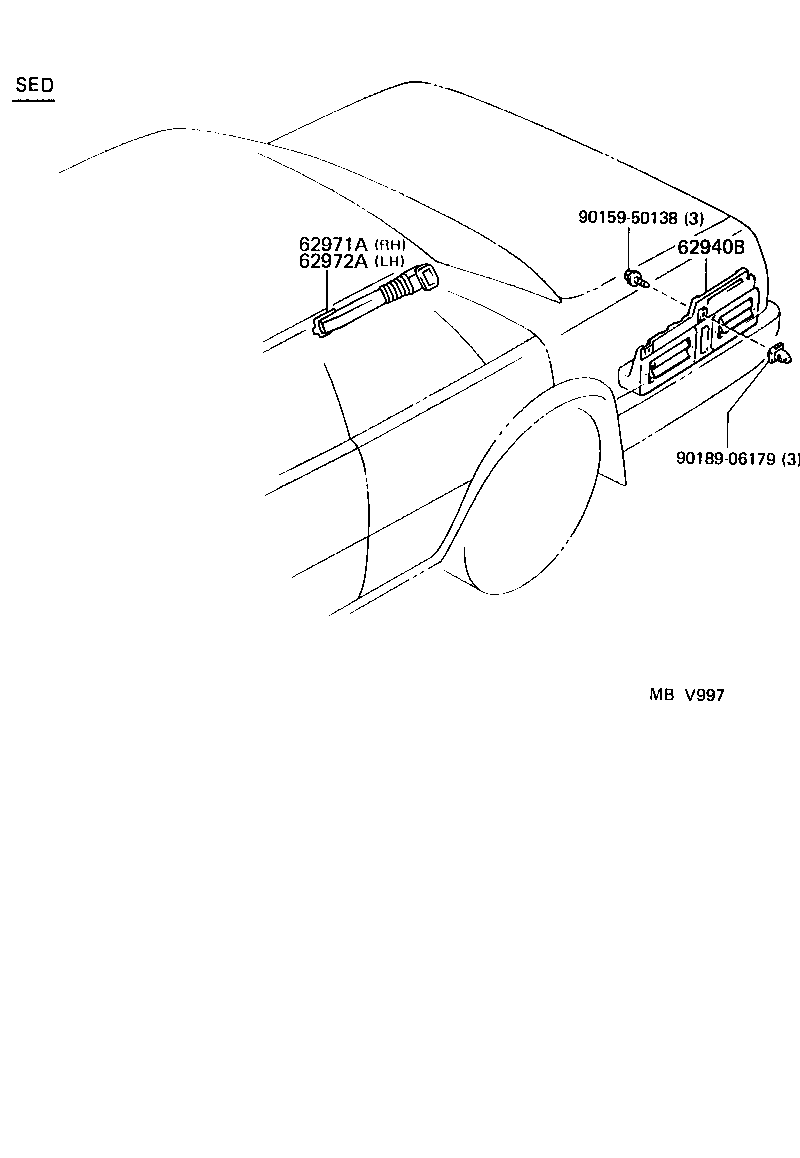

Click highlighted areas on diagram

diagram 62940B 62971A 62972A 9015950138 9018906179
Part # Description Qty Price
62940B - DUCT ASSY, QUARTER VENT, LH
62940-30090

GS131,JZS133,LS130,YS132

 1
62971A - DUCT, ROOF SIDE AIR, NO.1 RH
62971-30090

GS131,JZS133..ROY,SAL

 1
62972A - DUCT, ROOF SIDE AIR, NO.1 LH
62972-30090

GS131,JZS133..ROY,SAL

 1
Common parts
90159-50138
90189-06179
