JZS133L-AEMQF (1993)

Toyota Crown

Production Aug 1993 - Dec 1995
Engine 2JZGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )

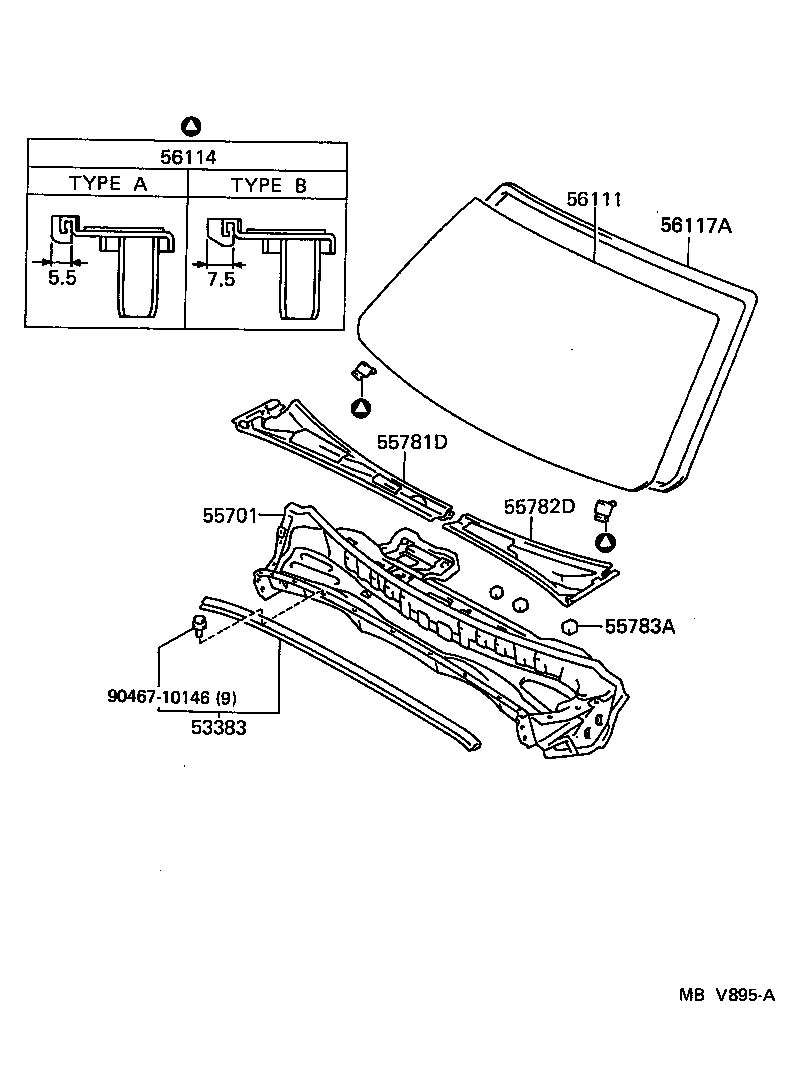

Click highlighted areas on diagram

diagram 53383 55701 55781D 55782D 55783A 56111 56114 56117A 9046710146
Part # Description Qty Price
53383 - SEAL, HOOD TO COWL TOP
53383-30110

GS131,JZS133,LS130,YS132

 1
55701 - PANEL SUB-ASSY, COWL
55700-30510

GS131,JZS133..LHD

 1
55781D - LOUVER, COWL TOP VENTILATOR, RH
55781-30091

GS131,JZS133,LS130,YS132..LHD

 1
55782D - LOUVER, COWL TOP VENTILATOR, LH
55782-30051

GS131,JZS133,LS130,YS132..LHD

 1
55783A - PAD, COWL TOP SILENCER
55783-30020

GS131,JZS133,LS130,YS132

 6
56111 - GLASS, WINDSHIELD
56111-3A080

JZS133..G

*TL,T=5.3,BLUE,W(TOP SHADE)

 1
56111-3A050

JZS133..4FC;JZS133..5F..(G,J)

*TL,T=5.3,BRONZE,W(TOP SHADE)

 1
56111-3A070

JZS133..G

*TL,T=5.3,BLUE

 1
56111-3A080

GS131..RHD;JZS133..ROY

*TL,T=5.3,BLUE

 1
56111-3A090

JZS133,LS130,YS132..B,D

*TL,T=5.3,BLUE

 1
56114 - RETAINER, WINDSHIELD GLASS
56114-30070

GS131,JZS133,LS130,YS132

TYPE A

 2
56114-30080

GS131,JZS133,LS130,YS132

TYPE B

 2
56117A - DAM, WINDOW GLASS ADHESIVE
56117-30200

GS131,JZS133,LS130,YS132

 1
Common parts
90467-10146
