JZS133L-AEMQF (1993)

Toyota Crown

Production Aug 1993 - Dec 1995
Engine 2JZGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )

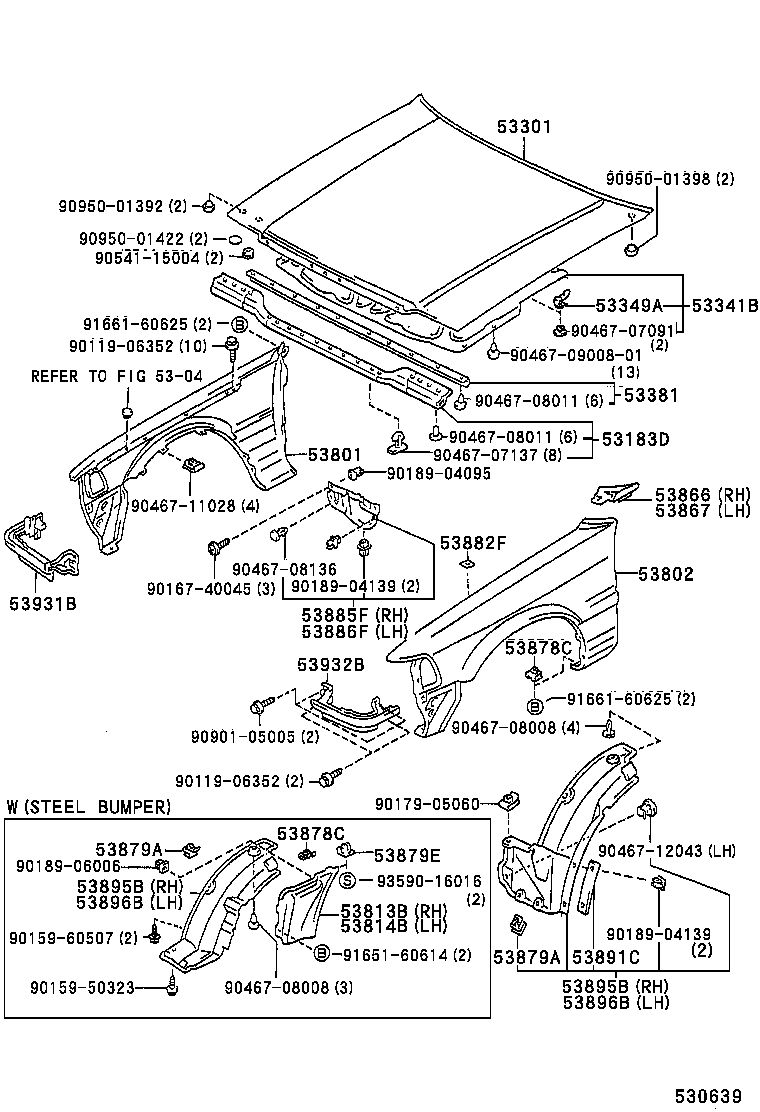

Click highlighted areas on diagram

diagram 5304 53183D 53301 53341B 53349A 53381 53801 53802 53813B 53814B 53866 53867 53878C 53878C 53879A 53879A 53879E 53882F 53885F 53886F 53891C 53895B 53895B 53896B 53896B 53931B 53932B 9011906352 9011906352 9015950323 9015960507 9016740045 9017905060 9018904095 9018904139 9018904139 9018906006 9046707091 9046707137 9046708008 9046708008 9046708011 9046708011 9046708136 904670900801 9046711028 9046712043 9054115004 9090105005 9095001392 9095001398 9095001422 9165160614 9166160625 9166160625 9359016016
Part # Description Qty Price
53183D - SEAL, HEADLAMP COVER TO HOOD
53183-30070

GS131,JZS133

 1
53301 - HOOD SUB-ASSY
53301-30320

JZS133..RHD..5F;GS131,LS130,YS132;JZS133..4FC..(EECC,GEN);JZS133..LHD..5F..GEN..G

 1
53301-30330

JZS133..5F..GEN..G;JZS133..LHD..4FC..GEN

CHINA SPEC OR HOT AREA SPEC

 1
53301-30330

JZS133..GCC;JZS133..LHD..5F..GEN..Q

 1
53341B - INSULATOR, HOOD
53341-30102

GS131,JZS133,YS132..(ROY,SAL,STD)..(GCC,GEN)

 1
53349A - RETAINER, HOOD INSULATOR
53349-30010

GS131,JZS133,LS130,YS132..ROY,SAL,STD

 2
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-30120

GS131,JZS133,LS130,YS132

 1
53801 - FENDER SUB-ASSY, FRONT RH
53801-3F120

GS131..G;JZS133..(ROY,SAL)..(GCC,GEN)

 1
53801-3F200

JZS133..D

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-3A780

GS131..G;JZS133..(ROY,SAL)..(GCC,GEN)

 1
53802-3A870

JZS133..D

 1
53866 - SEAL, FRONT FENDER TO COWL SIDE, RH
53866-30040

GS131,JZS133,LS130,YS132

 1
53867 - SEAL, FRONT FENDER TO COWL SIDE, LH
53867-30040

GS131,JZS133,LS130,YS132

 1
53878C - SPACER, FRONT FENDER
53878-14020

GS131,JZS133,LS130,YS132

FENDER X ROCKER

 2
53878C - SPACER, FRONT FENDER
53878-14020

GS131,JZS133,LS130,YS132

FENDER X ROCKER

 2
53879A - RETAINER, FRONT FENDER LINER
53879-30010

GS131,JZS133

 4
53879A - RETAINER, FRONT FENDER LINER
53879-30010

GS131,JZS133

 4
53882F - SEAL, FRONT FENDER
53882-16030

JZS133..ROY,SAL

 1
53885F - SHIELD, FRONT FENDER SPLASH, REAR RH
53885-30030

GS131,JZS133,LS130,YS132

 1
53886F - SHIELD, FRONT FENDER SPLASH, REAR LH
53886-30030

GS131,JZS133,LS130,YS132

 1
53891C - SEAL, FRONT FENDER SPLASH SHEILD, FRONT
53891-30020

GS131,JZS133,LS130,YS132

 2
53895B - SHIELD, FRONT FENDER SPLASH, FRONT RH
53895-30020

GS131,JZS133

 1
53895B - SHIELD, FRONT FENDER SPLASH, FRONT RH
53895-30020

GS131,JZS133

 1
53896B - SHIELD, FRONT FENDER SPLASH, FRONT LH
53896-30020

GS131,JZS133

 1
53896B - SHIELD, FRONT FENDER SPLASH, FRONT LH
53896-30020

GS131,JZS133

 1
Common parts
90119-06352
90159-50323
90159-60507
90167-40045
90179-05060
90189-04095
90189-04139
90189-06006
90467-07091
90467-07137
90467-08008
90467-08011
90467-08136
90467-0900801
90467-11028
90467-12043
90541-15004
90901-05005
90950-01392
90950-01398
90950-01422
91651-60614
91661-60625
93590-16016
Linked diagrams
5304
