JZS133L-AEMQF (1993)

Toyota Crown

Production Aug 1993 - Dec 1995
Engine 2JZGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )GS131,JZS133

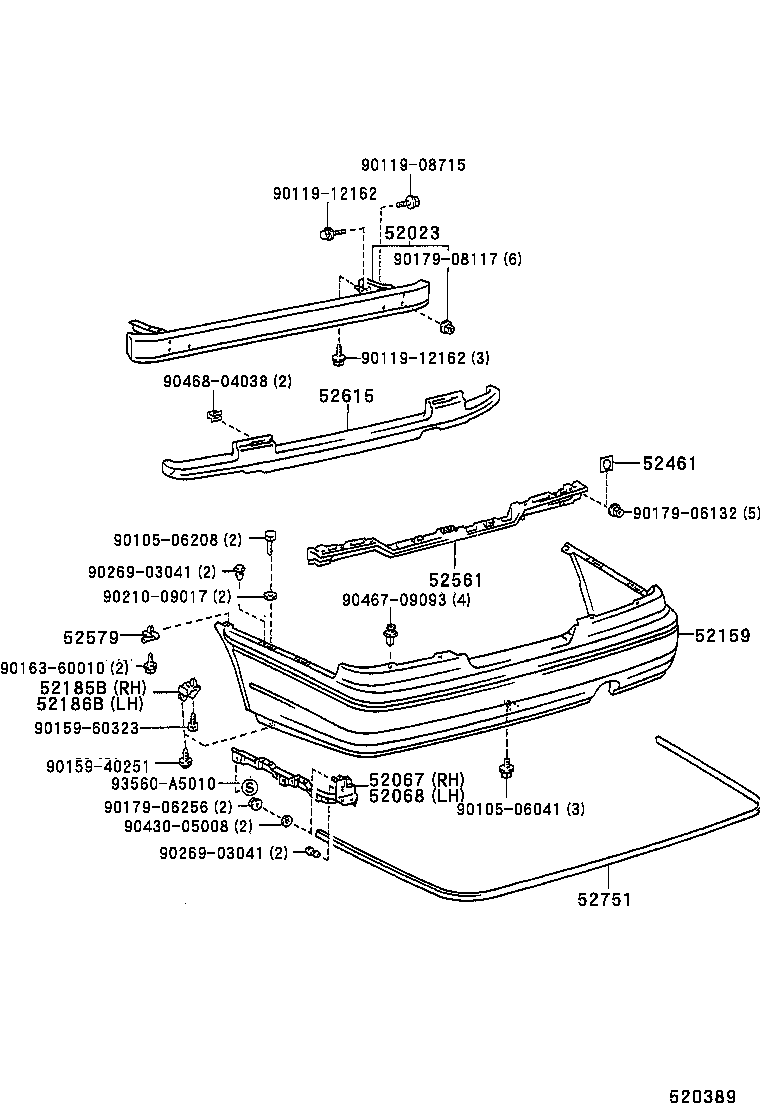

Click highlighted areas on diagram

diagram 52023 52067 52068 52159 52185B 52186B 52461 52561 52579 52615 52751 9010506041 9010506208 9011908715 9011912162 9011912162 9015940251 9015960323 9016360010 9017906132 9017906256 9017908117 9021009017 9026903041 9026903041 9043005008 9046709093 9046804038 93560A5010
Part # Description Qty Price
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52023-30170

GS131,JZS133..GCC,GEN

 1
52067 - SUPPORT SUB-ASSY, REAR BUMPER SIDE, RH
52067-30040

GS131,JZS133

 1
52068 - SUPPORT SUB-ASSY, REAR BUMPER SIDE, LH
52068-30040

GS131,JZS133

 1
52159 - COVER, REAR BUMPER
52159-30916

GS131,JZS133

 1
52185B - BRACKET, REAR BUMPER SIDE MOUNTING, RH
52185-30060

GS131,JZS133

 1
52186B - BRACKET, REAR BUMPER SIDE MOUNTING, LH
52186-30040

GS131,JZS133

 1
52461 - PAD, REAR BUMPER, CENTER
90430-05008

GS131,JZS133

 5
52561 - RETAINER, REAR BUMPER, UPPER CENTER
52561-30140

GS131,JZS133

 1
52561-30140

GS131,JZS133

 1
52579 - RETAINER, REAR BUMPER SIDE, NO.3
52579-30060

GS131,JZS133

 2
52615 - ABSORBER, REAR BUMPER ENERGY
52615-30110

GS131,JZS133

 1
52751 - MOULDING, REAR BUMPER
52751-30080

GS131,JZS133

 1
Common parts
90105-06041
90105-06208
90119-08715
90119-12162
90159-40251
90159-60323
90163-60010
90179-06132
90179-06256
90179-08117
90210-09017
90269-03041
90430-05008
90467-09093
90468-04038
93560-A5010
