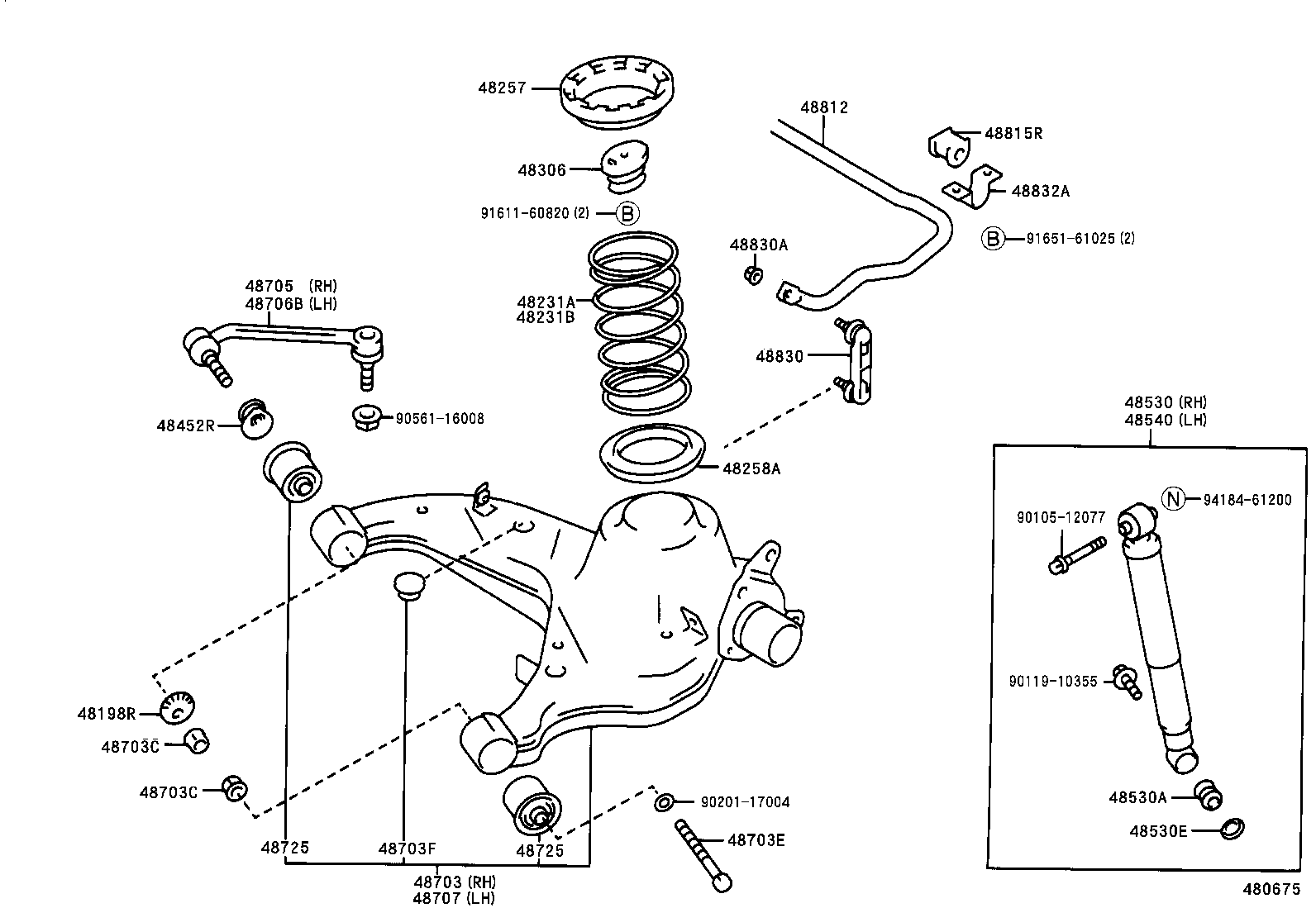

Toyota Crown JZS133 REAR SPRING & SHOCK ABSORBER

Part #	Description	Period	Qty
48198R - CAM, REAR SUSPENSION CAMBER ADJUST, NO.2
48198-30020	GS131,JZS133	10/1991 - 04/2001	2
48231A - SPRING, COIL, REAR RH
48231-30560	GS131,JZS133..GEN	10/1991 - 04/2001	1
48231B - SPRING, COIL, REAR LH
48231-30560	GS131,JZS133..GEN	10/1991 - 04/2001	1
48257 - INSULATOR, REAR COIL SPRING
48257-30040	GS131,JZS133	10/1991 - 04/2001	2
48258A - INSULATOR, REAR COIL SPRING, LOWER
48258-30020	GS131,JZS133	10/1991 - 04/2001	2
48306 - BUMPER SUB-ASSY, REAR SPRING
48306-30140	GS131,JZS133	10/1991 - 04/2001	2
48452R - PLATE, REAR SUSPENSION TOE ADJUST, NO.2
48452-30020	GS131,JZS133	10/1991 - 04/2001	2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-39825	JZS133..GCC,GEN	10/1991 - 03/1997	1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16004	GS131,JZS133	10/1991 - 09/1997	2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03004	GS131,JZS133	10/1991 - 04/2001	2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-39825	JZS133..GCC,GEN	10/1991 - 03/1997	1
48703 - ARM SUB-ASSY, REAR SUSPENSION, RH
48703-30904	GS131,JZS133	10/1991 - 04/2001	1
48703C - NUT(FOR REAR SUSPENSION ARM)
90179-16011	GS131,JZS133 OUTER	10/1991 - 04/2001	2
90179-14025	GS131,JZS133 INNER	10/1991 - 04/2001	4
48703C - NUT(FOR REAR SUSPENSION ARM)
90179-16011	GS131,JZS133 OUTER	10/1991 - 04/2001	2
90179-14025	GS131,JZS133 INNER	10/1991 - 04/2001	4
48703E - BOLT(FOR REAR SUSPENSION ARM)
90101-16017	GS131,JZS133 *16X1.5PX105-30	10/1991 - 04/2001	2
48703F - PLUG, HOLE(FOR REAR SUSPENSION ARM)
47491-30050	GS131,JZS133 OD=22,H=12	10/1991 - 04/2001	2
90950-01258	GS131,JZS133 OD=22,H=8.5	10/1991 - 04/2001	10
48705 - LINK SUB-ASSY, TOE CONTROL, RH
48705-30060	GS131,JZS133	10/1991 - 04/2001	1
48706B - LINK SUB-ASSY, TOE CONTROL, LH
48706-30030	GS131,JZS133	10/1991 - 04/2001	1
48707 - ARM SUB-ASSY, REAR SUSPENSION, LH
48707-30904	GS131,JZS133	10/1991 - 04/2001	1
48725 - BUSH, LOWER CONTROL ARM
48725-30060	GS131,JZS133 INNER	10/1991 - 04/2001	2
48725-30050	GS131,JZS133 OUTER	10/1991 - 04/2001	2
48725 - BUSH, LOWER CONTROL ARM
48725-30060	GS131,JZS133 INNER	10/1991 - 04/2001	2
48725-30050	GS131,JZS133 OUTER	10/1991 - 04/2001	2
48812 - BAR, STABILIZER, REAR
48812-30250	JZS133..GCC,GEN	10/1991 - 04/2001	1
48815R - BUSH, STABILIZER(FOR REAR)
48815-30300	JZS133..GCC,GEN	10/1991 - 04/2001	2
48830 - LINK ASSY, REAR STABILIZER
48830-30020	GS131,JZS133	10/1991 - 04/2001	2
48830A - NUT(FOR REAR STABILIZER LINK)
90179-10054	GS131,JZS133	10/1991 - 04/2001	4
48832A - BRACKET, REAR STABILIZER BAR, NO.1
48832-30040	GS131,JZS133	10/1991 - 04/2001	2
Common parts
90105-12077
90119-10355
90201-17004
90561-16008
91611-60820
91651-61025
94184-61200

JZS133L-AEMQF (1993)

(9110- )GS131,JZS133
