Toyota Crown JZS133 FRONT SPRING & SHOCK ABSORBER

Manufacturers Home
Toyota
GR
CROWN
JZS133L-AEMQF (1993)
4803 - FRONT SPRING & SHOCK ABSORBER

JZS133L-AEMQF (1993)

Toyota Crown

Production Aug 1993 - Dec 1995

Engine 2JZGE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

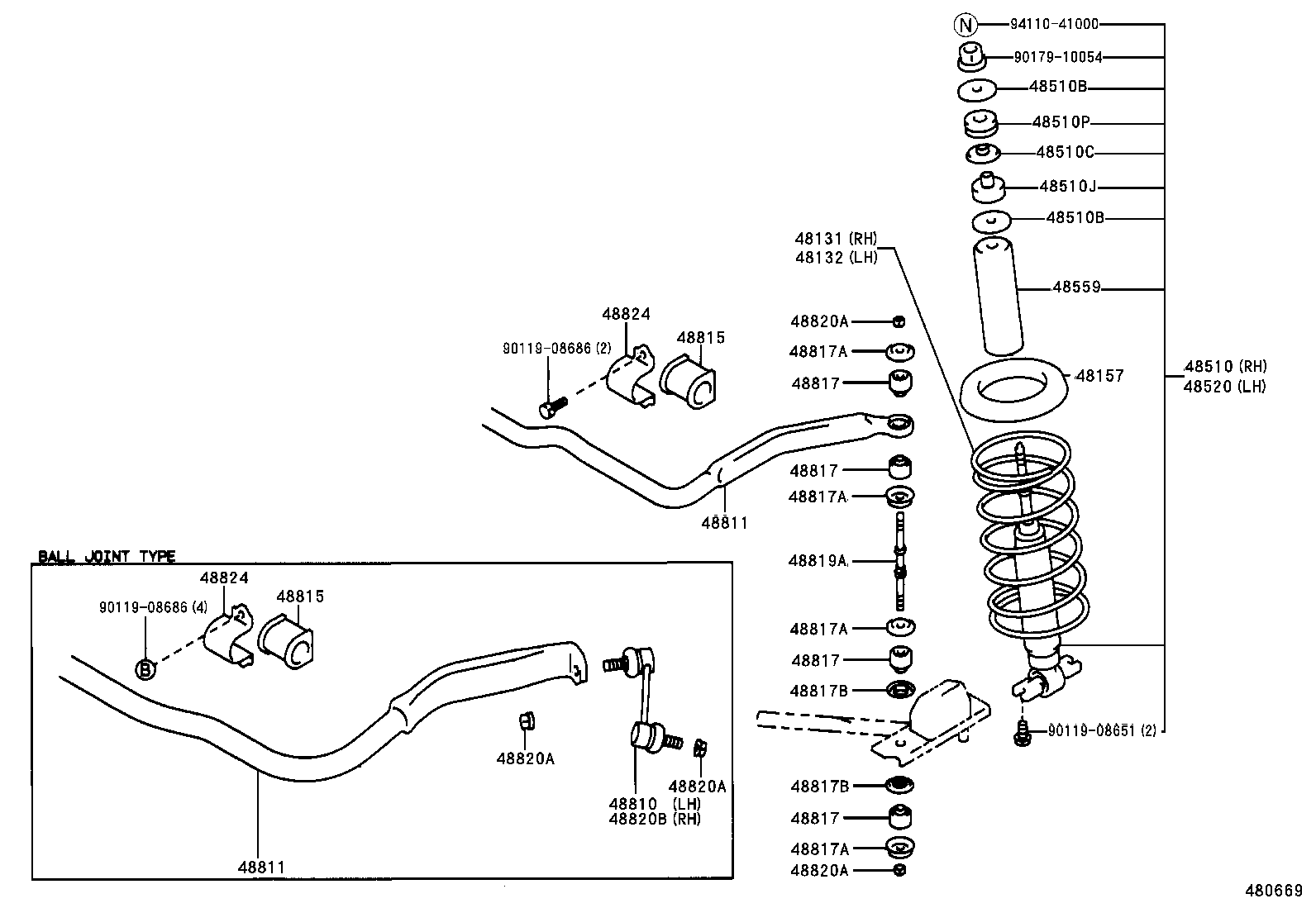

ILLUST NO. 1 OF 2(9110- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
48131 - SPRING, FRONT COIL, RH
48131-30780	JZS133..GCC,GEN L=410	10/1991 - 04/2001	1
48132 - SPRING, FRONT COIL, LH
48131-30780	JZS133..GCC,GEN L=410	10/1991 - 04/2001	1
48157 - INSULATOR, FRONT COIL SPRING, UPPER
48157-30030	GS131,JZS133,LS130,YS132	10/1991 - 04/2001	2
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-39075	GS131,JZS133..GCC,GEN	10/1991 - 03/1997	1
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02072	GS131,JZS133,LS130,YS132 LWR	10/1991 - 04/2001	2
90948-02116	GS131,JZS133,LS130,YS132 UPR	10/1991 - 04/2001	2
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02072	GS131,JZS133,LS130,YS132 LWR	10/1991 - 04/2001	2
90948-02116	GS131,JZS133,LS130,YS132 UPR	10/1991 - 04/2001	2
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02092	GS131,JZS133,LS130,YS132	10/1991 - 04/2001	2
48510J - CUSHION, FRONT SHOCK ABSORBER, NO.1
90948-01038	GS131,JZS133,LS130,YS132	10/1991 - 04/2001	2
48510P - CUSHION, FRONT SHOCK ABSORBER, NO.2
90948-01037	GS131,JZS133,LS130,YS132	10/1991 - 04/2001	2
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48510-39075	GS131,JZS133..GCC,GEN	10/1991 - 03/1997	1
48559 - COVER, SHOCK ABSORBER, DUST
48559-30020	GS131,JZS133,LS130,YS132	10/1991 - 04/2001	2
48810 - LINK ASSY, FRONT STABILIZER, LH
48810-30030	GS131,JZS133	10/1991 - 04/2001	1
48811 - BAR, STABILIZER, FRONT
48811-30360	JZS133	10/1991 - 04/2001	1
48811 - BAR, STABILIZER, FRONT
48811-30360	JZS133	10/1991 - 04/2001	1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-30350	JZS133	10/1991 - 04/2001	2
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-30350	JZS133	10/1991 - 04/2001	2
48820A - NUT(FOR FRONT STABILIZER LINK)
90179-12047	GS131,JZS133	10/1991 - 04/2001	4
48820A - NUT(FOR FRONT STABILIZER LINK)
90179-12047	GS131,JZS133	10/1991 - 04/2001	4
48820A - NUT(FOR FRONT STABILIZER LINK)
90179-12047	GS131,JZS133	10/1991 - 04/2001	4
48820A - NUT(FOR FRONT STABILIZER LINK)
90179-12047	GS131,JZS133	10/1991 - 04/2001	4
48820B - LINK ASSY, FRONT STABILIZER, RH
48820-30050	GS131,JZS133	10/1991 - 04/2001	1
48824 - BRACKET, STABILIZER, FRONT
48824-30070	GS131,JZS133,LS130,YS132	10/1991 - 04/2001	2
48824 - BRACKET, STABILIZER, FRONT
48824-30070	GS131,JZS133,LS130,YS132	10/1991 - 04/2001	2
Common parts
90119-08651
90119-08686
90179-10054
94110-41000

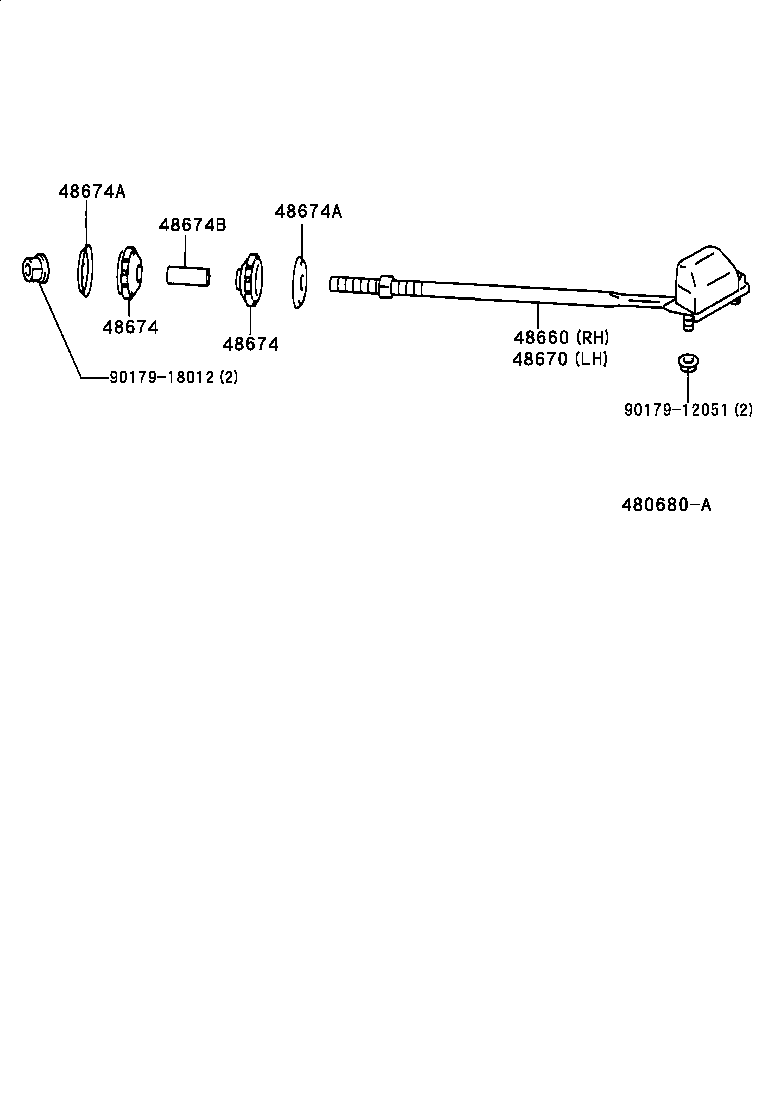

ILLUST NO. 2 OF 2(9110- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
48660 - BAR ASSY, STRUT, RH
48660-30130	GS131,JZS133	10/1991 - 04/2001	1
48660-30100	JZS133..D TAXI SPEC FOR SAUSI ARABIA	10/1991 - 12/1995	1
48670 - BAR ASSY, STRUT, LH
48670-30130	GS131,JZS133	10/1991 - 04/2001	1
48670-30100	JZS133..D TAXI SPEC FOR SAUSI ARABIA	10/1991 - 12/1995	1
48674 - CUSHION, STRUT BAR
48674-22020	JZS133..D TAXI SPEC FOR SAUSI ARABIA	10/1991 - 12/1995	4
48674-30060	GS131,JZS133 RR	10/1991 - 04/2001	2
48674-30070	GS131,JZS133 FR	10/1991 - 04/2001	2
48674 - CUSHION, STRUT BAR
48674-22020	JZS133..D TAXI SPEC FOR SAUSI ARABIA	10/1991 - 12/1995	4
48674-30060	GS131,JZS133 RR	10/1991 - 04/2001	2
48674-30070	GS131,JZS133 FR	10/1991 - 04/2001	2
48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION)
90948-02030	JZS133..D TAXI SPEC	10/1991 - 12/1995	4
90948-02071	GS131,JZS133	10/1991 - 04/2001	4
48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION)
90948-02030	JZS133..D TAXI SPEC	10/1991 - 12/1995	4
90948-02071	GS131,JZS133	10/1991 - 04/2001	4
48674B - COLLAR(FOR STRUT BAR CUSHION)
90387-18129	JZS133..D TAXI SPEC FOR SAUSI ARABIA	10/1991 - 12/1995	2
90387-18013	GS131,JZS133	10/1991 - 04/2001	2
Common parts
90179-12051
90179-18012
