JZS133L-AEMQF (1993)

Toyota Crown

Production Aug 1993 - Dec 1995
Engine 2JZGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )JZS133..LHD

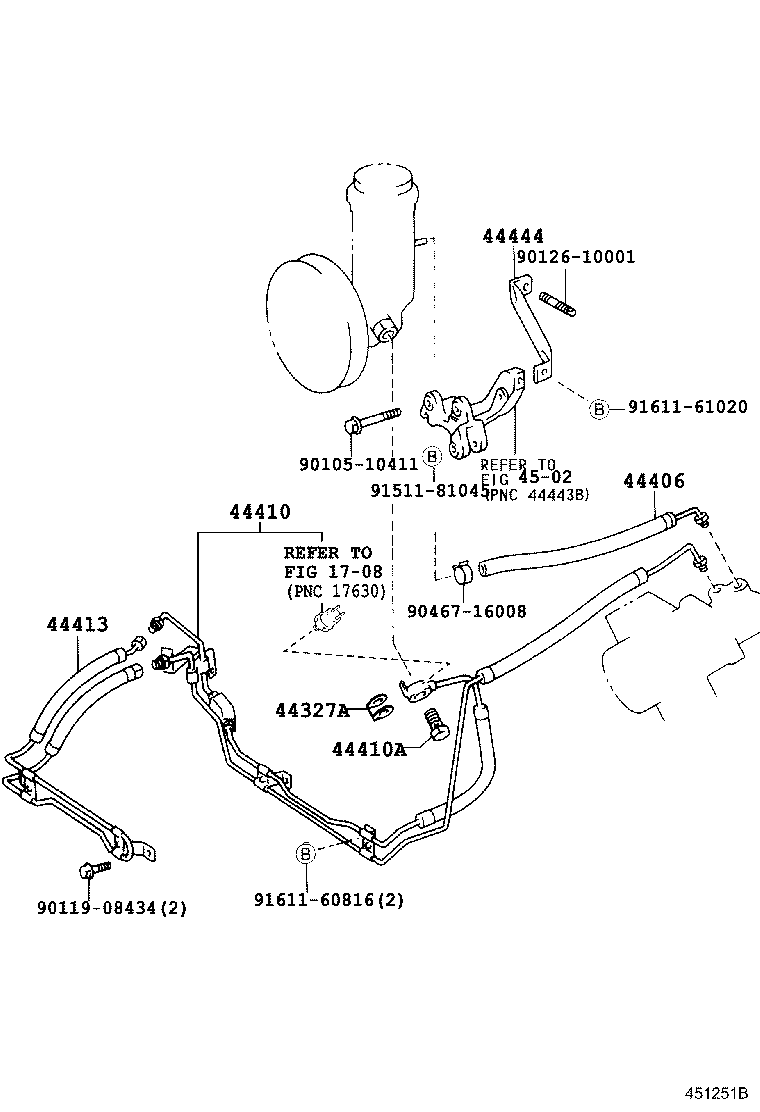

Click highlighted areas on diagram

diagram 1708 44327A 44406 44410 44410A 44413 44444 4502 9010510411 9011908434 9012610001 9046716008 9151181045 9161160816 9161161020
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-26020

JZS133..5F..Q;JZS133..4FC..(GCC,GEN)

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-30490

JZS133..5F..Q

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16014

JZS133..5F..Q;JZS133..4FC..(GCC,GEN)

 1
44444 - STAY, PUMP, REAR
44444-30100

JZS133

 1
Common parts
90105-10411
90119-08434
90126-10001
90467-16008
91511-81045
91611-60816
91611-61020
Linked diagrams
1708
4502
