JZS133L-AEMQF (1993)
Toyota Crown

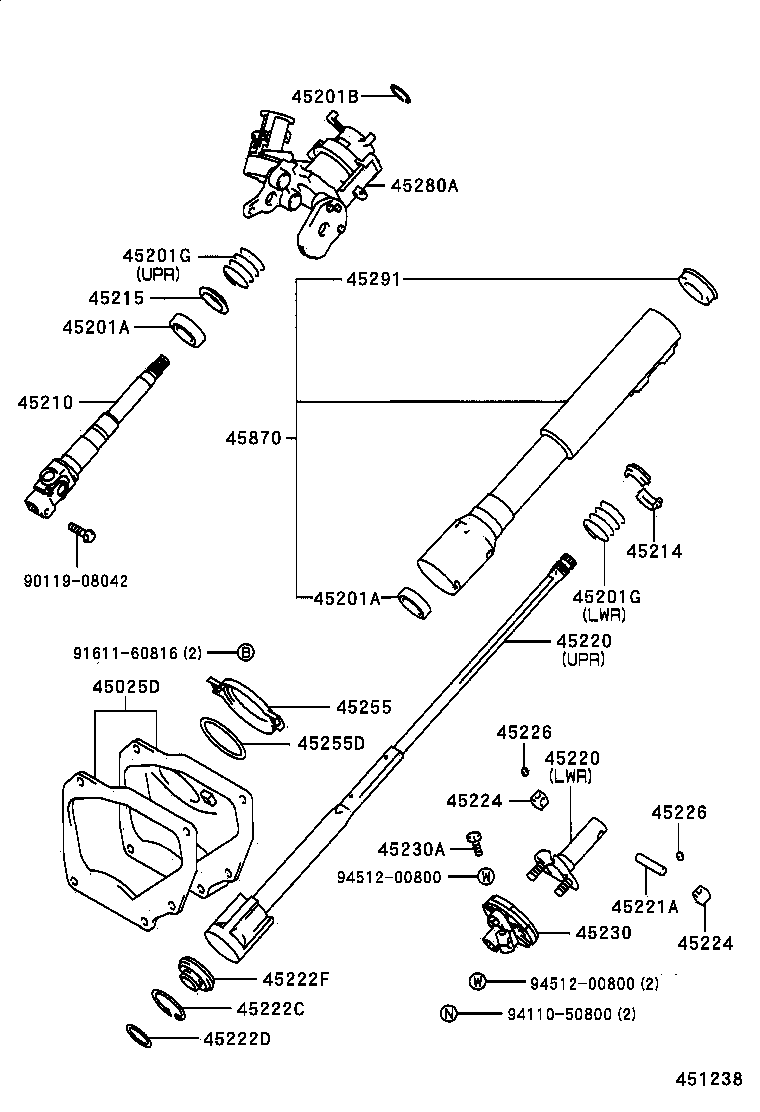

ILLUST NO. 1 OF 3(9110- )D,G
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-30210 |
GS131,JZS133,LS130,YS132..LHD |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-28001 |
GS131,JZS133 UPPER |
1 | ||
| 90363-18038 |
JZS133..D TAXI SPEC F0R SAUDI ARABIA,UPR |
1 | ||
| 90363-25032 |
GS131,JZS133..LHD;GS131,JZS133..RHD..Q |
1 | ||
| 90369-43004 |
GS131,JZS133,LS130,YS132 LOWER |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-28001 |
GS131,JZS133 UPPER |
1 | ||
| 90363-18038 |
JZS133..D TAXI SPEC F0R SAUDI ARABIA,UPR |
1 | ||
| 90363-25032 |
GS131,JZS133..LHD;GS131,JZS133..RHD..Q |
1 | ||
| 90369-43004 |
GS131,JZS133,LS130,YS132 LOWER |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
JZS133..D T=1.20,TAXI SPEC FOR SAUSI ARABIA |
2 | ||
| 90522-18001 |
GS131,JZS133..ROY T=2.6 |
1 | ||
| 90520-23034 |
GS131,JZS133..D,G T=1.5 |
1 | ||
| 90520-17196 |
JZS133..D T=1.35-1.45,TAXI SPEC F0R SAUDI ARABIA |
2 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-45011 |
GS131,JZS133 UPPER |
1 | ||
| 90501-29388 |
JZS133..D TAXI SPEC F0R SAUDI ARABIA |
1 | ||
| 90501-29388 |
GS131,JZS133 LOWER |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-45011 |
GS131,JZS133 UPPER |
1 | ||
| 90501-29388 |
JZS133..D TAXI SPEC F0R SAUDI ARABIA |
1 | ||
| 90501-29388 |
GS131,JZS133 LOWER |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-30060 |
GS131,JZS133..D,G |
1 | ||
| 45210-30070 |
GS131,JZS133..ROY |
1 | ||
| 45210-30090 |
JZS133..D TAXI SPEC F0R SAUDI ARABIA |
1 | ||
| 45214 - RETAINER, MAIN SHAFT SPRING | ||||
| 45214-30040 |
GS131,JZS133,LS130,YS132 |
2 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-22011 |
GS131,JZS133..ROY LOWER |
1 | ||
| 45215-22011 |
GS131,JZS133..D,G |
1 | ||
| 45215-30010 |
GS131,JZS133..ROY UPPER |
1 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-30040 |
JZS133..D TAXI SPEC F0R SAUDI ARABIA |
1 | ||
| 45220-30070 |
GS131,JZS133..GCC,GEN UPR |
1 | ||
| 45220-30040 |
GS131,JZS133 LOWER |
1 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-30040 |
JZS133..D TAXI SPEC F0R SAUDI ARABIA |
1 | ||
| 45220-30070 |
GS131,JZS133..GCC,GEN UPR |
1 | ||
| 45220-30040 |
GS131,JZS133 LOWER |
1 | ||
| 45221A - PIN(FOR STEERING INTERMEDIATE SHAFT) | ||||
| 90250-10059 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 45222C - RING, HOLE SNAP(FOR DUST COVER) | ||||
| 90521-52003 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 45222D - RING, O(FOR DUST COVER) | ||||
| 90301-23054 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 45222F - COVER, DUST | ||||
| 45222-30030 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45224-30040 |
GS131,JZS133,LS130,YS132 15.97-16.00 |
2 | ||
| 45225-30040 |
GS131,JZS133,LS130,YS132 16.00-16.03 |
2 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45224-30040 |
GS131,JZS133,LS130,YS132 15.97-16.00 |
2 | ||
| 45225-30040 |
GS131,JZS133,LS130,YS132 16.00-16.03 |
2 | ||
| 45226 - ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45226-30020 |
GS131,JZS133,LS130,YS132 |
2 | ||
| 45226 - ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45226-30020 |
GS131,JZS133,LS130,YS132 |
2 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-30160 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 45230A - BOLT, HEXAGON(FOR STEERING FLEXIBLE COPLING SET) | ||||
| 90101-08230 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-30040 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 45255D - RING, O(FOR STEERING COLUMN HOLE COVER PLATE) | ||||
| 90301-59005 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-30460 |
JZS133..D SAUSI ARABIA SPEC (TAXI SPEC) |
1 | ||
| 45280-30420 |
GS131,JZS133..LHD..(D,G) |
1 | ||
| 45280-30440 |
GS131,JZS133..ROY..(GCC,GEN) |
1 | ||
| 45291 - SEAL, MAIN SHAFT UPPER DUST | ||||
| 45282-22010 |
GS131,JZS133 |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-30170 |
JZS133..D TAXI SPEC F0R SAUDI ARABIA |
1 | ||
| 45870-30230 |
GS131,JZS133..GCC,GEN |
1 | ||
| Common parts | ||||
| 90119-08042 | ||||
| 91611-60816 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||

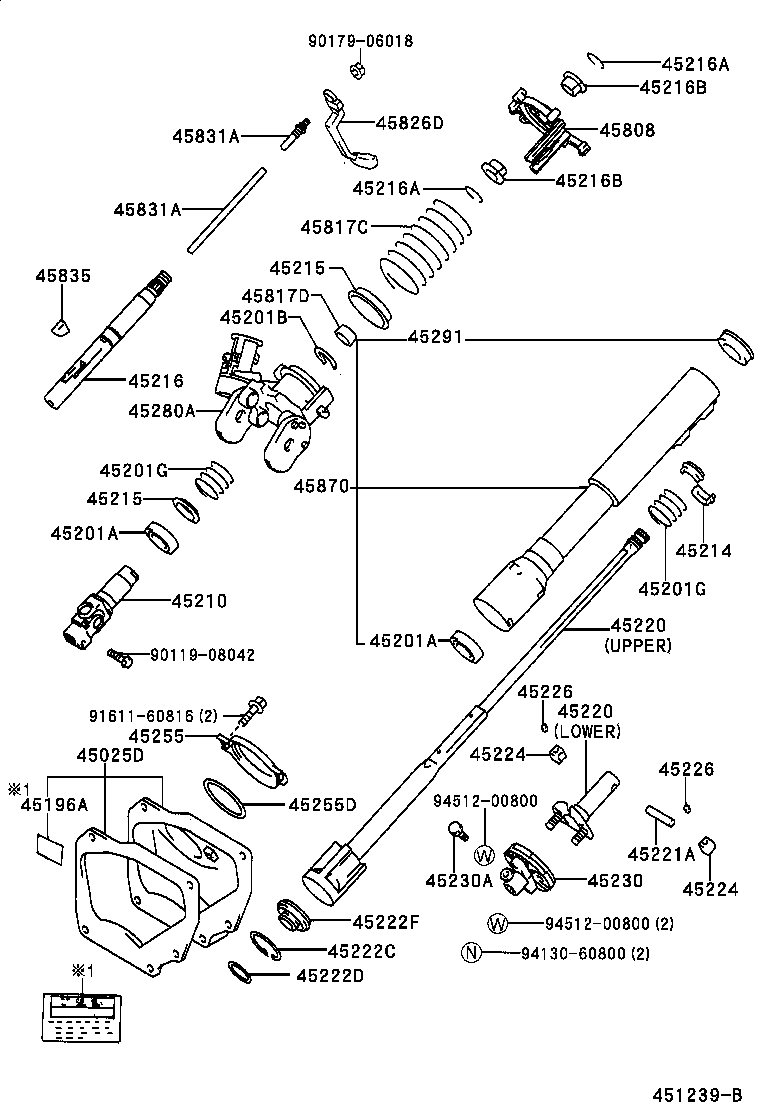

ILLUST NO. 1 OF 3(9110- )ROY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-30210 |
GS131,JZS133,LS130,YS132..LHD |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-28001 |
GS131,JZS133 UPPER |
1 | ||
| 90363-18038 |
JZS133..D TAXI SPEC F0R SAUDI ARABIA,UPR |
1 | ||
| 90363-25032 |
GS131,JZS133..LHD;GS131,JZS133..RHD..Q |
1 | ||
| 90369-43004 |
GS131,JZS133,LS130,YS132 LOWER |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-28001 |
GS131,JZS133 UPPER |
1 | ||
| 90363-18038 |
JZS133..D TAXI SPEC F0R SAUDI ARABIA,UPR |
1 | ||
| 90363-25032 |
GS131,JZS133..LHD;GS131,JZS133..RHD..Q |
1 | ||
| 90369-43004 |
GS131,JZS133,LS130,YS132 LOWER |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
JZS133..D T=1.20,TAXI SPEC FOR SAUSI ARABIA |
2 | ||
| 90522-18001 |
GS131,JZS133..ROY T=2.6 |
1 | ||
| 90520-23034 |
GS131,JZS133..D,G T=1.5 |
1 | ||
| 90520-17196 |
JZS133..D T=1.35-1.45,TAXI SPEC F0R SAUDI ARABIA |
2 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-45011 |
GS131,JZS133 UPPER |
1 | ||
| 90501-29388 |
JZS133..D TAXI SPEC F0R SAUDI ARABIA |
1 | ||
| 90501-29388 |
GS131,JZS133 LOWER |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-45011 |
GS131,JZS133 UPPER |
1 | ||
| 90501-29388 |
JZS133..D TAXI SPEC F0R SAUDI ARABIA |
1 | ||
| 90501-29388 |
GS131,JZS133 LOWER |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-30060 |
GS131,JZS133..D,G |
1 | ||
| 45210-30070 |
GS131,JZS133..ROY |
1 | ||
| 45210-30090 |
JZS133..D TAXI SPEC F0R SAUDI ARABIA |
1 | ||
| 45214 - RETAINER, MAIN SHAFT SPRING | ||||
| 45214-30040 |
GS131,JZS133,LS130,YS132 |
2 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-22011 |
GS131,JZS133..ROY LOWER |
1 | ||
| 45215-22011 |
GS131,JZS133..D,G |
1 | ||
| 45215-30010 |
GS131,JZS133..ROY UPPER |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-22011 |
GS131,JZS133..ROY LOWER |
1 | ||
| 45215-22011 |
GS131,JZS133..D,G |
1 | ||
| 45215-30010 |
GS131,JZS133..ROY UPPER |
1 | ||
| 45216 - SHAFT, STEERING SLIDING | ||||
| 45216-30021 |
GS131,JZS133..ROY |
1 | ||
| 45216A - RING, SHAFT SNAP(FOR STEERING SLIDING SHAFT) | ||||
| 90520-17042 |
GS131,JZS133..ROY |
2 | ||
| 45216A - RING, SHAFT SNAP(FOR STEERING SLIDING SHAFT) | ||||
| 90520-17042 |
GS131,JZS133..ROY |
2 | ||
| 45216B - BUSH(FOR STEERING SLIDING SHAFT) | ||||
| 90386-19002 |
GS131,JZS133..ROY |
2 | ||
| 45216B - BUSH(FOR STEERING SLIDING SHAFT) | ||||
| 90386-19002 |
GS131,JZS133..ROY |
2 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-30040 |
JZS133..D TAXI SPEC F0R SAUDI ARABIA |
1 | ||
| 45220-30070 |
GS131,JZS133..GCC,GEN UPR |
1 | ||
| 45220-30040 |
GS131,JZS133 LOWER |
1 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-30040 |
JZS133..D TAXI SPEC F0R SAUDI ARABIA |
1 | ||
| 45220-30070 |
GS131,JZS133..GCC,GEN UPR |
1 | ||
| 45220-30040 |
GS131,JZS133 LOWER |
1 | ||
| 45221A - PIN(FOR STEERING INTERMEDIATE SHAFT) | ||||
| 90250-10059 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 45222C - RING, HOLE SNAP(FOR DUST COVER) | ||||
| 90521-52003 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 45222D - RING, O(FOR DUST COVER) | ||||
| 90301-23054 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 45222F - COVER, DUST | ||||
| 45222-30030 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45224-30040 |
GS131,JZS133,LS130,YS132 15.97-16.00 |
2 | ||
| 45225-30040 |
GS131,JZS133,LS130,YS132 16.00-16.03 |
2 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45224-30040 |
GS131,JZS133,LS130,YS132 15.97-16.00 |
2 | ||
| 45225-30040 |
GS131,JZS133,LS130,YS132 16.00-16.03 |
2 | ||
| 45226 - ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45226-30020 |
GS131,JZS133,LS130,YS132 |
2 | ||
| 45226 - ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45226-30020 |
GS131,JZS133,LS130,YS132 |
2 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-30160 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 45230A - BOLT, HEXAGON(FOR STEERING FLEXIBLE COPLING SET) | ||||
| 90101-08230 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-30040 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 45255D - RING, O(FOR STEERING COLUMN HOLE COVER PLATE) | ||||
| 90301-59005 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-30460 |
JZS133..D SAUSI ARABIA SPEC (TAXI SPEC) |
1 | ||
| 45280-30420 |
GS131,JZS133..LHD..(D,G) |
1 | ||
| 45280-30440 |
GS131,JZS133..ROY..(GCC,GEN) |
1 | ||
| 45291 - SEAL, MAIN SHAFT UPPER DUST | ||||
| 45282-22010 |
GS131,JZS133 |
1 | ||
| 45808 - STOPPER SUB-ASSY, STEERING SHAFT THRUST | ||||
| 45808-30030 |
GS131,JZS133..LHD..ROY |
1 | ||
| 45817D - CUSHION(FOR STEERING SHAFT THRUST STOPPER) | ||||
| 90540-18013 |
GS131,JZS133..ROY |
1 | ||
| 45826D - LEVER, STEERING TELESCOPIC | ||||
| 45826-30110 |
GS131,JZS133..ROY |
1 | ||
| 45831A - BOLT, TELESCOPE LEVER LOCK | ||||
| 45831-30030 |
GS131,JZS133..ROY LOWER |
1 | ||
| 45831-30020 |
GS131,JZS133..ROY UPPER |
1 | ||
| 45831A - BOLT, TELESCOPE LEVER LOCK | ||||
| 45831-30030 |
GS131,JZS133..ROY LOWER |
1 | ||
| 45831-30020 |
GS131,JZS133..ROY UPPER |
1 | ||
| 45835 - WEDGE, LOCK | ||||
| 45835-30010 |
GS131,JZS133..ROY |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-30170 |
JZS133..D TAXI SPEC F0R SAUDI ARABIA |
1 | ||
| 45870-30230 |
GS131,JZS133..GCC,GEN |
1 | ||
| Common parts | ||||
| 90119-08042 | ||||
| 90179-06018 | ||||
| 91611-60816 | ||||
| 94130-60800 | ||||
| 94512-00800 | ||||

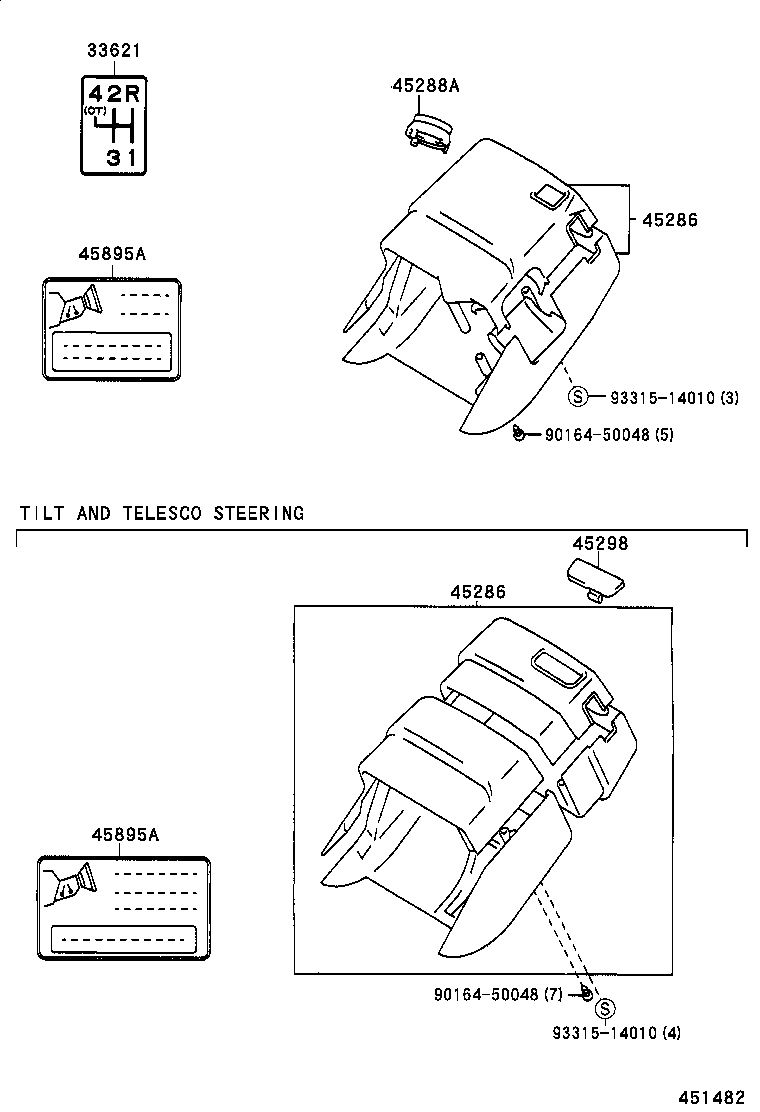

ILLUST NO. 3 OF 3(9110- )GCC,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45286 - COVER, STEERING COLUMN | ||||
| 45287-30931J0 |
JZS133..LHD..ROY DARK BLUE,TRIM8# |
1 | ||
| 45287-30931E0 |
JZS133..LHD..ROY SHADOW GRAY,TRIM4# |
1 | ||
| 45287-30929J0 |
JZS133..D SAUDI ARABIA SPEC (TAXI SPEC),DARK BLUE,TRIM8# |
1 | ||
| 45287-30930E0 |
GS131,JZS133..LHD..G DARK ROSE,TRIM4# |
1 | ||
| 45287-30930J0 |
GS131,JZS133..LHD..(D,G) DARK BLUE,TRIM8# |
1 | ||
| 45287-30965J0 |
JZS133..LHD..Q DK.BLUE,TRIM8# |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45287-30931J0 |
JZS133..LHD..ROY DARK BLUE,TRIM8# |
1 | ||
| 45287-30931E0 |
JZS133..LHD..ROY SHADOW GRAY,TRIM4# |
1 | ||
| 45287-30929J0 |
JZS133..D SAUDI ARABIA SPEC (TAXI SPEC),DARK BLUE,TRIM8# |
1 | ||
| 45287-30930E0 |
GS131,JZS133..LHD..G DARK ROSE,TRIM4# |
1 | ||
| 45287-30930J0 |
GS131,JZS133..LHD..(D,G) DARK BLUE,TRIM8# |
1 | ||
| 45287-30965J0 |
JZS133..LHD..Q DK.BLUE,TRIM8# |
1 | ||
| 45288A - SPACER, COLUMN COVER | ||||
| 45288-30020 |
JZS133,LS130,YS132..B,D |
1 | ||
| 45895A - PLATE, TILT STEERING CAUTION | ||||
| 45895-22060 |
GS131,JZS133..GCC,GEN |
1 | ||
| 45895A - PLATE, TILT STEERING CAUTION | ||||
| 45895-22060 |
GS131,JZS133..GCC,GEN |
1 | ||
| Common parts | ||||
| 90164-50048 | ||||
| 93315-14010 | ||||

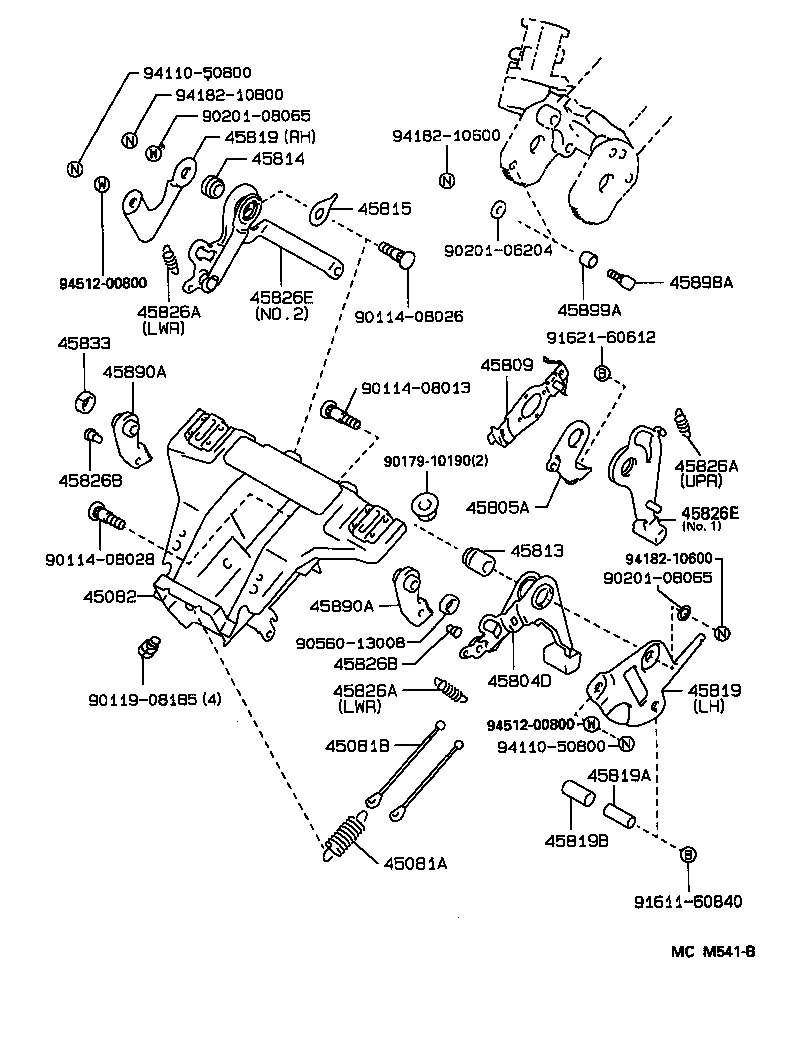

ILLUST NO. 2 OF 3(9110- )ROY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45081A - SPRING, TENSION(FOR TILT STEERING) | ||||
| 90506-29005 |
GS131,JZS133 |
2 | ||
| 45081B - CORD(FOR TILT STEERING) | ||||
| 90945-02070 |
GS131,JZS133 L=133 |
2 | ||
| 90945-02043 |
GS131,JZS133 L=130 |
2 | ||
| 45082 - BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE | ||||
| 45082-30140 |
JZS133..D TAXI SPEC F0R SAUDI ARABIA |
1 | ||
| 45082-30150 |
GS131,JZS133..LHD |
1 | ||
| 45804D - LEVER SUB-ASSY, STEERING TILT(FOR TILT UP CONTROL) | ||||
| 45804-30030 |
GS131,JZS133 |
1 | ||
| 45805A - SUPPORT SUB-ASSY, TILT STEERING | ||||
| 45805-30010 |
GS131,JZS133..ROY |
1 | ||
| 45809 - COVER SUB-ASSY, ADJUSTER MEMORY | ||||
| 45809-30040 |
GS131,JZS133 |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-20020 |
GS131,JZS133 OD=17.996-18.003 |
1 | ||
| 45813-20030 |
GS131,JZS133 OD=18.003-18.010 |
1 | ||
| 45813-20060 |
GS131,JZS133 OD=17.989-17.996 |
1 | ||
| 45813-20040 |
GS131,JZS133 OD=18.010-18.017 |
1 | ||
| 45813-20050 |
GS131,JZS133 OD=18.017-18.024 |
1 | ||
| 45814 - COLLAR, TILT STEERING SUPPORT, NO.2 | ||||
| 45814-20030 |
GS131,JZS133 OD=18.010-18.017 |
1 | ||
| 45814-20010 |
GS131,JZS133 OD=17.996-18.003 |
1 | ||
| 45814-20040 |
GS131,JZS133 OD=18.017-18.024 |
1 | ||
| 45814-20020 |
GS131,JZS133 OD=18.003-18.010 |
1 | ||
| 45814-20050 |
GS131,JZS133 OD=17.989-17.996 |
1 | ||
| 45815 - SHIM, TILT STEERING SUPPORT | ||||
| 45815-20010 |
GS131,JZS133 T=0.2 |
1 | ||
| 45815-20020 |
GS131,JZS133 T=0.5 |
1 | ||
| 45815-20030 |
GS131,JZS133 T=0.8 |
1 | ||
| 45815-20040 |
GS131,JZS133 T=1.4 |
1 | ||
| 45815-20050 |
GS131,JZS133 T=1.8 |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-30050 |
GS131,JZS133..ROY RH |
1 | ||
| 45819-30010 |
GS131,JZS133..D,G |
1 | ||
| 45819-30010 |
GS131,JZS133..ROY LH |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-30050 |
GS131,JZS133..ROY RH |
1 | ||
| 45819-30010 |
GS131,JZS133..D,G |
1 | ||
| 45819-30010 |
GS131,JZS133..ROY LH |
1 | ||
| 45819A - COLLAR(FOR TILT LEVER RETAINER) | ||||
| 90387-08040 |
GS131,JZS133 |
1 | ||
| 45819B - CUSHION(FOR TILT LEVER RETAINER) | ||||
| 90540-08010 |
GS131,JZS133 |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-10011 |
GS131,JZS133 UPR |
1 | ||
| 90507-12030 |
GS131,JZS133..ROY LWR |
2 | ||
| 90506-13001 |
GS131,JZS133..D,G LOWER |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-10011 |
GS131,JZS133 UPR |
1 | ||
| 90507-12030 |
GS131,JZS133..ROY LWR |
2 | ||
| 90506-13001 |
GS131,JZS133..D,G LOWER |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-10011 |
GS131,JZS133 UPR |
1 | ||
| 90507-12030 |
GS131,JZS133..ROY LWR |
2 | ||
| 90506-13001 |
GS131,JZS133..D,G LOWER |
1 | ||
| 45826B - PIN(FOR STEERING TILT LEVER) | ||||
| 90241-06039 |
GS131,JZS133..ROY |
2 | ||
| 90241-06039 |
GS131,JZS133..D,G |
1 | ||
| 45826B - PIN(FOR STEERING TILT LEVER) | ||||
| 90241-06039 |
GS131,JZS133..ROY |
2 | ||
| 90241-06039 |
GS131,JZS133..D,G |
1 | ||
| 45826E - LEVER, STEERING TILT(FOR TILT ADJUST) | ||||
| 45804-30040 |
GS131,JZS133..ROY NO.2 |
1 | ||
| 45826-30070 |
GS131,JZS133..ROY NO.1 |
1 | ||
| 45826-30070 |
GS131,JZS133..D,G |
1 | ||
| 45826E - LEVER, STEERING TILT(FOR TILT ADJUST) | ||||
| 45804-30040 |
GS131,JZS133..ROY NO.2 |
1 | ||
| 45826-30070 |
GS131,JZS133..ROY NO.1 |
1 | ||
| 45826-30070 |
GS131,JZS133..D,G |
1 | ||
| 45833 - NUT, TILT STEERING ADJUSTING, NO.1 | ||||
| 45833-20020 |
GS131,JZS133..ROY |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-30040 |
GS131,JZS133..ROY LH |
1 | ||
| 45890-20080 |
GS131,JZS133..ROY RH |
1 | ||
| 45890-30040 |
GS131,JZS133..D,G |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-30040 |
GS131,JZS133..ROY LH |
1 | ||
| 45890-20080 |
GS131,JZS133..ROY RH |
1 | ||
| 45890-30040 |
GS131,JZS133..D,G |
1 | ||
| 45898A - BOLT, RETURN SPRING SET | ||||
| 45898-30010 |
GS131,JZS133 |
1 | ||
| 45899A - COVER, TILT STEERING SUPPORT STOPPER | ||||
| 45899-30010 |
GS131,JZS133 |
1 | ||
| Common parts | ||||
| 90114-08013 | ||||
| 90114-08026 | ||||
| 90114-08028 | ||||
| 90119-08185 | ||||
| 90179-10190 | ||||
| 90201-06204 | ||||
| 90201-08065 | ||||
| 90560-13008 | ||||
| 91611-60840 | ||||
| 91621-60612 | ||||
| 94110-50800 | ||||
| 94182-10600 | ||||
| 94182-10800 | ||||
| 94512-00800 | ||||
ILLUST NO. 1 OF 3(9110- )B,D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-30210 |
GS131,JZS133,LS130,YS132..LHD |
1 | ||
| 45082 - BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE | ||||
| 45082-30140 |
JZS133..D TAXI SPEC F0R SAUDI ARABIA |
1 | ||
| 45082-30150 |
GS131,JZS133..LHD |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-28001 |
GS131,JZS133 UPPER |
1 | ||
| 90363-18038 |
JZS133..D TAXI SPEC F0R SAUDI ARABIA,UPR |
1 | ||
| 90363-25032 |
GS131,JZS133..LHD;GS131,JZS133..RHD..Q |
1 | ||
| 90369-43004 |
GS131,JZS133,LS130,YS132 LOWER |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-28001 |
GS131,JZS133 UPPER |
1 | ||
| 90363-18038 |
JZS133..D TAXI SPEC F0R SAUDI ARABIA,UPR |
1 | ||
| 90363-25032 |
GS131,JZS133..LHD;GS131,JZS133..RHD..Q |
1 | ||
| 90369-43004 |
GS131,JZS133,LS130,YS132 LOWER |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
JZS133..D T=1.20,TAXI SPEC FOR SAUSI ARABIA |
2 | ||
| 90522-18001 |
GS131,JZS133..ROY T=2.6 |
1 | ||
| 90520-23034 |
GS131,JZS133..D,G T=1.5 |
1 | ||
| 90520-17196 |
JZS133..D T=1.35-1.45,TAXI SPEC F0R SAUDI ARABIA |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
JZS133..D T=1.20,TAXI SPEC FOR SAUSI ARABIA |
2 | ||
| 90522-18001 |
GS131,JZS133..ROY T=2.6 |
1 | ||
| 90520-23034 |
GS131,JZS133..D,G T=1.5 |
1 | ||
| 90520-17196 |
JZS133..D T=1.35-1.45,TAXI SPEC F0R SAUDI ARABIA |
2 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-45011 |
GS131,JZS133 UPPER |
1 | ||
| 90501-29388 |
JZS133..D TAXI SPEC F0R SAUDI ARABIA |
1 | ||
| 90501-29388 |
GS131,JZS133 LOWER |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-30060 |
GS131,JZS133..D,G |
1 | ||
| 45210-30070 |
GS131,JZS133..ROY |
1 | ||
| 45210-30090 |
JZS133..D TAXI SPEC F0R SAUDI ARABIA |
1 | ||
| 45214 - RETAINER, MAIN SHAFT SPRING | ||||
| 45214-30040 |
GS131,JZS133,LS130,YS132 |
2 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-30040 |
JZS133..D TAXI SPEC F0R SAUDI ARABIA |
1 | ||
| 45220-30070 |
GS131,JZS133..GCC,GEN UPR |
1 | ||
| 45220-30040 |
GS131,JZS133 LOWER |
1 | ||
| 45221A - PIN(FOR STEERING INTERMEDIATE SHAFT) | ||||
| 90250-10059 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 45222C - RING, HOLE SNAP(FOR DUST COVER) | ||||
| 90521-52003 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 45222D - RING, O(FOR DUST COVER) | ||||
| 90301-23054 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 45222F - COVER, DUST | ||||
| 45222-30030 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45224-30040 |
GS131,JZS133,LS130,YS132 15.97-16.00 |
2 | ||
| 45225-30040 |
GS131,JZS133,LS130,YS132 16.00-16.03 |
2 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45224-30040 |
GS131,JZS133,LS130,YS132 15.97-16.00 |
2 | ||
| 45225-30040 |
GS131,JZS133,LS130,YS132 16.00-16.03 |
2 | ||
| 45226 - ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45226-30020 |
GS131,JZS133,LS130,YS132 |
2 | ||
| 45226 - ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45226-30020 |
GS131,JZS133,LS130,YS132 |
2 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-30160 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 45230A - BOLT, HEXAGON(FOR STEERING FLEXIBLE COPLING SET) | ||||
| 90101-08230 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-30040 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 45255D - RING, O(FOR STEERING COLUMN HOLE COVER PLATE) | ||||
| 90301-59005 |
GS131,JZS133,LS130,YS132 |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-10010 |
JZS133..D TAXI SPEC F0R SAUDI ARABIA |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-30460 |
JZS133..D SAUSI ARABIA SPEC (TAXI SPEC) |
1 | ||
| 45280-30420 |
GS131,JZS133..LHD..(D,G) |
1 | ||
| 45280-30440 |
GS131,JZS133..ROY..(GCC,GEN) |
1 | ||
| 45289A - SUPPORT, STEERING COLUMN COVER | ||||
| 45289-30050 |
JZS133..D TAXI SPEC F0R SAUDI ARABIA |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-30170 |
JZS133..D TAXI SPEC F0R SAUDI ARABIA |
1 | ||
| 45870-30230 |
GS131,JZS133..GCC,GEN |
1 | ||
| Common parts | ||||
| 90119-08185 | ||||
| 90179-10053 | ||||
| 91611-60820 | ||||
| 91611-60825 | ||||
| 93319-14008 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||

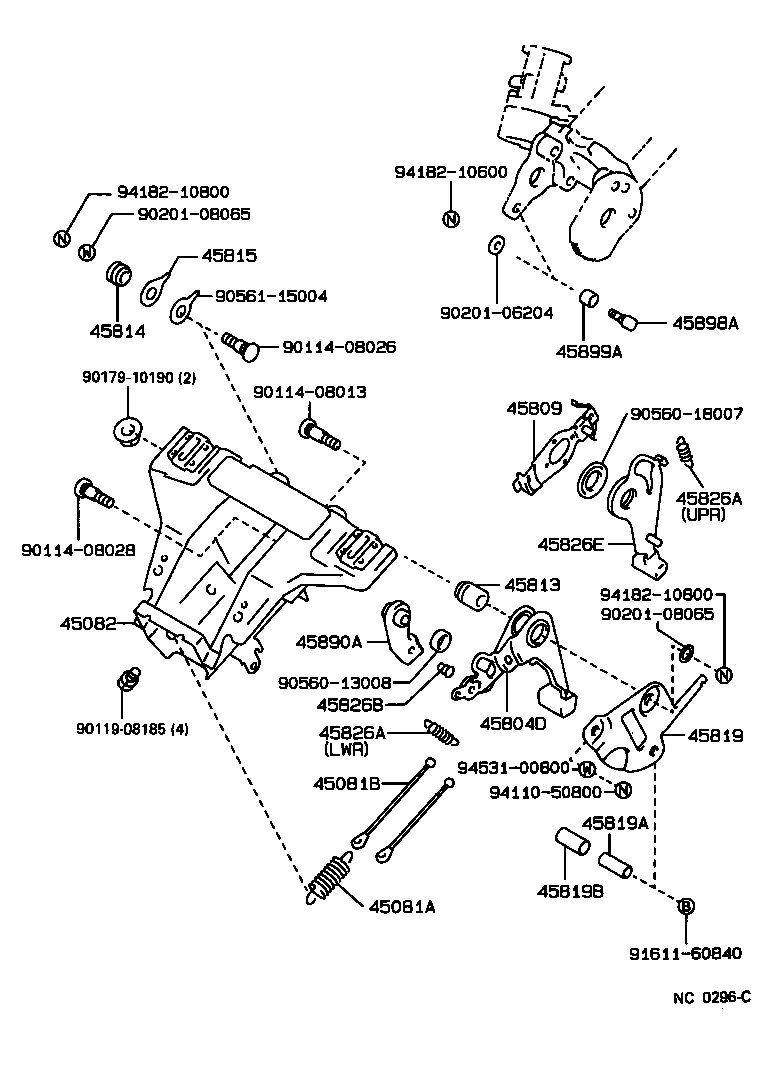

ILLUST NO. 2 OF 3(9110- )D,G
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45081A - SPRING, TENSION(FOR TILT STEERING) | ||||
| 90506-29005 |
GS131,JZS133 |
2 | ||
| 45081B - CORD(FOR TILT STEERING) | ||||
| 90945-02070 |
GS131,JZS133 L=133 |
2 | ||
| 90945-02043 |
GS131,JZS133 L=130 |
2 | ||
| 45082 - BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE | ||||
| 45082-30140 |
JZS133..D TAXI SPEC F0R SAUDI ARABIA |
1 | ||
| 45082-30150 |
GS131,JZS133..LHD |
1 | ||
| 45804D - LEVER SUB-ASSY, STEERING TILT(FOR TILT UP CONTROL) | ||||
| 45804-30030 |
GS131,JZS133 |
1 | ||
| 45809 - COVER SUB-ASSY, ADJUSTER MEMORY | ||||
| 45809-30040 |
GS131,JZS133 |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-20020 |
GS131,JZS133 OD=17.996-18.003 |
1 | ||
| 45813-20030 |
GS131,JZS133 OD=18.003-18.010 |
1 | ||
| 45813-20060 |
GS131,JZS133 OD=17.989-17.996 |
1 | ||
| 45813-20040 |
GS131,JZS133 OD=18.010-18.017 |
1 | ||
| 45813-20050 |
GS131,JZS133 OD=18.017-18.024 |
1 | ||
| 45814 - COLLAR, TILT STEERING SUPPORT, NO.2 | ||||
| 45814-20030 |
GS131,JZS133 OD=18.010-18.017 |
1 | ||
| 45814-20010 |
GS131,JZS133 OD=17.996-18.003 |
1 | ||
| 45814-20040 |
GS131,JZS133 OD=18.017-18.024 |
1 | ||
| 45814-20020 |
GS131,JZS133 OD=18.003-18.010 |
1 | ||
| 45814-20050 |
GS131,JZS133 OD=17.989-17.996 |
1 | ||
| 45815 - SHIM, TILT STEERING SUPPORT | ||||
| 45815-20010 |
GS131,JZS133 T=0.2 |
1 | ||
| 45815-20020 |
GS131,JZS133 T=0.5 |
1 | ||
| 45815-20030 |
GS131,JZS133 T=0.8 |
1 | ||
| 45815-20040 |
GS131,JZS133 T=1.4 |
1 | ||
| 45815-20050 |
GS131,JZS133 T=1.8 |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-30050 |
GS131,JZS133..ROY RH |
1 | ||
| 45819-30010 |
GS131,JZS133..D,G |
1 | ||
| 45819-30010 |
GS131,JZS133..ROY LH |
1 | ||
| 45819A - COLLAR(FOR TILT LEVER RETAINER) | ||||
| 90387-08040 |
GS131,JZS133 |
1 | ||
| 45819B - CUSHION(FOR TILT LEVER RETAINER) | ||||
| 90540-08010 |
GS131,JZS133 |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-10011 |
GS131,JZS133 UPR |
1 | ||
| 90507-12030 |
GS131,JZS133..ROY LWR |
2 | ||
| 90506-13001 |
GS131,JZS133..D,G LOWER |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-10011 |
GS131,JZS133 UPR |
1 | ||
| 90507-12030 |
GS131,JZS133..ROY LWR |
2 | ||
| 90506-13001 |
GS131,JZS133..D,G LOWER |
1 | ||
| 45826B - PIN(FOR STEERING TILT LEVER) | ||||
| 90241-06039 |
GS131,JZS133..ROY |
2 | ||
| 90241-06039 |
GS131,JZS133..D,G |
1 | ||
| 45826E - LEVER, STEERING TILT(FOR TILT ADJUST) | ||||
| 45804-30040 |
GS131,JZS133..ROY NO.2 |
1 | ||
| 45826-30070 |
GS131,JZS133..ROY NO.1 |
1 | ||
| 45826-30070 |
GS131,JZS133..D,G |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-30040 |
GS131,JZS133..ROY LH |
1 | ||
| 45890-20080 |
GS131,JZS133..ROY RH |
1 | ||
| 45890-30040 |
GS131,JZS133..D,G |
1 | ||
| 45898A - BOLT, RETURN SPRING SET | ||||
| 45898-30010 |
GS131,JZS133 |
1 | ||
| 45899A - COVER, TILT STEERING SUPPORT STOPPER | ||||
| 45899-30010 |
GS131,JZS133 |
1 | ||
| Common parts | ||||
| 90114-08013 | ||||
| 90114-08026 | ||||
| 90114-08028 | ||||
| 90119-08185 | ||||
| 90179-10190 | ||||
| 90201-06204 | ||||
| 90201-08065 | ||||
| 90560-13008 | ||||
| 90560-18007 | ||||
| 90561-15004 | ||||
| 91611-60840 | ||||
| 94110-50800 | ||||
| 94182-10600 | ||||
| 94182-10800 | ||||
| 94531-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
