JZS133L-AEMQF (1993)

Toyota Crown

Production Aug 1993 - Dec 1995
Engine 2JZGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )4F,5F

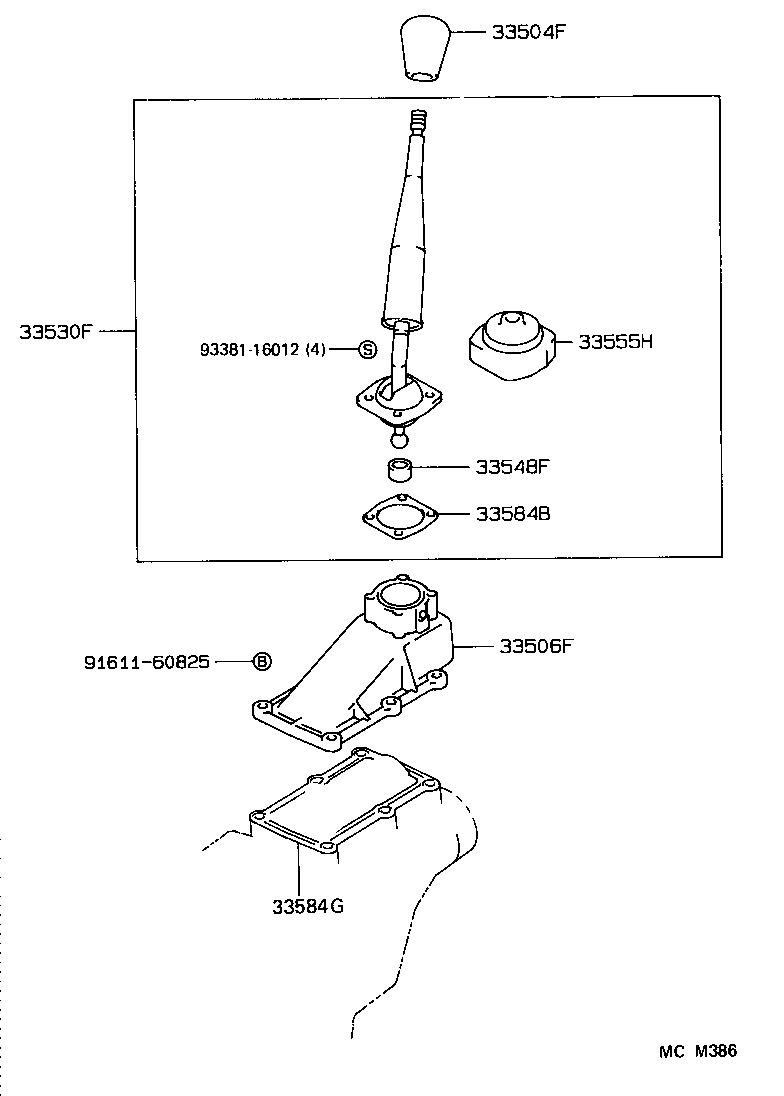

Click highlighted areas on diagram

diagram 33504F 33506F 33530F 33548F 33555H 33584B 33584G 9161160825 9338116012
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-24020E1

JZS133..5F..ROY

QUARTZ,TRIM4#

 1
33504-24010W3

GS131,JZS133..5F..(D,G)

DARK BLUE,TRIM8#

 1
33504-24020J0

JZS133..5F..ROY

DARK BLUE,TRIM8#

 1
33504-24010E2

GS131,JZS133..5F..G

QUARTZ,TRIM4#

 1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33570-22080

JZS133..5F

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-30260

GS131,JZS133,LS130,YS132..LHD..MTM

 1
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-35010

GS131,JZS133,LS130,YS132..4F,5F

 1
33555H - BOOT, SHIFT & SELECT LEVER, NO.4
33555-22050

GS131,JZS133,LS130,YS132..4F,5F

 1
33584B - GASKET, CONTROL SHIFT LEVER RETAINER, NO.2
33584-22020

GS131,JZS133,LS130,YS132..4F,5F

 1
33584G - GASKET, NO.2 (FOR FLOOR SHIFT)
33584-30010

GS131,JZS133,LS130,YS132..4F,5F

 1
Common parts
91611-60825
93381-16012
