JZS133L-AEMQF (1993)

Toyota Crown

Production Aug 1993 - Dec 1995
Engine 2JZGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

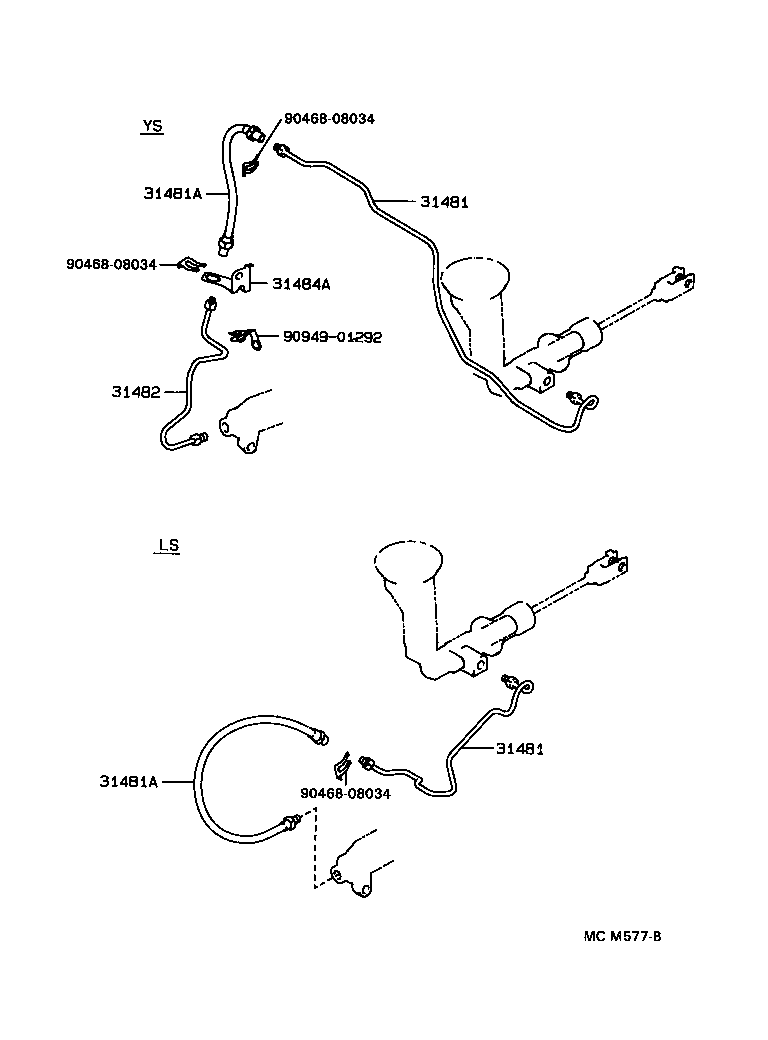

ILLUST NO. 2 OF 2(9110-9512)LHD

Click highlighted areas on diagram

diagram 31481 31481 31481A 31481A 31482 31484A 9046808034 9046808034 9046808034 9094901292
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-30200

GS131,JZS133,LS130..LHD..MTM

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-30200

GS131,JZS133,LS130..LHD..MTM

 1
31481A - HOSE, CLUTCH, NO.1
96812-50320

GS131,JZS133,LS130..MTM

 1
31481A - HOSE, CLUTCH, NO.1
96812-50320

GS131,JZS133,LS130..MTM

 1
Common parts
90468-08034
90949-01292

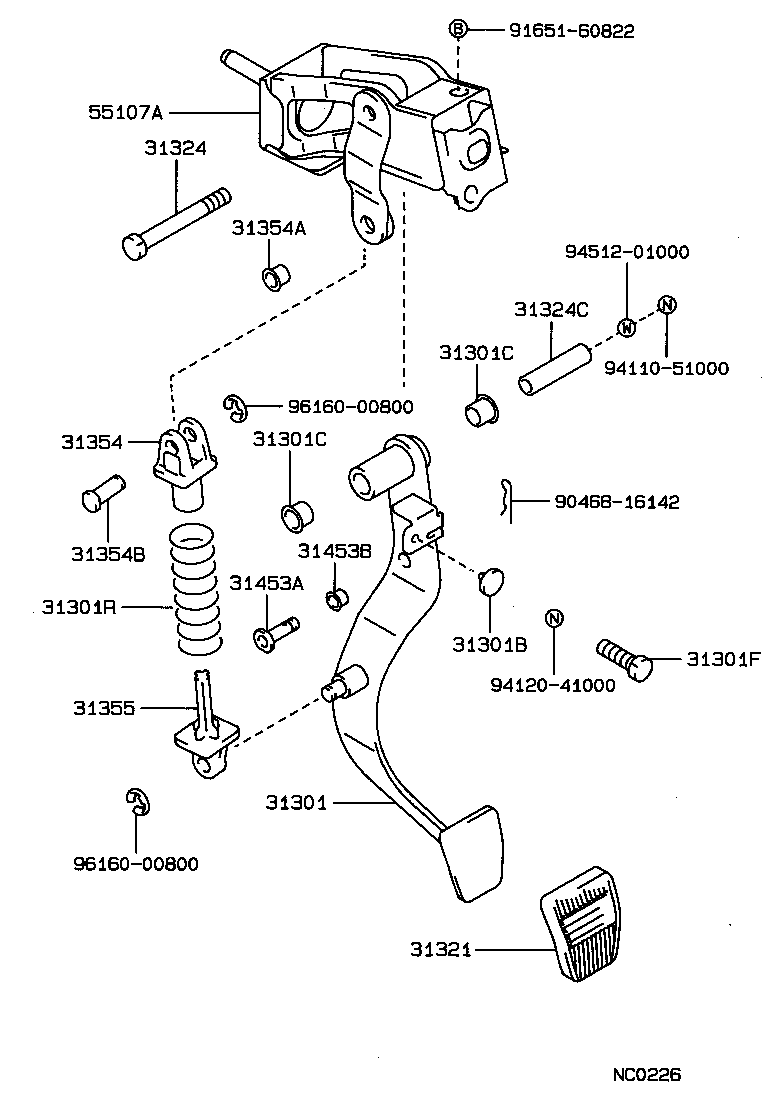

ILLUST NO. 1 OF 2(9110- )JZS133..5F ; (9110- )GS131,LS130..RHD..MTM

Click highlighted areas on diagram

diagram 31301 31301B 31301C 31301C 31301F 31301R 31321 31324 31324C 31354 31354A 31354B 31355 31453A 31453B 55107A 9046816142 9165160822 9411051000 9412041000 9451201000 9616000800 9616000800
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31310-30020

JZS133..LHD..5F

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06032

JZS133..5F;GS131,LS130,YS132..LHD

 1
90541-06032

JZS133..5F

 1
90541-06032

GS131..RHD..G;JZS133,LS130..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

GS131,JZS133,LS130,YS132..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

GS131,JZS133,LS130,YS132..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

GS131,JZS133,LS130,YS132..MTM

 1
31301R - SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT)
90501-40023

JZS133..5F

 1
31321 - PAD, CLUTCH PEDAL
31321-14020

GS131,JZS133,LS130,YS132..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10039

GS131,JZS133,LS130,YS132..LHD..MTM

 1
31324C - COLLAR(FOR CLUTCH PEDAL SHAFT)
90387-10003

GS131,JZS133,LS130,YS132..LHD..MTM

 1
31354 - SEAT, CLUTCH PEDAL SPRING, UPPER
31354-30010

JZS133..5F;GS131,LS130..RHD..MTM

 1
31354A - BUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER)
90386-10019

JZS133..5F;GS131,LS130..RHD..MTM

 1
31354B - PIN, W/HOLE(FOR CLUTCH PEDAL SPRING SEAT UPPER)
90249-10127

JZS133..5F;GS131,LS130..RHD..MTM

 1
31355 - SEAT, CLUTCH PEDAL SPRING, LOWER
31355-14020

JZS133..5F;GS131,LS130..RHD..MTM

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08018

GS131,JZS133,LS130,YS132..MTM

L=29.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08033

GS131,JZS133,LS130,YS132..MTM

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-30210

JZS133..LHD..5F

 1
Common parts
90468-16142
91651-60822
94110-51000
94120-41000
94512-01000
96160-00800
