JZS133L-AEMQF (1993)

Toyota Crown

Production Aug 1993 - Dec 1995
Engine 2JZGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9308- )2JZGE

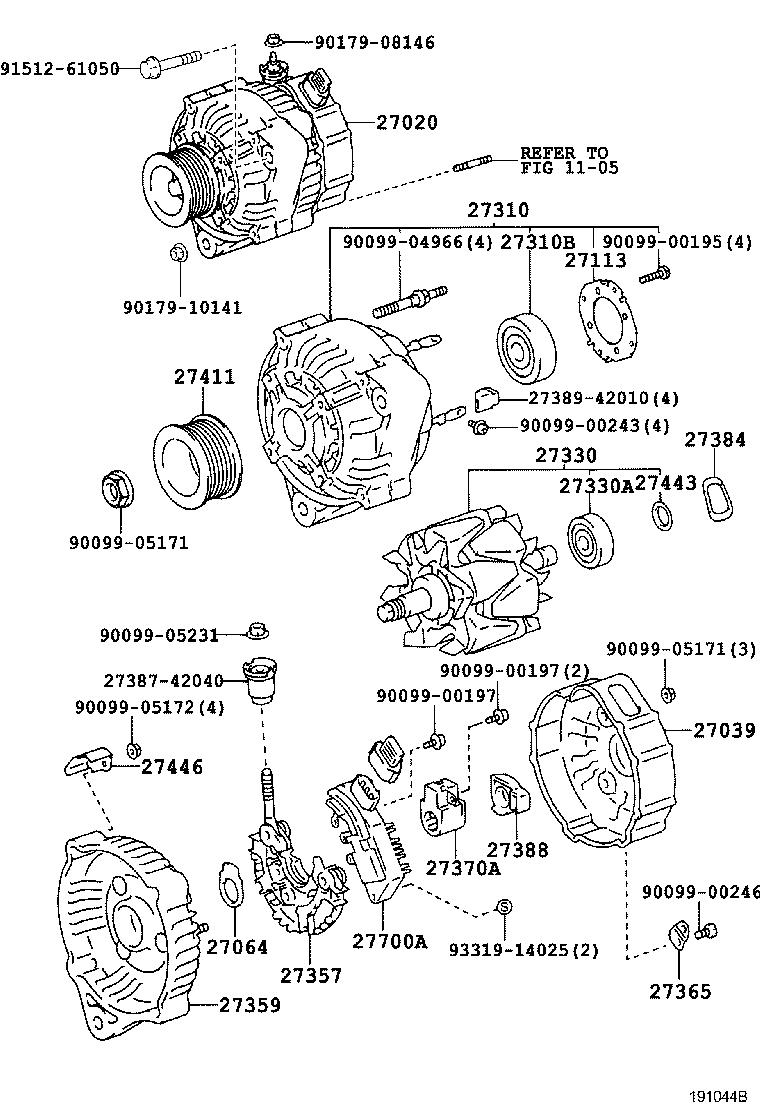

Click highlighted areas on diagram

12V 80A

diagram 1105 27020 27039 27064 27113 27310 27310B 27330 27330A 27357 27359 27365 27370A 27384 2738742040 27388 2738942010 27411 27443 27446 27700A 9009900195 9009900197 9009900197 9009900243 9009900246 9009904966 9009905171 9009905171 9009905172 9009905231 9017908146 9017910141 9151261050 9331914025
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-46090

2JZGE..JZS133

12V 80A

 1
27060-46140

2JZGE..JZS133

12V 80A

 1
27039 - COVER, ALTERNATOR REAR END
27039-16310

2JZGE..JZS133

 1
27064 - SEAL, ALTERNATOR PLATE
27064-42010

2JZGE..JZS133

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-42010

2JZGE..JZS133

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-46080

2JZGE..JZS133

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10192

2JZGE..JZS133

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-46080

2JZGE..JZS133

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10194

2JZGE..JZS133

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-46130

2JZGE..JZS133

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-46080

2JZGE..JZS133

 1
27370A - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060

2JZGE..JZS133

 1
27384 - WASHER
27384-50030

2JZGE..JZS133

 1
27388 - COVER, ALTERNATOR BRUSH
27388-42010

2JZGE..JZS133

 1
27411 - PULLEY, ALTERNATOR
27411-46080

2JZGE..JZS133

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

1GFE,2JZGE,2L,4Y..GS131,JZS133,LS130,YS132

 1
27700A - REGULATOR ASSY, GENERATOR
27700-46030

2JZGE..JZS133

 1
Common parts
27387-42040
27389-42010
90099-00195
90099-00197
90099-00243
90099-00246
90099-04966
90099-05171
90099-05172
90099-05231
90179-08146
90179-10141
91512-61050
93319-14025
Linked diagrams
1105
