JZS133L-AEMQF (1993)

Toyota Crown

Production Aug 1993 - Dec 1995
Engine 2JZGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )2JZGE

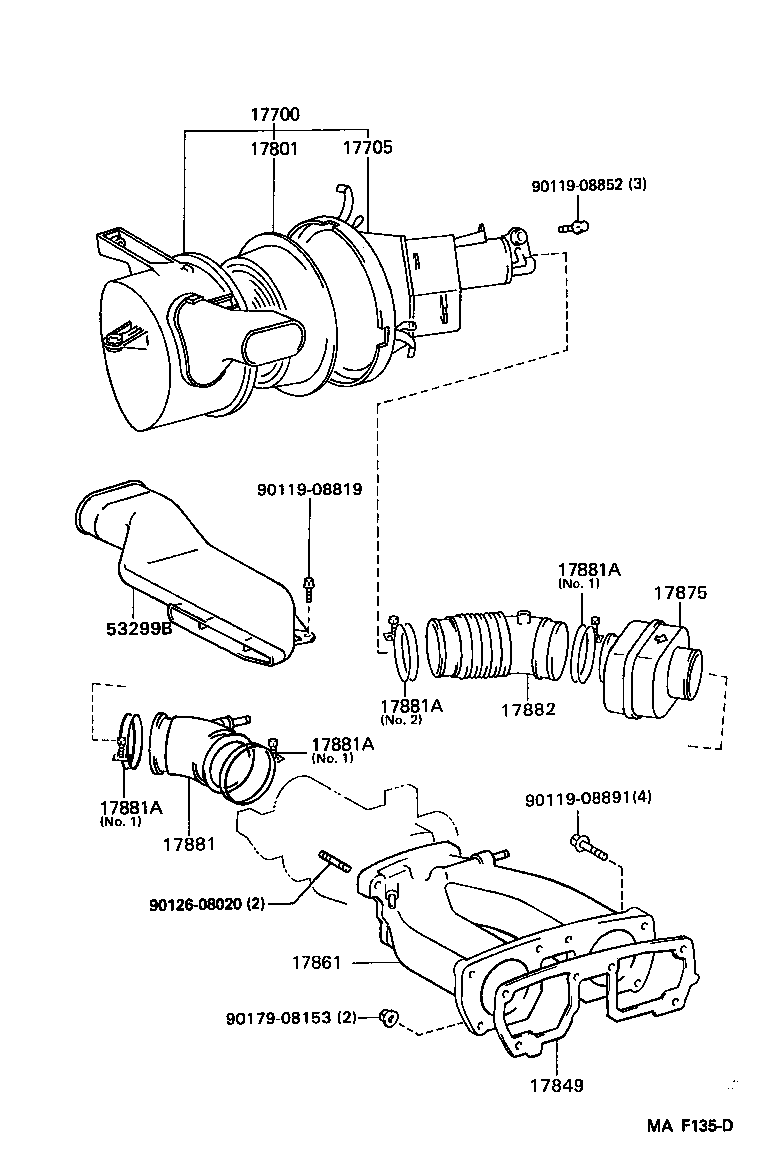

Click highlighted areas on diagram

diagram 17700 17705 17801 17849 17861 17875 17881 17881A 17881A 17881A 17881A 17882 53299B 9011908819 9011908852 9011908891 9012608020 9017908153
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-46120

2JZGE..JZS133

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-46090

2JZGE..JZS133

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-46050

2JZGE..JZS133

 1
17849 - GASKET, INTAKE AIR CONNECTOR
17849-46010

2JZGE..JZS133

 1
17861 - CONNECTOR, INTAKE AIR
17860-46030

2JZGE..JZS133

 1
17875 - PIPE, INTAKE AIR CONNECTOR
17875-46040

2JZGE..JZS133

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-46110

2JZGE..JZS133

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10850

2JZGE..JZS133

NO.1

 3
96111-10900

2JZGE..JZS133

NO.2

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10850

2JZGE..JZS133

NO.1

 3
96111-10900

2JZGE..JZS133

NO.2

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10850

2JZGE..JZS133

NO.1

 3
96111-10900

2JZGE..JZS133

NO.2

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10850

2JZGE..JZS133

NO.1

 3
96111-10900

2JZGE..JZS133

NO.2

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-46090

2JZGE..JZS133

 1
53299B - DUCT, COOL AIR INTAKE
53299-30220

JZS133

 1
Common parts
90119-08819
90119-08852
90119-08891
90126-08020
90179-08153
