JZS133L-AEMQF (1993)
Toyota Crown
Production
Aug 1993
-
Dec 1995
Engine
2JZGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9110-9906)2JZGE

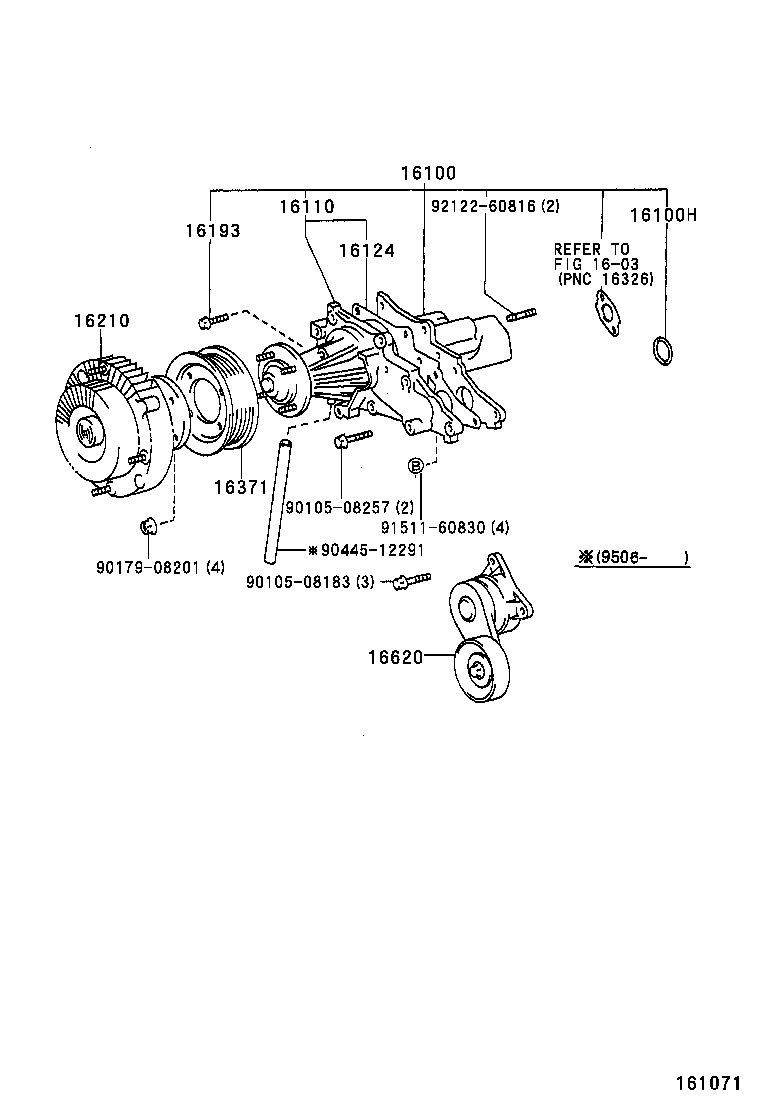

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-49835 |
2JZGE..JZS133 |
1 | ||
| 16100H - RING, O(FOR WATER PUMP) | ||||
| 96761-24040 |
2JZGE..JZS133 |
1 | ||
| 16110 - PUMP ASSY, WATER, W/O COUPLING | ||||
| 16110-49115 |
2JZGE..JZS133 |
1 | ||
| 16124 - GASKET, WATER PUMP COVER | ||||
| 16124-46040 |
2JZGE..JZS133 |
1 | ||
| 16193 - BOLT, STUD(FOR WATER PUMP COVER) | ||||
| 16193-46040 |
2JZGE..JZS133 |
5 | ||
| 16210 - COUPLING ASSY, FLUID | ||||
| 16210-46040 |
2JZGE..JZS133 |
1 | ||
| 16371 - PULLEY, FAN | ||||
| 16371-46020 |
2JZGE..JZS133 |
1 | ||
| 16620 - TENSIONER ASSY, V-RIBBED BELT | ||||
| 16620-46031 |
2JZGE..JZS133 |
1 | ||
| Common parts | ||||
| 90105-08183 | ||||
| 90105-08257 | ||||
| 90179-08201 | ||||
| 90445-12291 | ||||
| 91511-60830 | ||||
| 92122-60816 | ||||
| Linked diagrams | ||||
| 1603 | ||||
