JZS133L-AEMQF (1993)

Toyota Crown

Production Aug 1993 - Dec 1995
Engine 2JZGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )2JZGE

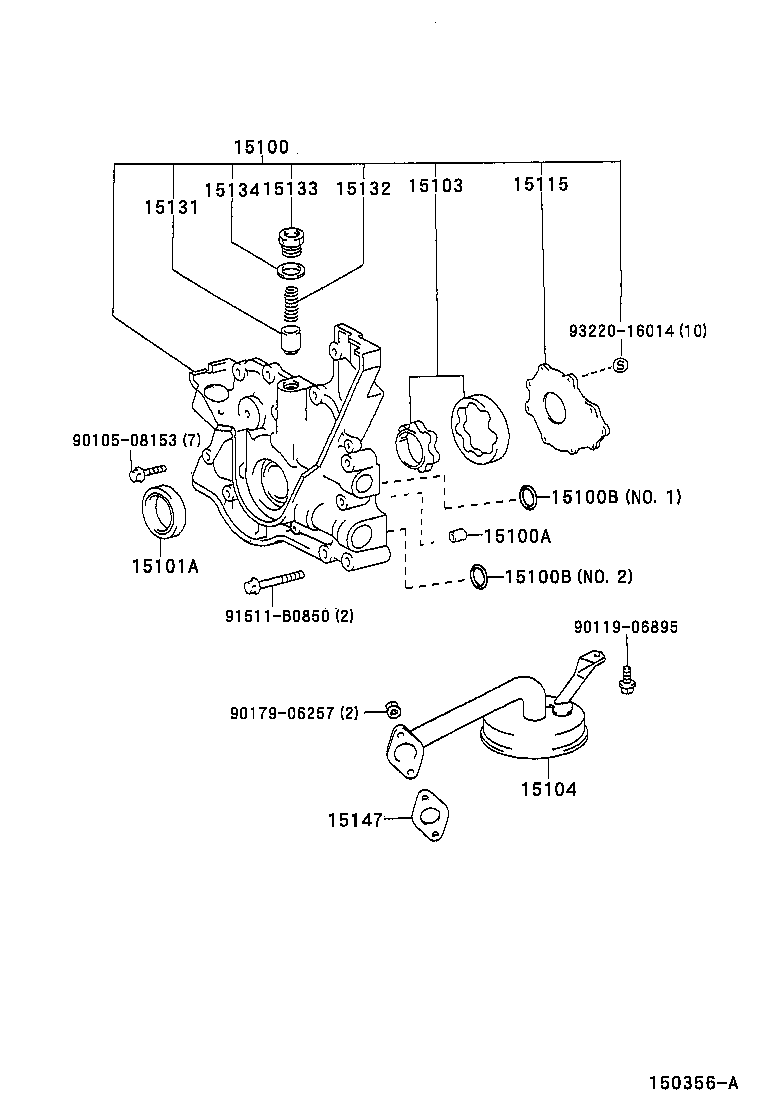

Click highlighted areas on diagram

diagram 15100 15100A 15100B 15100B 15101A 15103 15104 15115 15131 15132 15133 15134 15147 9010508153 9011906895 9017906257 91511B0850 9322016014
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-46040

2JZGE..JZS133

 1
15100A - PIN, RING(FOR OIL PUMP SET)
90253-11021

2JZGE..JZS133

 2
15100B - RING, O(FOR OIL PUMP)
96721-24031

2JZGE..JZS133

N0.2

 1
96721-24022

2JZGE..JZS133

N0.1

 1
15100B - RING, O(FOR OIL PUMP)
96721-24031

2JZGE..JZS133

N0.2

 1
96721-24022

2JZGE..JZS133

N0.1

 1
15101A - SEAL(FOR CRANKSHAFT)
90311-46001

2JZGE..JZS133

 1
15103 - GEAR SET, OIL PUMP
15103-46040

2JZGE..JZS133

 1
15104 - STRAINER SUB-ASSY, OIL
15104-46020

2JZGE..JZS133

 1
15115 - COVER, OIL PUMP
15115-46040

2JZGE..JZS133

 1
15131 - VALVE, OIL PUMP RELIEF
15131-46040

2JZGE..JZS133

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-46020

2JZGE..JZS133

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-17010

2JZGE..JZS133

 1
15134 - GASKET, OIL PUMP RELIEF VALVE
15134-17010

2JZGE..JZS133

 1
15147 - GASKET, OIL STRAINER
15147-46010

2JZGE..JZS133

 1
Common parts
90105-08153
90119-06895
90179-06257
91511-B0850
93220-16014
