JZS133L-AEMQF (1993)

Toyota Crown

Production Aug 1993 - Dec 1995
Engine 2JZGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )2JZGE

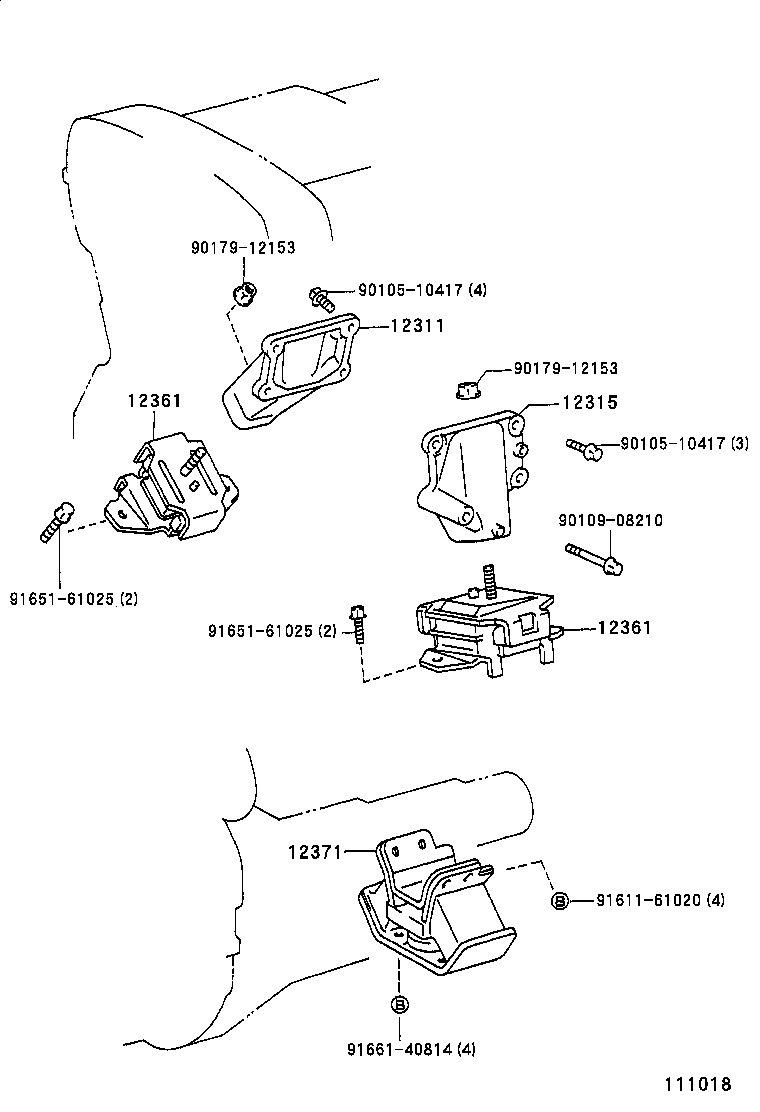

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 9010510417 9010510417 9010908210 9017912153 9017912153 9161161020 9165161025 9165161025 9166140814
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-46030

2JZGE..JZS133

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-46030

2JZGE..JZS133

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12362-46040

2JZGE..JZS133..GCC,GEN

LH

 1
12361-46090

2JZGE..JZS133..GCC,GEN

RH

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12362-46040

2JZGE..JZS133..GCC,GEN

LH

 1
12361-46090

2JZGE..JZS133..GCC,GEN

RH

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-46010

2JZGE..JZS133

 1
Common parts
90105-10417
90109-08210
90179-12153
91611-61020
91651-61025
91661-40814
