JZS133-AEPQF (1991)
Toyota Crown
Production
Oct 1991
-
Aug 1993
Engine
2JZGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9110-9512)EECC

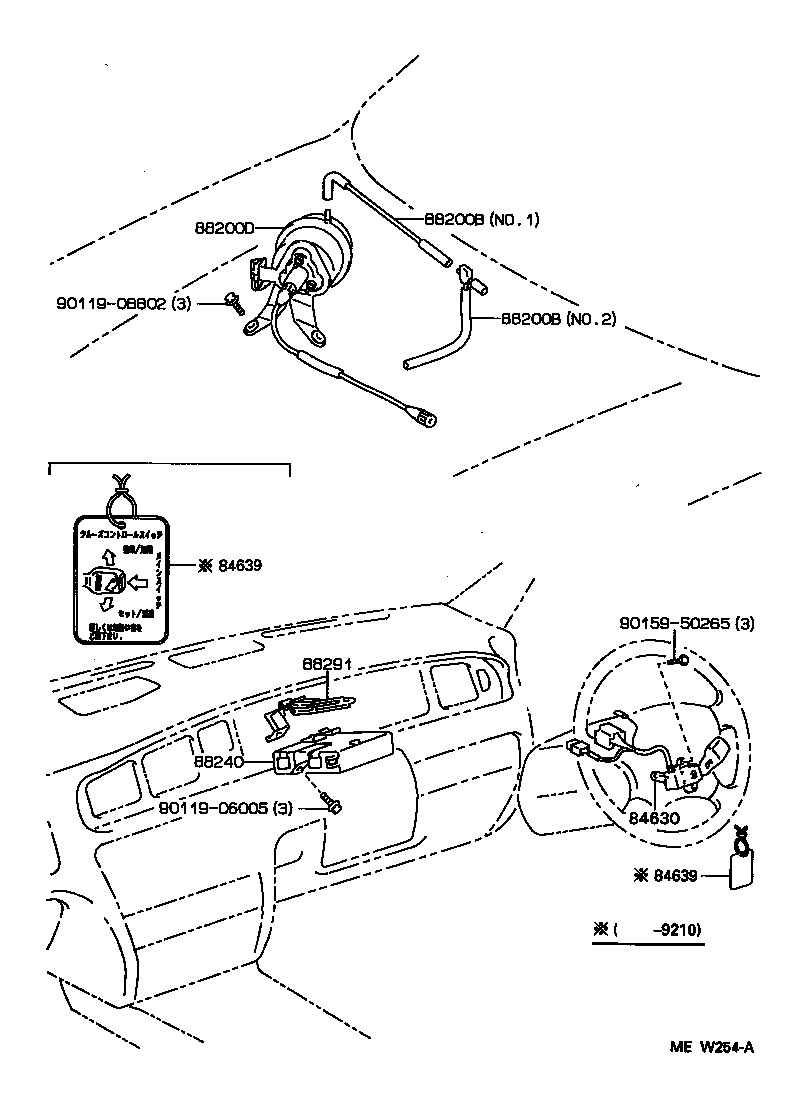

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84630 - SWITCH ASSY, CRUISE CONTROL MAIN | ||||
| 84630-30140 |
JZS133..EECC HONG KONG SPEC |
1 | ||
| 84630-30100 |
JZS133..EECC |
1 | ||
| 84639 - LABEL, CRUISE CONTROL SWITCH INFOMATION | ||||
| 84639-30010 |
JZS133..EECC |
1 | ||
| 84639 - LABEL, CRUISE CONTROL SWITCH INFOMATION | ||||
| 84639-30010 |
JZS133..EECC |
1 | ||
| 88200B - HOSE, CRUISE CONTROL VACUUM | ||||
| 88283-30091 |
JZS133..EECC NO.1 |
1 | ||
| 88283-30110 |
JZS133..EECC NO.2 |
1 | ||
| 88200B - HOSE, CRUISE CONTROL VACUUM | ||||
| 88283-30091 |
JZS133..EECC NO.1 |
1 | ||
| 88283-30110 |
JZS133..EECC NO.2 |
1 | ||
| 88200D - ACTUATOR ASSY, CRUISE CONTROL | ||||
| 88200-30210 |
JZS133..EECC |
1 | ||
| 88240 - COMPUTER ASSY, CRUISE CONTROL | ||||
| 88240-30240 |
JZS133..EECC |
1 | ||
| 88291 - BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1 | ||||
| 88291-30070 |
JZS133..EECC |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-08802 | ||||
| 90159-50265 | ||||
