GS151R-ATPSK (1997)
Toyota Crown
Production
Jul 1997
-
Aug 1998
Engine
1GFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

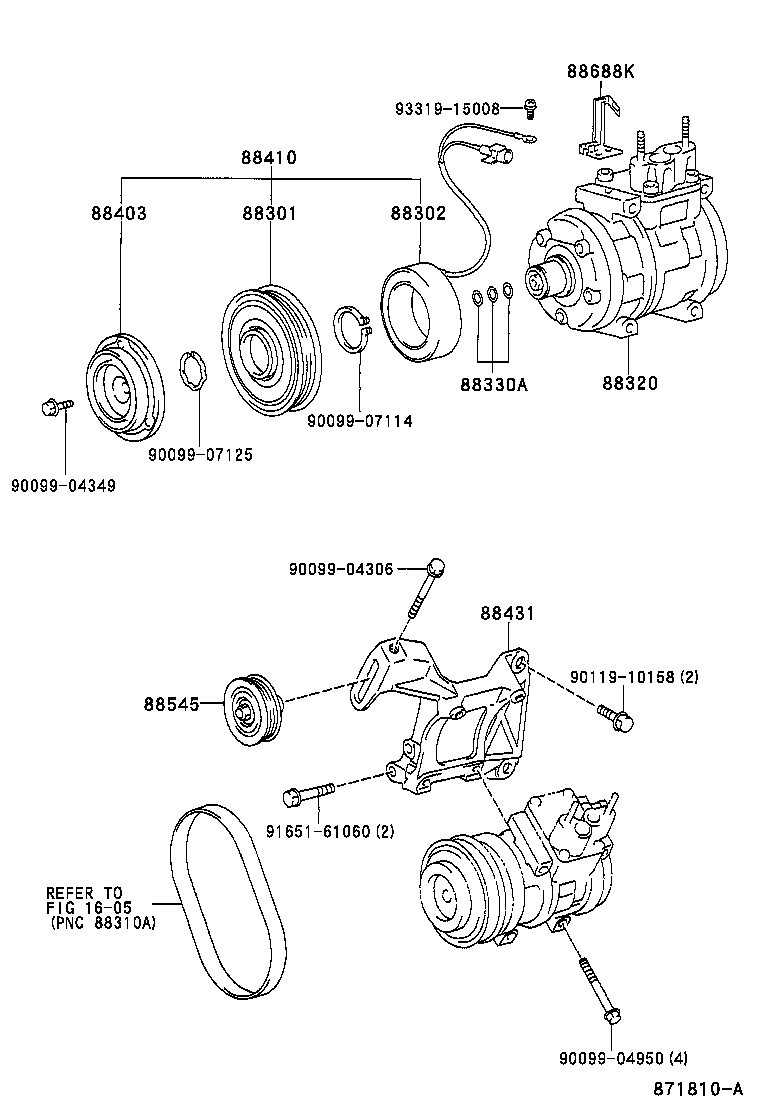

ILLUST NO. 1 OF 2(9707- )GS151
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-12160 |
GS151 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-22280 |
GS151 |
1 | ||
| 88411-2A030 |
GS151,JZS155 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-3A100 |
GS151 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
GS151,JZS155 |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-30290 |
GS151;JZS155..GCC |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-3A120 |
GS151 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-24060 |
GS151 |
1 | ||
| 88545 - PULLEY ASSY, IDLE | ||||
| 88440-26100 |
GS151 |
1 | ||
| 88688K - BRACKET, COOLER COMPRESSOR | ||||
| 88688-2A120 |
GS151 |
1 | ||
| Common parts | ||||
| 90099-04306 | ||||
| 90099-04349 | ||||
| 90099-04950 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| 90119-10158 | ||||
| 91651-61060 | ||||
| 93319-15008 | ||||
| Linked diagrams | ||||
| 1605 | ||||

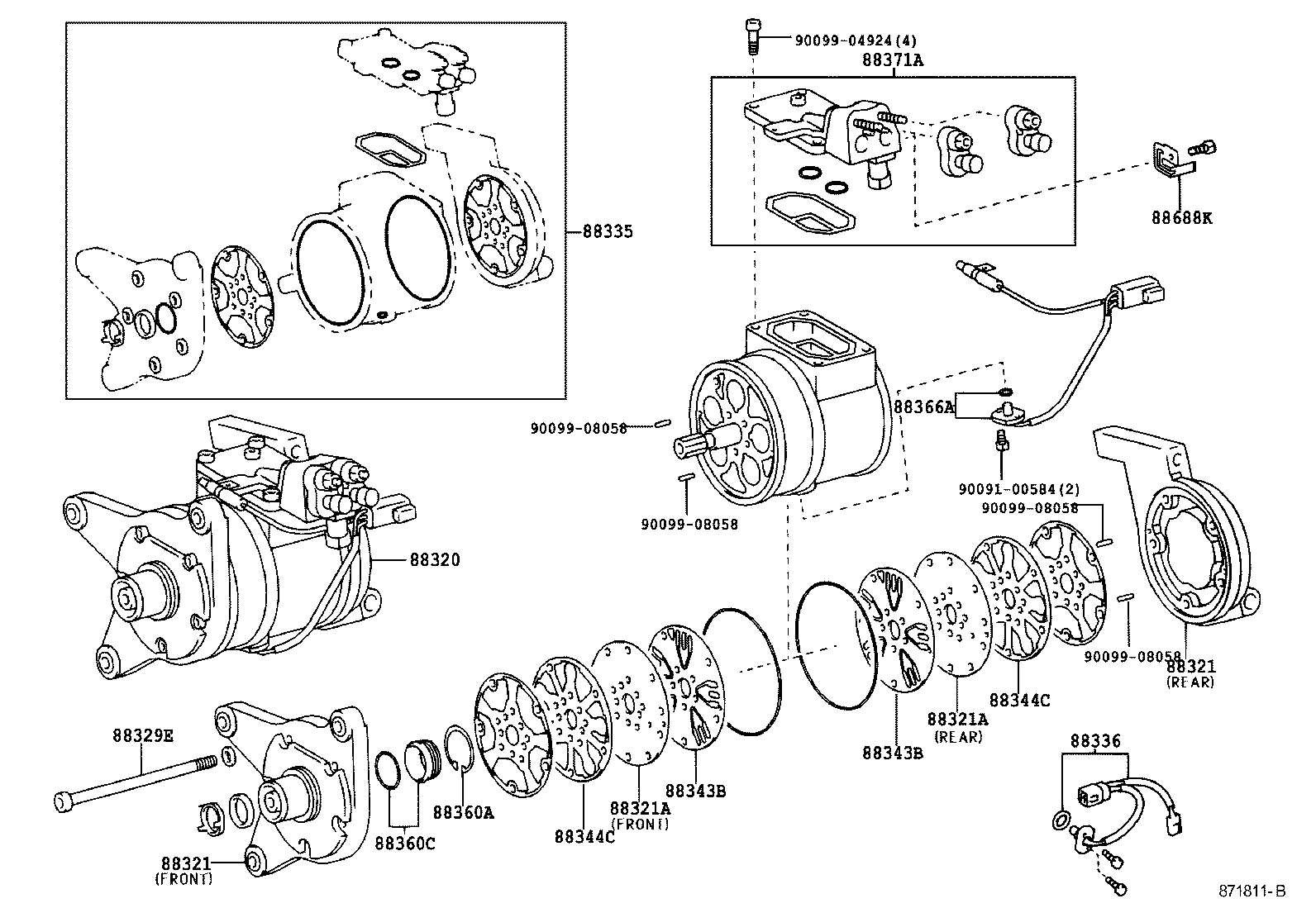

ILLUST NO. 2 OF 2(9512- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-3A100 |
GS151 |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-32040 |
GS151 REAR |
1 | ||
| 88321-32010 |
GS151 FRONT |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-32040 |
GS151 REAR |
1 | ||
| 88321-32010 |
GS151 FRONT |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-22010 |
GS151,JZS155..GEN FRONT |
1 | ||
| 88342-22010 |
GS151,JZS155..GEN REAR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-22010 |
GS151,JZS155..GEN FRONT |
1 | ||
| 88342-22010 |
GS151,JZS155..GEN REAR |
1 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-2B030 |
GS151,JZS155..GEN |
1 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-14020 |
GS151,JZS155..GEN |
2 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-14020 |
GS151,JZS155..GEN |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-22010 |
GS151,JZS155..GEN |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-22010 |
GS151,JZS155..GEN |
2 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
GS151,JZS155 |
1 | ||
| 88360C - SEAL ASSY, SHAFT | ||||
| 88360-2B020 |
GS151,JZS155 |
1 | ||
| 88371A - VALVE, SUCTION | ||||
| 88371-3A020 |
GS151 |
1 | ||
| 88688K - BRACKET, COOLER COMPRESSOR | ||||
| 88688-2A120 |
GS151 |
1 | ||
| Common parts | ||||
| 90091-00584 | ||||
| 90099-04924 | ||||
| 90099-08058 | ||||
