GS151R-ATPSK (1997)

Toyota Crown

Production Jul 1997 - Aug 1998
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9512- )

Click highlighted areas on diagram

O RING

diagram 9009914119 9009914120 9009914121 9009914122
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

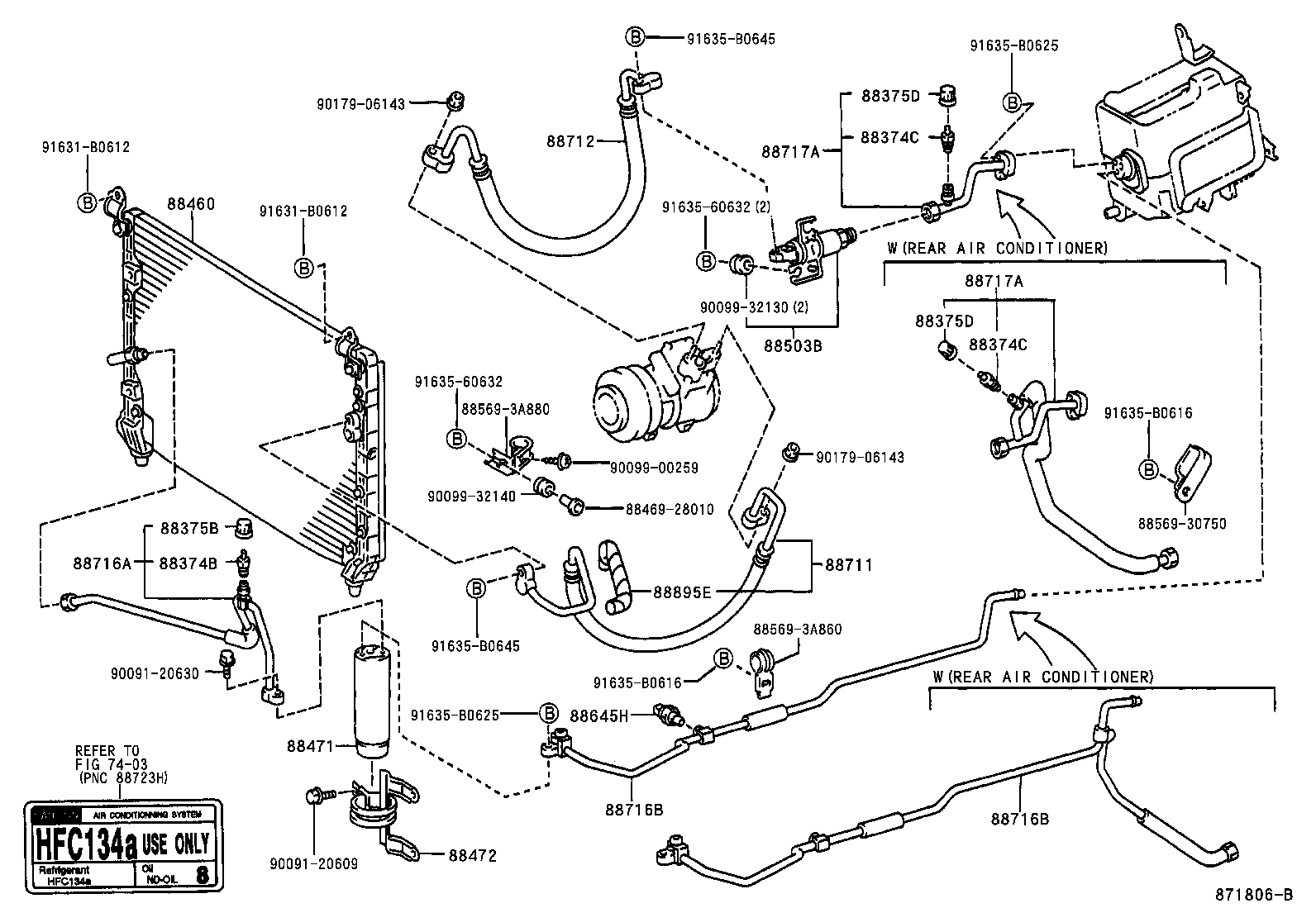

ILLUST NO. 1 OF 2(9707- )GS151

Click highlighted areas on diagram

FRONT

diagram 7403 88374B 88374C 88374C 88375B 88375D 88375D 88460 8846928010 88471 88472 88503B 8856930750 885693A860 885693A880 88645H 88711 88712 88716A 88716B 88716B 88717A 88717A 88895E 9009120609 9009120630 9009900259 9009932130 9009932140 9017906143 9017906143 91631B0612 91631B0612 9163560632 9163560632 91635B0616 91635B0616 91635B0625 91635B0625 91635B0645 91635B0645
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

GS151,JZS155

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280

GS151,JZS155

 1
88460 - CONDENSER ASSY, COOLER
88460-30750

GS151,JZS155..GEN

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-30370

GS151,JZS155

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-30010

GS151,JZS155

 1
88503B - REGULATOR SUB-ASSY, PRESSURE
88503-22260

GS151,JZS155..RHD

 1
88645H - SWITCH, PRESSURE NO.1
88645-22080

GS151

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-3A380

GS151

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-3A760

GS151

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-30140

GS151,JZS155..GEN

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88726-3K360

GS151,JZS155..RHD

W(REAR MANUAL AIR CONDITIONER)

 1
88726-3K350

GS151,JZS155..HT

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88726-3K360

GS151,JZS155..RHD

W(REAR MANUAL AIR CONDITIONER)

 1
88726-3K350

GS151,JZS155..HT

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88727-3A720

GS151,JZS155..RHD

W(REAR MANUAL AIR CONDITIONER)

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88727-3A720

GS151,JZS155..RHD

W(REAR MANUAL AIR CONDITIONER)

 1
Common parts
88469-28010
88569-30750
88569-3A860
88569-3A880
90091-20609
90091-20630
90099-00259
90099-32130
90099-32140
90179-06143
91631-B0612
91635-60632
91635-B0616
91635-B0625
91635-B0645
Linked diagrams
7403

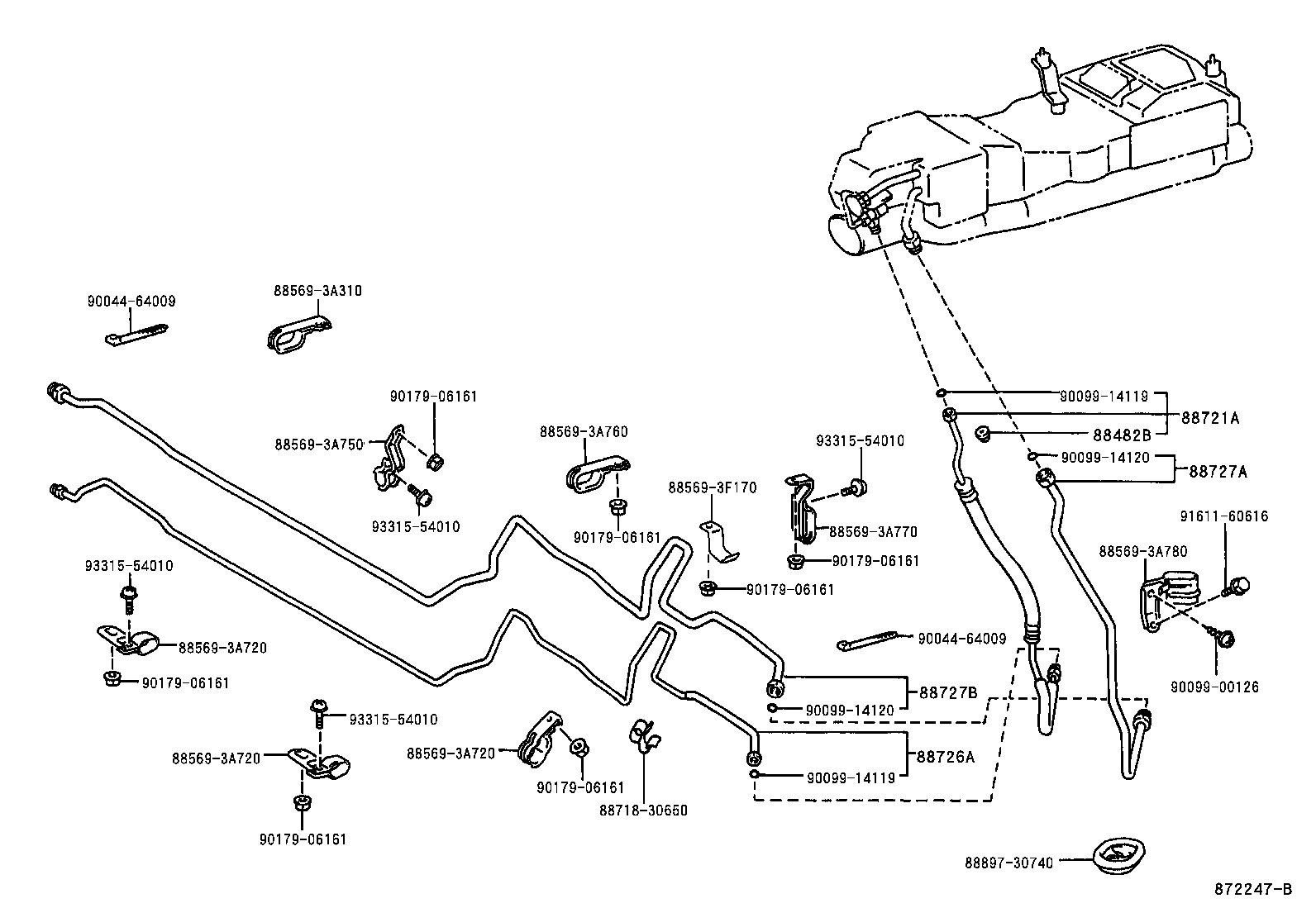

ILLUST NO. 2 OF 2(9512- )

Click highlighted areas on diagram

REAR

diagram 88482B 885693A310 885693A720 885693A720 885693A720 885693A750 885693A760 885693A770 885693A780 885693F170 8871830650 88721A 88726A 88727A 88727B 8889730740 9004464009 9004464009 9009900126 9009914119 9009914119 9009914120 9009914120 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 9161160616 9331554010 9331554010 9331554010 9331554010
Part # Description Qty Price
88482B - CAP, COOLER NO.1
88482-26020

GS151,JZS155

 1
88721A - HOSE, LIQUID, A
88721-30410

GS151,JZS155

 1
88726A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-3K450

GS151,JZS155

 1
88727A - PIPE, COOLER REFRIGERANT SUCTION, A
88727-3A890

GS151,JZS155

 1
88727B - PIPE, COOLER REFRIGERANT SUCTION, B
88727-3A860

GS151,JZS155

 1
Common parts
88569-3A310
88569-3A720
88569-3A750
88569-3A760
88569-3A770
88569-3A780
88569-3F170
88718-30650
88897-30740
90044-64009
90099-00126
90099-14119
90099-14120
90179-06161
91611-60616
93315-54010
