GS151R-ATPSK (1997)

Toyota Crown

Production Jul 1997 - Aug 1998
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

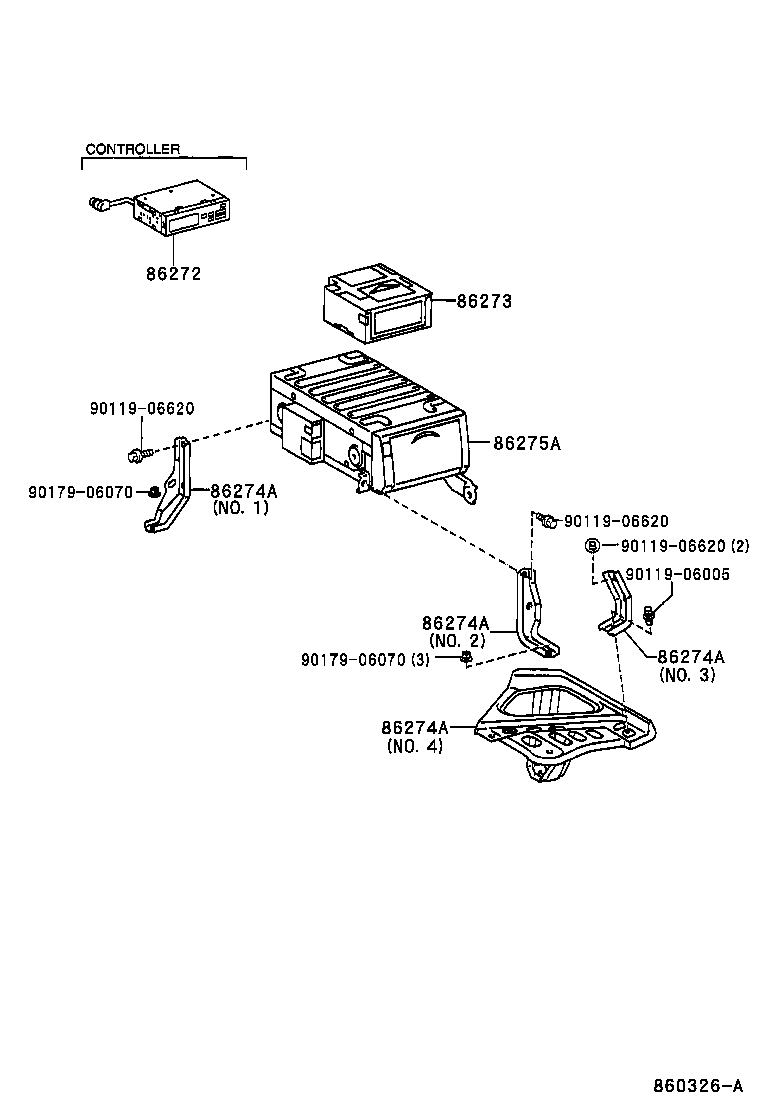

ILLUST NO. 2 OF 3(9512- )

Click highlighted areas on diagram

DISC PLAYER

diagram 86272 86273 86274A 86274A 86274A 86274A 86275A 9011906005 9011906620 9011906620 9011906620 9017906070 9017906070
Part # Description Qty Price
Common parts
90119-06005
90119-06620
90179-06070

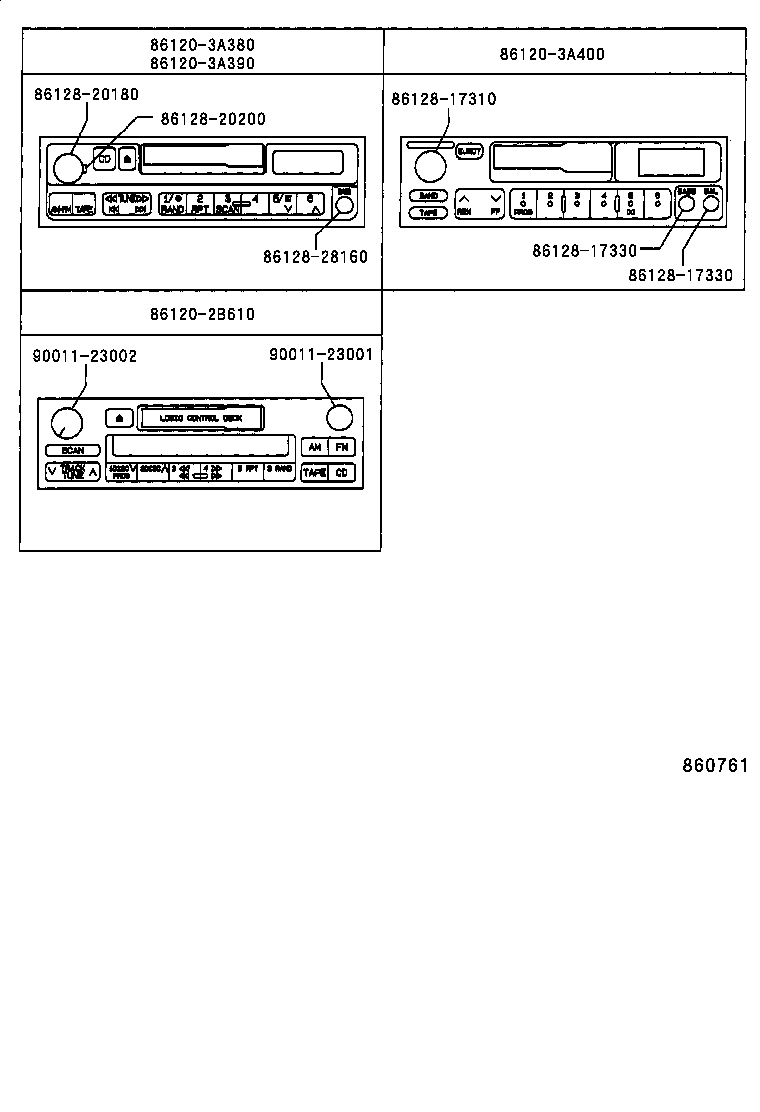

ILLUST NO. 3 OF 3(9512- )

Click highlighted areas on diagram

diagram 861202B610 861203A380 861203A390 861203A400 8612817310 8612817330 8612817330 8612820180 8612820200 8612828160 9001123001 9001123002
Part # Description Qty Price
Common parts
86120-2B610
86120-3A380
86120-3A390
86120-3A400
86128-17310
86128-17330
86128-20180
86128-20200
86128-28160
90011-23001
90011-23002

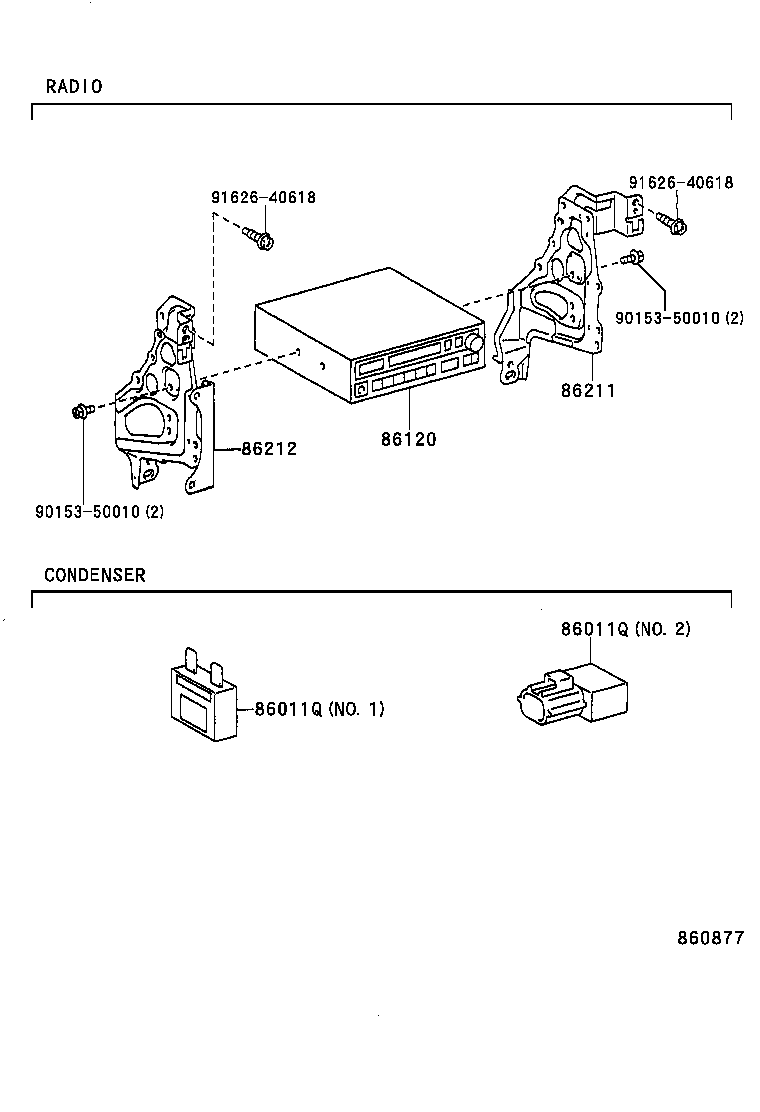

ILLUST NO. 1 OF 3(9512- )

Click highlighted areas on diagram

RADIO & CONDENSER

diagram 86011Q 86011Q 86120 86211 86212 9015350010 9015350010 9162640618 9162640618
Part # Description Qty Price
86011Q - CONDENSER, RADIO SETTING
90980-04083

GS151,JZS155

NO.2

 1
90980-04066

GS151,JZS155

NO.1

 2
86011Q - CONDENSER, RADIO SETTING
90980-04083

GS151,JZS155

NO.2

 1
90980-04066

GS151,JZS155

NO.1

 2
86120 - RECEIVER ASSY, RADIO
86120-3A380

GS151,JZS155..GEN

 1
86211 - BRACKET, RADIO, NO.1
86211-30220

GS151,JZS155

 1
86212 - BRACKET, RADIO, NO.2
86212-30190

GS151,JZS155

 1
Common parts
90153-50010
91626-40618
