GS151R-ATPSK (1997)

Toyota Crown

Production Jul 1997 - Aug 1998
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9707- )GS151

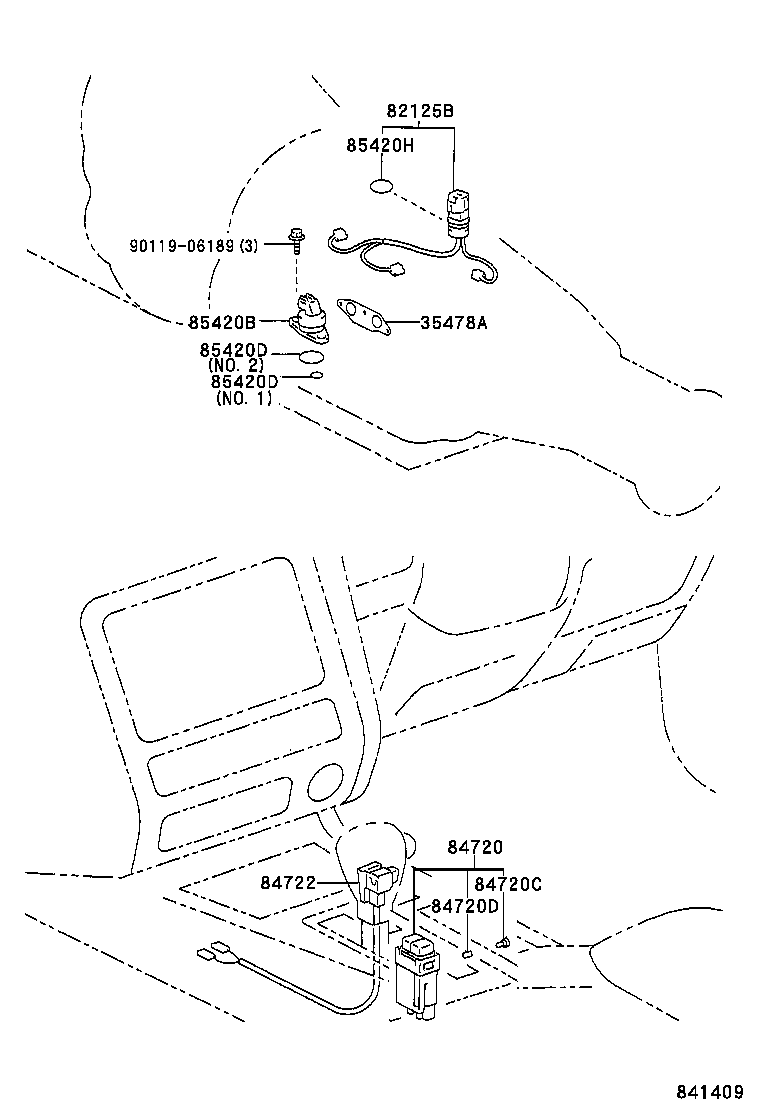

Click highlighted areas on diagram

diagram 35478A 82125B 84720 84720C 84720D 84722 85420B 85420D 85420D 85420H 9011906189
Part # Description Qty Price
35478A - GASKET, SHIFT CONTROL SOLENOID
35478-30010

GS151

 1
82125B - WIRE, TRANSMISSION
82125-28010

GS151

 1
84720 - SWITCH ASSY, PATTERN SELECT
84720-22190

GS151,JZS155..4FC

 1
84720C - BULB(FOR PATTERN SELECT SWITCH)
84999-10710

GS151,JZS155..4FC

 1
84720D - CAP, PATTERN SELECT SWITCH
84998-10670

GS151,JZS155..4FC

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-30190B1

GS151,JZS155..RHD

DK.BLUE GRAY,TRIM1#

 1
84722-30190E1

GS151,JZS155..RHD

ANTELOPE,TRIM4#

 1
85420B - SOLENOID ASSY, TRANSMISSION
85420-30050

GS151

NO.1

 1
85420-30070

GS151

NO.2

 1
85420H - RING, O(FOR SPEED SENSOR)
96721-24018

GS151,JZS155..4FC

 1
Common parts
90119-06189
