GS151R-ATPSK (1997)

Toyota Crown

Production Jul 1997 - Aug 1998
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9707- )GS151

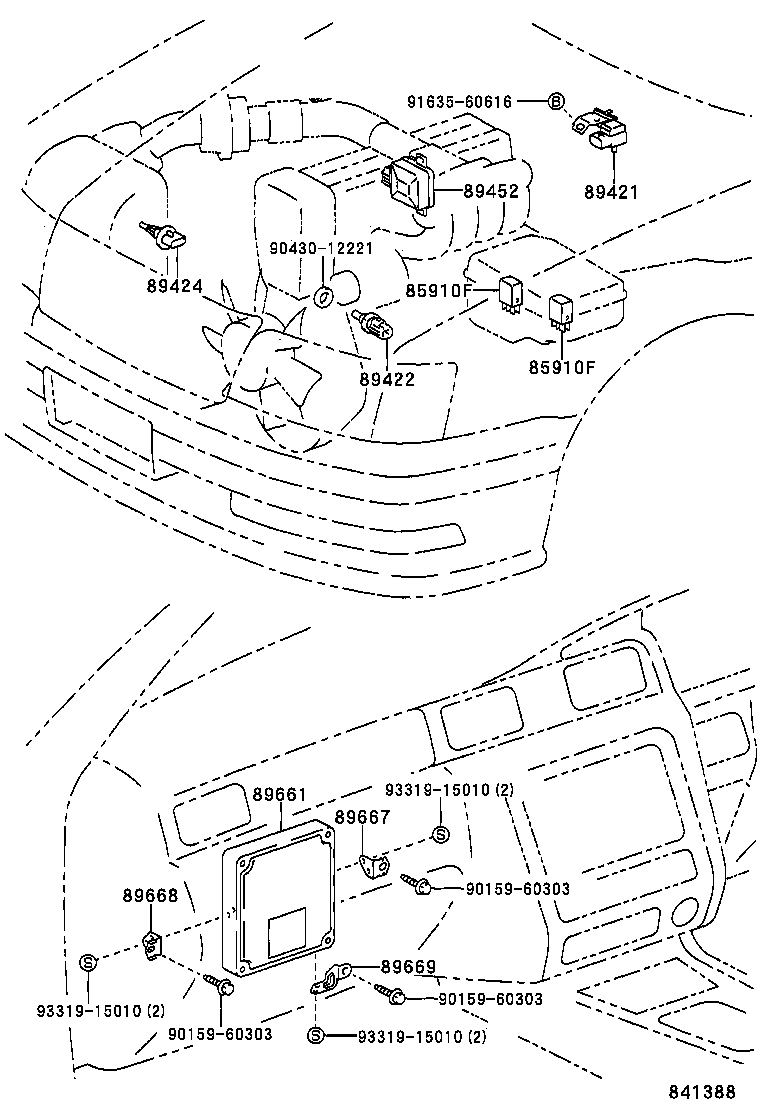

Click highlighted areas on diagram

diagram 85910F 85910F 89421 89422 89424 89452 89661 89667 89668 89669 9015960303 9015960303 9015960303 9043012221 9163560616 9331915010 9331915010 9331915010
Part # Description Qty Price
85910F - RELAY, COMPUTER (FOR EFI)
90987-02012

GS151,JZS155

 2
85910F - RELAY, COMPUTER (FOR EFI)
90987-02012

GS151,JZS155

 2
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89420-22200

GS151

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-20010

GS151,JZS155

 1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-12010

GS151,JZS155

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-22090

GS151

 1
89661 - COMPUTER, ENGINE CONTROL
89661-3A510

GS151

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-30220

GS151

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-30140

GS151

 1
Common parts
90159-60303
90430-12221
91635-60616
93319-15010
