GS151R-ATPSK (1997)

Toyota Crown

Production Jul 1997 - Aug 1998
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9512- )

Click highlighted areas on diagram

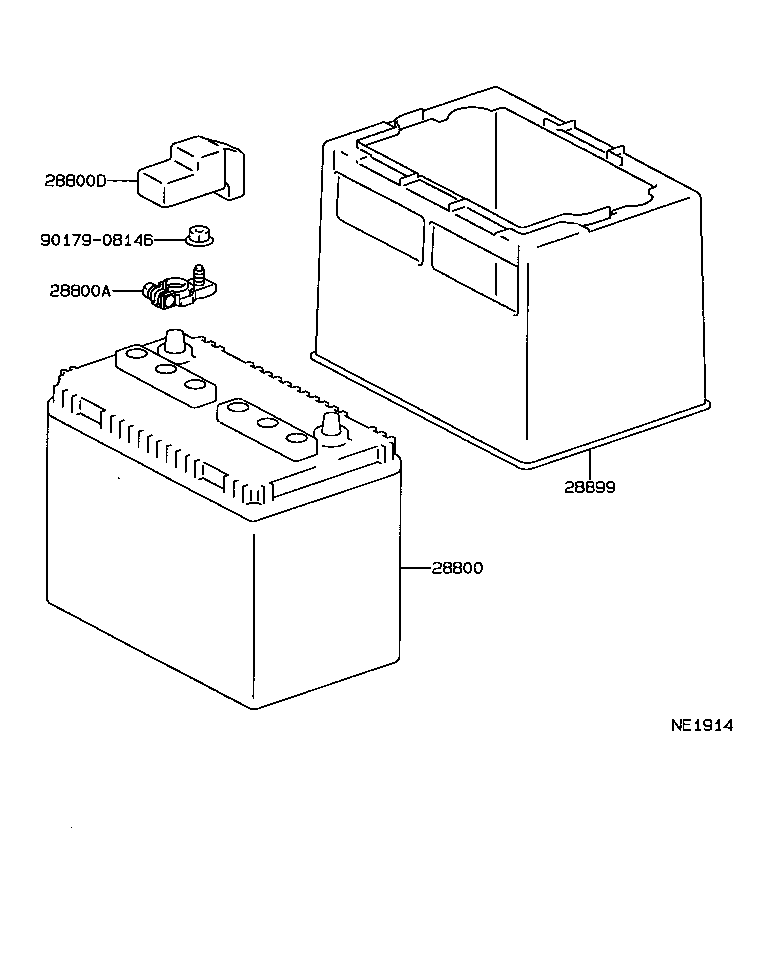

diagram 28800 28800A 28800D 28899 9017908146
Part # Description Qty Price
28800 - BATTERY
28800-64010

1GFE,2JZGE..GS151,JZS155

55D23L

 1
28800-42030

1GFE,2JZGE..GS151,JZS155

55D23L

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05035

1GFE,2JZGE..GS151,JZS155

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-24010

1GFE,2JZGE..GS151,JZS155

 1
Common parts
90179-08146
