GS151R-ATPSK (1997)
Toyota Crown
Production
Jul 1997
-
Aug 1998
Engine
1GFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9707- )HT

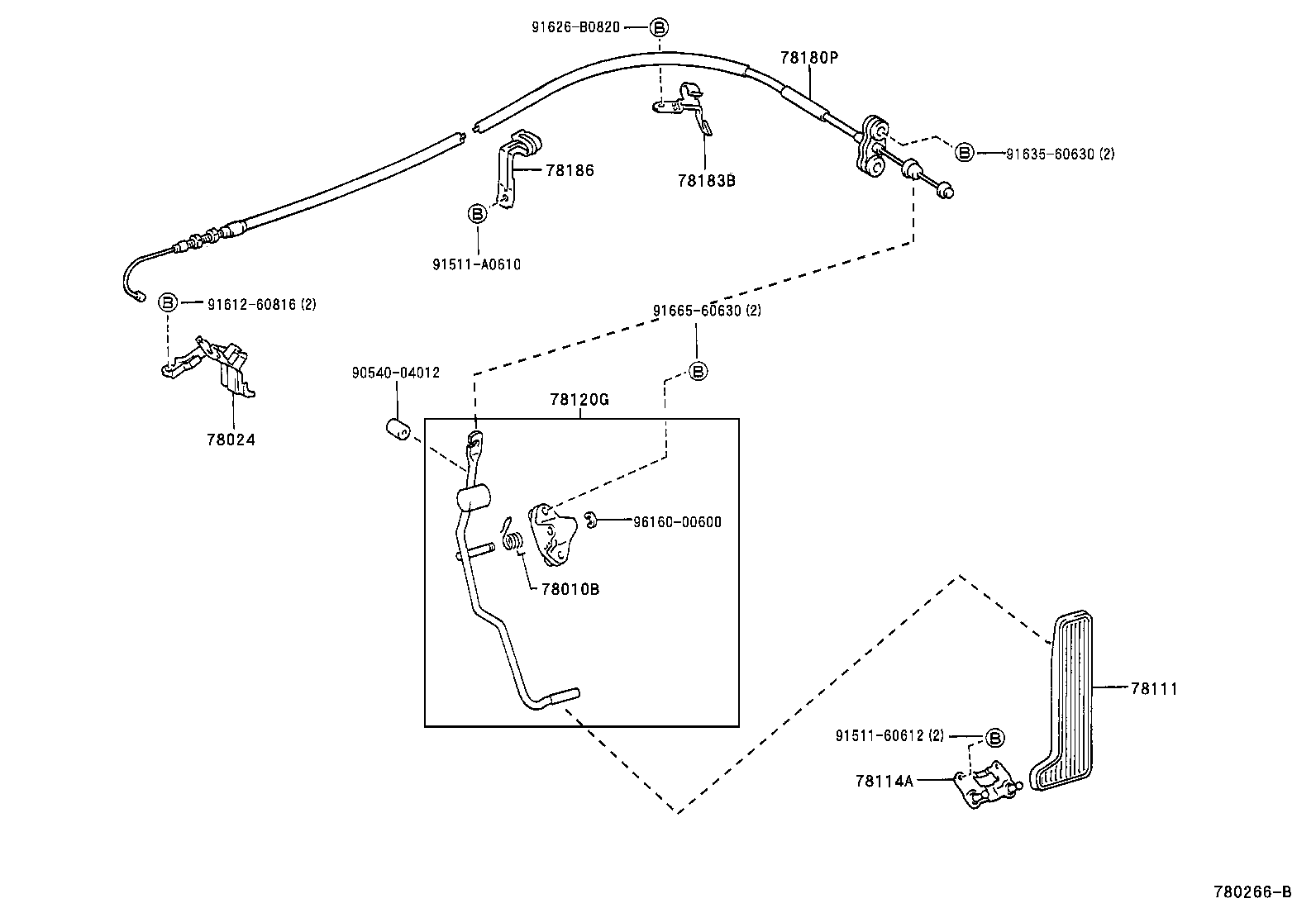

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78010B - SPRING, TORSION (FOR ACCELERATOR LINK) | ||||
| 90959-03104 |
GS151,JZS155..RHD |
1 | ||
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-30101 |
GS151 |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-30081 |
GS151,JZS155..RHD |
1 | ||
| 78114A - BRACKET, ACCELERATOR PEDAL SUPPORT | ||||
| 78114-30050 |
GS151,JZS155..RHD |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-30810 |
GS151 |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-3A530 |
GS151 |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-30130 |
GS151,JZS155..RHD |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-30120 |
GS151 |
1 | ||
| Common parts | ||||
| 90540-04012 | ||||
| 91511-60612 | ||||
| 91511-A0610 | ||||
| 91612-60816 | ||||
| 91626-B0820 | ||||
| 91635-60630 | ||||
| 91665-60630 | ||||
| 96160-00600 | ||||
