GS151R-ATPSK (1997)

Toyota Crown

Production Jul 1997 - Aug 1998
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9707- )HT

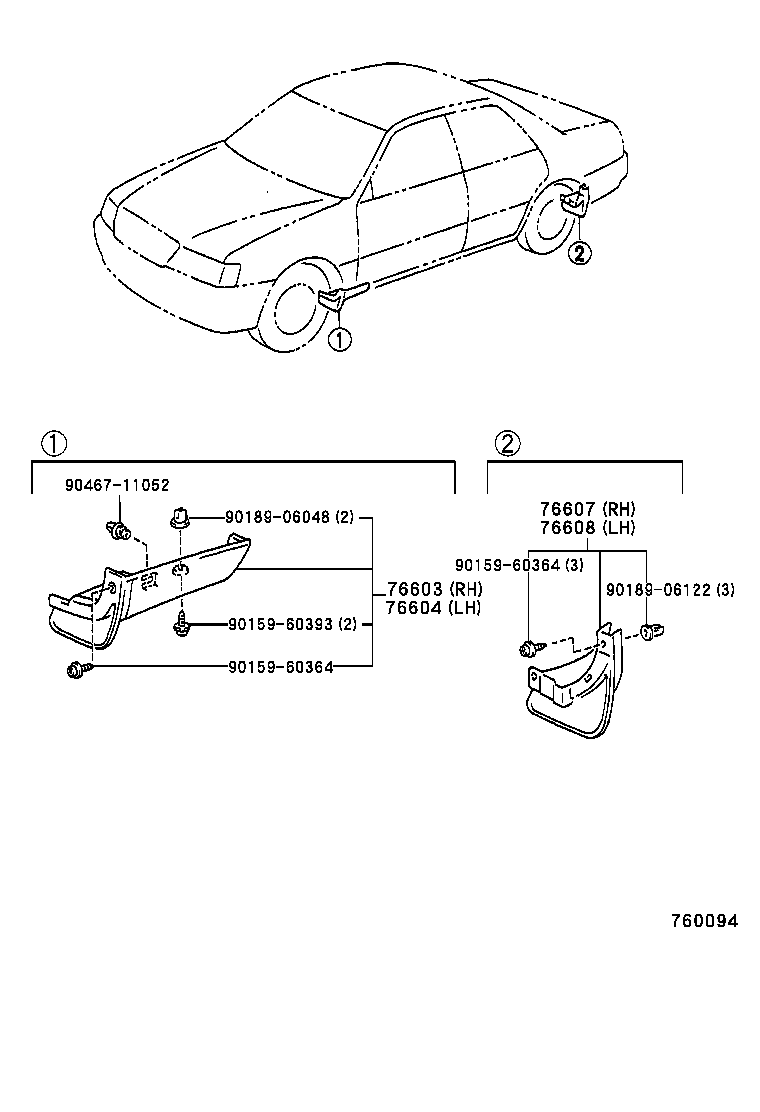

Click highlighted areas on diagram

diagram 76603 76604 76607 76608 9015960364 9015960364 9015960393 9018906048 9018906122 9046711052
Part # Description Qty Price
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76603-39035

GS151,JZS155..HT

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76604-39035

GS151,JZS155..HT

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-39455

GS151,JZS155..HT

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-39455

GS151,JZS155..HT

 1
Common parts
90159-60364
90159-60393
90189-06048
90189-06122
90467-11052
