GS151R-ATPSK (1997)

Toyota Crown

Production Jul 1997 - Aug 1998
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9512- )

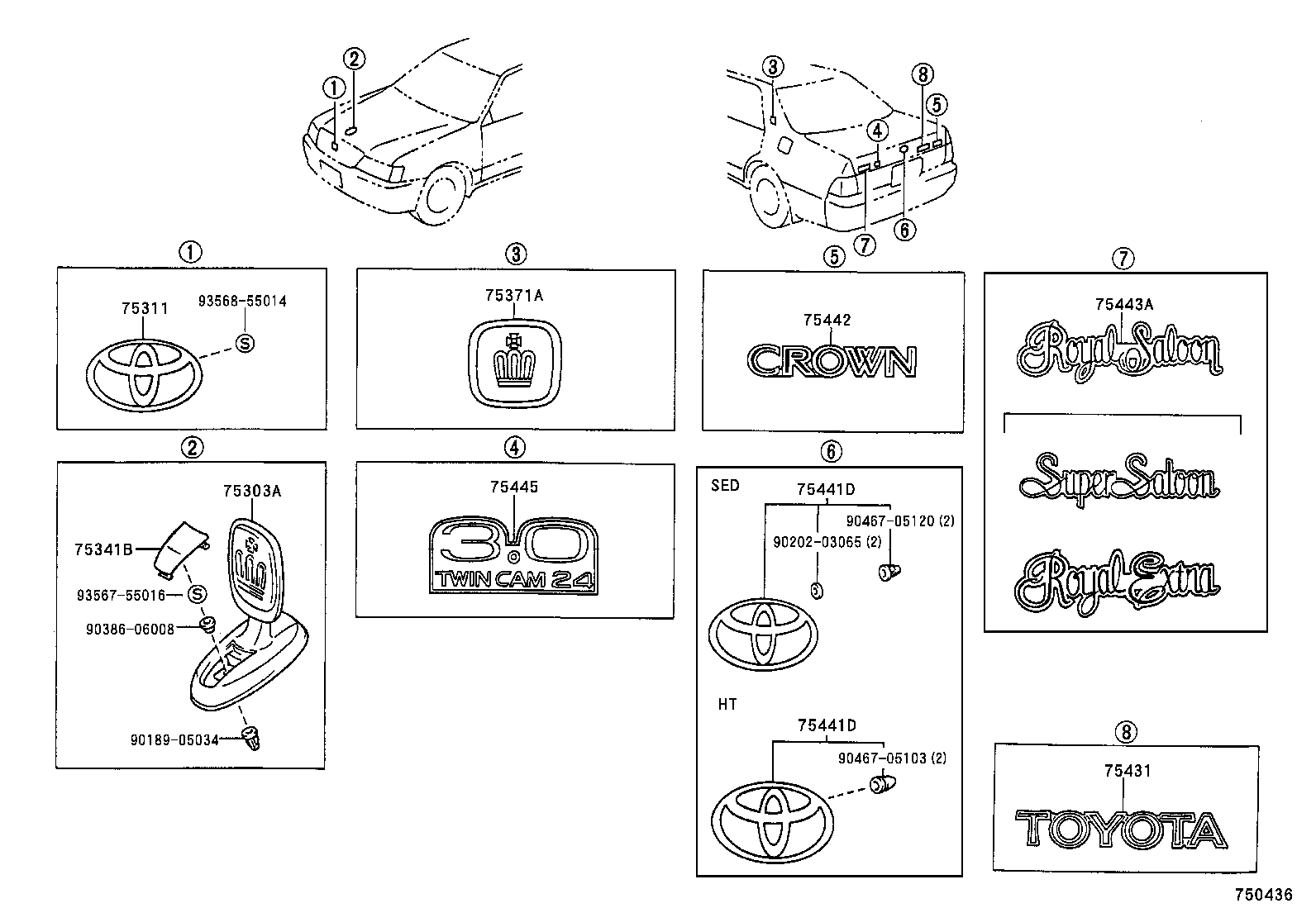

Click highlighted areas on diagram

diagram 75303A 75311 75341B 75371A 75431 75441D 75441D 75442 75443A 75445 9018905034 9020203065 9038606008 9046705103 9046705120 9356755016 9356855014
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-30260

GS151,JZS155

 1
75371A - EMBLEM, QUARTER PANEL
75371-30160

GS151,JZS155

 2
75441D - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1
75441-30350

GS151,JZS155..HT

 1
75441D - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1
75441-30350

GS151,JZS155..HT

 1
75442 - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2
75442-30120

GS151,JZS155

CROWN

 1
75443A - PLATE, LUGGAGE COMPARTMENT DOOR, NO.3
75443-30230

GS151

ROYAL EXTRA

 1
Common parts
90189-05034
90202-03065
90386-06008
90467-05103
90467-05120
93567-55016
93568-55014
