GS151R-ATPSK (1997)

Toyota Crown

Production Jul 1997 - Aug 1998
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9707- )HT

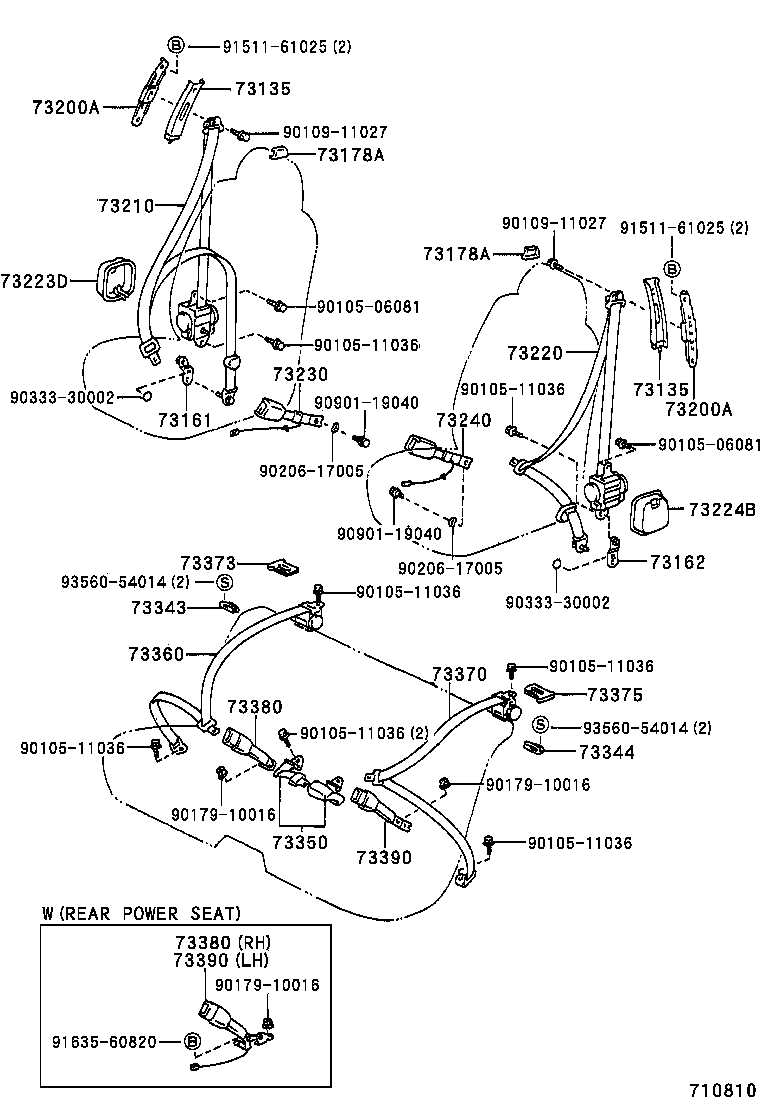

Click highlighted areas on diagram

diagram 73135 73135 73178A 73178A 73200A 73200A 73210 73220 73230 73240 73343 73344 73350 73360 73370 73373 73375 73380 73380 73390 73390 9010506081 9010506081 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010911027 9010911027 9017910016 9017910016 9017910016 9020617005 9020617005 9033330002 9033330002 9090119040 9090119040 9151161025 9151161025 9163560820 9356054014 9356054014
Part # Description Qty Price
73135 - COVER, SHOULDER BELT ANCHORAGE PLATE
73135-30030B0

GS151,JZS155

LT.BLUISH GRAY,TRIM1#

 2
73135-30030E0

GS151,JZS155

QUARTZ,TRIM4#

 2
73135 - COVER, SHOULDER BELT ANCHORAGE PLATE
73135-30030B0

GS151,JZS155

LT.BLUISH GRAY,TRIM1#

 2
73135-30030E0

GS151,JZS155

QUARTZ,TRIM4#

 2
73178A - CAP, SEAT BELT ANCHOR COVER
73178-12040B1

GS151,JZS155

LT.BLUISH GRAY,TRIM1#

 2
73178-12040E0

GS151,JZS155

QUARTZ,TRIM4#

 2
73178A - CAP, SEAT BELT ANCHOR COVER
73178-12040B1

GS151,JZS155

LT.BLUISH GRAY,TRIM1#

 2
73178-12040E0

GS151,JZS155

QUARTZ,TRIM4#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-22070B2

GS151,JZS155

BLUE GRAY,TRIM1#

 2
73200-22070E1

GS151,JZS155

QUARTZ,TRIM4#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-22070B2

GS151,JZS155

BLUE GRAY,TRIM1#

 2
73200-22070E1

GS151,JZS155

QUARTZ,TRIM4#

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-30740B2

GS151,JZS155..HT

BLUISH GRAY,TRIM1#

 1
73210-30740E1

GS151,JZS155..HT

DK. ROSE,TRIM4#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-30690E1

GS151,JZS155..HT

DK. ROSE,TRIM4#

 1
73220-30690B2

GS151,JZS155..HT

BLUISH GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-30580B0

GS151

DK.BLUE GRAY,TRIM1#

 1
73230-30580E0

GS151

ANTELOPE,TRIM4#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-30450E0

GS151

ANTELOPE,TRIM4#

 1
73240-30450B0

GS151

DK.BLUE GRAY,TRIM1#

 1
73343 - GUIDE, REAR SEAT SHOULDER BELT, RH
73343-50020B0

GS151,JZS155

BLUE GRAY,TRIM1#

 1
73343-50020E0

GS151,JZS155

QUARTZ,TRIM4#

 1
73344 - GUIDE, REAR SEAT SHOULDER BELT, LH
73344-50010B0

GS151,JZS155

BLUE GRAY,TRIM1#

 1
73344-50010E0

GS151,JZS155

QUARTZ,TRIM4#

 1
73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER
73350-30190E0

JZS155..LHD;GS151,JZS155..HT

DK. ROSE,TRIM4#

 1
73350-30190B0

JZS155..LHD;GS151,JZS155..HT

BLUISH GRAY,TRIM1#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-30320E0

GS151,JZS155..HT

DK. ROSE,TRIM4#

 1
73360-30320B0

GS151,JZS155..HT

BLUISH GRAY,TRIM1#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73360-30320B0

GS151,JZS155..HT

BLUISH GRAY,TRIM1#

 1
73360-30320E0

GS151,JZS155..HT

DK. ROSE,TRIM4#

 1
73373 - COVER, REAR SEAT SHOULDER BELT
73373-30021B1

GS151,JZS155

BLUE GRAY,TRIM1#

 1
73373-30021E0

GS151,JZS155

QUARTZ,TRIM4#

 1
73375 - COVER, REAR SEAT SHOULDER BELT, LH
73375-30011B1

GS151,JZS155

BLUE GRAY,TRIM1#

 1
73375-30011E0

GS151,JZS155

QUARTZ,TRIM4#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73380-30310E0

GS151,JZS155..HT

DK.ROSE,TRIM4#

 1
73380-30310B0

GS151,JZS155..HT

DK.BLUEGRAY,TRIM1#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73380-30310E0

GS151,JZS155..HT

DK.ROSE,TRIM4#

 1
73380-30310B0

GS151,JZS155..HT

DK.BLUEGRAY,TRIM1#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73380-30310E0

GS151,JZS155..HT

DK.ROSE,TRIM4#

 1
73380-30310B0

GS151,JZS155..HT

DK.BLUEGRAY,TRIM1#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73380-30310E0

GS151,JZS155..HT

DK.ROSE,TRIM4#

 1
73380-30310B0

GS151,JZS155..HT

DK.BLUEGRAY,TRIM1#

 1
Common parts
90105-06081
90105-11036
90109-11027
90179-10016
90206-17005
90333-30002
90901-19040
91511-61025
91635-60820
93560-54014
