GS151R-ATPSK (1997)

Toyota Crown

Production Jul 1997 - Aug 1998
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9512- )

Click highlighted areas on diagram

diagram 7104 7104 71075B 71077B 71281A 71398A 71398A 71398A 71398A 71460B 71480B 71611 71651B 71931A 71931A 71931A 71931A 71940A 71940A 72693 72693 72805B 72830 72868 72869 9011906274 9016840108 9017604015 9017906168 9033325001 9326954012
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-3A070B1

GS151

DK.BLUE GRAY,TRIM1#

 1
71075-3A070E1

GS151

ANTELOPE,TRIM4#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-3F150E1

GS151

ANTELOPE,TRIM4#

 1
71077-3F150B1

GS151

DK.BLUE GRAY,TRIM1#

 1
71281A - HINGE, REAR SEAT CENTER ARMREST
71281-30030

GS151,JZS155

 1
71398A - HOLDER, REAR SEAT BACK
71398-30010

JZS155..LHD;GS151,JZS155..HT

 3
71398A - HOLDER, REAR SEAT BACK
71398-30010

JZS155..LHD;GS151,JZS155..HT

 3
71398A - HOLDER, REAR SEAT BACK
71398-30010

JZS155..LHD;GS151,JZS155..HT

 3
71398A - HOLDER, REAR SEAT BACK
71398-30010

JZS155..LHD;GS151,JZS155..HT

 3
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-3A320E1

GS151

***,ANTELOPE,TRIM4#

 1
71460-3A320B1

GS151

***,DK.BLUE GRAY,TRIM1#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-3F560E0

GS151

***,ANTELOPE,TRIM4#

 1
71480-3F560B0

GS151

***,DK. BLUE GRAY,TRIM1#

 1
71611 - PAD, REAR SEAT CUSHION
71503-30020

GS151,JZS155..HT

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71507-30130

GS151,JZS155..HT

 1
71931A - SUPPORT, REAR SEAT HEADREST
71930-12070E0

GS151

W(LOCK),QUARTZ,TRIM4#

 1
71931-12040E0

GS151

W/O(LOCK),QUARTZ,TRIM4#

 1
71930-12070P6

GS151

W(LOCK),BLUE GRAY,TRIM1#

 1
71931-12040P6

GS151

W/O(LOCK),BLUE GRAY,TRIM1#

 1
71931A - SUPPORT, REAR SEAT HEADREST
71930-12070E0

GS151

W(LOCK),QUARTZ,TRIM4#

 1
71931-12040E0

GS151

W/O(LOCK),QUARTZ,TRIM4#

 1
71930-12070P6

GS151

W(LOCK),BLUE GRAY,TRIM1#

 1
71931-12040P6

GS151

W/O(LOCK),BLUE GRAY,TRIM1#

 1
71931A - SUPPORT, REAR SEAT HEADREST
71930-12070E0

GS151

W(LOCK),QUARTZ,TRIM4#

 1
71931-12040E0

GS151

W/O(LOCK),QUARTZ,TRIM4#

 1
71930-12070P6

GS151

W(LOCK),BLUE GRAY,TRIM1#

 1
71931-12040P6

GS151

W/O(LOCK),BLUE GRAY,TRIM1#

 1
71931A - SUPPORT, REAR SEAT HEADREST
71930-12070E0

GS151

W(LOCK),QUARTZ,TRIM4#

 1
71931-12040E0

GS151

W/O(LOCK),QUARTZ,TRIM4#

 1
71930-12070P6

GS151

W(LOCK),BLUE GRAY,TRIM1#

 1
71931-12040P6

GS151

W/O(LOCK),BLUE GRAY,TRIM1#

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-14050

GS151,JZS155..HT

W(REAR POWER SEAT)

 2
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-14050

GS151,JZS155..HT

W(REAR POWER SEAT)

 2
72830 - ARMREST ASSY, REAR SEAT, CENTER
72830-30700B0

GS151

BLUE GRAY,TRIM1#

 1
72830-30700E0

GS151

QUARTZ,TRIM4#

 1
72868 - COVER, CENTER ARMREST HINGE, RH
72868-30040B1

JZS155..LHD;GS151,JZS155..HT

BLUE GRAY,TRIM1#

 1
72868-30040E0

JZS155..LHD;GS151,JZS155..HT

QUARTZ,TRIM4#

 1
72869 - COVER, CENTER ARMREST HINGE, LH
72869-30020E0

JZS155..LHD;GS151,JZS155..HT

QUARTZ,TRIM4#

 1
72869-30020B1

JZS155..LHD;GS151,JZS155..HT

BLUE GRAY,TRIM1#

 1
Common parts
90119-06274
90168-40108
90176-04015
90179-06168
90333-25001
93269-54012
Linked diagrams
7104

(9512- )

Click highlighted areas on diagram

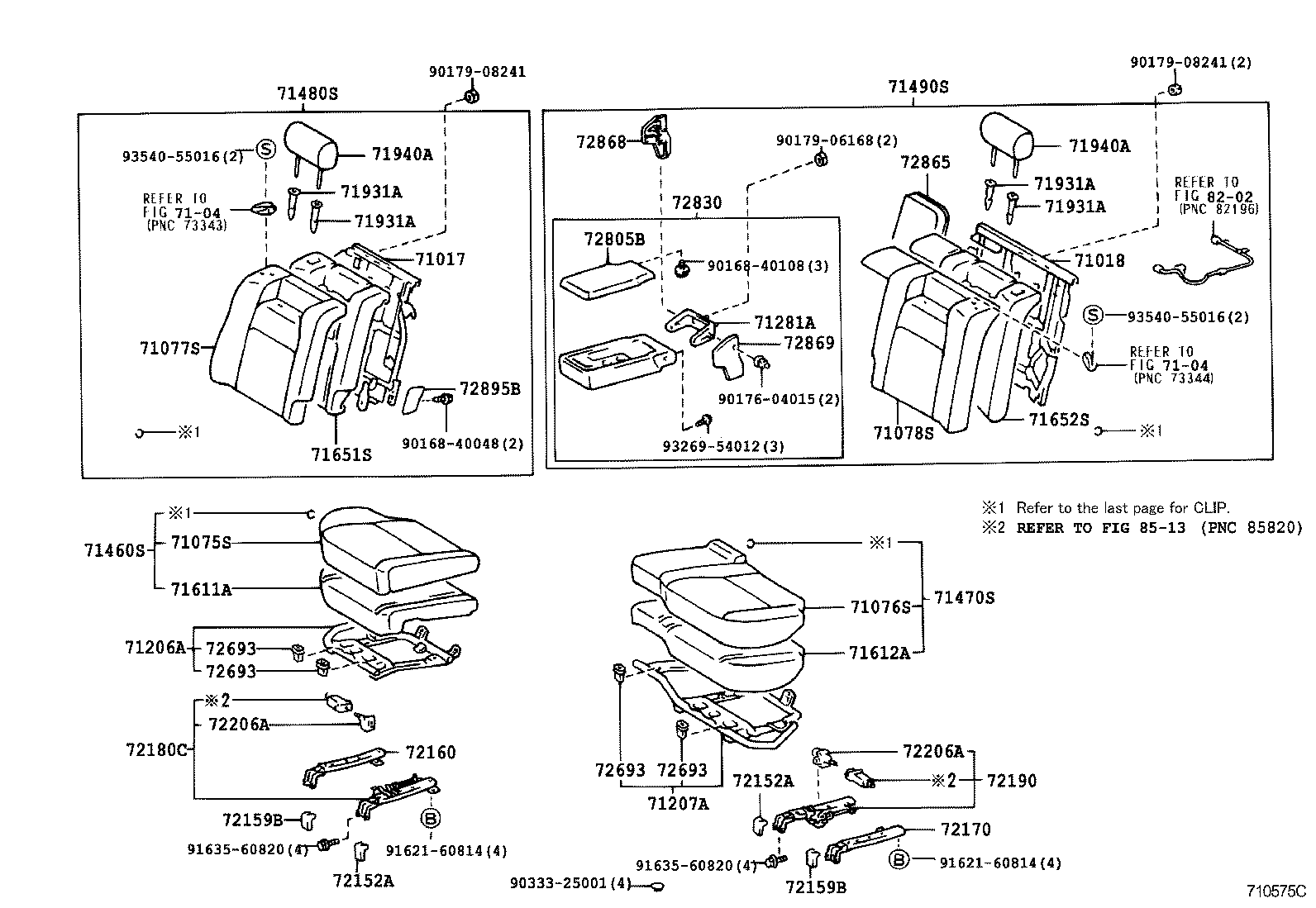

REAR POWER SEAT

diagram 71017 71018 7104 7104 71075S 71076S 71077S 71078S 71206A 71207A 71281A 71460S 71470S 71480S 71490S 71611A 71612A 71651S 71652S 71931A 71931A 71931A 71931A 71940A 71940A 72152A 72152A 72159B 72159B 72160 72170 72180C 72190 72206A 72206A 72693 72693 72693 72693 72805B 72830 72865 72868 72869 72895B 8202 8513 9016840048 9016840108 9017604015 9017906168 9017908241 9017908241 9033325001 9162160814 9162160814 9163560820 9163560820 9326954012 9354055016 9354055016
Part # Description Qty Price
71281A - HINGE, REAR SEAT CENTER ARMREST
71281-30030

GS151,JZS155

 1
71931A - SUPPORT, REAR SEAT HEADREST
71930-12070E0

GS151

W(LOCK),QUARTZ,TRIM4#

 1
71931-12040E0

GS151

W/O(LOCK),QUARTZ,TRIM4#

 1
71930-12070P6

GS151

W(LOCK),BLUE GRAY,TRIM1#

 1
71931-12040P6

GS151

W/O(LOCK),BLUE GRAY,TRIM1#

 1
71931A - SUPPORT, REAR SEAT HEADREST
71930-12070E0

GS151

W(LOCK),QUARTZ,TRIM4#

 1
71931-12040E0

GS151

W/O(LOCK),QUARTZ,TRIM4#

 1
71930-12070P6

GS151

W(LOCK),BLUE GRAY,TRIM1#

 1
71931-12040P6

GS151

W/O(LOCK),BLUE GRAY,TRIM1#

 1
71931A - SUPPORT, REAR SEAT HEADREST
71930-12070E0

GS151

W(LOCK),QUARTZ,TRIM4#

 1
71931-12040E0

GS151

W/O(LOCK),QUARTZ,TRIM4#

 1
71930-12070P6

GS151

W(LOCK),BLUE GRAY,TRIM1#

 1
71931-12040P6

GS151

W/O(LOCK),BLUE GRAY,TRIM1#

 1
71931A - SUPPORT, REAR SEAT HEADREST
71930-12070E0

GS151

W(LOCK),QUARTZ,TRIM4#

 1
71931-12040E0

GS151

W/O(LOCK),QUARTZ,TRIM4#

 1
71930-12070P6

GS151

W(LOCK),BLUE GRAY,TRIM1#

 1
71931-12040P6

GS151

W/O(LOCK),BLUE GRAY,TRIM1#

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-14050

GS151,JZS155..HT

W(REAR POWER SEAT)

 2
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-14050

GS151,JZS155..HT

W(REAR POWER SEAT)

 2
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-14050

GS151,JZS155..HT

W(REAR POWER SEAT)

 2
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-14050

GS151,JZS155..HT

W(REAR POWER SEAT)

 2
72830 - ARMREST ASSY, REAR SEAT, CENTER
72830-30700B0

GS151

BLUE GRAY,TRIM1#

 1
72830-30700E0

GS151

QUARTZ,TRIM4#

 1
72868 - COVER, CENTER ARMREST HINGE, RH
72868-30040B1

JZS155..LHD;GS151,JZS155..HT

BLUE GRAY,TRIM1#

 1
72868-30040E0

JZS155..LHD;GS151,JZS155..HT

QUARTZ,TRIM4#

 1
72869 - COVER, CENTER ARMREST HINGE, LH
72869-30020E0

JZS155..LHD;GS151,JZS155..HT

QUARTZ,TRIM4#

 1
72869-30020B1

JZS155..LHD;GS151,JZS155..HT

BLUE GRAY,TRIM1#

 1
Common parts
90168-40048
90168-40108
90176-04015
90179-06168
90179-08241
90333-25001
91621-60814
91635-60820
93269-54012
93540-55016
Linked diagrams
7104
8202
8513

(9512- )

Click highlighted areas on diagram

CLIP

diagram 9046816019 9046818008
Part # Description Qty Price
Common parts
90468-16019
90468-18008
