GS151R-ATPSK (1997)

Toyota Crown

Production Jul 1997 - Aug 1998
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9707- )HT

Click highlighted areas on diagram

RH SEAT

diagram 71811D 71811D 71819B 71861 71861 71867A 71867A 71875A 71875A 72011 72021 72110 72123A 72123A 72125A 72126 72127A 72127A 72129 72137B 72137B 72157A 72157A 72206 72211 72457B 72457B 72501D 72501D 72525A 8513 8513 8513 8513 9011910772 9011910772 9011910772 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016840124 9016840124 9052001006 9052001006 9151160816 9151160816 9162160814 9162160814 9162160814 9324954006 9356054020 9616000800 9616001200
Part # Description Qty Price
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-30330E0

GS151

QUARTZ,TRIM4#

 1
71811-30330B1

GS151

BLUE GRAY,TRIM1#

 1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-30330E0

GS151

QUARTZ,TRIM4#

 1
71811-30330B1

GS151

BLUE GRAY,TRIM1#

 1
71819B - LABEL, SIDE AIR BAG NAME
71819-12020B3

GS151,JZS155..RHD

BLUE GRAY,TRIM1#

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-30050B1

GS151;JZS155..LHD

BLUE GRAY,TRIM1#

 1
71861-30050E0

GS151;JZS155..LHD

QUARTZ,TRIM4#

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-30050B1

GS151;JZS155..LHD

BLUE GRAY,TRIM1#

 1
71861-30050E0

GS151;JZS155..LHD

QUARTZ,TRIM4#

 1
71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH
71867-30070E0

GS151;JZS155..LHD

QUARTZ,TRIM4#

 1
71867-30070B1

GS151;JZS155..LHD

BLUE GRAY,TRIM1#

 1
71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH
71867-30070E0

GS151;JZS155..LHD

QUARTZ,TRIM4#

 1
71867-30070B1

GS151;JZS155..LHD

BLUE GRAY,TRIM1#

 1
72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH
72011-30121

GS151

 1
72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH
72021-30011

GS151

 1
72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH
72123-20130B3

GS151,JZS155

BLUE GRAY,TRIM1#

 1
72123-20130E2

GS151,JZS155

QUARTZ,TRIM4#

 1
72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH
72123-20130B3

GS151,JZS155

BLUE GRAY,TRIM1#

 1
72123-20130E2

GS151,JZS155

QUARTZ,TRIM4#

 1
72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH
72127-30060E0

GS151,JZS155

QUARTZ,TRIM4#

 1
72127-30060B1

GS151,JZS155

BLUE GRAY,TRIM1#

 1
72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH
72127-30060E0

GS151,JZS155

QUARTZ,TRIM4#

 1
72127-30060B1

GS151,JZS155

BLUE GRAY,TRIM1#

 1
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-20040

GS151;JZS155..SED

 1
72137B - COVER, SEAT TRACK, RH
72137-30100B1

GS151,JZS155

BLUE GRAY,TRIM1#

 1
72137-30100E0

GS151,JZS155

QUARTZ,TRIM4#

 1
72137B - COVER, SEAT TRACK, RH
72137-30100B1

GS151,JZS155

BLUE GRAY,TRIM1#

 1
72137-30100E0

GS151,JZS155

QUARTZ,TRIM4#

 1
72157A - COVER, SEAT TRACK BRACKET, INNER RH
72157-30070B1

GS151,JZS155

BLUE GRAY,TRIM1#

 1
72157-30070E0

GS151,JZS155

QUARTZ,TRIM4#

 1
72157A - COVER, SEAT TRACK BRACKET, INNER RH
72157-30070B1

GS151,JZS155

BLUE GRAY,TRIM1#

 1
72157-30070E0

GS151,JZS155

QUARTZ,TRIM4#

 1
72211 - HANDLE, SEAT TRACK ADJUSTING
72211-30160

GS151;JZS155..SED

 1
72457B - KNOB, VERTICAL SEAT ADJUSTER, RH
72457-22020B3

GS151

BLUE GRAY,TRIM1#

 2
72457-22020E3

GS151

QUARTZ,TRIM4#

 2
72457B - KNOB, VERTICAL SEAT ADJUSTER, RH
72457-22020B3

GS151

BLUE GRAY,TRIM1#

 2
72457-22020E3

GS151

QUARTZ,TRIM4#

 2
72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH
72501-30100

GS151;JZS155..LHD

 1
72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH
72501-30100

GS151;JZS155..LHD

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-12110E1

GS151;JZS155..LHD

QUARTZ,TRIM4#

 1
72525-12110B2

GS151;JZS155..LHD

BLUE GRAY,TRIM1#

 1
Common parts
90119-10772
90167-40044
90168-40124
90520-01006
91511-60816
91621-60814
93249-54006
93560-54020
96160-00800
96160-01200
Linked diagrams
8513

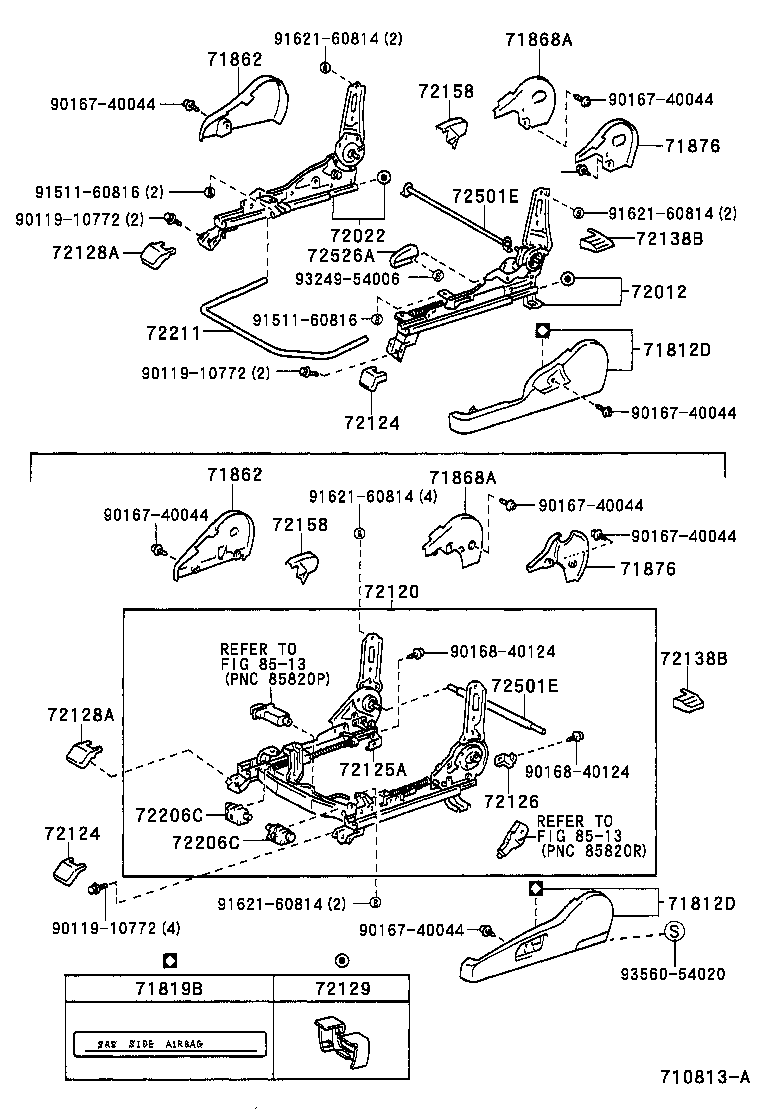

ILLUST NO. 2 OF 2(9707- )HT

Click highlighted areas on diagram

LH SEAT

diagram 71812D 71812D 71819B 71862 71862 71868A 71868A 71876 71876 72012 72022 72120 72124 72124 72125A 72126 72128A 72128A 72129 72138B 72138B 72158 72158 72206C 72206C 72211 72501E 72501E 72526A 8513 8513 9011910772 9011910772 9011910772 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016840124 9016840124 9151160816 9151160816 9162160814 9162160814 9162160814 9162160814 9324954006 9356054020
Part # Description Qty Price
71819B - LABEL, SIDE AIR BAG NAME
71819-12020B3

GS151,JZS155..RHD

BLUE GRAY,TRIM1#

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-30040B1

JZS155..RHD..SED;GS151,JZS155..ROYEX,SPSAL

BLUE GRAY,TRIM1#

 1
71862-30040E0

JZS155..RHD..SED;GS151,JZS155..ROYEX,SPSAL

QUARTZ,TRIM4#

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-30040B1

JZS155..RHD..SED;GS151,JZS155..ROYEX,SPSAL

BLUE GRAY,TRIM1#

 1
71862-30040E0

JZS155..RHD..SED;GS151,JZS155..ROYEX,SPSAL

QUARTZ,TRIM4#

 1
71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH
71868-30120B1

JZS155..RHD..SED;GS151,JZS155..ROYEX,SPSAL

BLUE GRAY,TRIM1#

 1
71868-30120E0

JZS155..RHD..SED;GS151,JZS155..ROYEX,SPSAL

QUARTZ,TRIM4#

 1
71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH
71868-30120B1

JZS155..RHD..SED;GS151,JZS155..ROYEX,SPSAL

BLUE GRAY,TRIM1#

 1
71868-30120E0

JZS155..RHD..SED;GS151,JZS155..ROYEX,SPSAL

QUARTZ,TRIM4#

 1
72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH
72012-30121

JZS155..RHD..SED;GS151,JZS155..ROYEX,SPSAL

 1
72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH
72022-30011

JZS155..RHD..SED;GS151,JZS155..ROYEX,SPSAL

 1
72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH
72123-20130E2

GS151,JZS155

QUARTZ,TRIM4#

 1
72123-20130B3

GS151,JZS155

BLUE GRAY,TRIM1#

 1
72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH
72123-20130E2

GS151,JZS155

QUARTZ,TRIM4#

 1
72123-20130B3

GS151,JZS155

BLUE GRAY,TRIM1#

 1
72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH
72127-30060B1

GS151,JZS155

BLUE GRAY,TRIM1#

 1
72127-30060E0

GS151,JZS155

QUARTZ,TRIM4#

 1
72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH
72127-30060B1

GS151,JZS155

BLUE GRAY,TRIM1#

 1
72127-30060E0

GS151,JZS155

QUARTZ,TRIM4#

 1
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-20040

GS151;JZS155..SED

 1
72138B - COVER, SEAT TRACK, LH
72138-30050B1

GS151,JZS155

BLUE GRAY,TRIM1#

 1
72138-30050E0

GS151,JZS155

QUARTZ,TRIM4#

 1
72138B - COVER, SEAT TRACK, LH
72138-30050B1

GS151,JZS155

BLUE GRAY,TRIM1#

 1
72138-30050E0

GS151,JZS155

QUARTZ,TRIM4#

 1
72158 - COVER, SEAT TRACK BRACKET, INNER LH
72158-30060B1

GS151,JZS155

BLUE GRAY,TRIM1#

 1
72158-30060E0

GS151,JZS155

QUARTZ,TRIM4#

 1
72158 - COVER, SEAT TRACK BRACKET, INNER LH
72158-30060B1

GS151,JZS155

BLUE GRAY,TRIM1#

 1
72158-30060E0

GS151,JZS155

QUARTZ,TRIM4#

 1
72211 - HANDLE, SEAT TRACK ADJUSTING
72211-30160

GS151;JZS155..SED

 1
72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH
72501-30100

JZS155..RHD..SED;GS151,JZS155..ROYEX,SPSAL

 1
72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH
72501-30100

JZS155..RHD..SED;GS151,JZS155..ROYEX,SPSAL

 1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-12050B2

JZS155..RHD..SED;GS151,JZS155..ROYEX,SPSAL

BLUE GRAY,TRIM1#

 1
72526-12050E1

JZS155..RHD..SED;GS151,JZS155..ROYEX,SPSAL

QUARTZ,TRIM4#

 1
Common parts
90119-10772
90167-40044
90168-40124
91511-60816
91621-60814
93249-54006
93560-54020
Linked diagrams
8513

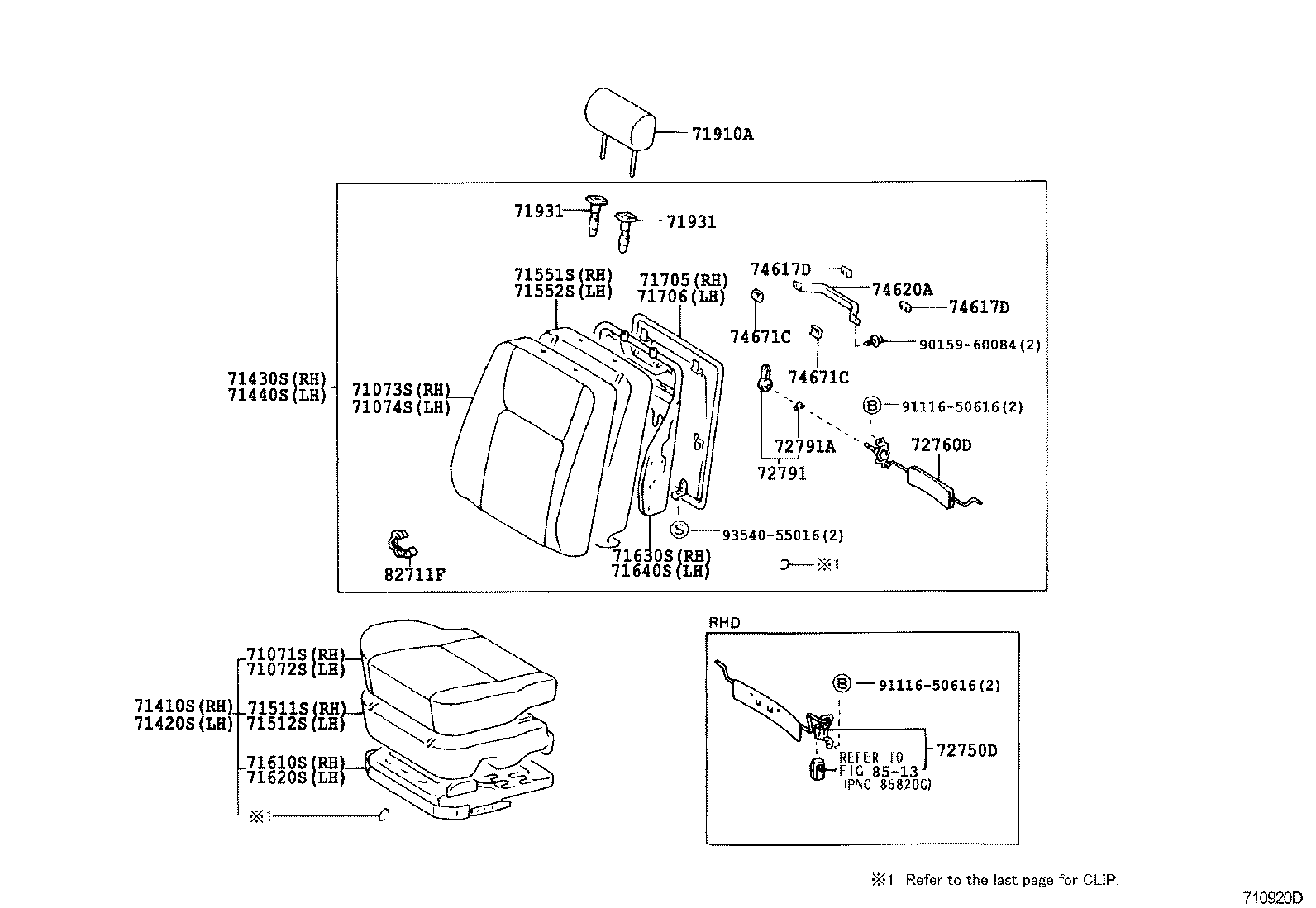

ILLUST NO. 1 OF 2(9512- )

Click highlighted areas on diagram

diagram 71071S 71072S 71073S 71074S 71410S 71420S 71430S 71440S 71511S 71512S 71551S 71552S 71610S 71620S 71630S 71640S 71705 71706 71910A 71931 71931 72750D 72760D 72791 72791A 74617D 74617D 74620A 74671C 74671C 82711F 8513 9015960084 9111650616 9111650616 9354055016
Part # Description Qty Price
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-3F310E2

GS151

ANTELOPE,TRIM4#

 1
71071-3F310B2

GS151

DK.BLUE GRAY,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-3F540B0

GS151

DK. BLUE GRAY,TRIM1#

 1
71073-3F540E0

GS151

ANTELOPE,TRIM4#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-3A560B0

GS151

DK. BLUE GRAY,TRIM1#

 1
71074-3A560E0

GS151

ANTELOPE,TRIM4#

 1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-3K090B2

GS151

***,DK.BLUE GRAY,TRIM1#

 1
71410-3K090E2

GS151

***,ANTELOPE,TRIM4#

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-3F460B0

GS151

***,DK.BLUE GRAY,TRIM1#

 1
71420-3F460E0

GS151

***,ANTELOPE,TRIM4#

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71040-30070B0

GS151

***,DK. BLUE GRAY,TRIM1#

 1
71040-30070E0

GS151

***,ANTELOPE,TRIM4#

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-3K740E0

GS151

***,ANTELOPE,TRIM4#

 1
71440-3K740B0

GS151

***,DK.BLUE GRAY,TRIM1#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-30800

GS151,JZS155

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-30560

GS151,JZS155..RHD

 1
71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71610-30630

GS151

 1
71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71620-30290

JZS155..RHD..SED;GS151,JZS155..ROYEX,SPSAL

 1
71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH
71705-30380B0

GS151,JZS155..ROYEX,SPSAL

BLUE GRAY,TRIM1#

 1
71705-30380E0

GS151,JZS155..ROYEX,SPSAL

QUARTZ,TRIM4#

 1
71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH
71705-30380B0

GS151,JZS155..ROYEX,SPSAL

BLUE GRAY,TRIM1#

 1
71705-30380E0

GS151,JZS155..ROYEX,SPSAL

QUARTZ,TRIM4#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-3A020B0

GS151,JZS155..ROYEX,SPSAL

BLUE GRAY,TRIM1#

 2
71910-3A020E0

GS151,JZS155..ROYEX,SPSAL

QUARTZ,TRIM4#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-30100E0

GS151,JZS155

W(LOCK),QUARTZ,TRIM4#

 2
71931-30020B1

GS151,JZS155

W/O(LOCK),BLUE GRAY,TRIM1#

 2
71931-30020E0

GS151,JZS155

W/O(LOCK),QUARTZ,TRIM4#

 2
71930-30100B1

GS151,JZS155

W(LOCK),BLUE GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-30100E0

GS151,JZS155

W(LOCK),QUARTZ,TRIM4#

 2
71931-30020B1

GS151,JZS155

W/O(LOCK),BLUE GRAY,TRIM1#

 2
71931-30020E0

GS151,JZS155

W/O(LOCK),QUARTZ,TRIM4#

 2
71930-30100B1

GS151,JZS155

W(LOCK),BLUE GRAY,TRIM1#

 2
72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH
72750-30180

GS151

 1
72791 - LEVER, LUMBAR SUPPORT
72791-12010B2

GS151;JZS155..LHD

BLUE GRAY,TRIM1#

 1
72791-12010E1

GS151;JZS155..LHD

QUARTZ,TRIM4#

 1
72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER)
90520-01006

GS151;JZS155..LHD

 1
Common parts
90159-60084
91116-50616
93540-55016
Linked diagrams
8513

(9512- )

Click highlighted areas on diagram

CLIP

diagram 9046816019 9046818008
Part # Description Qty Price
Common parts
90468-16019
90468-18008
