GS151R-ATPSK (1997)
Toyota Crown
Production
Jul 1997
-
Aug 1998
Engine
1GFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9512- )

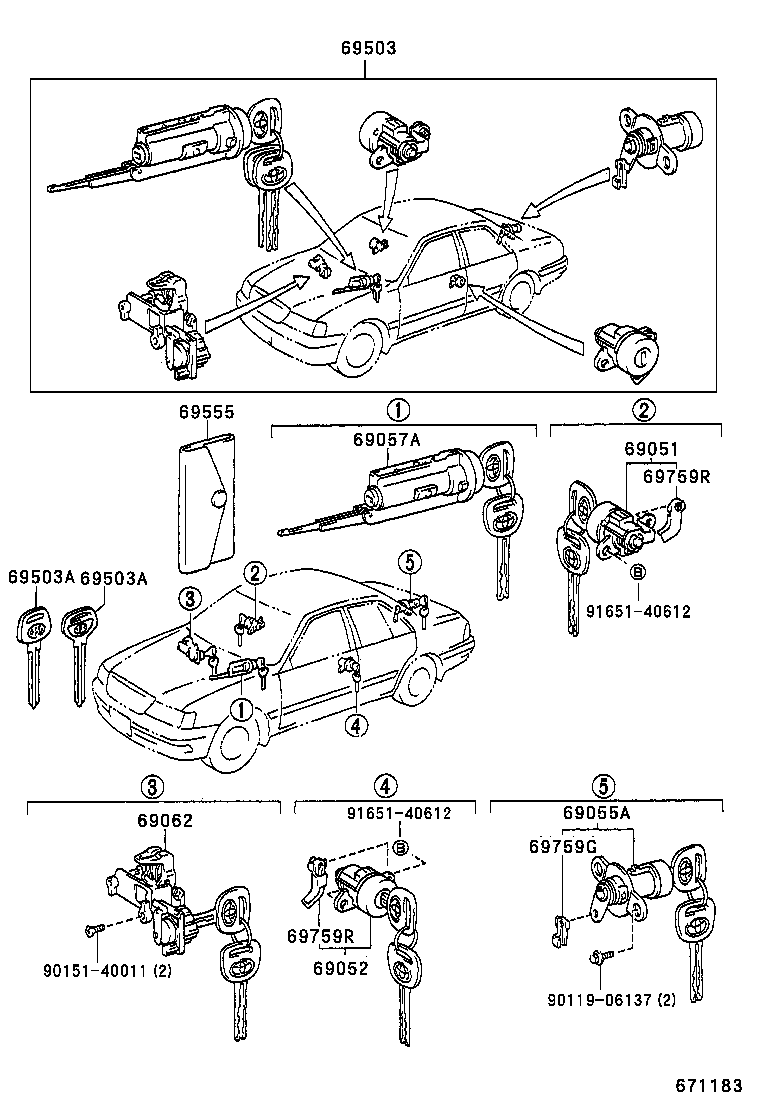

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-30240 |
GS151,JZS155..HT |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-30210 |
GS151,JZS155..HT |
1 | ||
| 69055A - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK | ||||
| 69055-30310 |
GS151,JZS155..RHD |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-30150 |
GS151,JZS155..RHD |
1 | ||
| 69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-30180 |
GS151,JZS155..RHD |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-3A040 |
GS151,JZS155..HT |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00227 |
GS151,JZS155..RHD SUB KEY,W(*68) |
1 | ||
| 90999-00226 |
GS151,JZS155..RHD MASTER KEY,W(*68) |
2 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00227 |
GS151,JZS155..RHD SUB KEY,W(*68) |
1 | ||
| 90999-00226 |
GS151,JZS155..RHD MASTER KEY,W(*68) |
2 | ||
| 69759G - SNAP, LUGGAGE DOOR LOCK CYLINDER | ||||
| 69759-24090 |
GS151,JZS155 |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-24110 |
GS151,JZS155..HT LH |
1 | ||
| 69759-24100 |
GS151,JZS155..HT RH |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-24110 |
GS151,JZS155..HT LH |
1 | ||
| 69759-24100 |
GS151,JZS155..HT RH |
1 | ||
| Common parts | ||||
| 90119-06137 | ||||
| 90151-40011 | ||||
| 91651-40612 | ||||
